- UL94 V0 Flame Retardant Certified: Meets UL-94 V0 standards for self-extinguishing safety - ideal for industrial or high-risk applications requiring flame resistance.

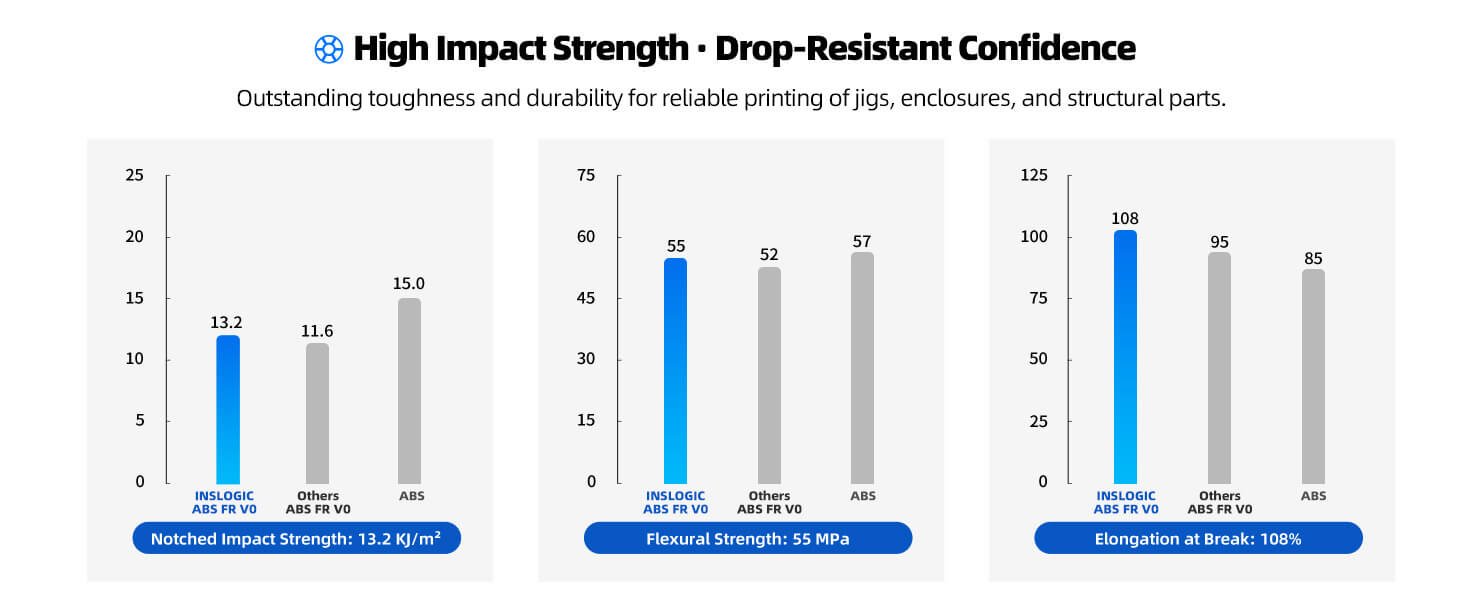

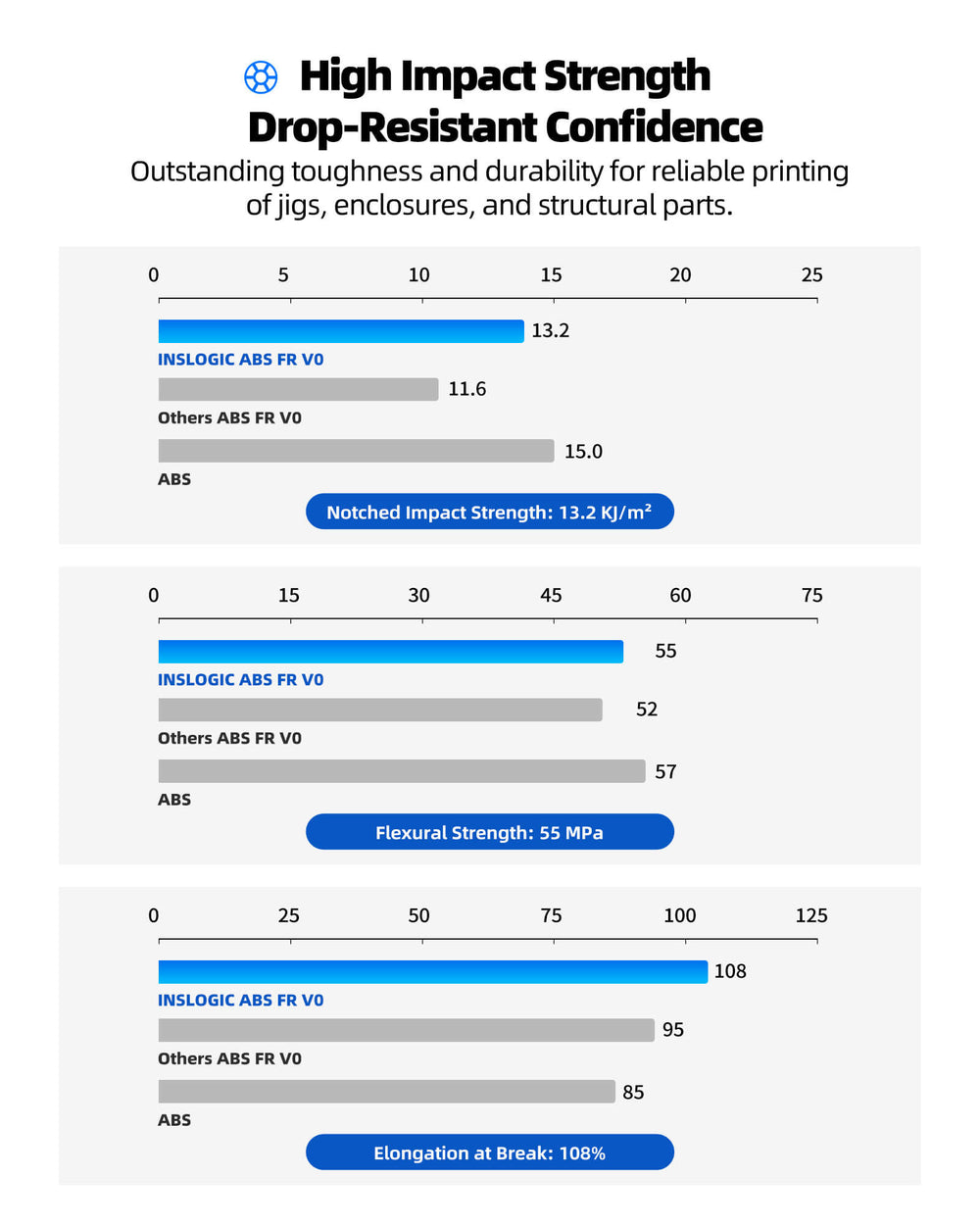

- High Impact Strength & Durability: With 13.2 KJ/m² notched impact strength and 108% elongation at break, it's tough enough for jigs, enclosures, and structural parts that must endure stress and drops.

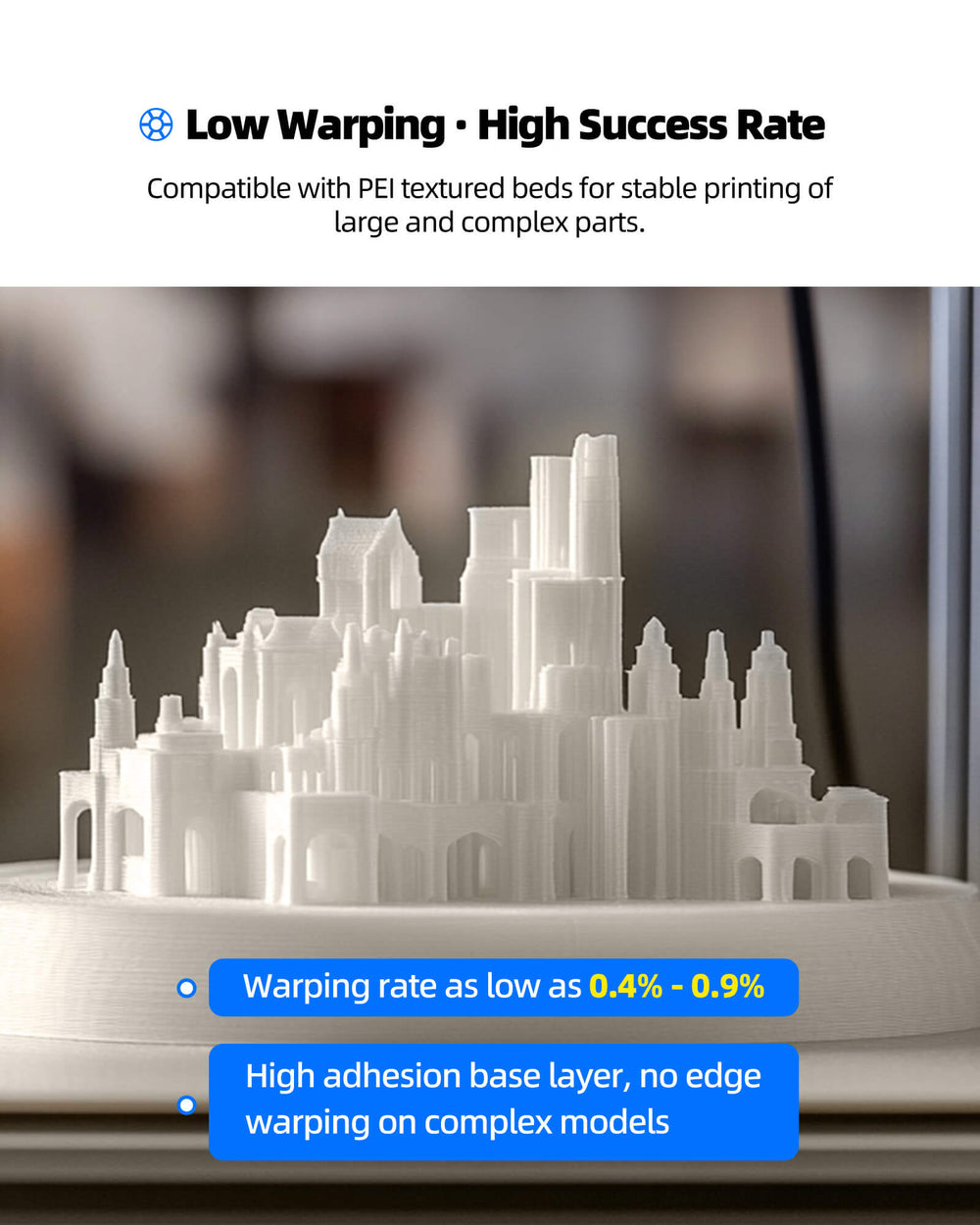

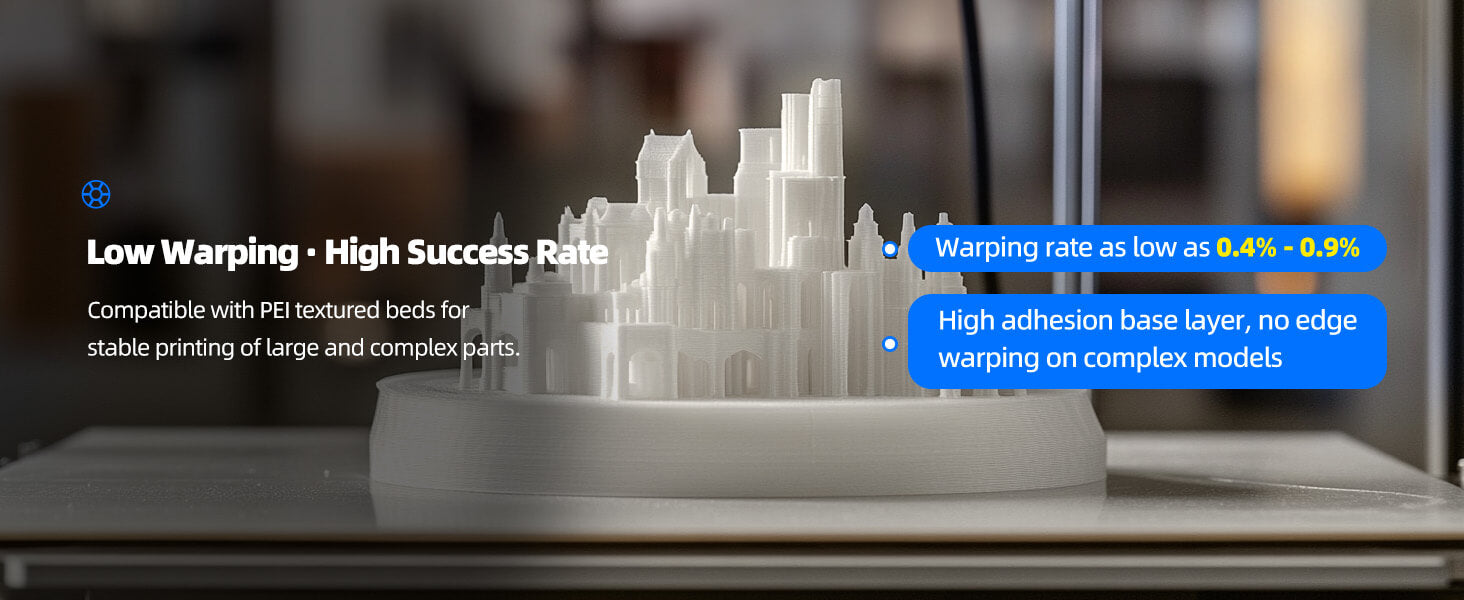

- Low Warping & Crack-Free Printing: Optimized for PEI beds, this filament ensures excellent bed adhesion and print stability - minimizing warping or cracking, even with large complex parts.

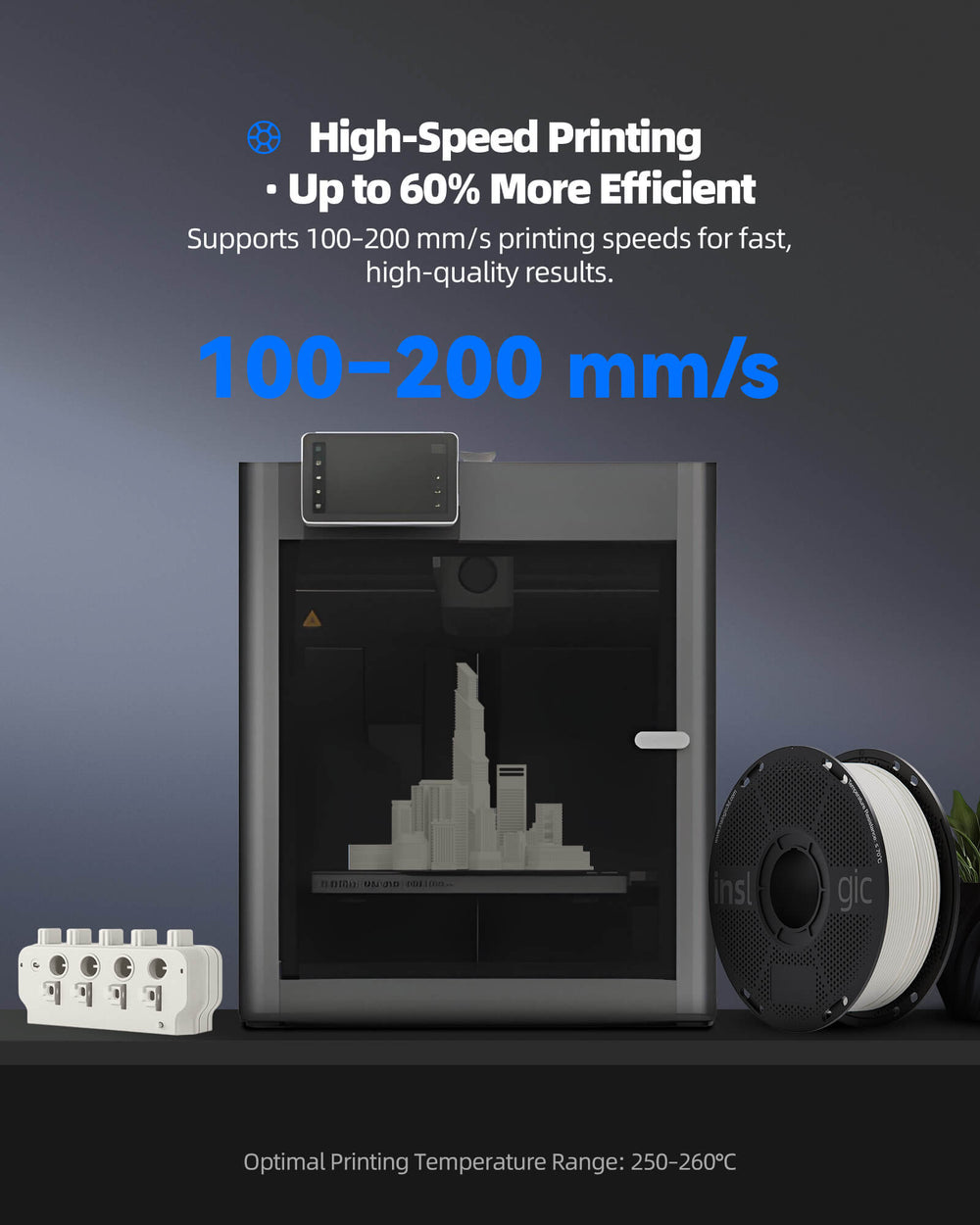

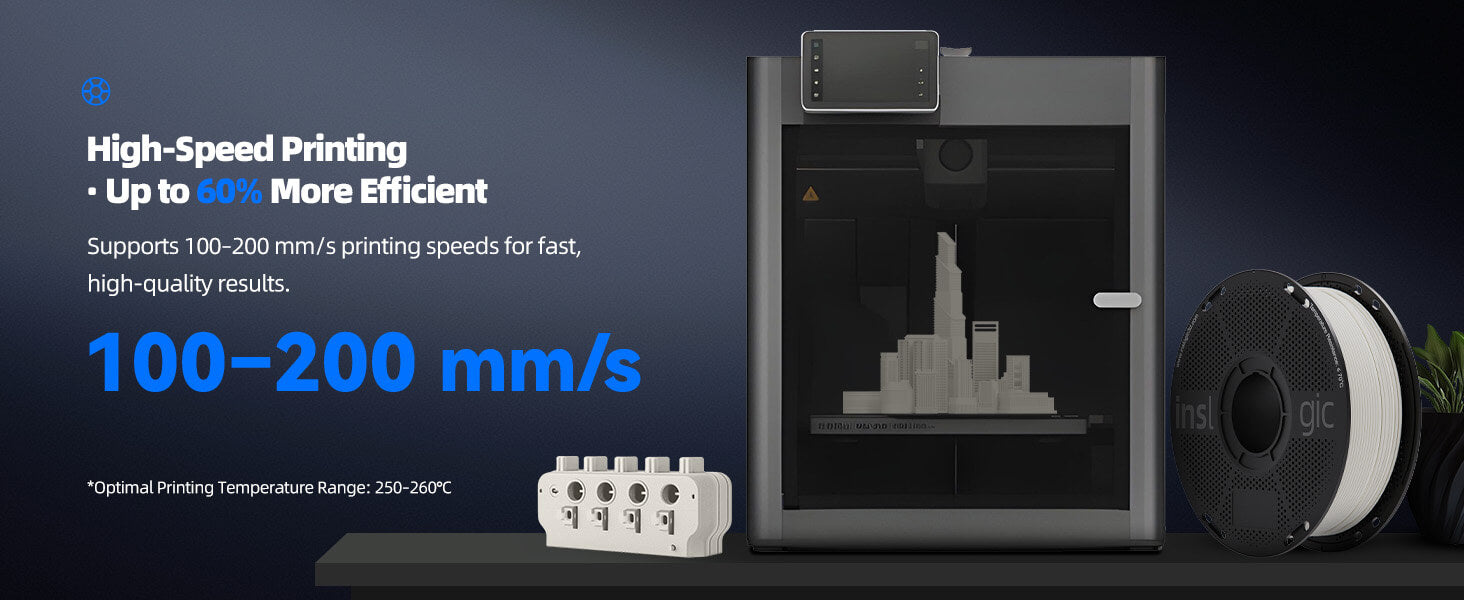

- High-Speed Printing Ready: Print up to 200 mm/s with consistent quality - accelerate workflows and increase production efficiency without sacrificing detail.

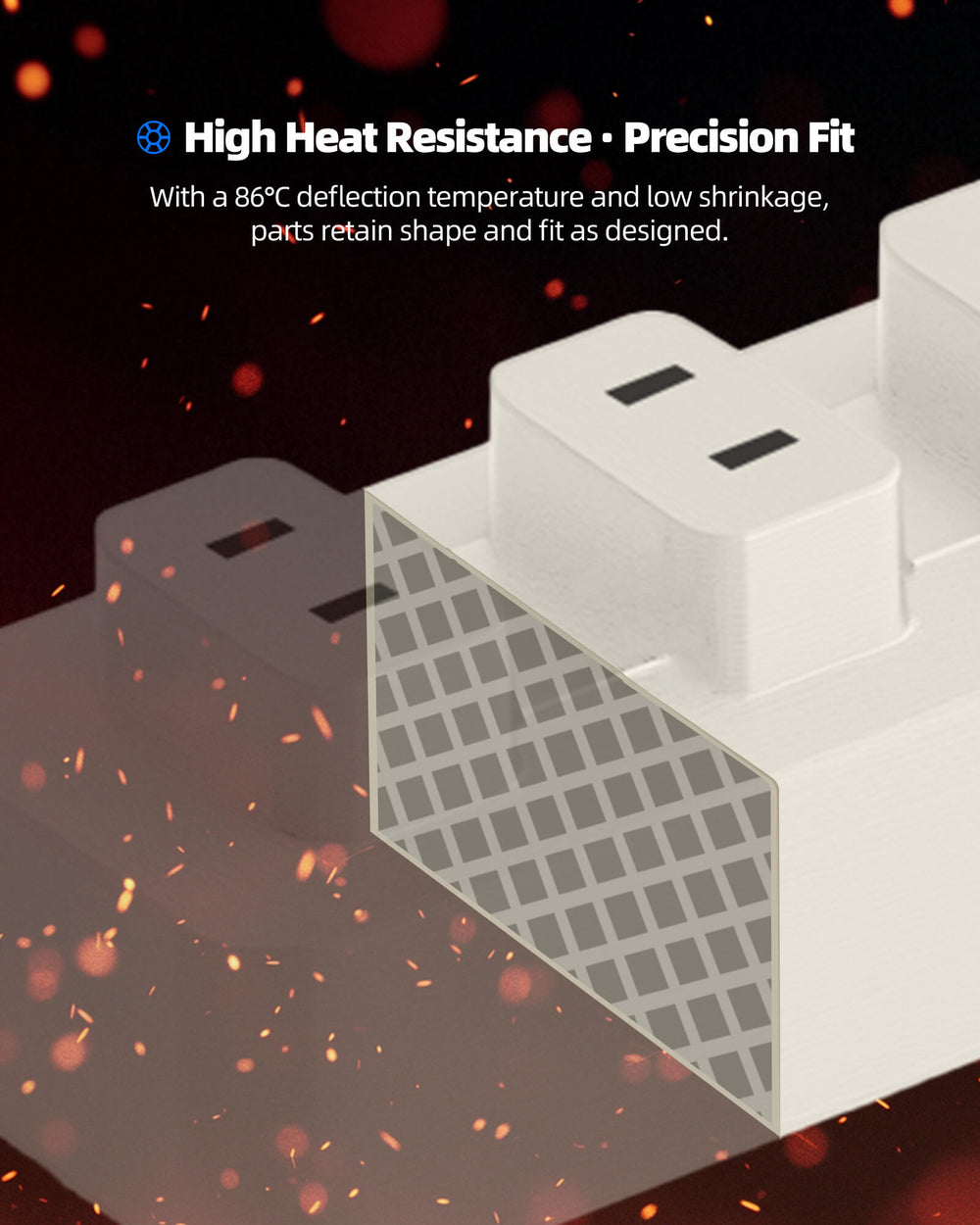

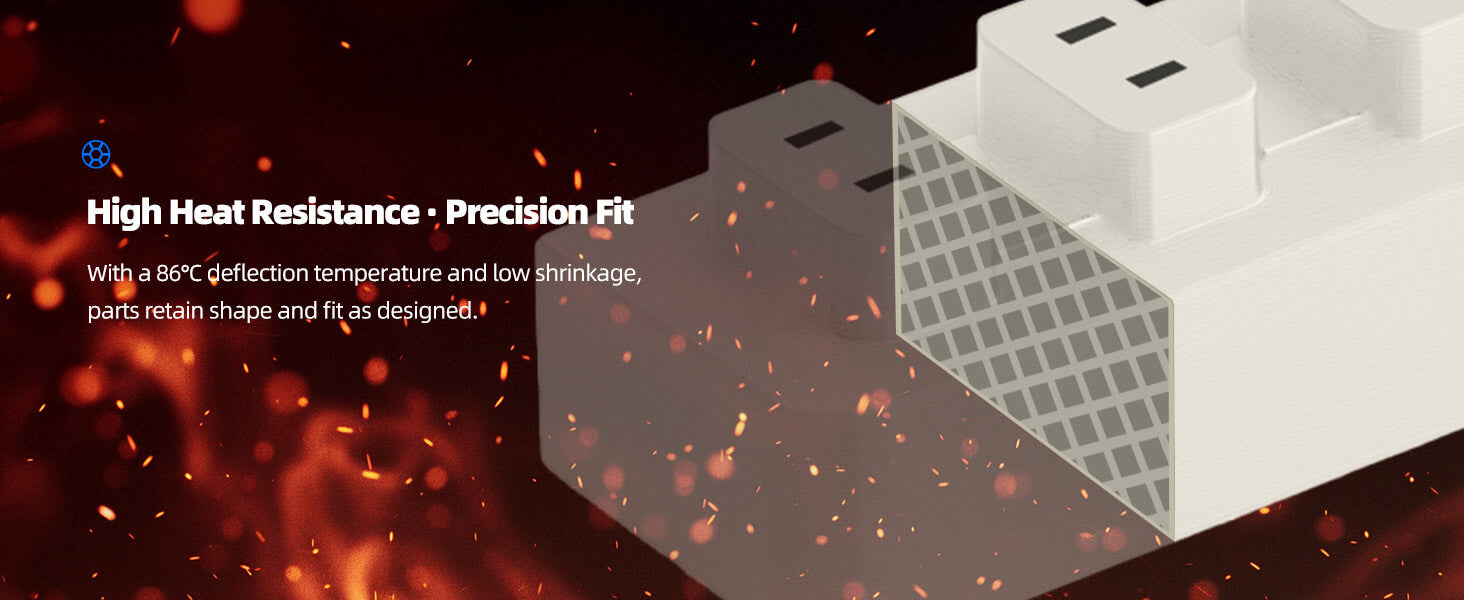

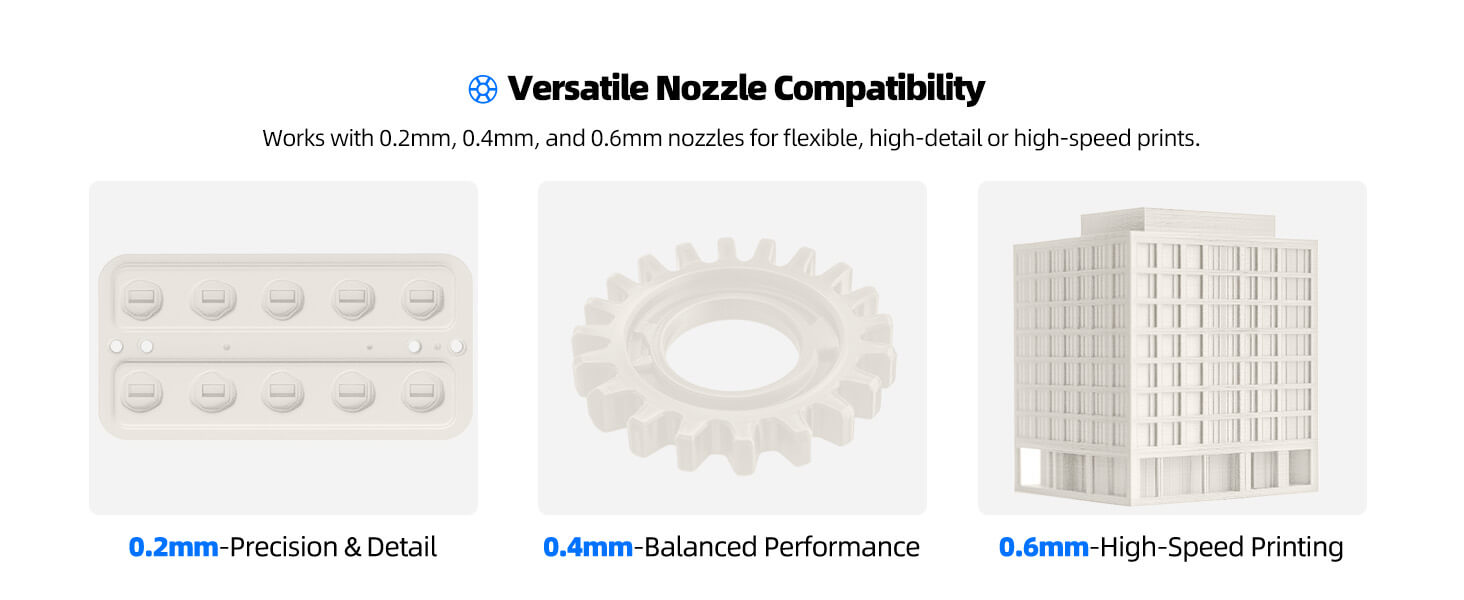

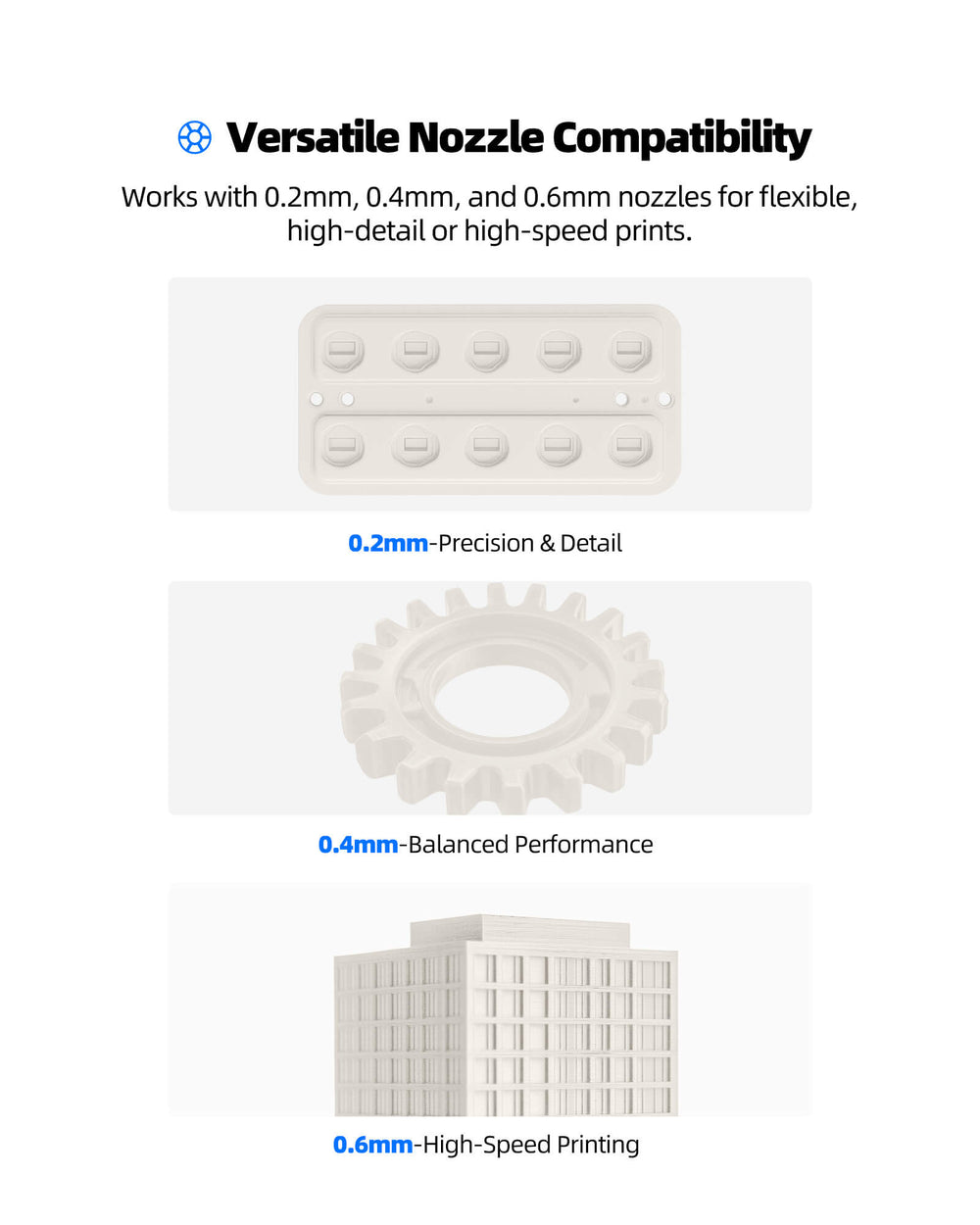

- Excellent Heat Resistance & Compatibility: Deflection temperature of 86°C with low shrinkage keeps parts dimensionally accurate. Compatible with 0.2/0.4/0.6mm nozzles for both high detail and fast prints.

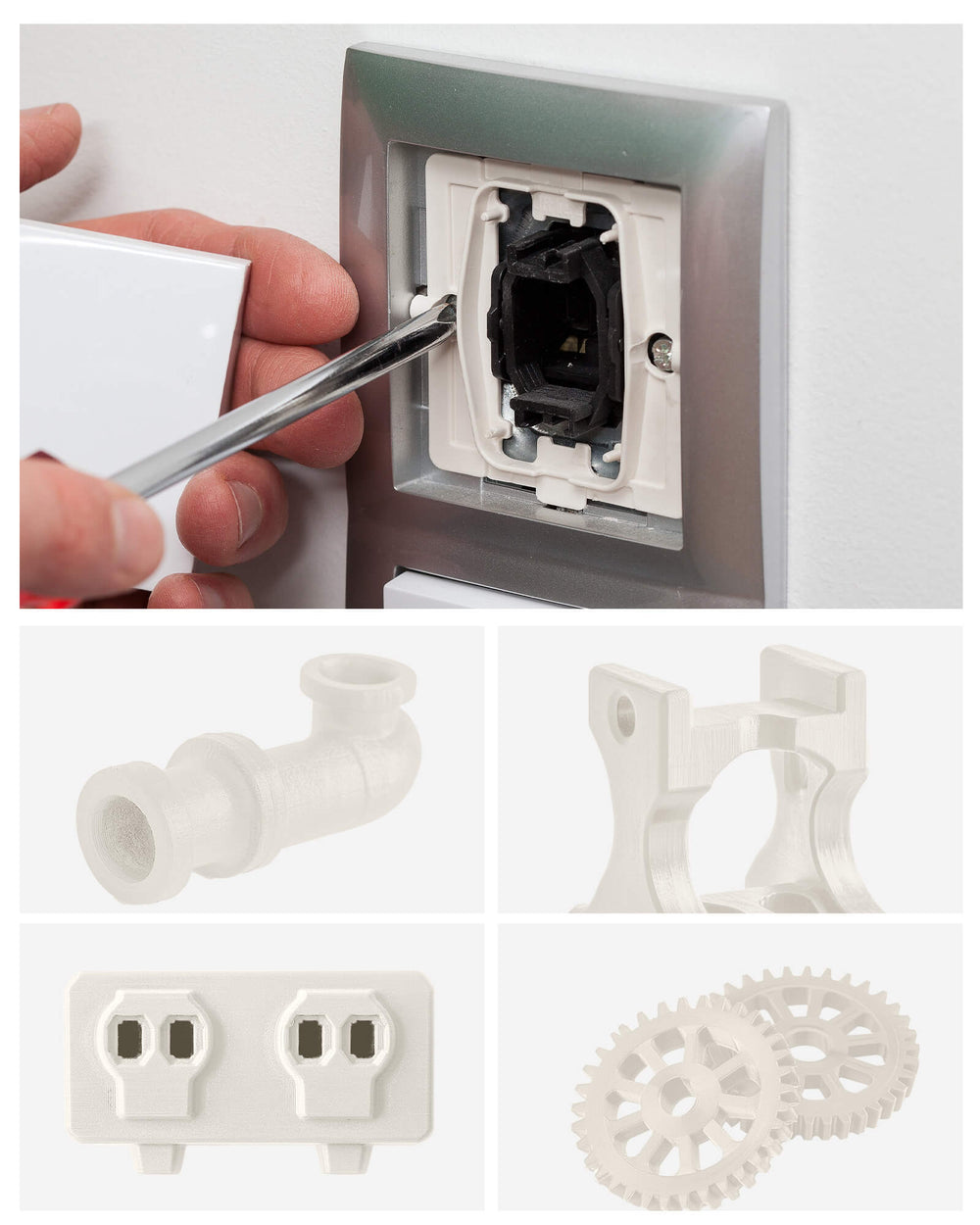

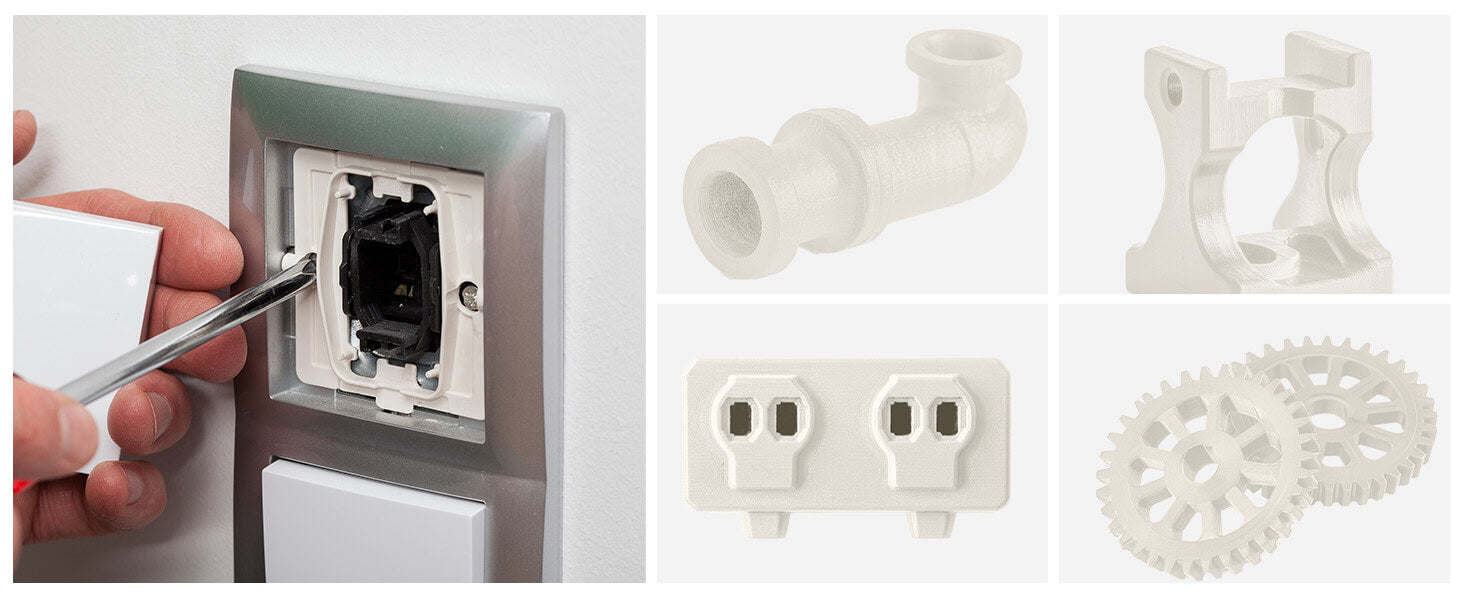

- Applications: Electrical housings, Connectors, Functional prototypes, Mechanical parts, Any part that requires thermal resistance properties
- All AMS Series NOT Compatible

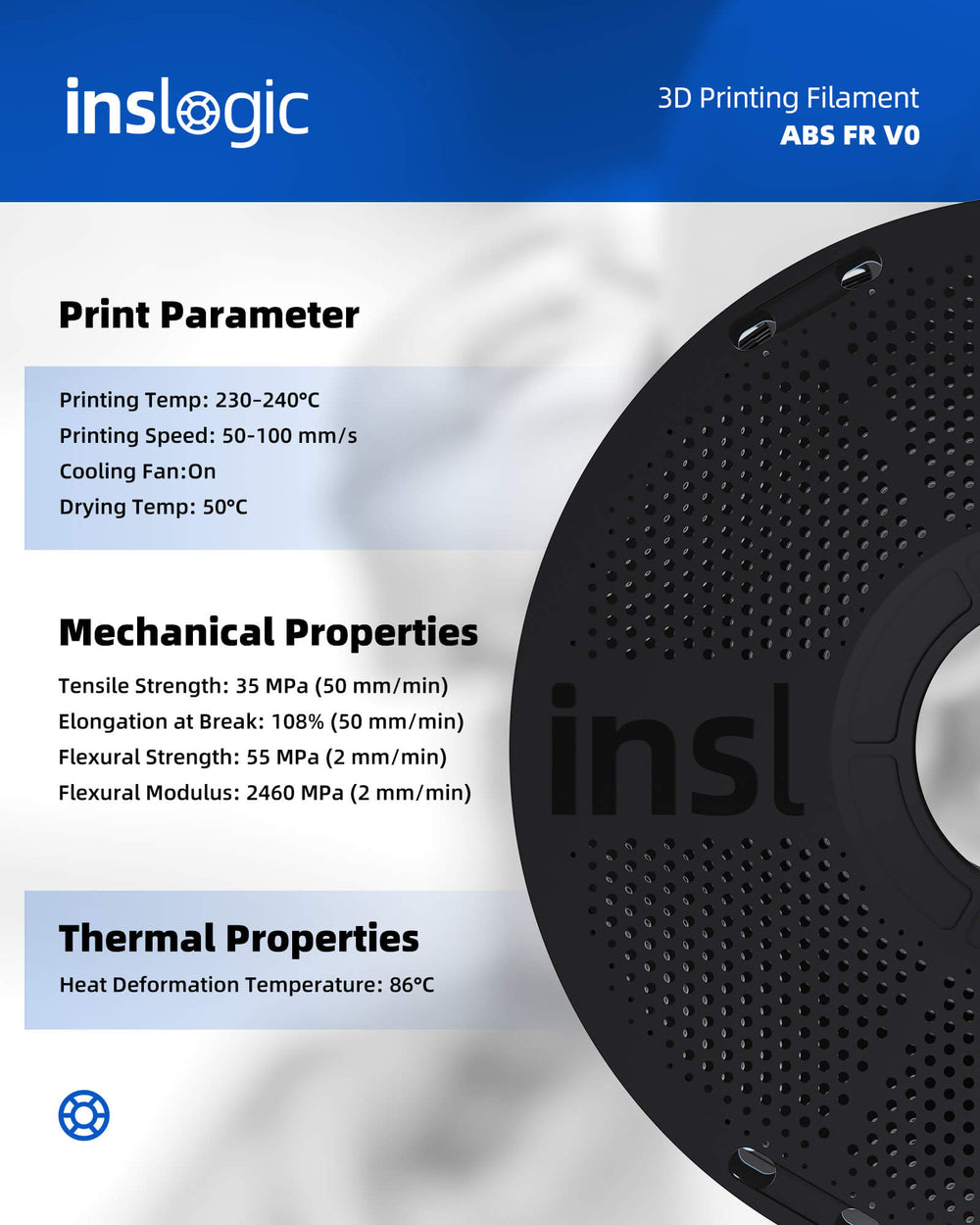

- Drying Settings: 50 °C for 4-6h
- Nozzle Size: 0.2, 0.4, 0.6 mm
- Nozzle Temperature & Printing Speed: 230-240 °C at 50-100 mm/s
- Bed Temperature: 80 - 100 °C
- Cooling Fan Speed: Off. Set the auxiliary part cooling fan to 20%
- Bed Type: Textured PEI Sheet
* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.

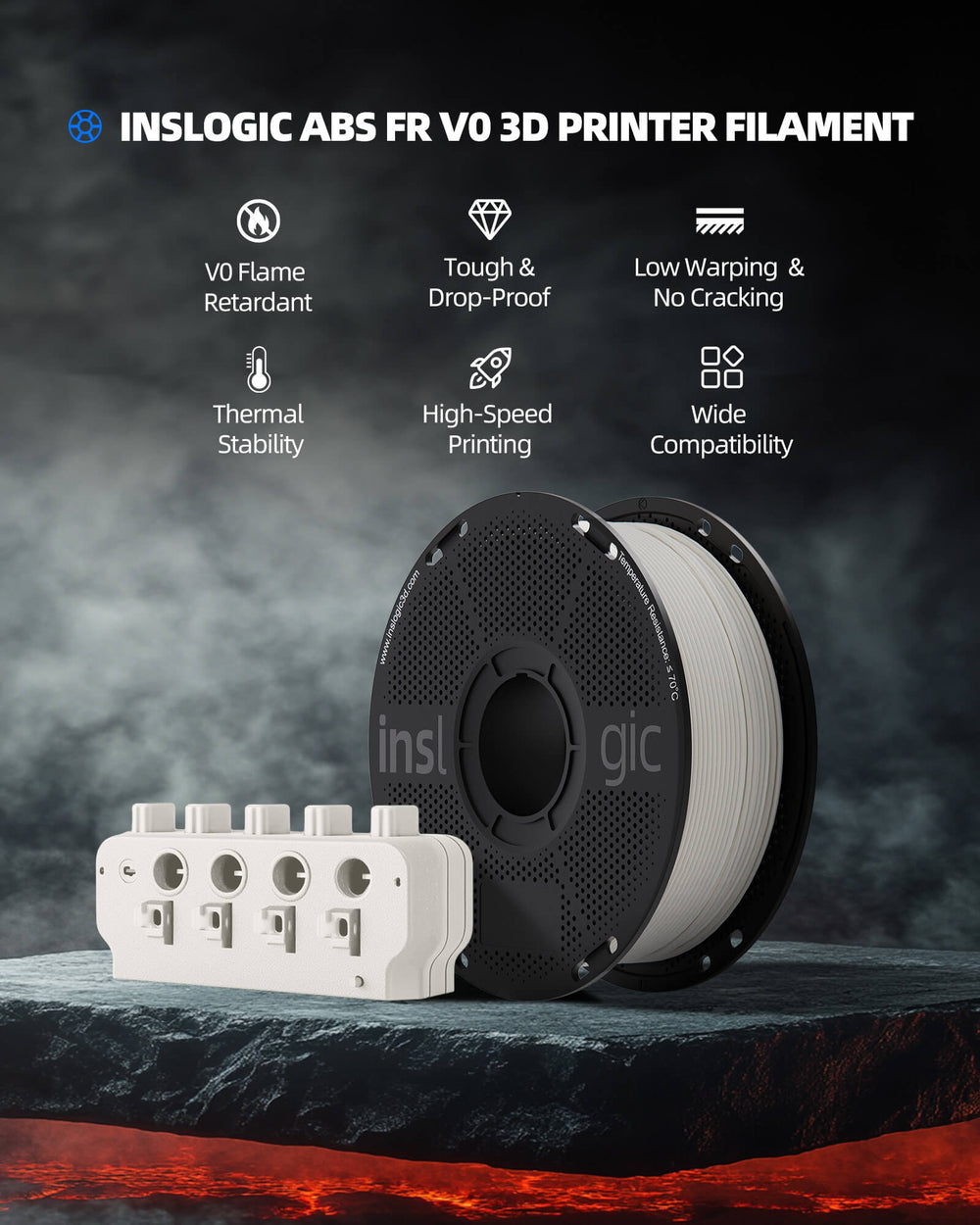

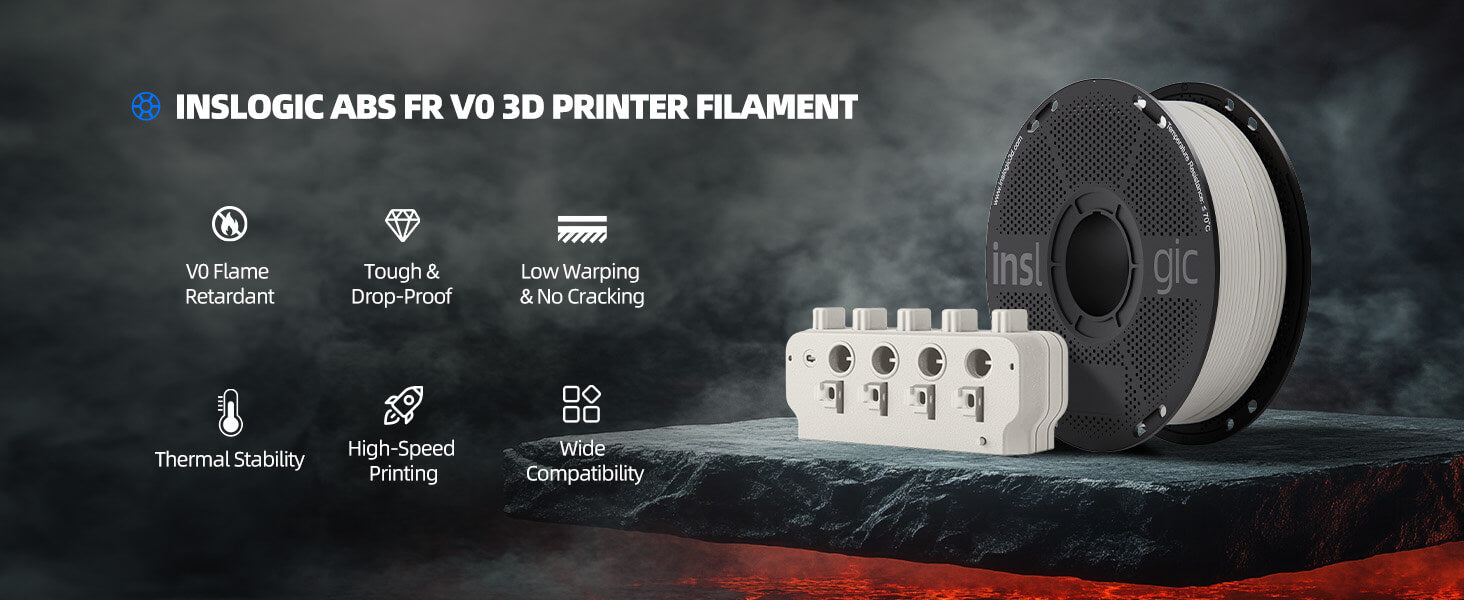

Inslogic ABS FR V0 Filament is a functional material, compatible with FDM 3D printers using 1.75 mm diameter filament with a precision of ±0.03 mm.

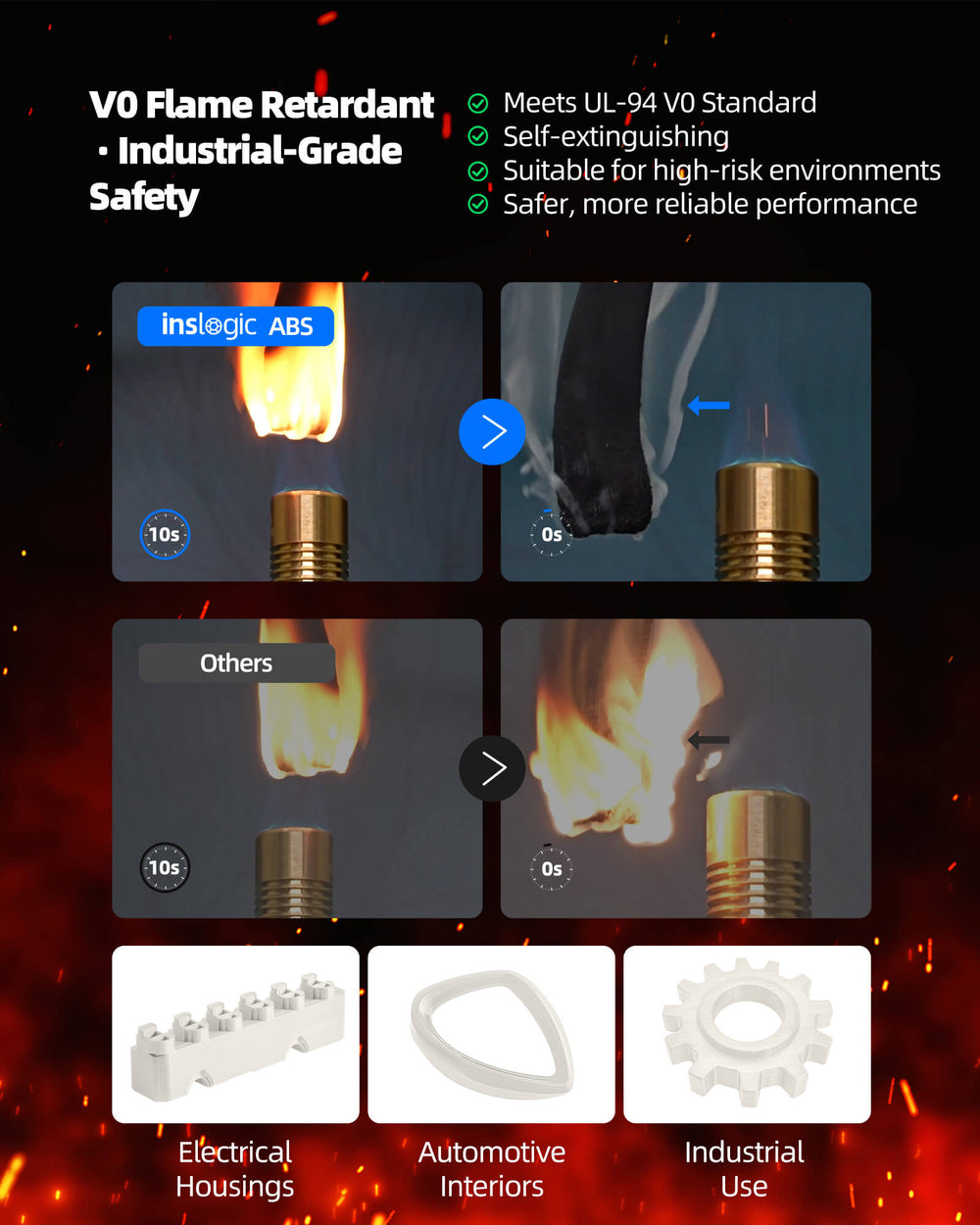

Inslogic ABS FR V0 Filament is UL94 V-0 certified, meeting one of the highest standards for flame resistance. This classification ensures that the material self-extinguishes quickly when exposed to flame, preventing sustained combustion.
Engineered to combine the strength and durability of ABS (Acrylonitrile Butadiene Styrene) with advanced flame-retardant properties, Inslogic ABS FR V0 is ideal for applications where both mechanical performance and fire safety are critical. Its outstanding toughness and reliability make it a top choice for industrial and consumer uses requiring enhanced protection against fire hazards.
- Length: 350 m
- Net Weight: 1 kg
- Diameter: 1.75 mm ± 0.03 mm

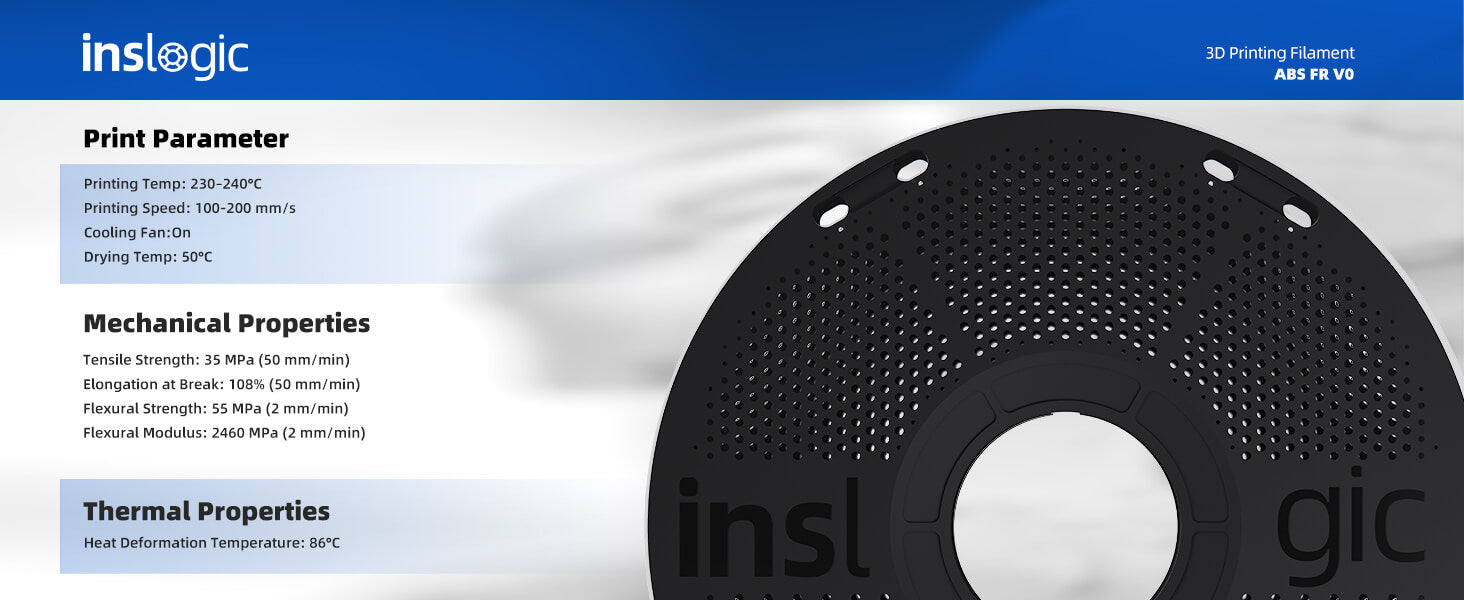

- Tensile Strength: 35 MPa
- Elongation at Break: 108%
- Flexural Strength: 55 Mpa
- Flexural Modulus: 2460 Mpa
- Izod Impact, Notched: 13.2 KJ/m²
- Density: 1.1 g/cm³
- Heat Deflection Temperature at 0.45 MPa: 86 ℃
1 kg Reusable Spool Specifications:
- Materials: ABS
- Color: Black
- Temperature Resistance: ≤70℃
- Spool & Cardboard Coil Weight: 232 ± 3 g
- Inner Hole Diameter: 55±0.1 mm
- Outer Diameter: 200±0.1 mm
- Width: 67±0.1 mm
* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.
