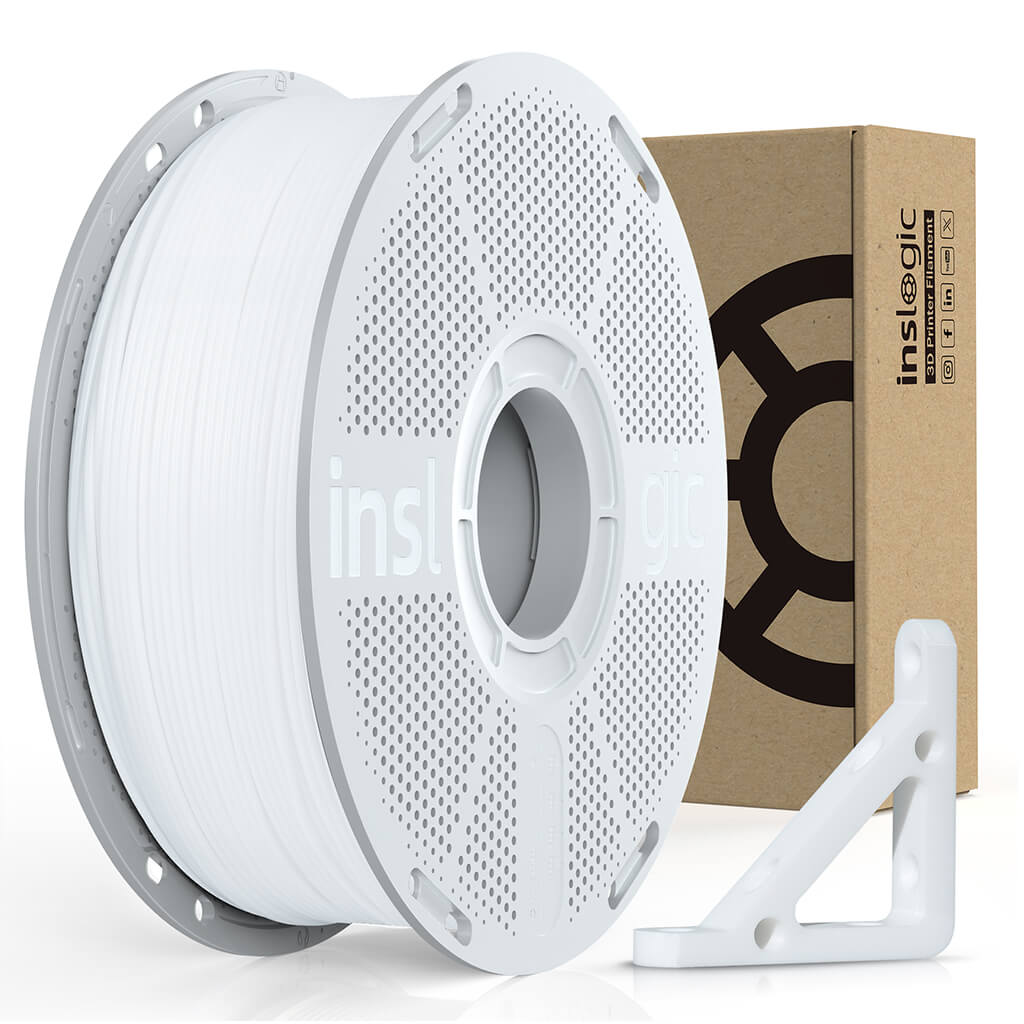

Inslogic PC(Polycarbonate) Filament 1.75mm
Choose options

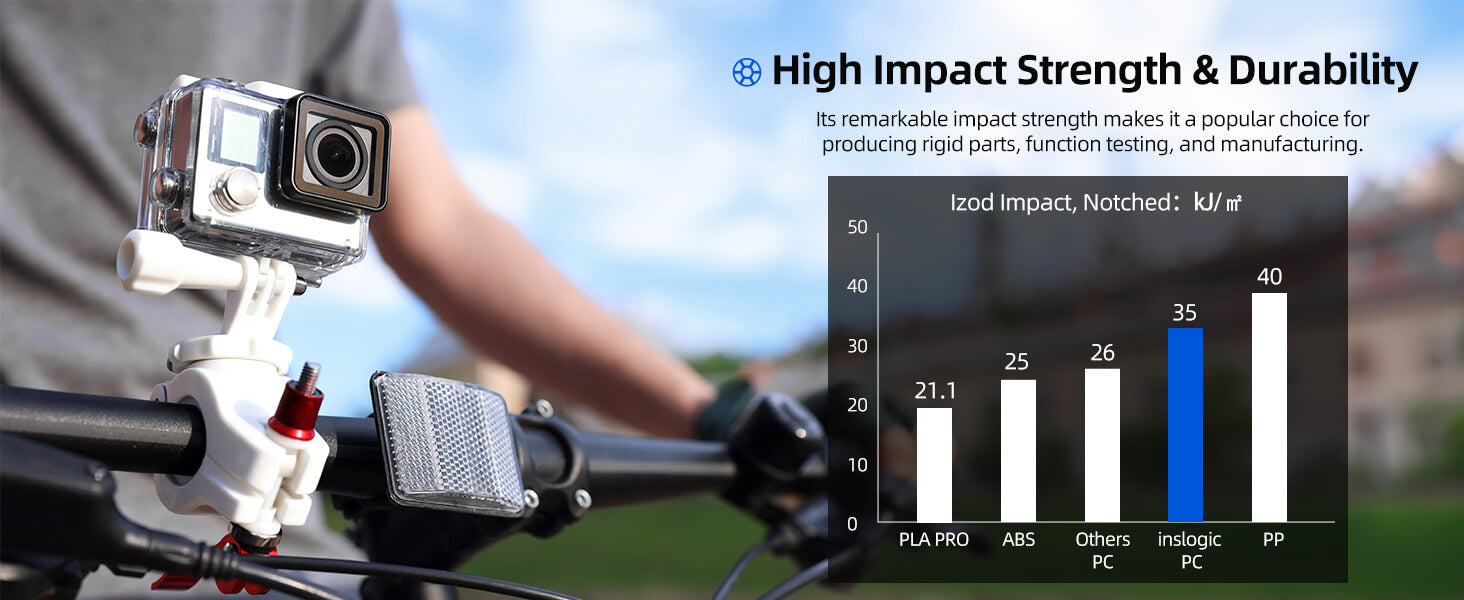

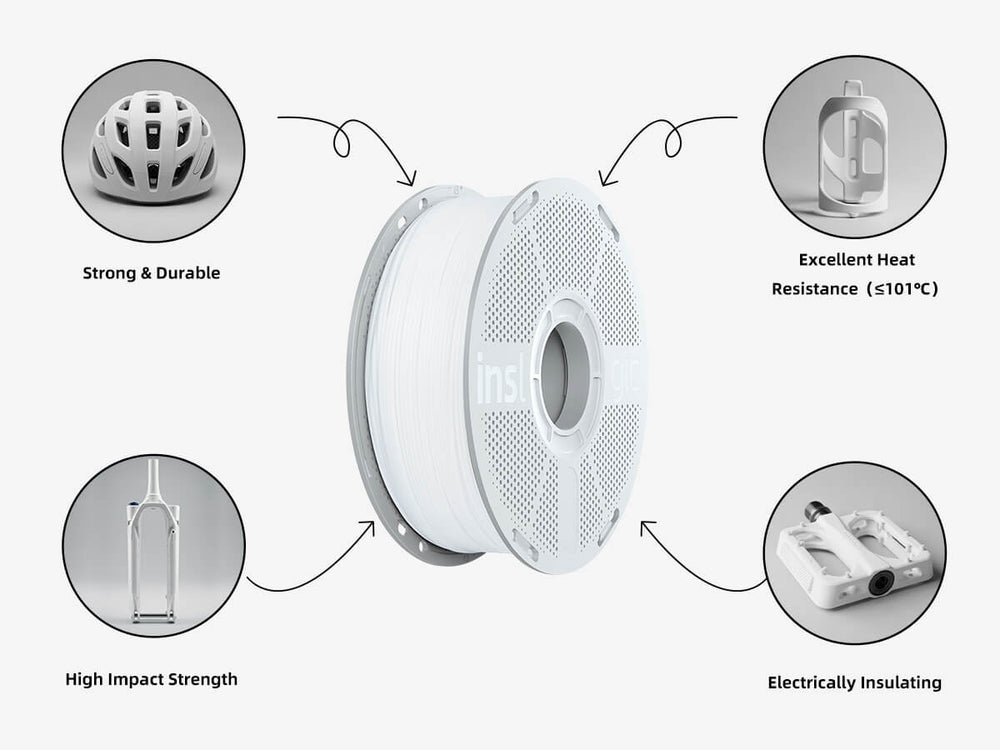

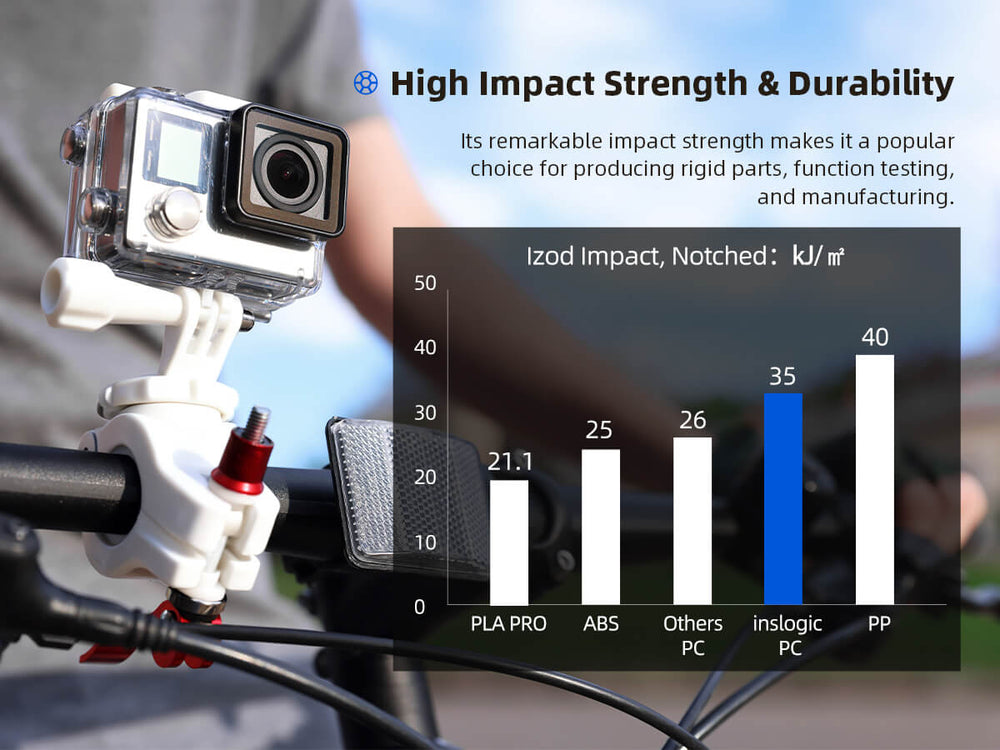

- High Impact Strength & Durability: Its remarkable impact strength makes it a popular choice for producing rigid parts.

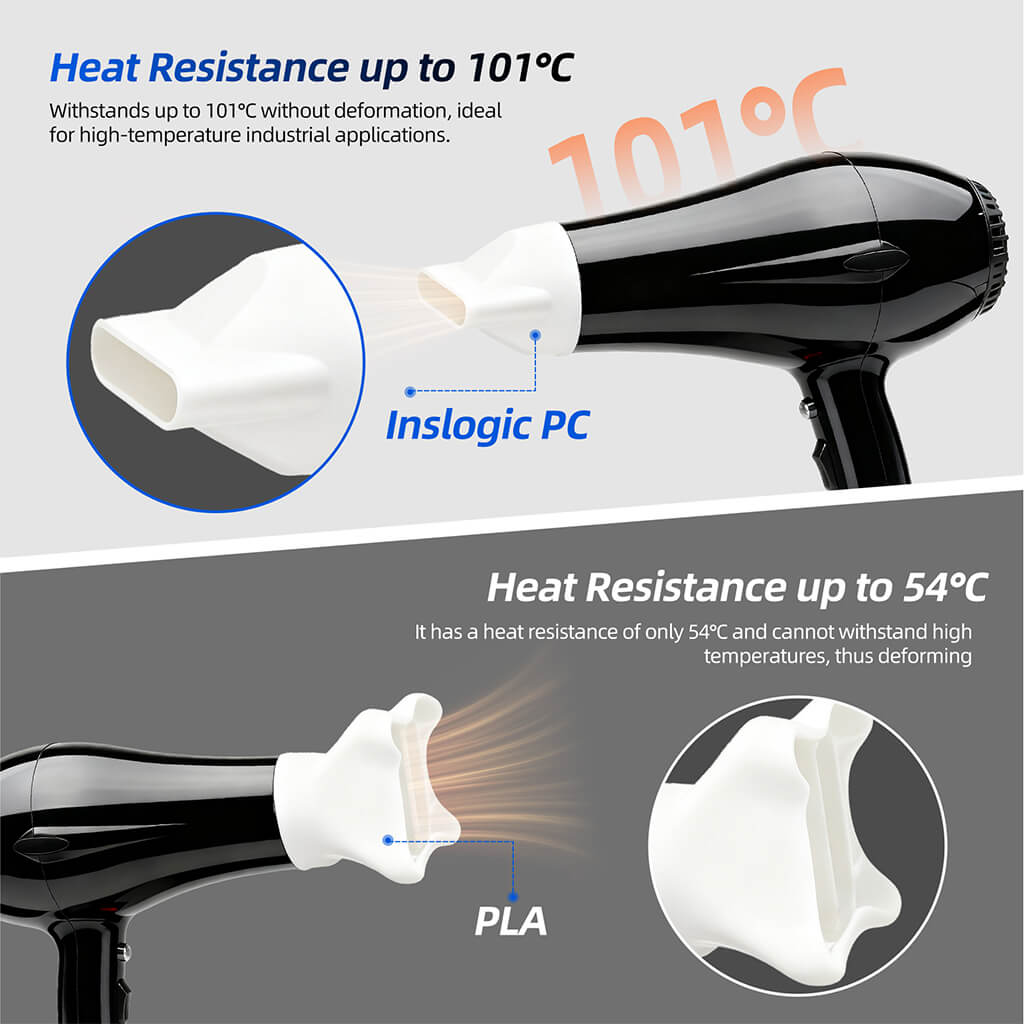

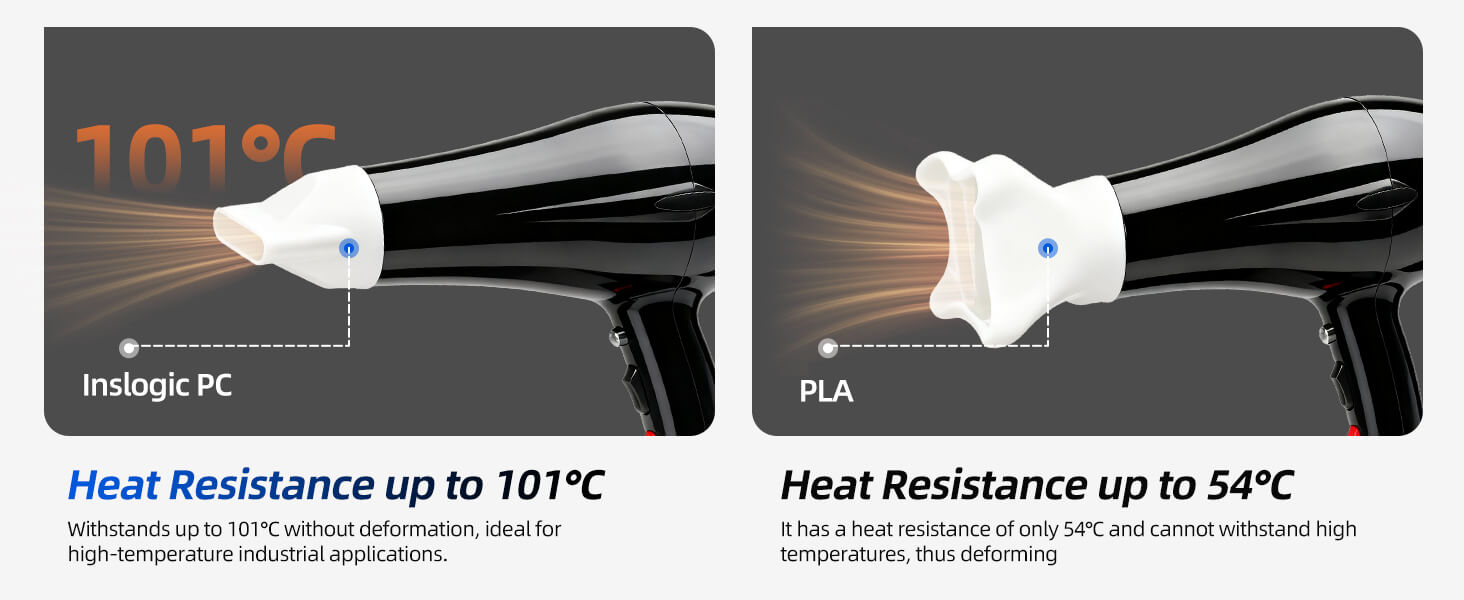

- Heat Resistance up to 101°C: Withstands up to 101℃ without deformation, ideal for high-temperature industrial applications.

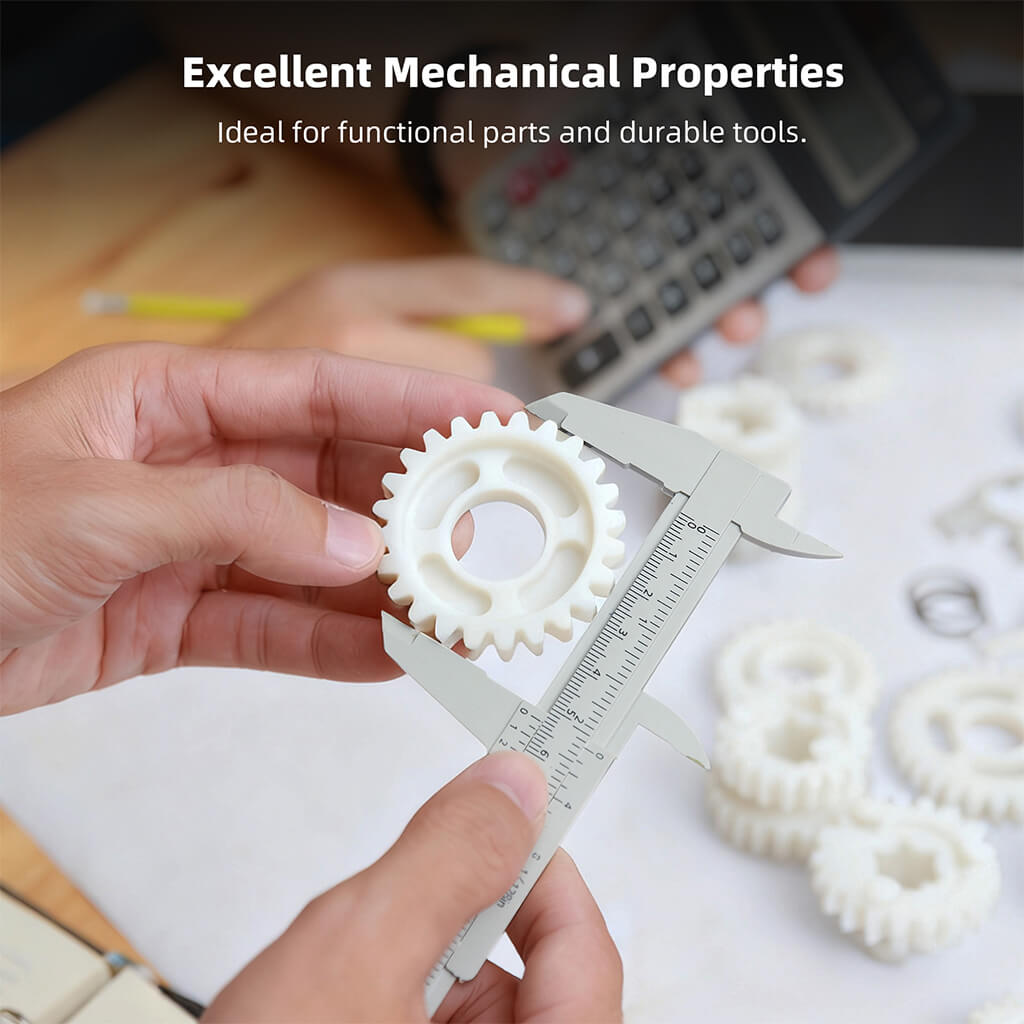

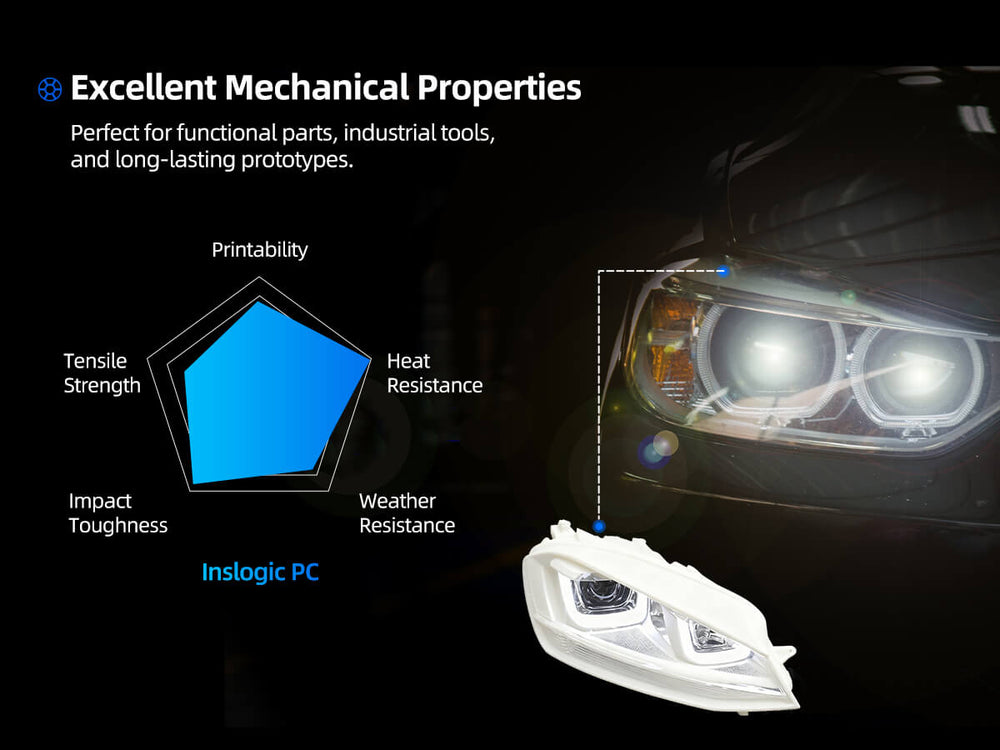

- Excellent Mechanical Properties: Ideal for functional parts and durable tools.
- Good Electrical Insulation Properties: Making it suitable for low-volume and customized production parts in electrical applications.

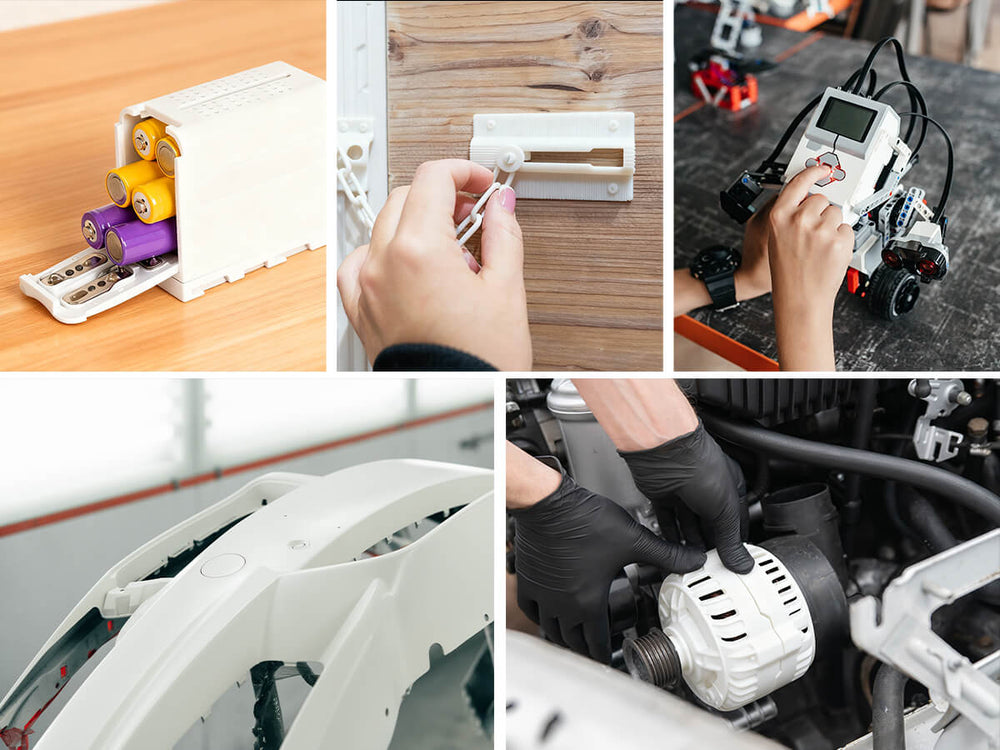

- Applications: Electronic Housings, Tool Fixtures, Automotive Manufacturing, Aerospace
- Order Delivery Time:
- Germany: 1-3 business days
- United States: 3-7 business days
- United Kingdom: 2-4 business days
- Other Europe Country: 3-10 business days

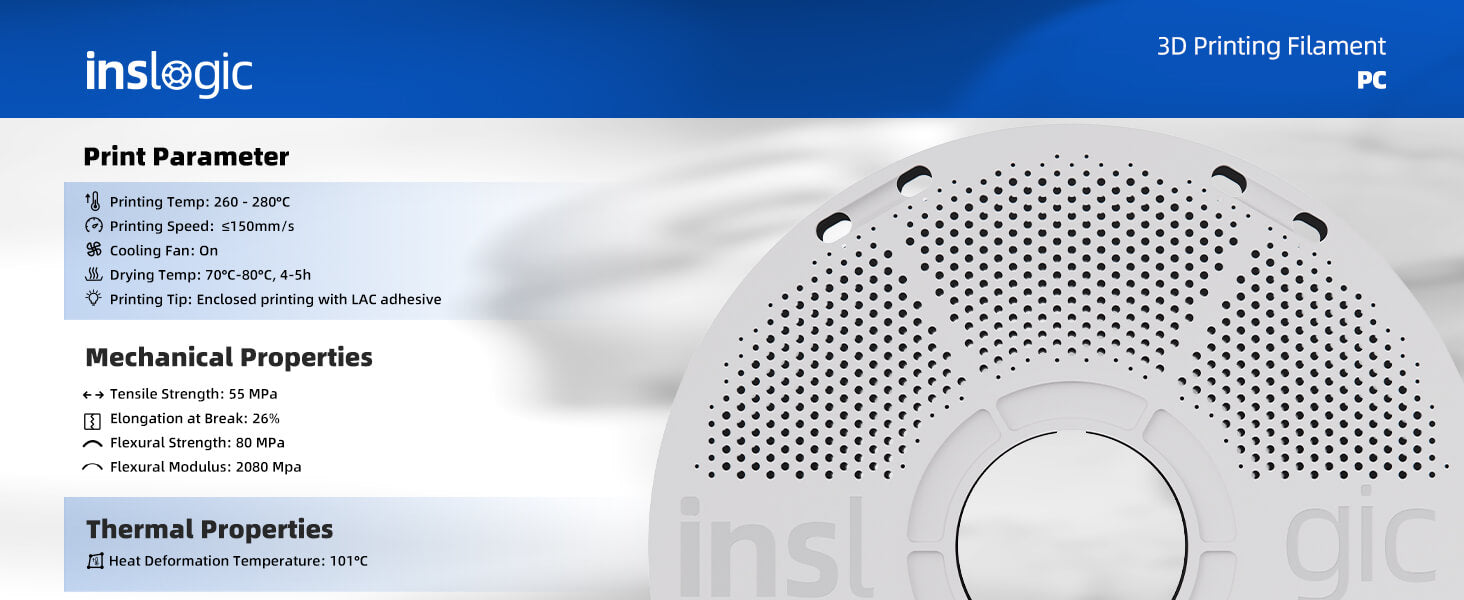

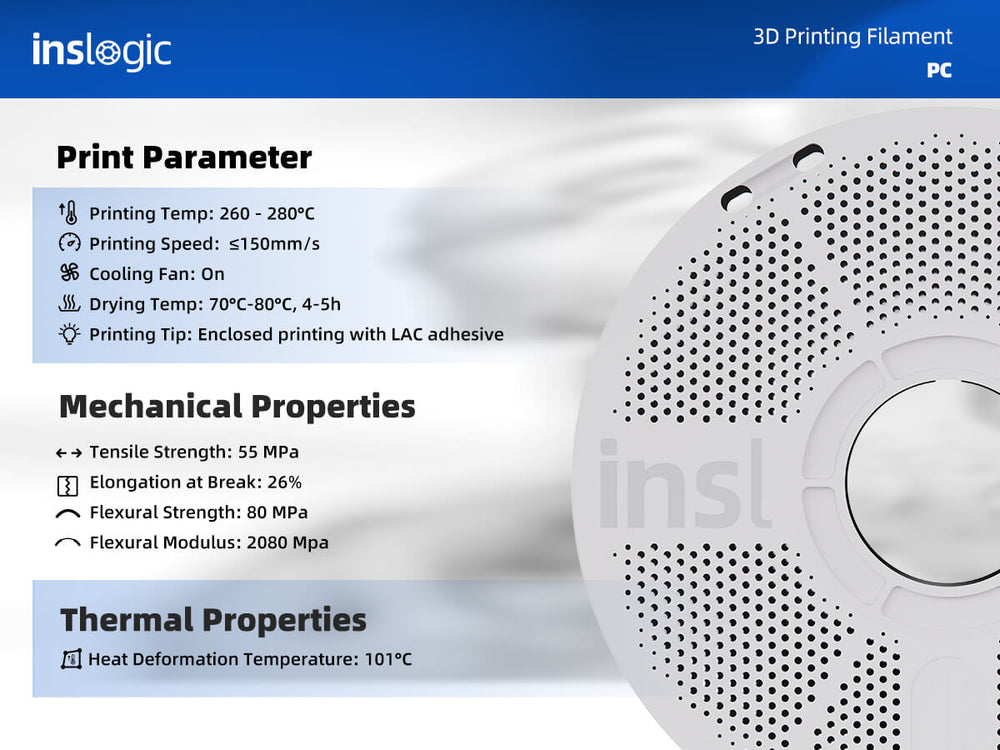

- Drying Settings: 70-80°C, 4-5h
- Nozzle: Hardened steel nozzle with a diameter of 0.4 or 0.6 mm
- Nozzle Temperature & Printing Speed: 260-280 °C, ≤150 mm/s
- Bed Temperature: 100 - 110°C
- Cooling Fan Speed: on
- Bed Type: Textured PEI Sheet
* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.

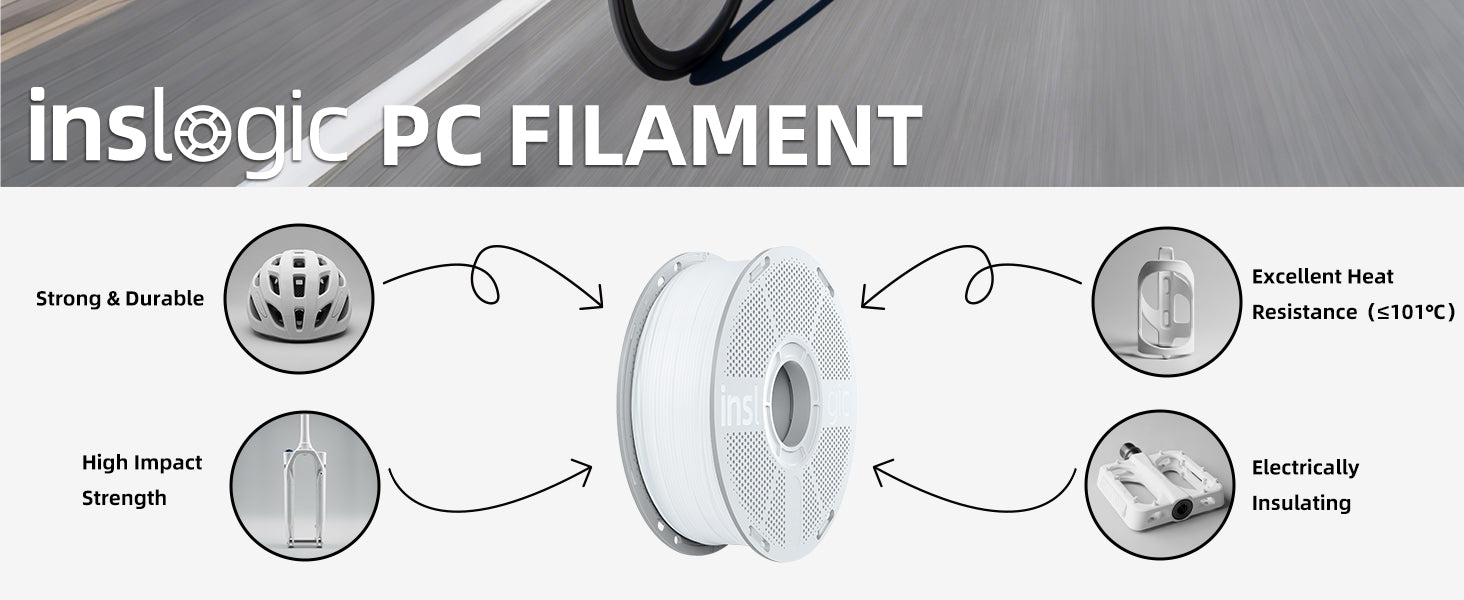

Inslogic PC (Polycarbonate) Filament is an engineering-grade material, compatible with FDM 3D printers using 1.75 mm diameter filament with a precision of ±0.03 mm.
PC is a robust thermoplastic 3D printing filament known for its excellent impact resistance, high stiffness, and heat resistance. This makes it capable of absorbing impact, preventing deformation or cracks, and maintaining stability even under high temperatures. With a heat resistance of up to 101 °C, PC performs admirably in high-temperature environments. Its remarkable impact strength makes it a popular choice for producing rigid parts, function testing, and manufacturing.
Inslogic PC filament, a robust thermoplastic material, is suitable for a wide range of everyday applications. Its combination of good electrical insulation and heat resistance makes it ideal for lighting, electrical, and electronic equipment, including 3D printed circuit boards, extension cords, and lampshades.
PC absorbs moisture from the air as it is a hygroscopic material. It is advisable to dry it before use and store it in an airtight container when not in use.
- Length: 330 m
- Tensile Strength: 55 MPa
- Elongation at Break: 26%
- Flexural Strength: 80 Mpa
- Flexural Modulus: 2080 Mpa
- Density: 1.15 g/cm³
- Izod Impact, Notched: 38 KJ/m²
- Heat Deflection Temperature at 0.45 MPa: 101 ℃
--------------------

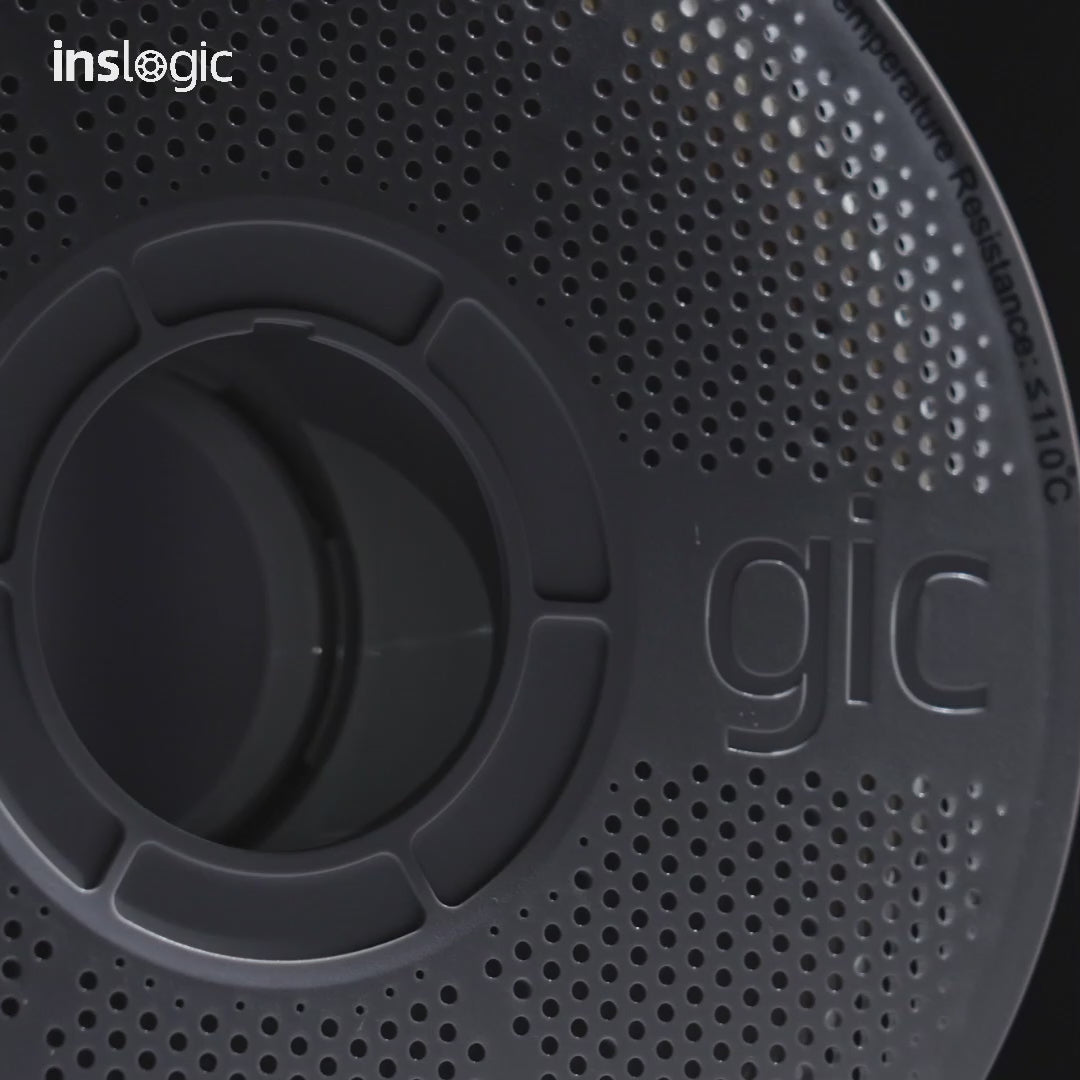

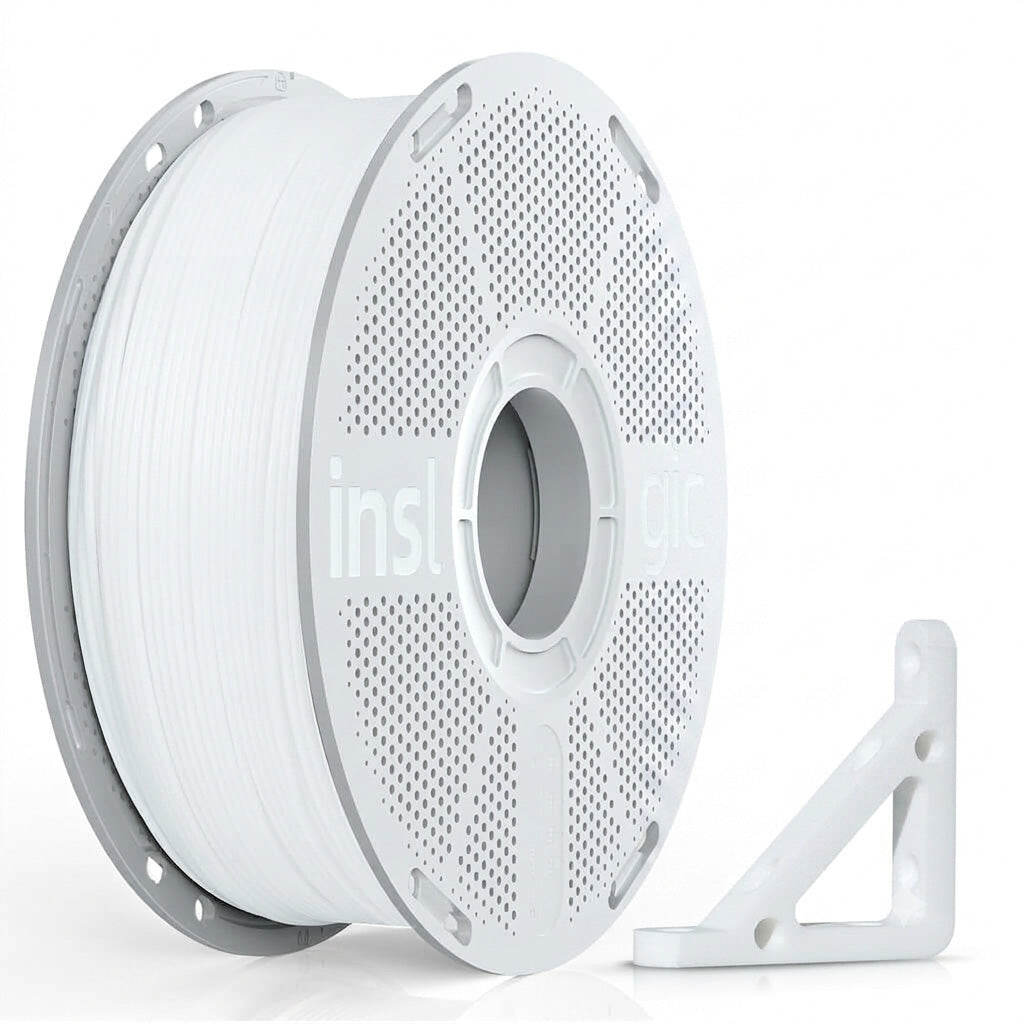

1 kg Reusable Spool Specifications:
- Materials: PC
- Color: White grey
- Temperature Resistance: ≤110℃
- Spool & Cardboard Coil Weight: 232 ± 3 g
- Inner Hole Diameter: 55±0.1 mm
- Outer Diameter: 200±0.1 mm
- Width: 67±0.1 mm
* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.
