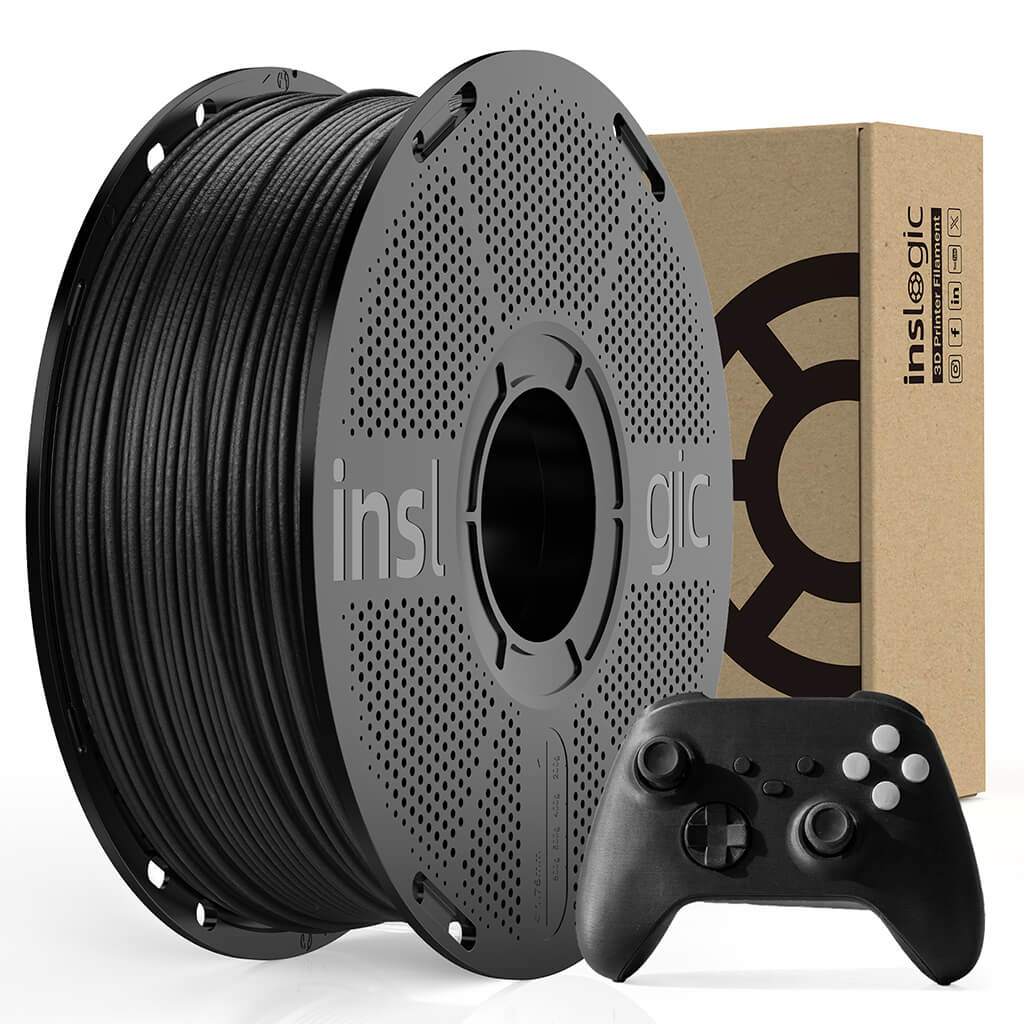

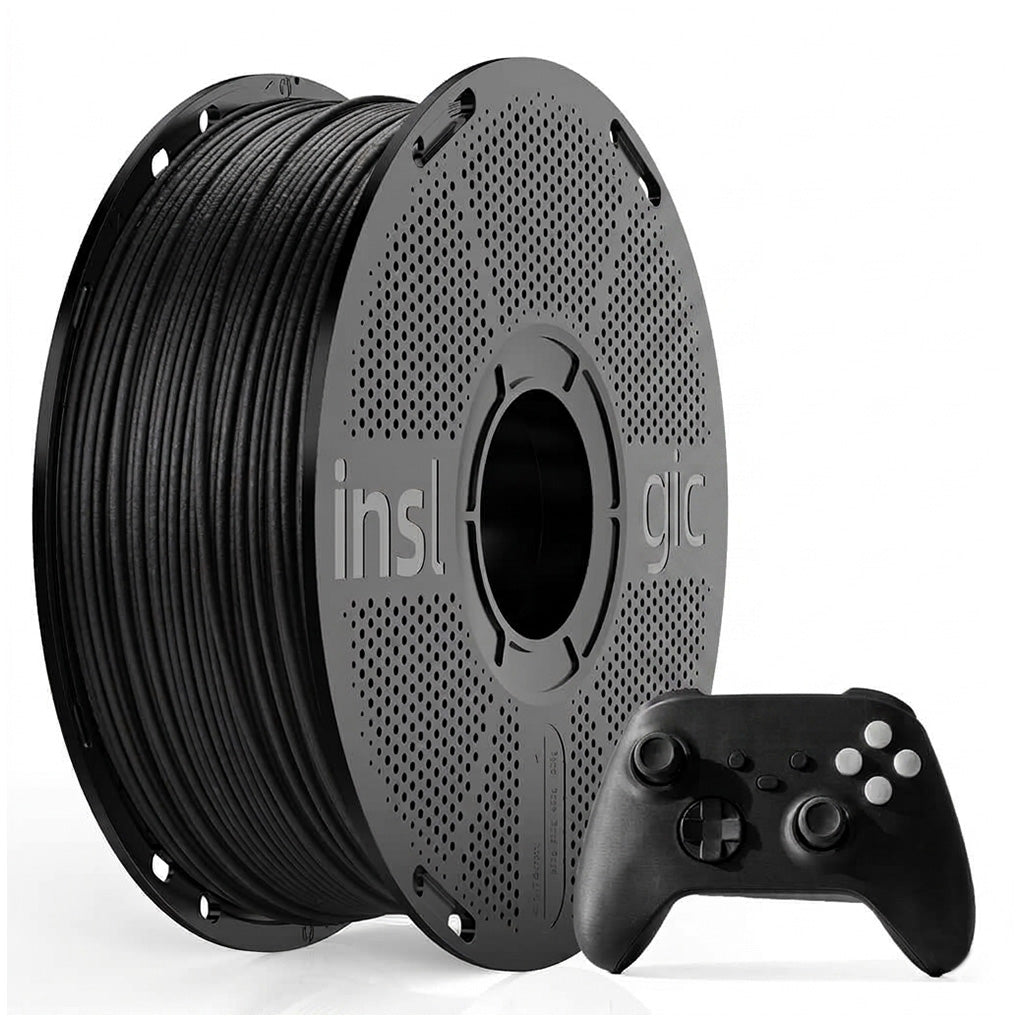

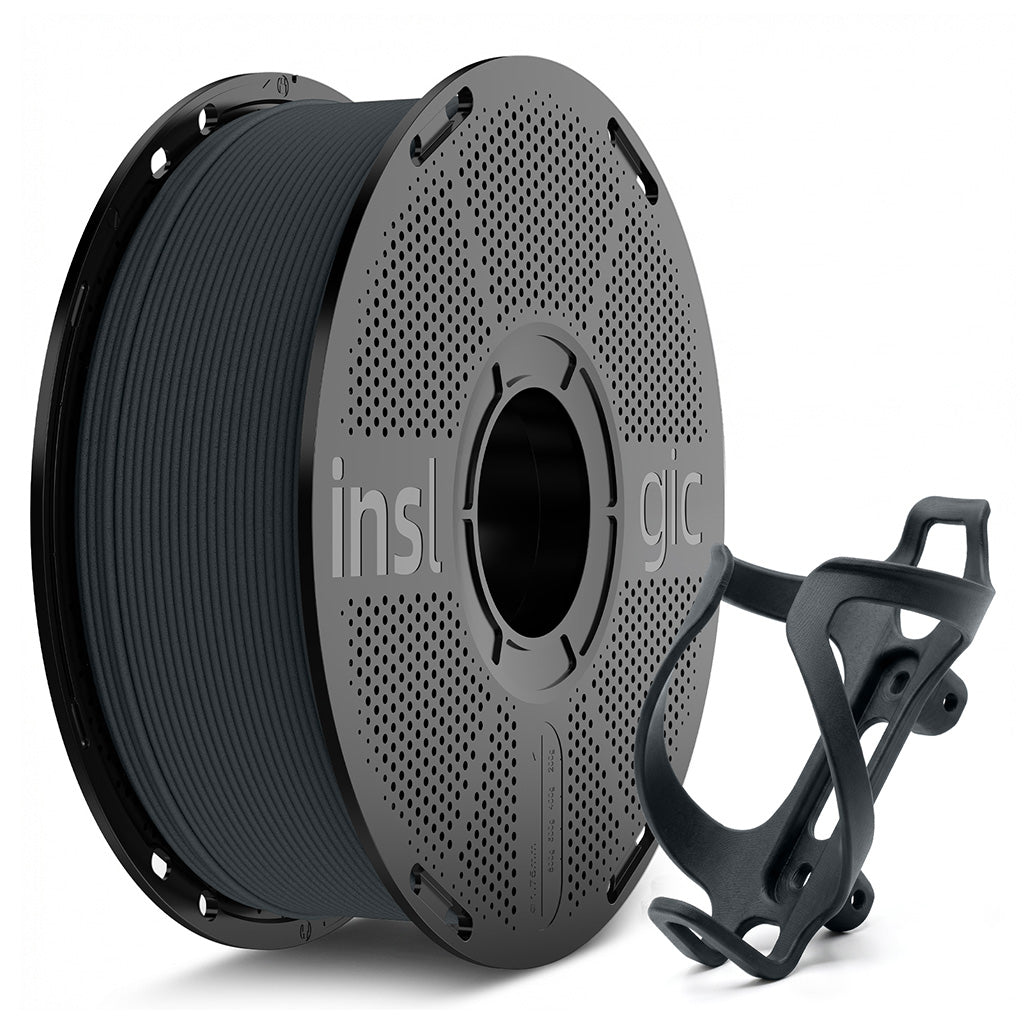

Inslogic PETG-CF10 Filament 1.75mm
Choose options

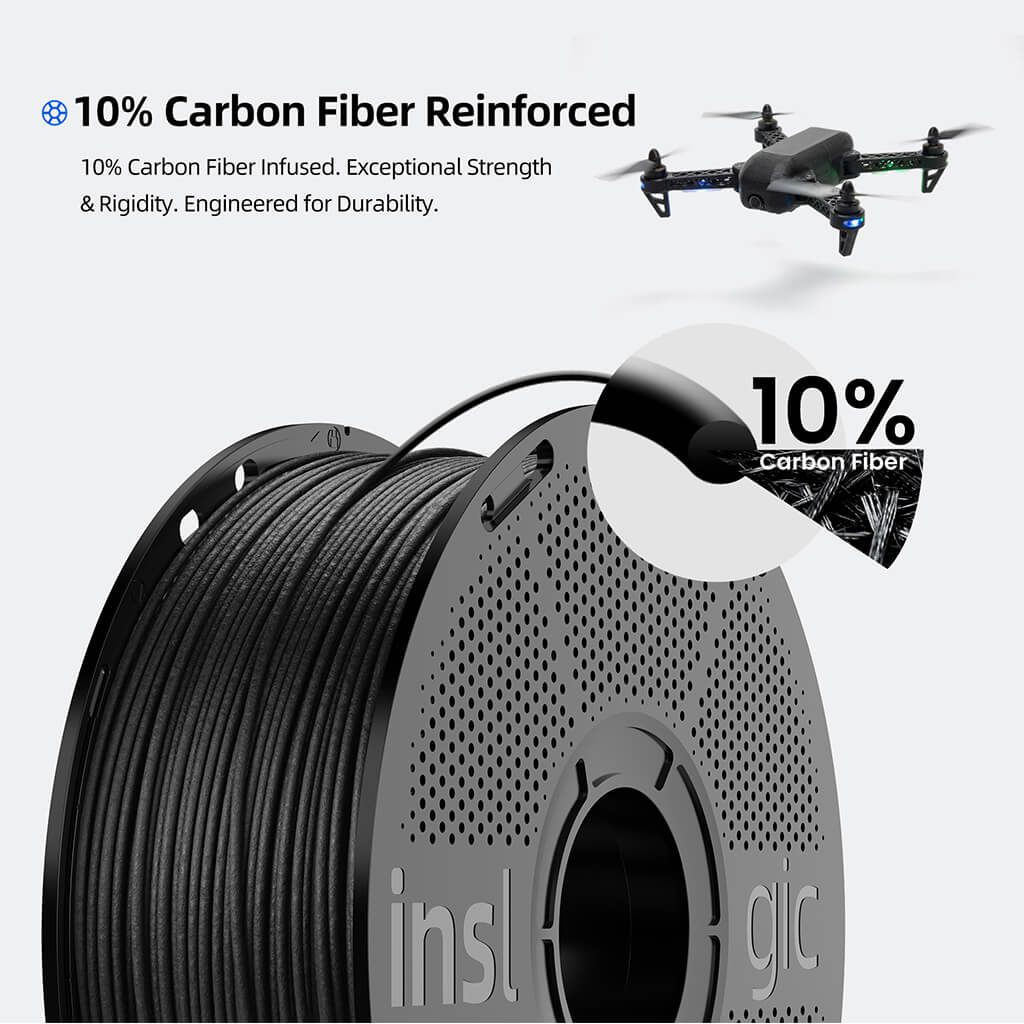

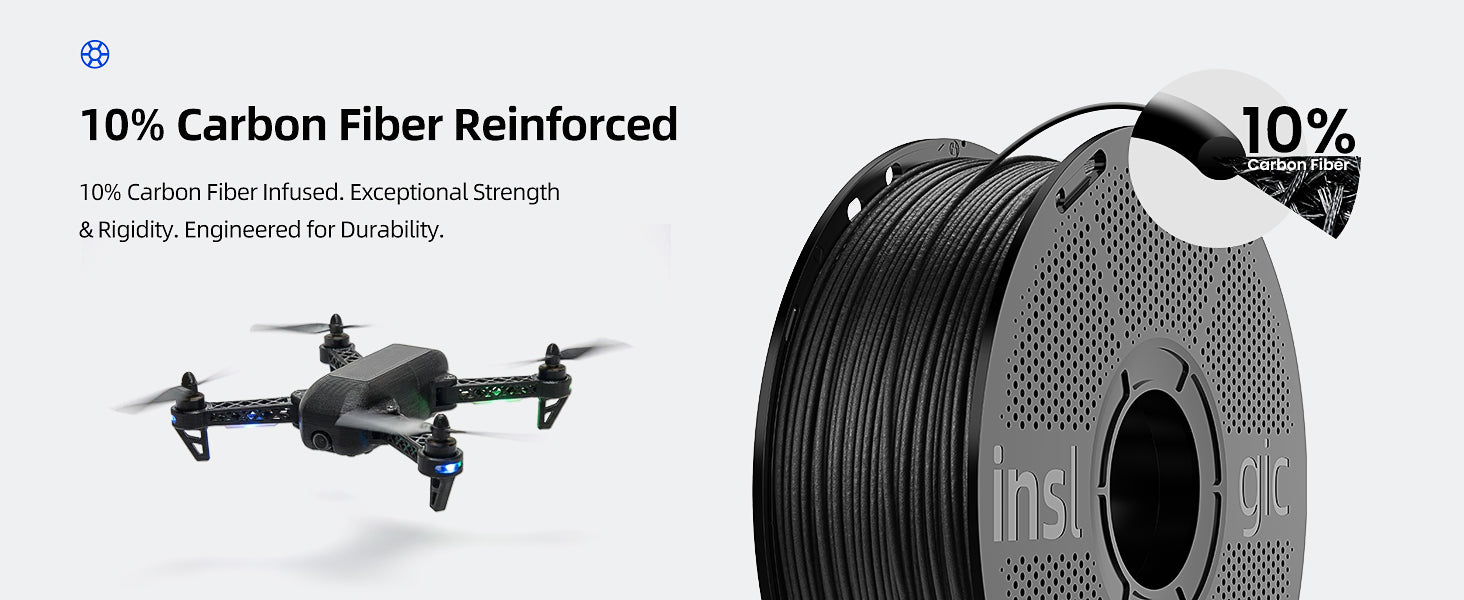

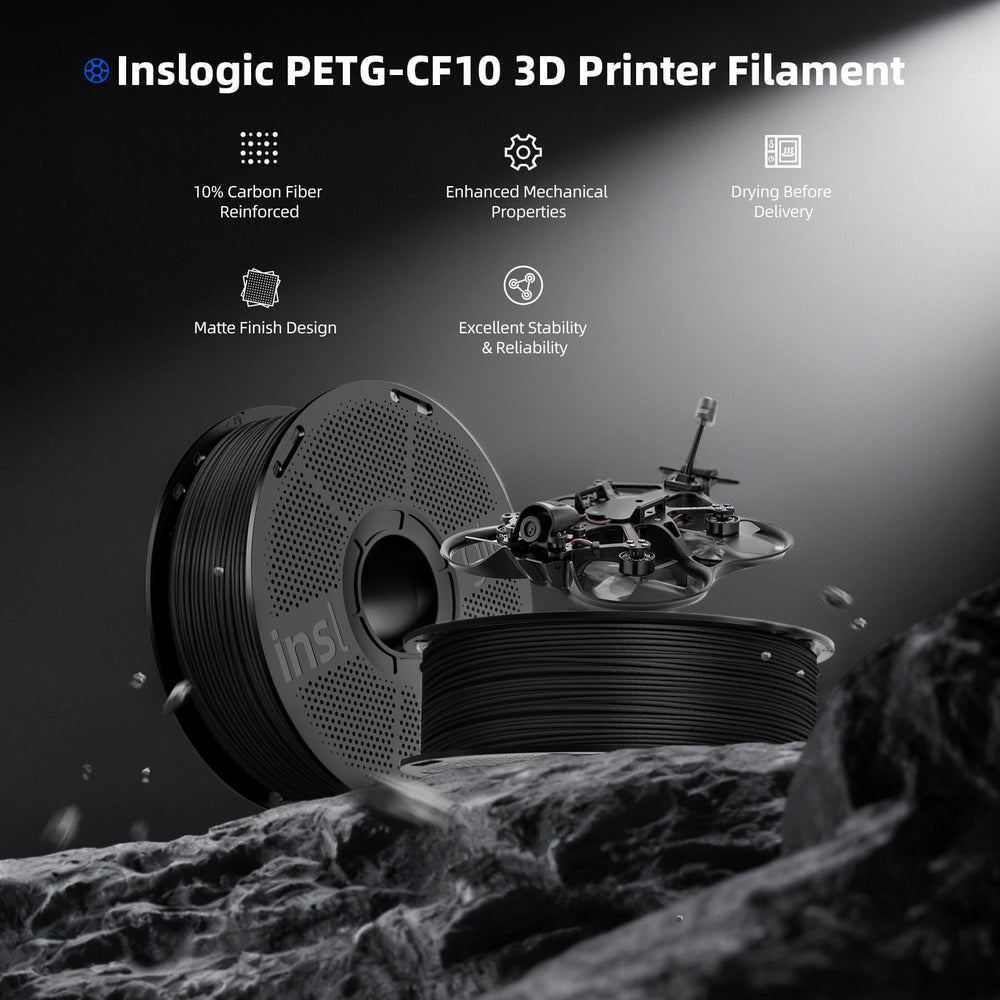

- 10% Carbon Fiber Reinforced: 10% Carbon Fiber Infused. Exceptional Strength & Rigidity. Engineered for Durability.

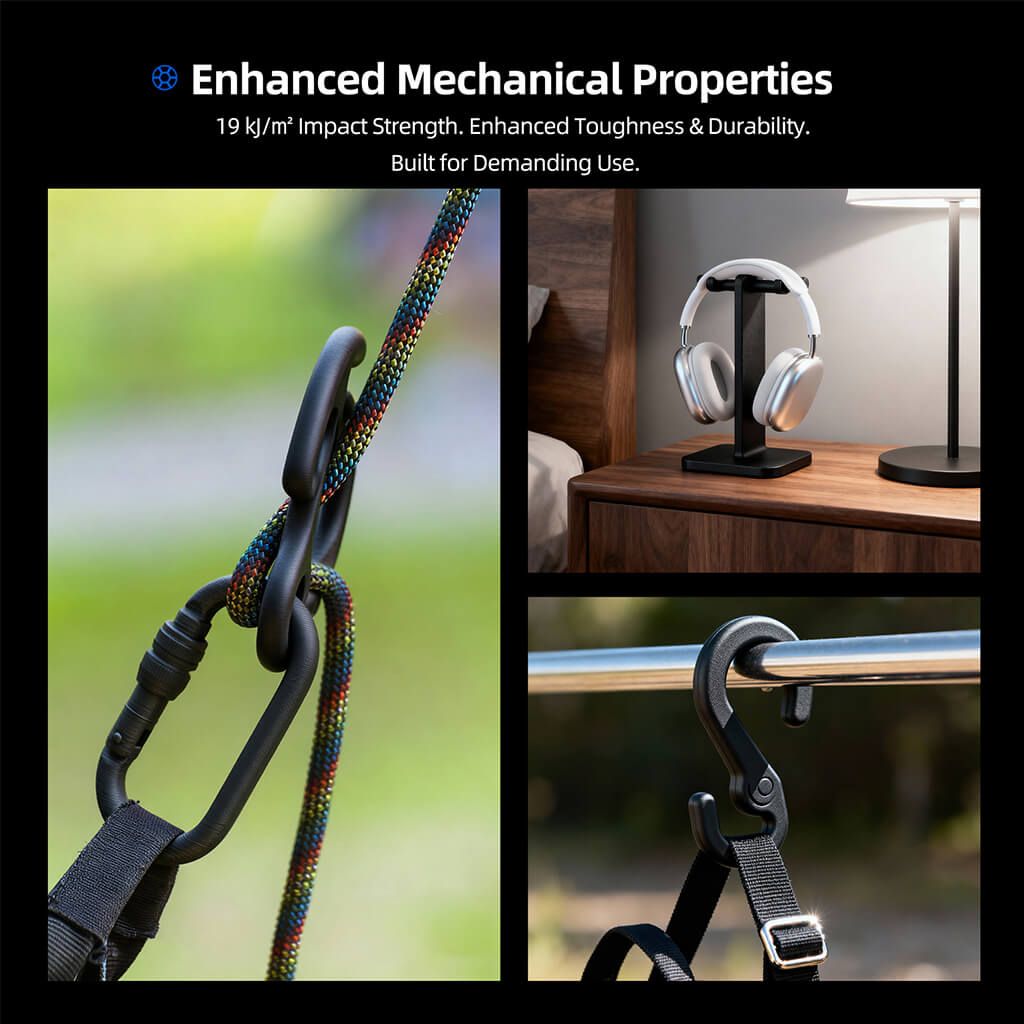

- Enhanced Mechanical Properties: 19 kJ/㎡ Impact Strength. Enhanced Toughness & Durability. Built for Demanding Use.

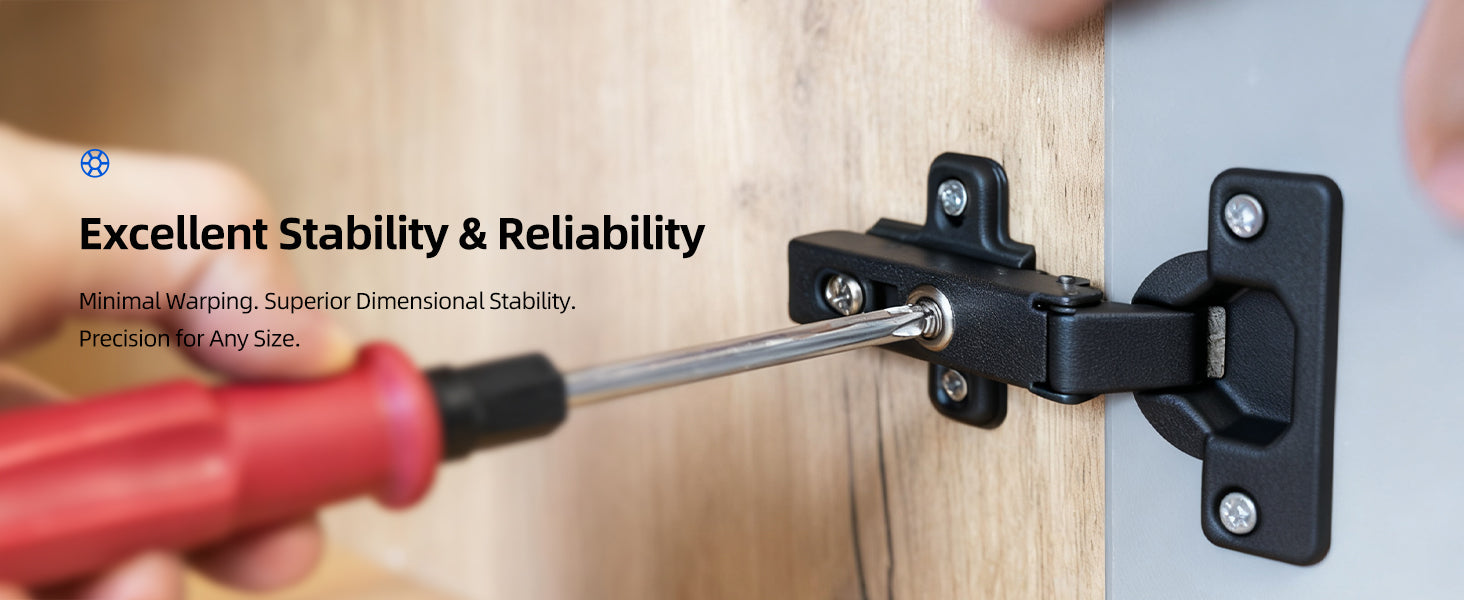

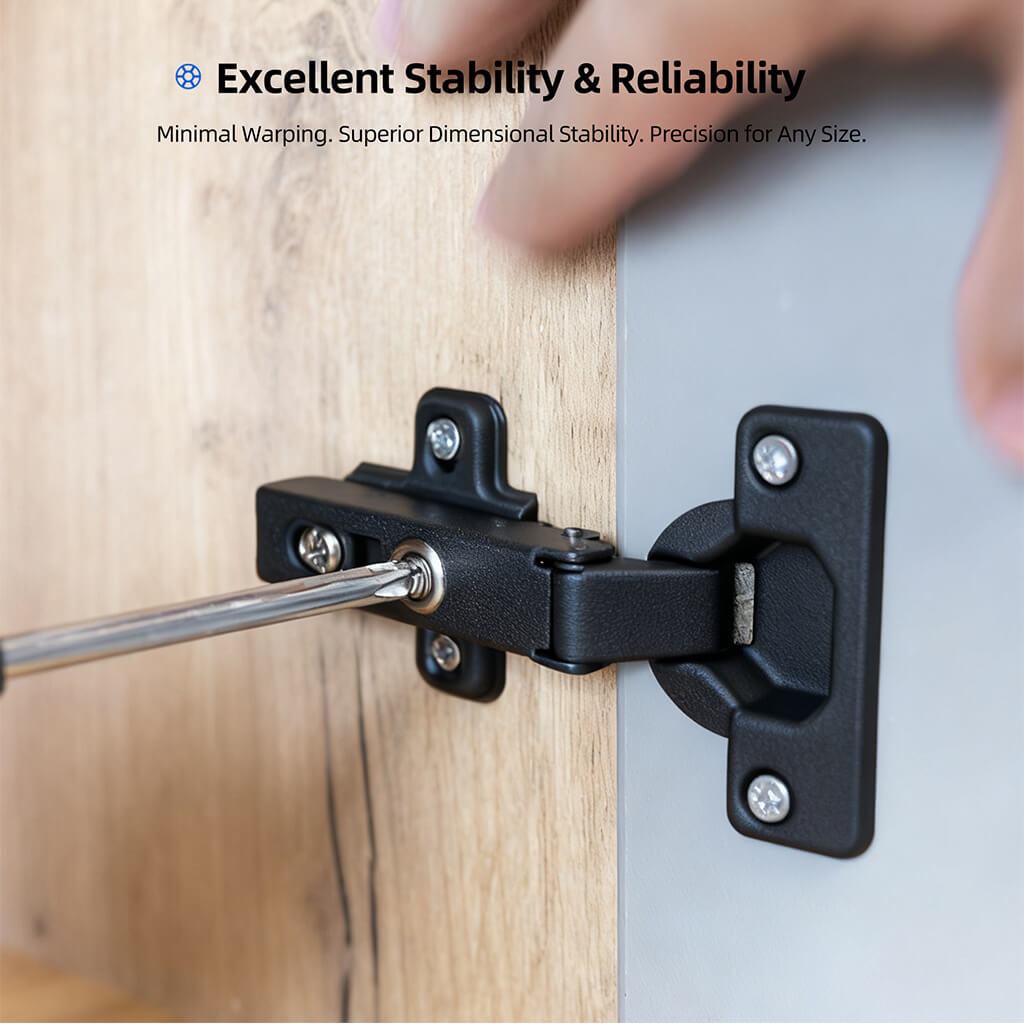

- Excellent Stability & Reliability: Minimal Warping. Superior Dimensional Stability. Precision for Any Size.
- Matte Texture and Smooth Surface: Premium Matte Texture. Flawlessly Smooth. High-End Design Ready.

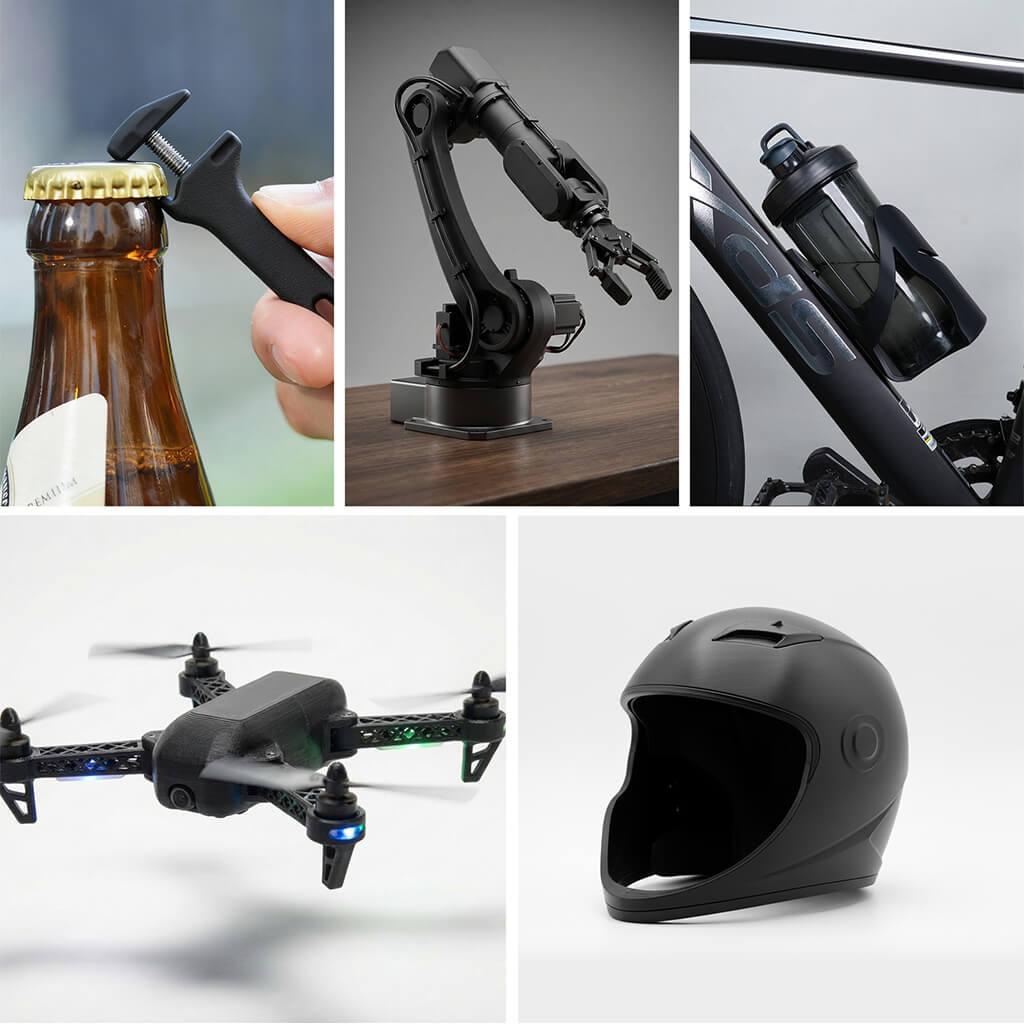

- Applications: Industrial Parts, Tools, Structural Components, Functional Prototype
- All AMS Series NOT Compatible
- Drying Settings: 50-60 °C, 4h
- Nozzle Size: 0.2, 0.4, 0.6 mm
- Nozzle Temperature & Printing Speed: 240-250 °C, 50-100mm/s
- Bed Temperature: 50-60 °C
- Cooling Fan Speed: 100%
* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.

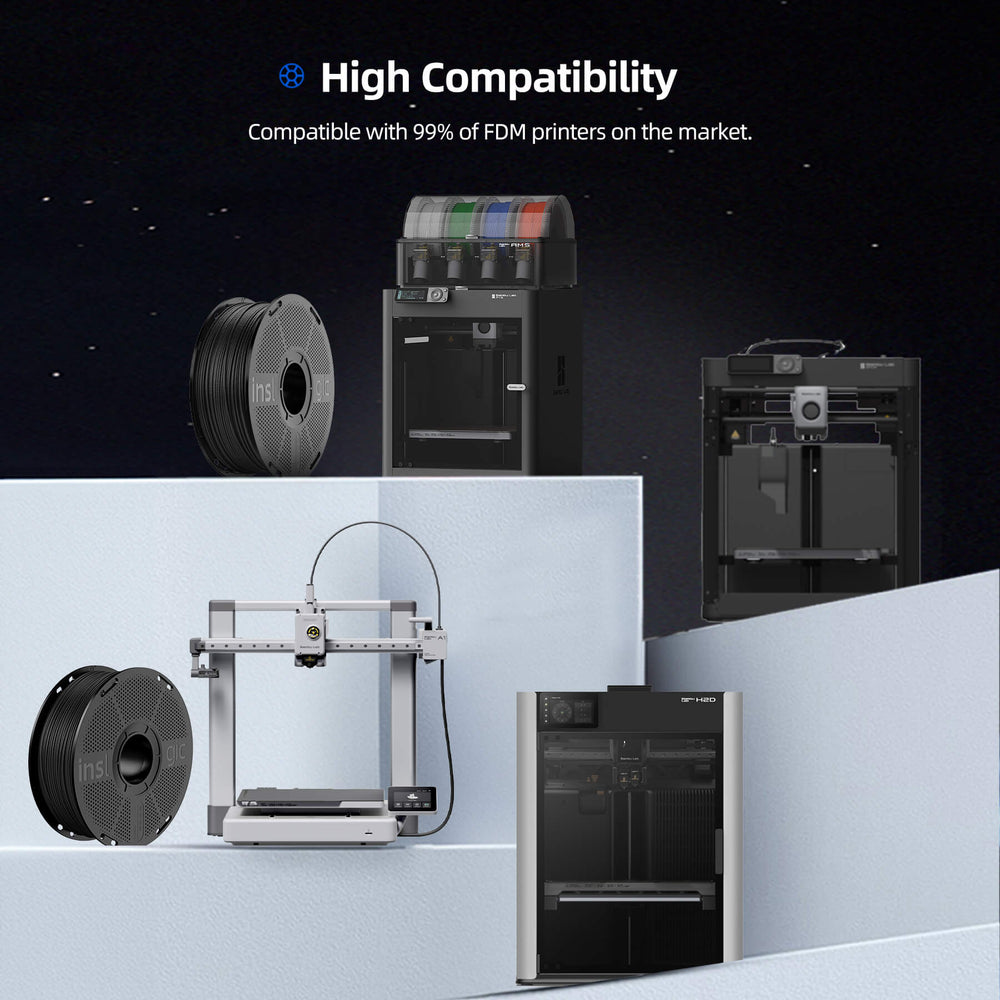

Inslogic PETG-CF10 is a high-quality functional material universally designed and compatible with FDM 3D printers using 1.75mm diameter filament, with a precision of ±0.02mm.
Inslogic PETG-CF10 filament is infused with 10% carbon fiber, significantly improves the stiffness of regular PETG while enhancing both strength and toughness, perfect for industrial applications such as drone frames, tools, automotive components, and structural parts.
Engineered to deliver a sleek matte texture, Inslogic PETG-CF10 filament produces models with a refined and professional appearance, meeting the needs of high-end designs.
- Length: 330 m
- Net Weight: 1 kg
- Reusable Spool & Cardboard Coil Weight: 232±3 g
- Total Weight: 1.323 ± 0.03 kg
- Diameter: 1.75 mm ± 0.02 mm

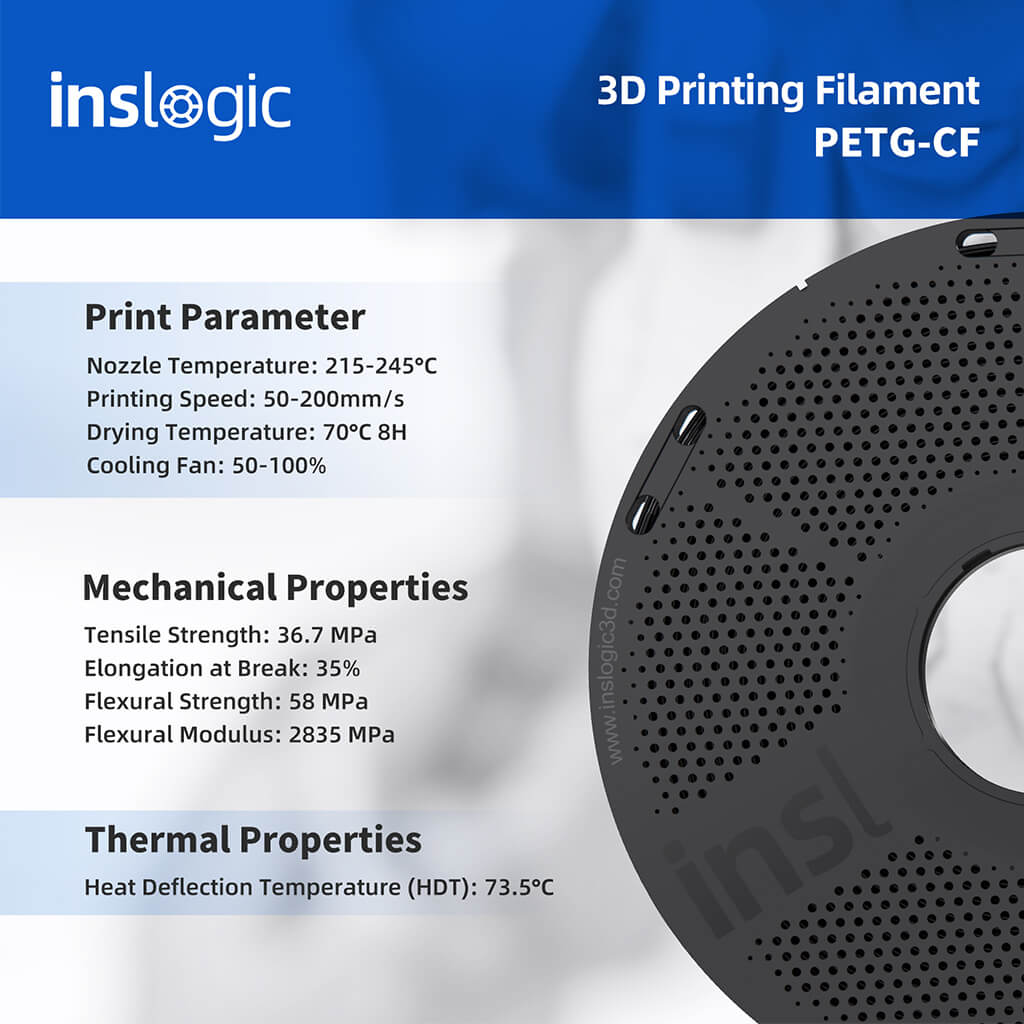

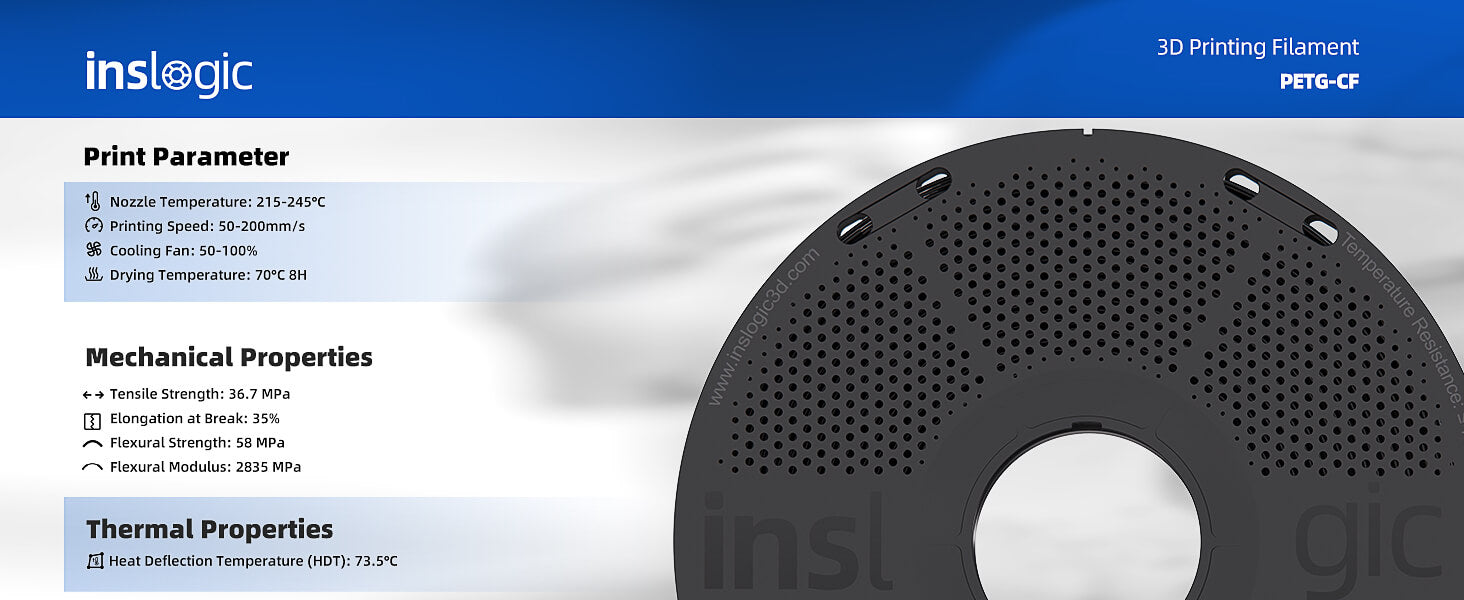

- Tensile Strength: 36.7 MPa
- Elongation at Break: 35%
- Flexural Strength: 58 Mpa
- Flexural Modulus: 2835 Mpa
- Heat Deflection Temperature at 0.45 MPa: 73.5 °C
* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.
- Technical Data Sheet (TDS)
- Safety Data Sheet (SDS)
- Instructions for using Inslogic reusable spool and refill filament
How to Use Inslogic Reusable Spool and Refill

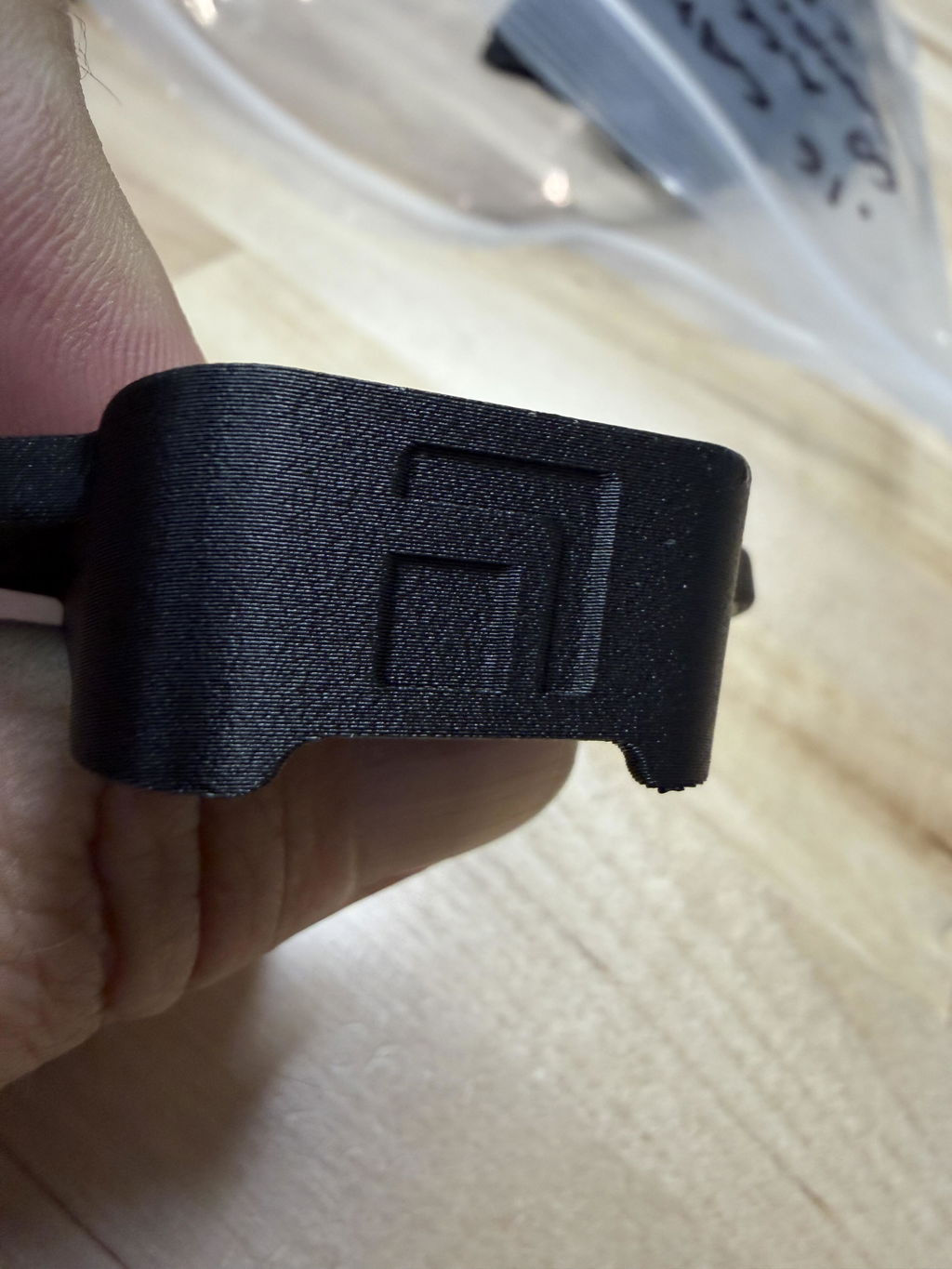

Works great! Bambu labs PETG-cf was out of stock so purchased 5 roles of the insologic. To get great layer adhesion for a structural part on had to bump nozzle temps up to 265. Surface finish absolutely flaw less!
