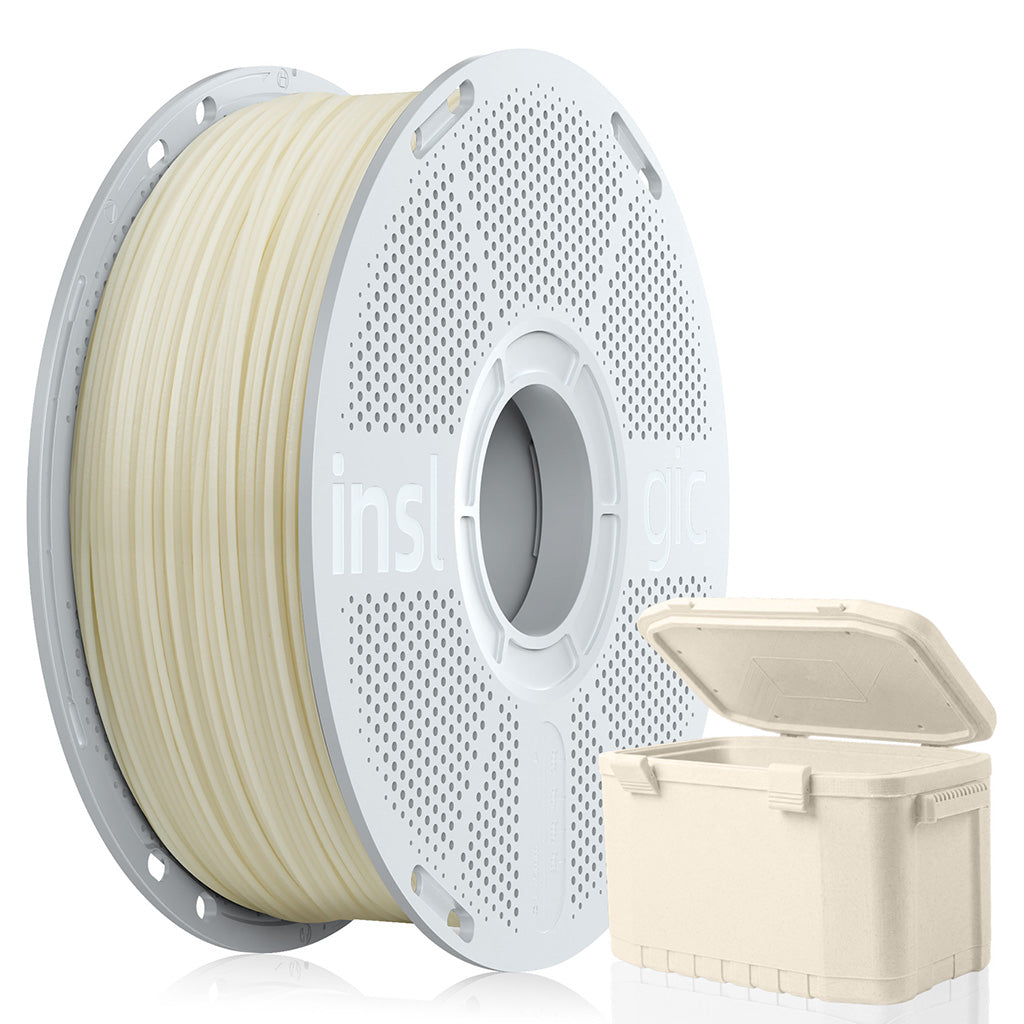

Inslogic ABS-GF10 Filament 1.75mm

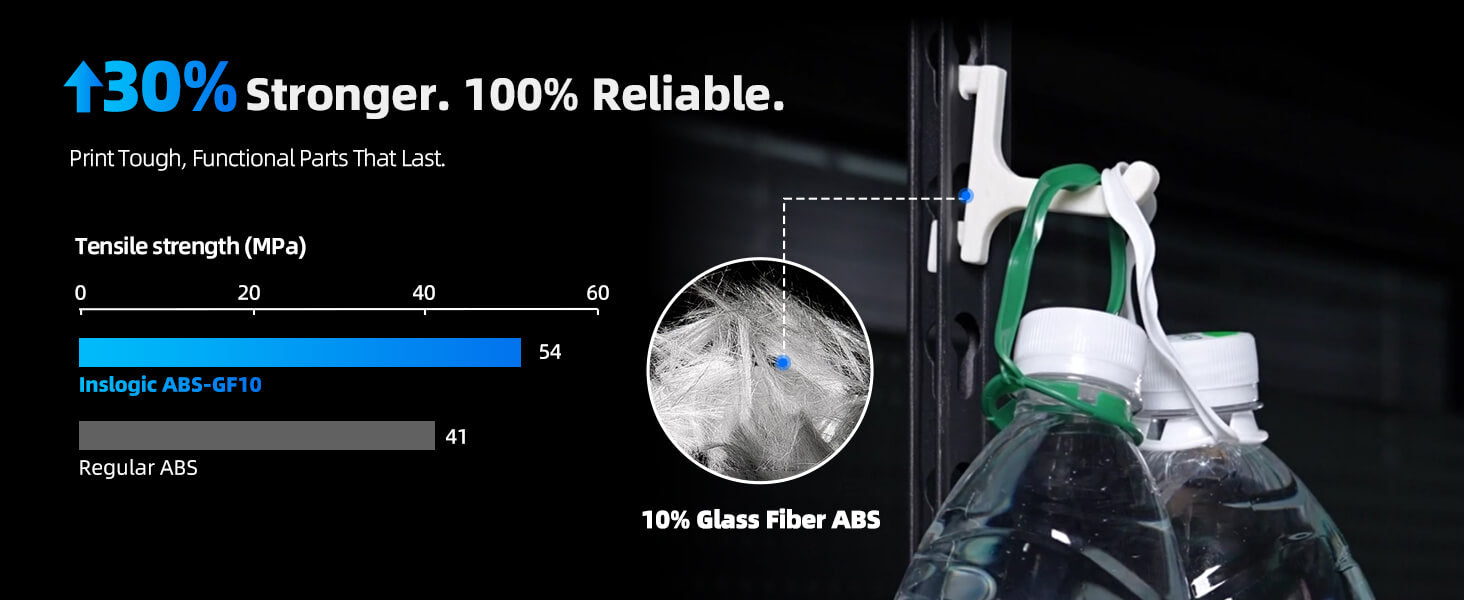

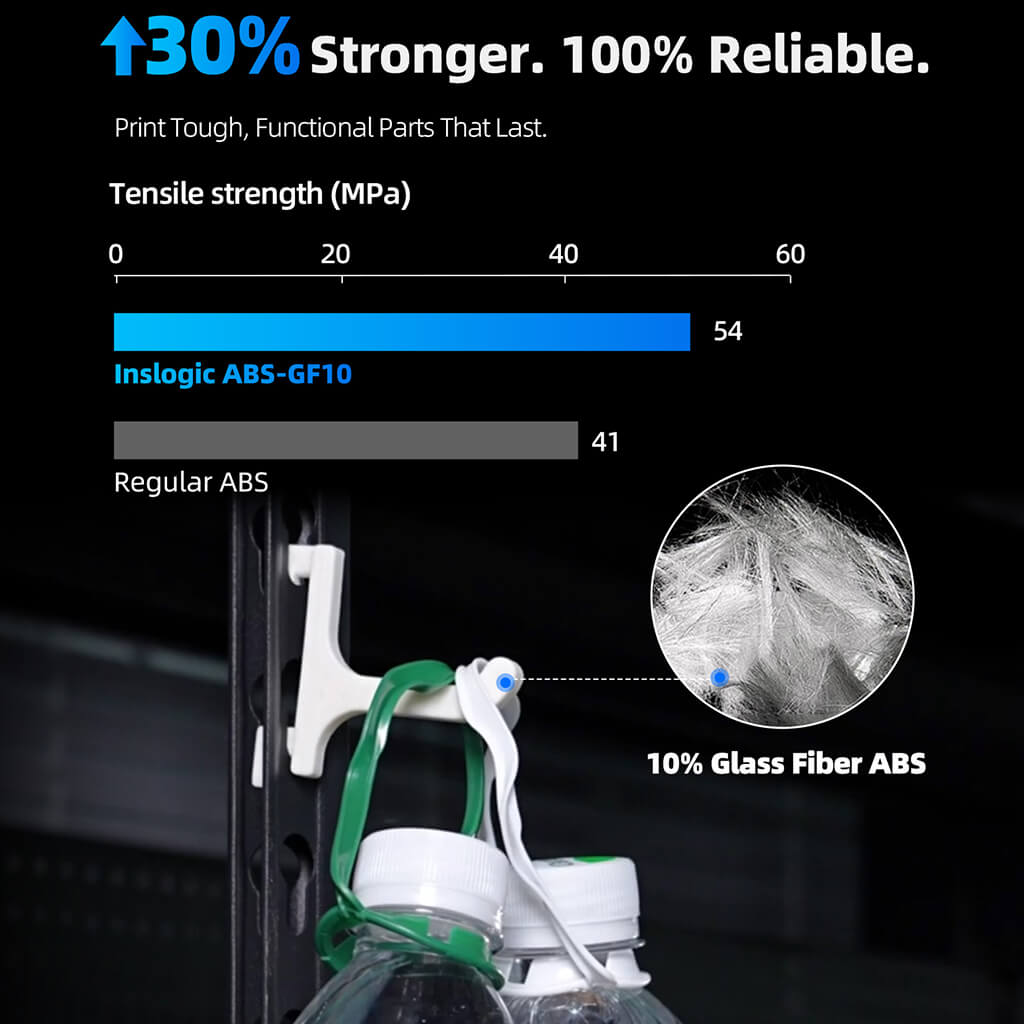

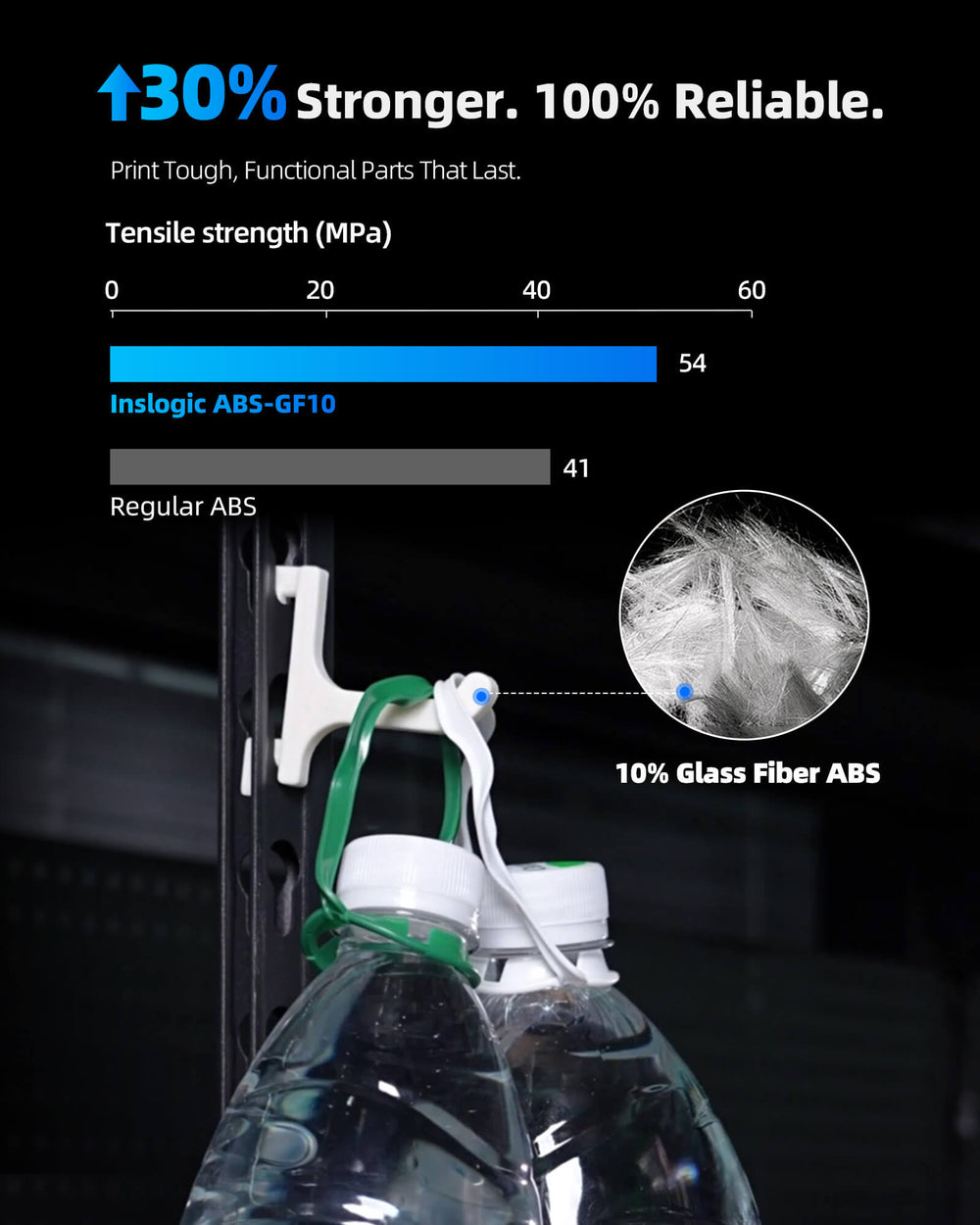

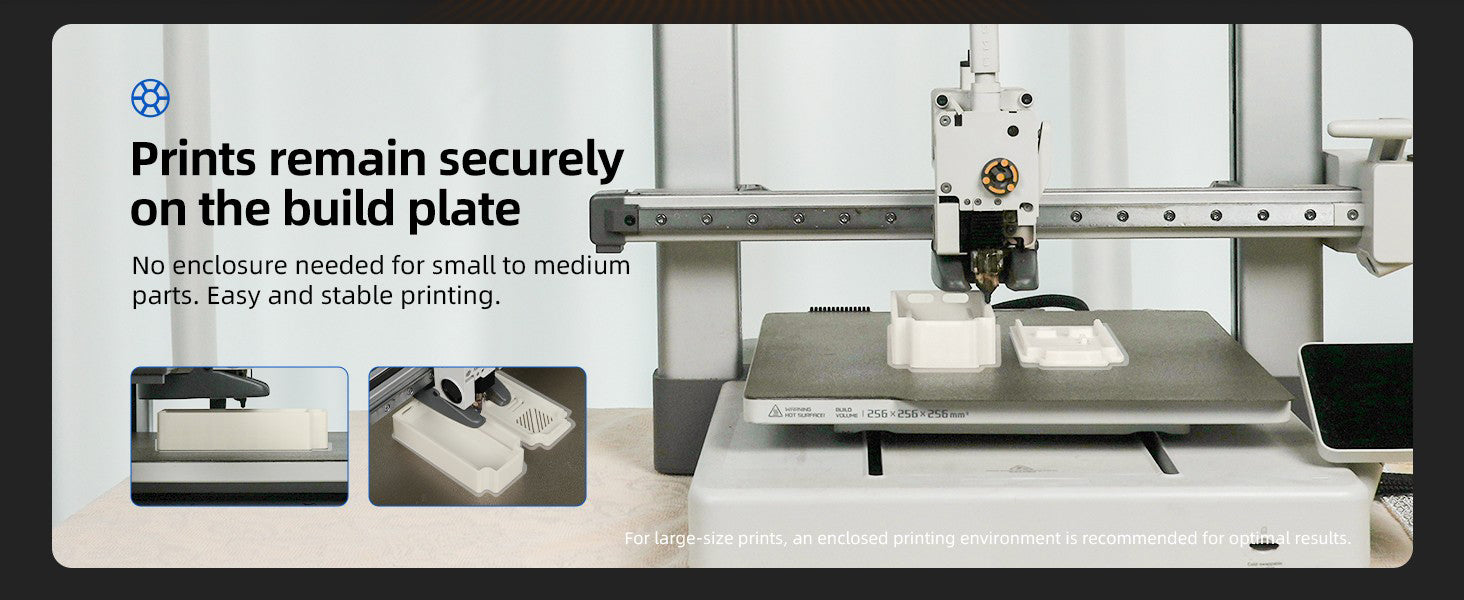

• Ultra-High Strength, 30% Higher than ABS: Prints more reliably, and supports open printing. Ideal for functional prototypes and demanding applications.

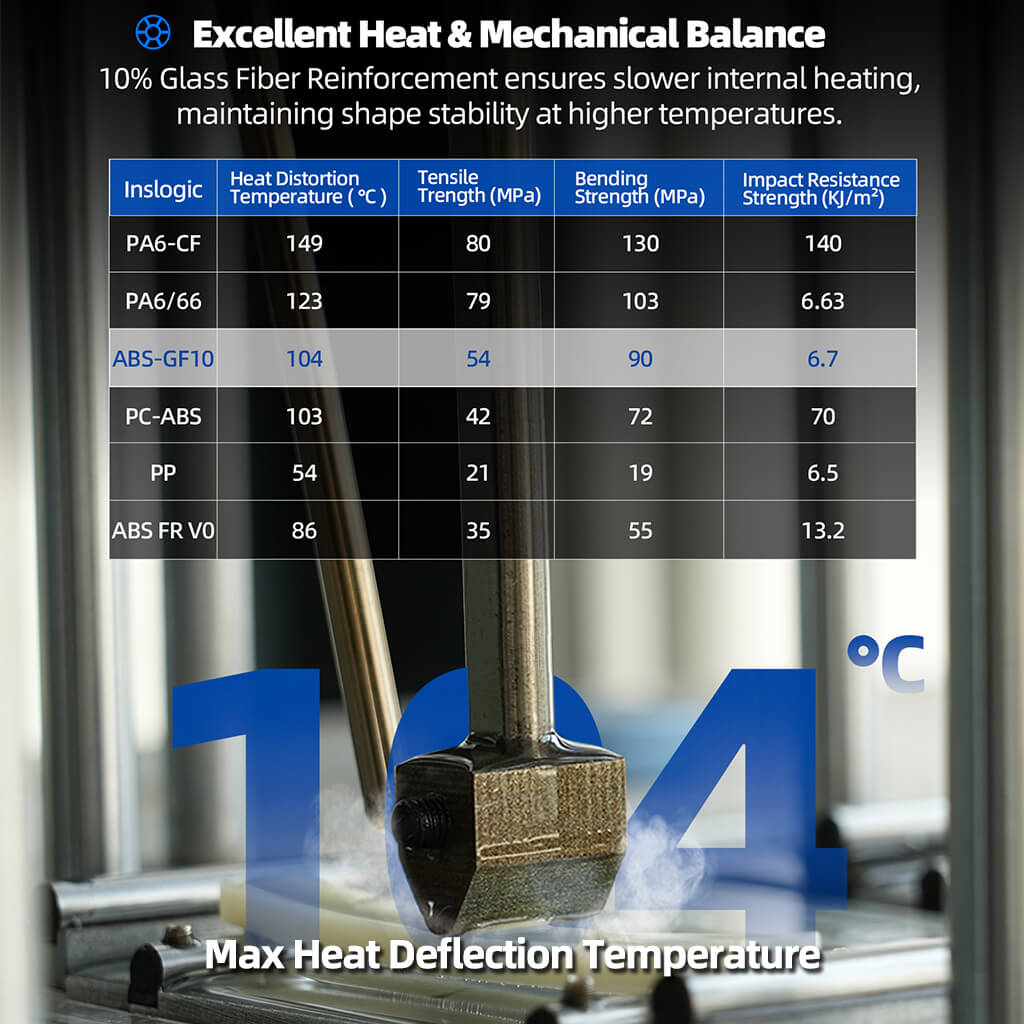

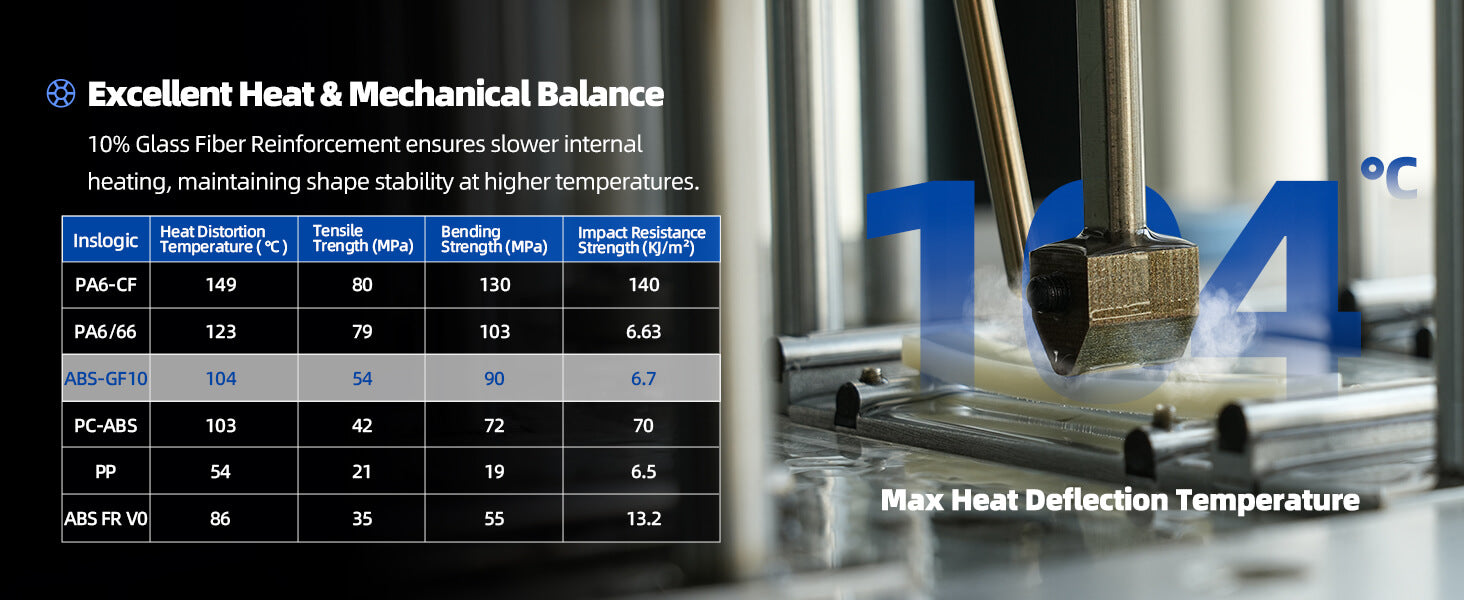

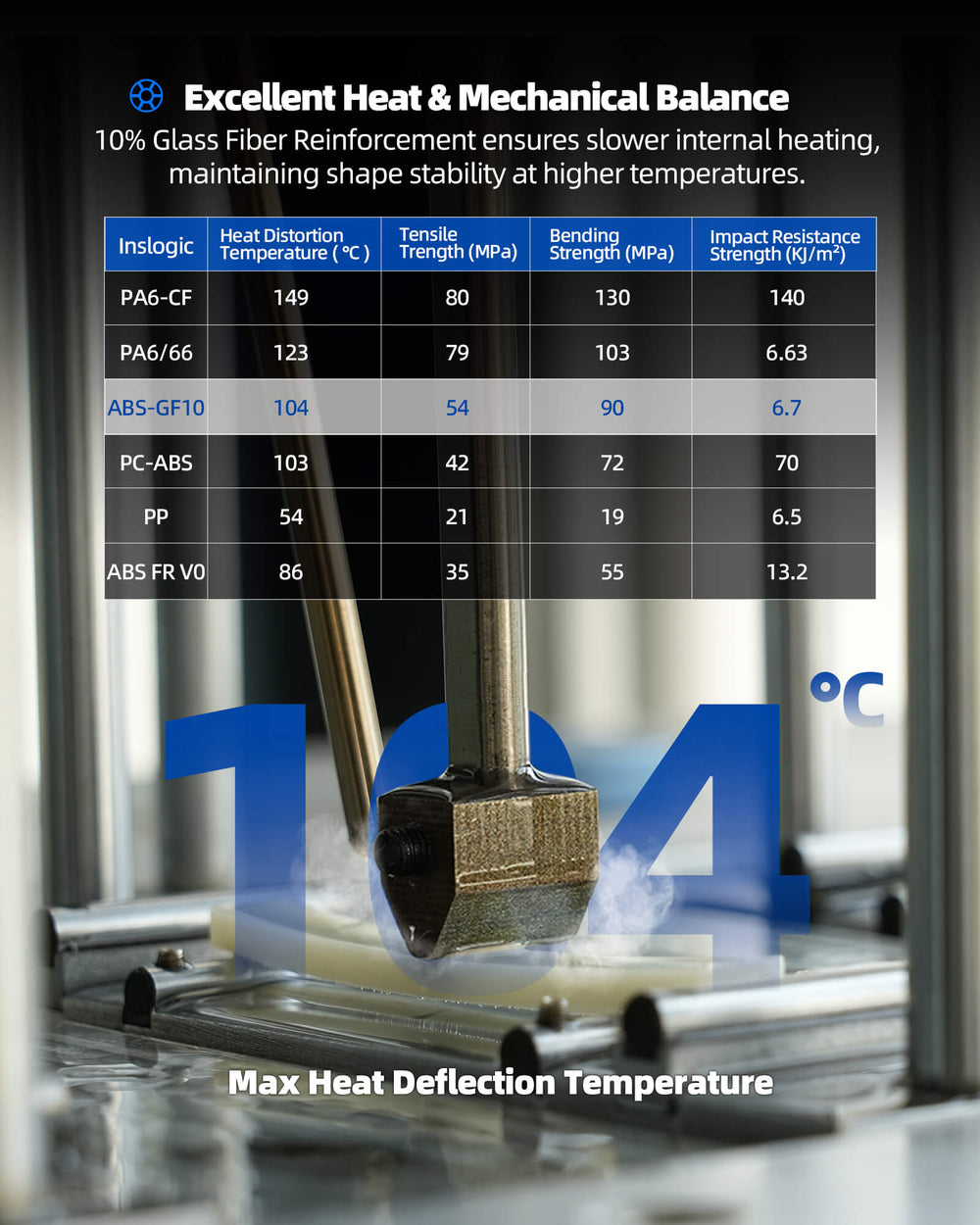

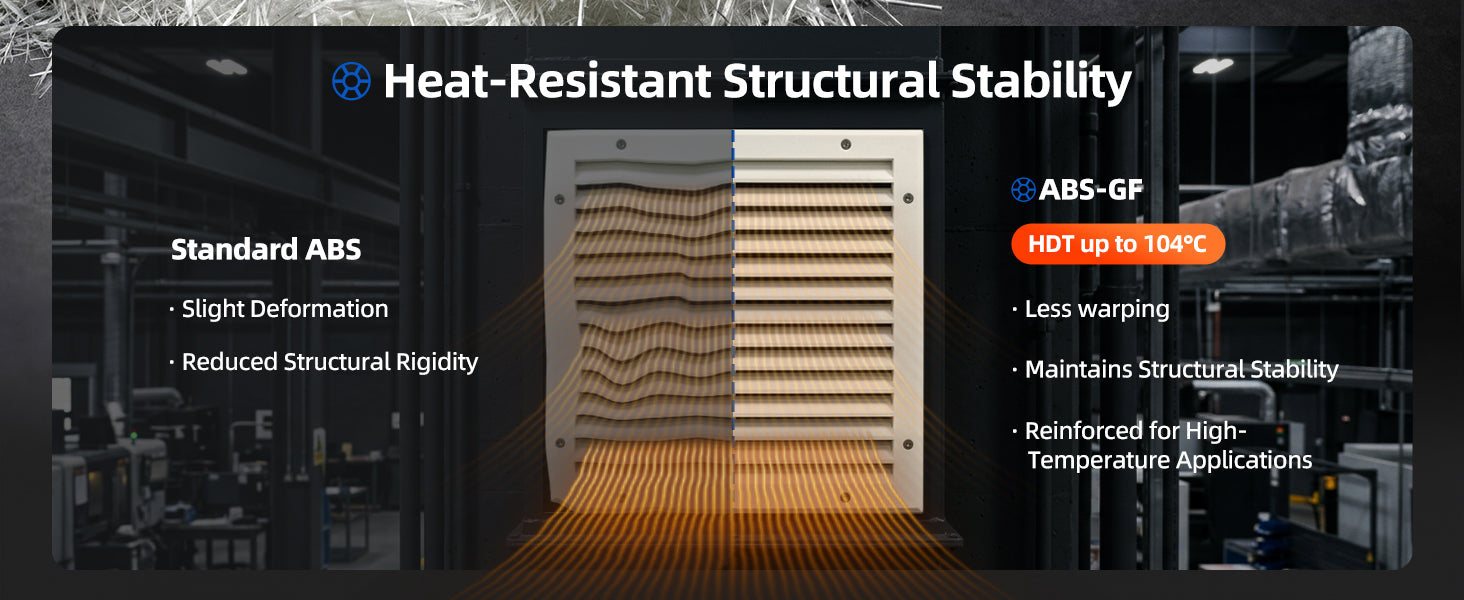

• Heat Resistance up to 104°C: 10% Glass Fiber Reinforcement ensures slower internal heating, maintaining shape stability at higher temperatures.

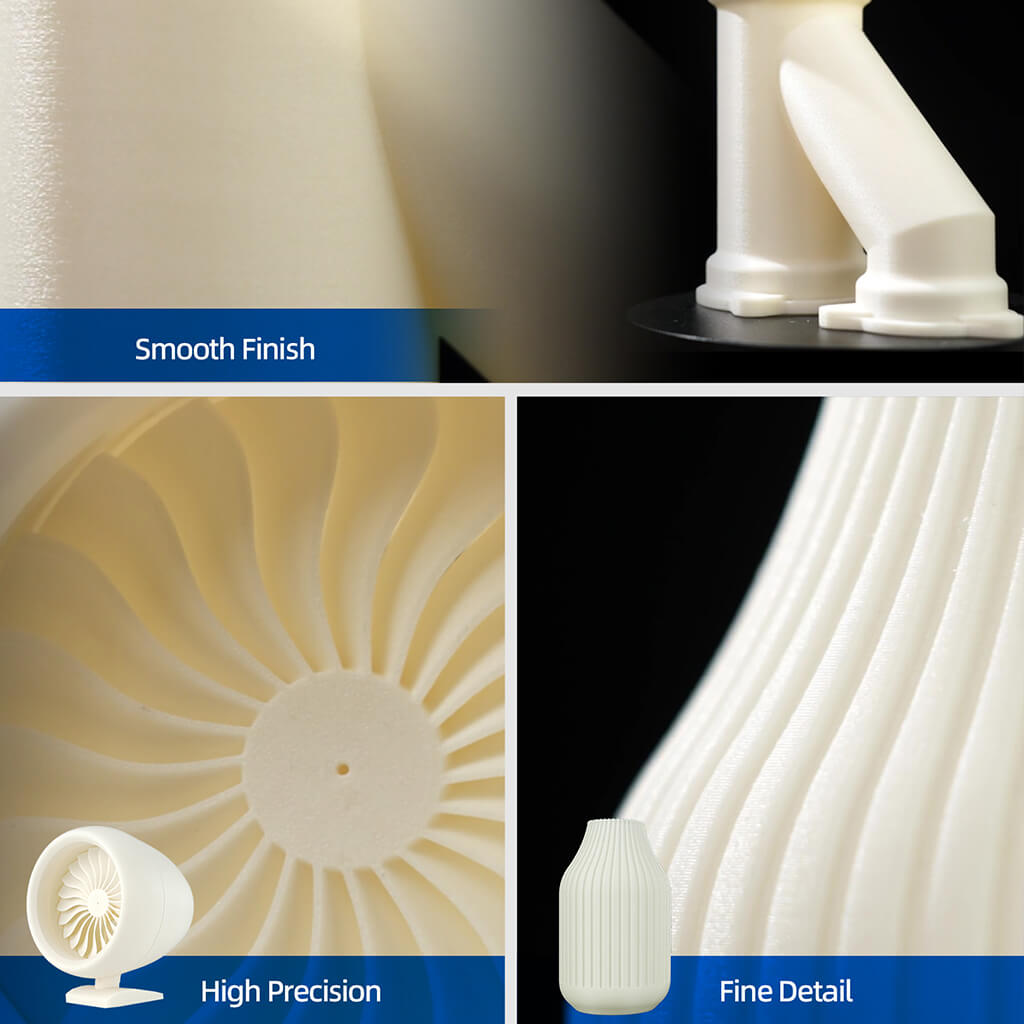

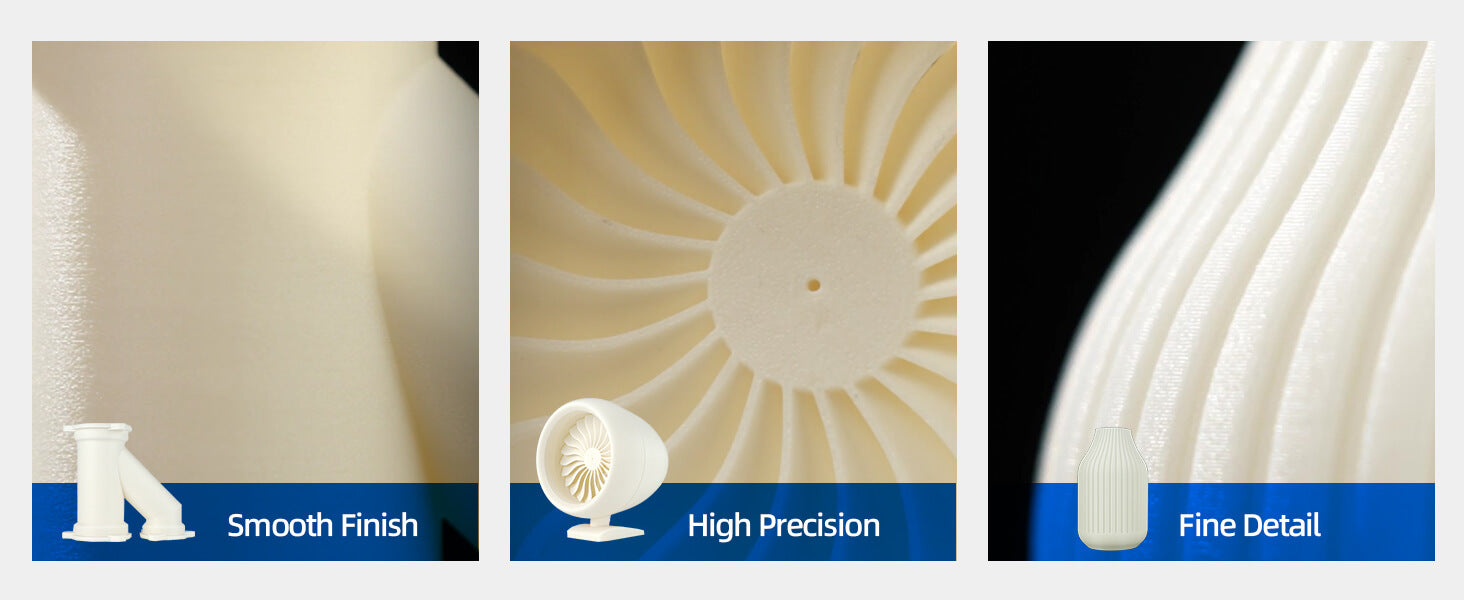

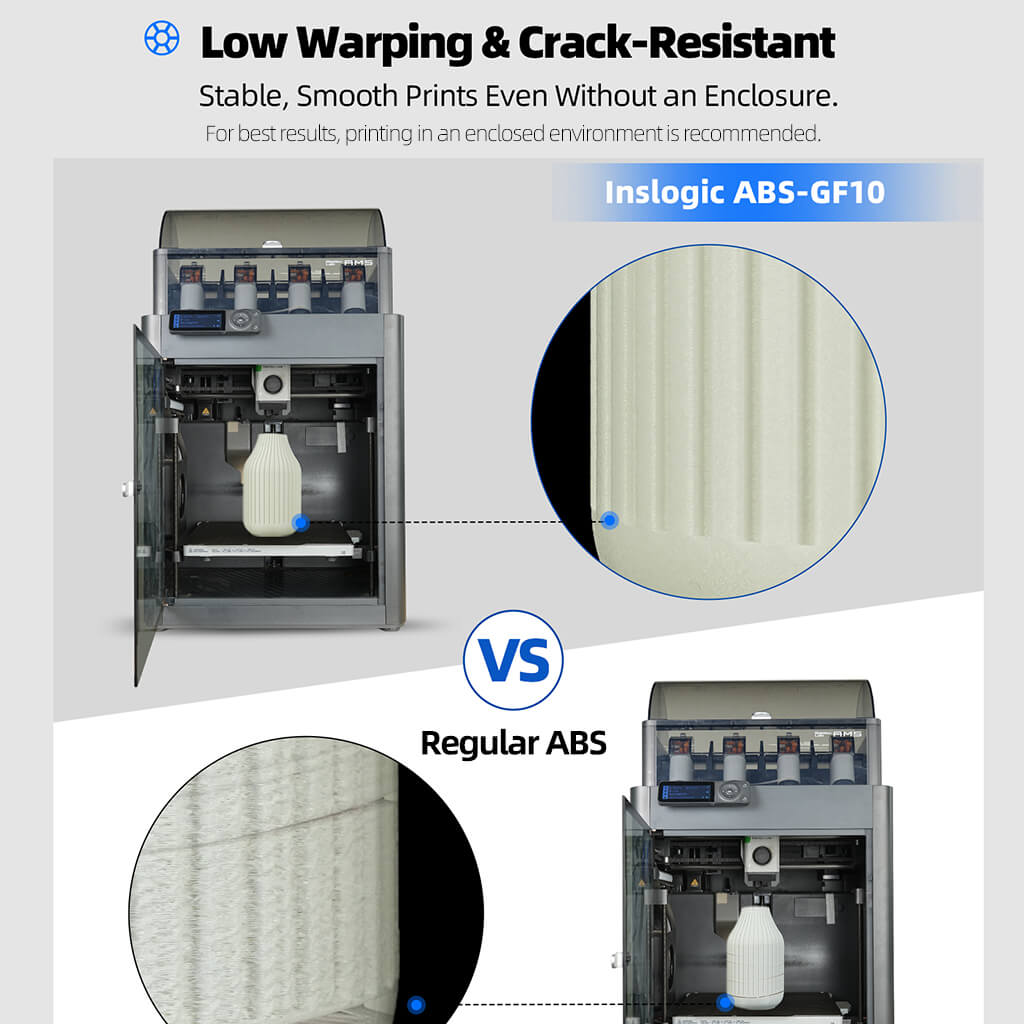

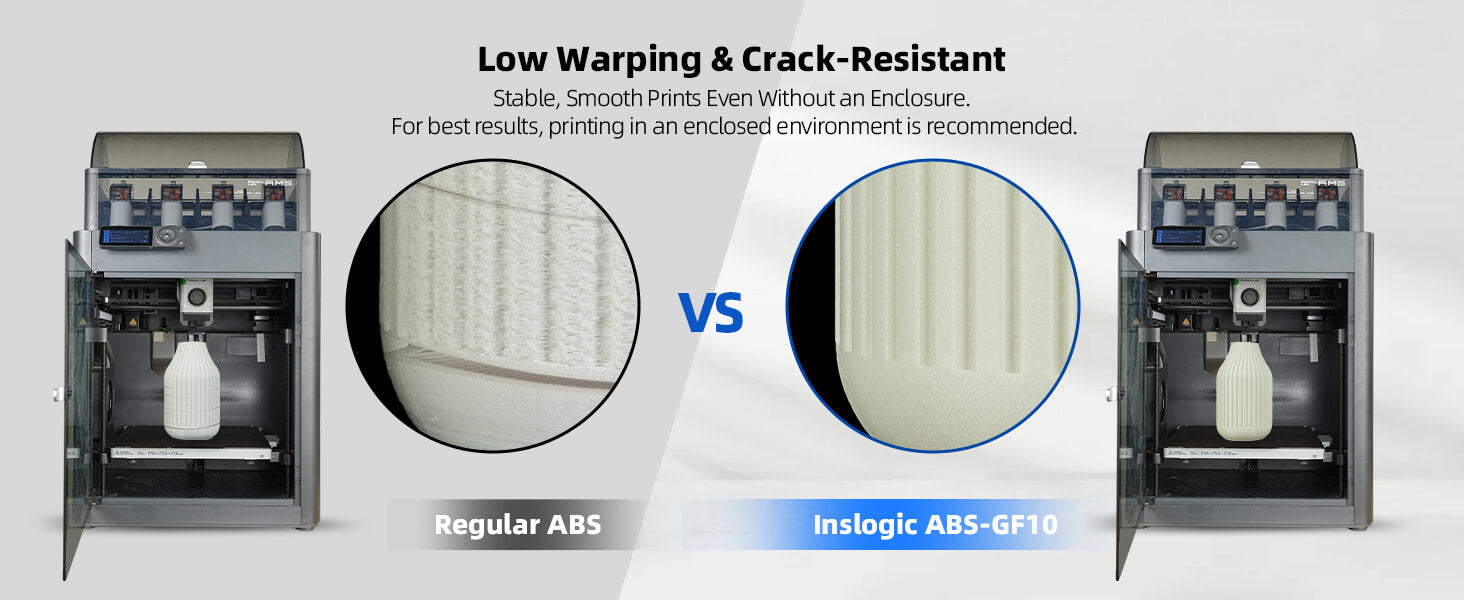

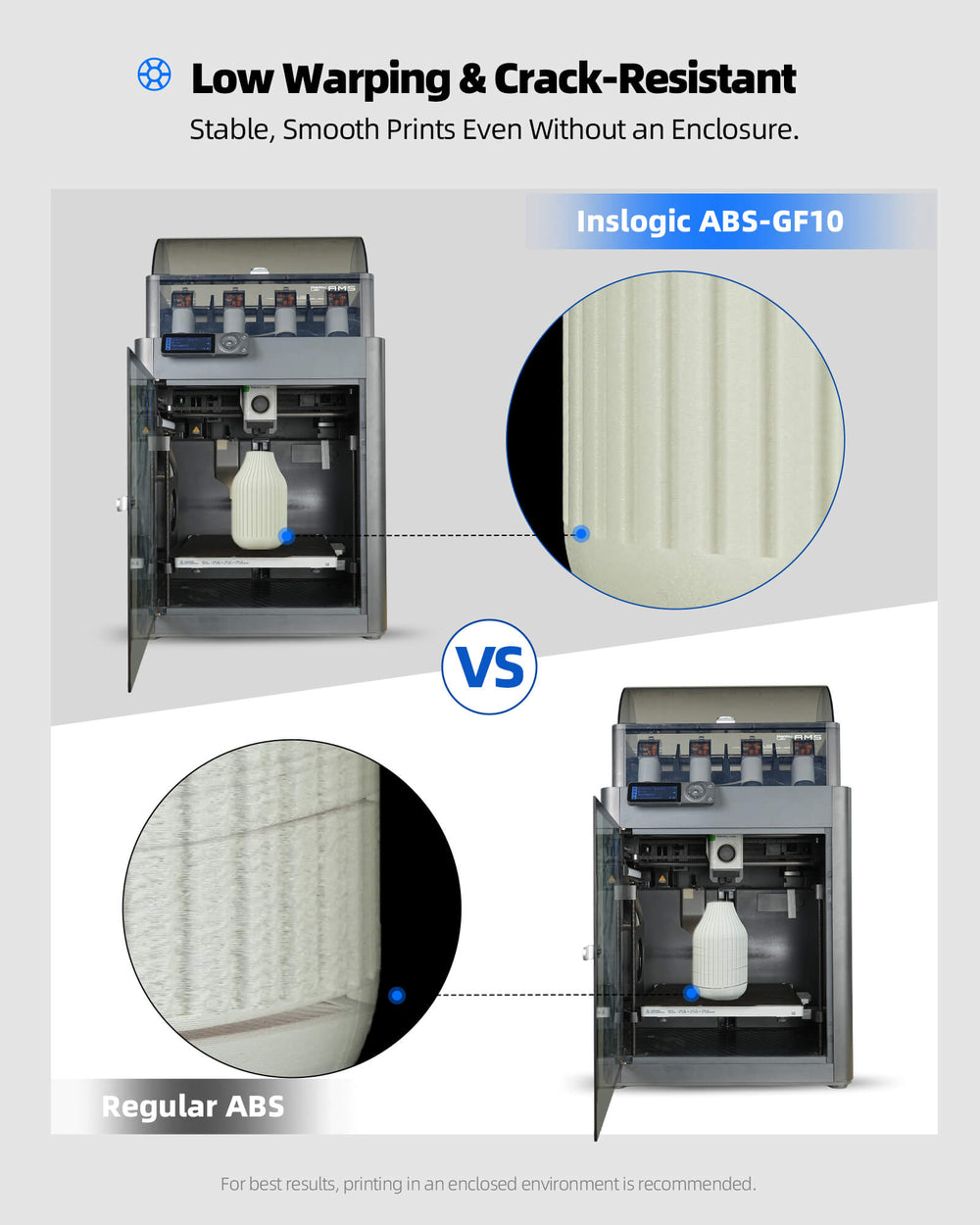

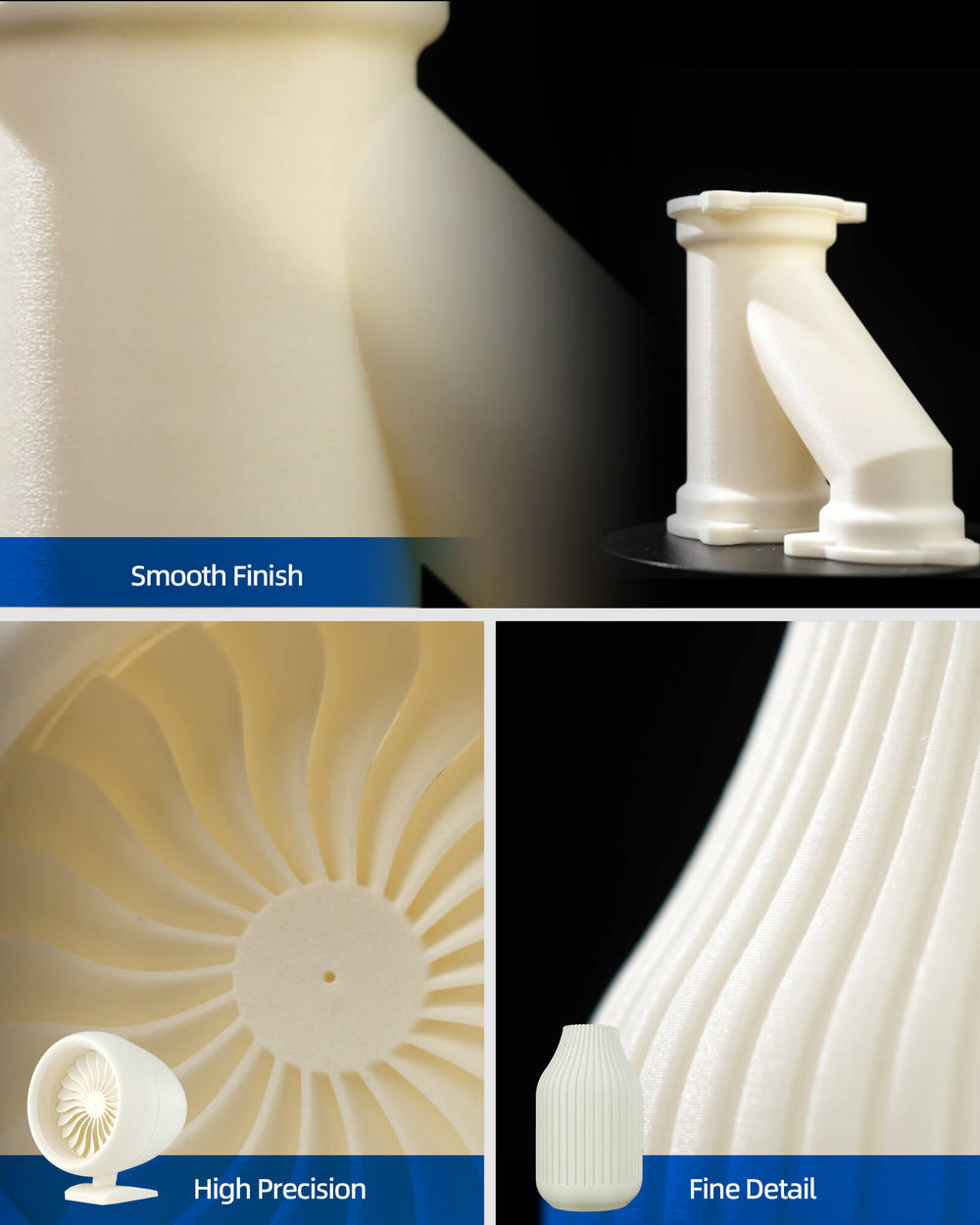

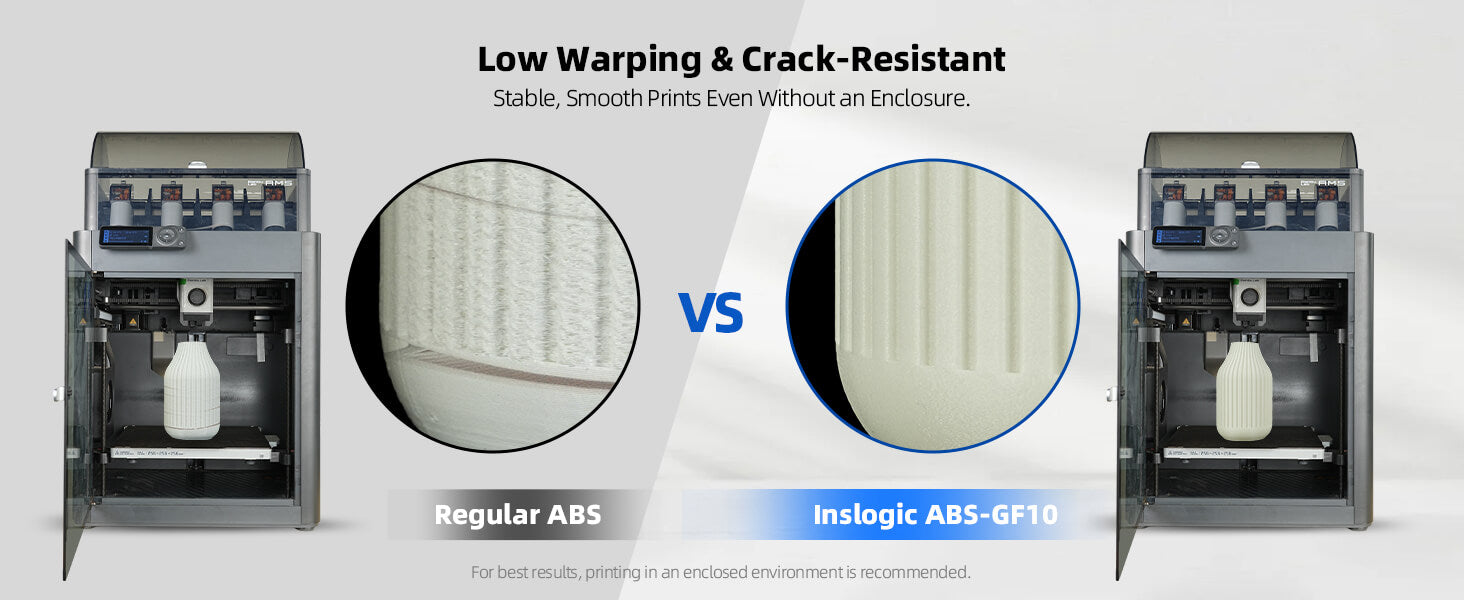

• Low Warping, No Cracking: Prints with Smooth Finish, High Precision and Fine Detail.

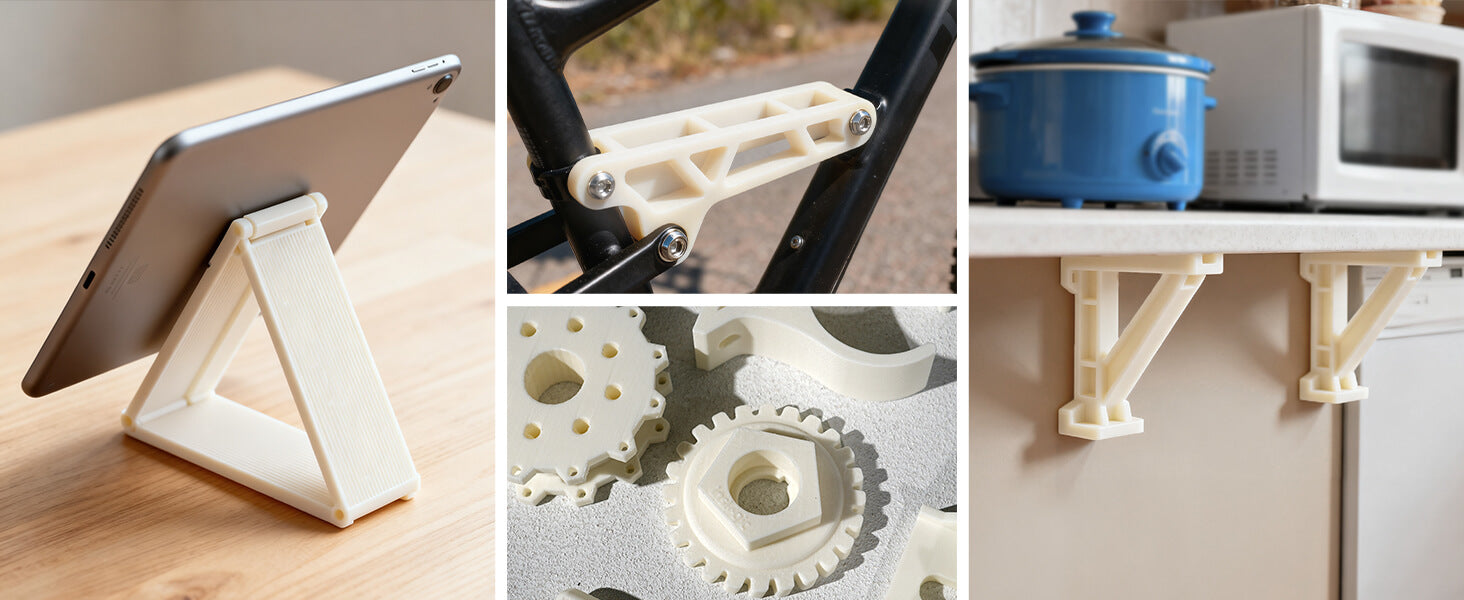

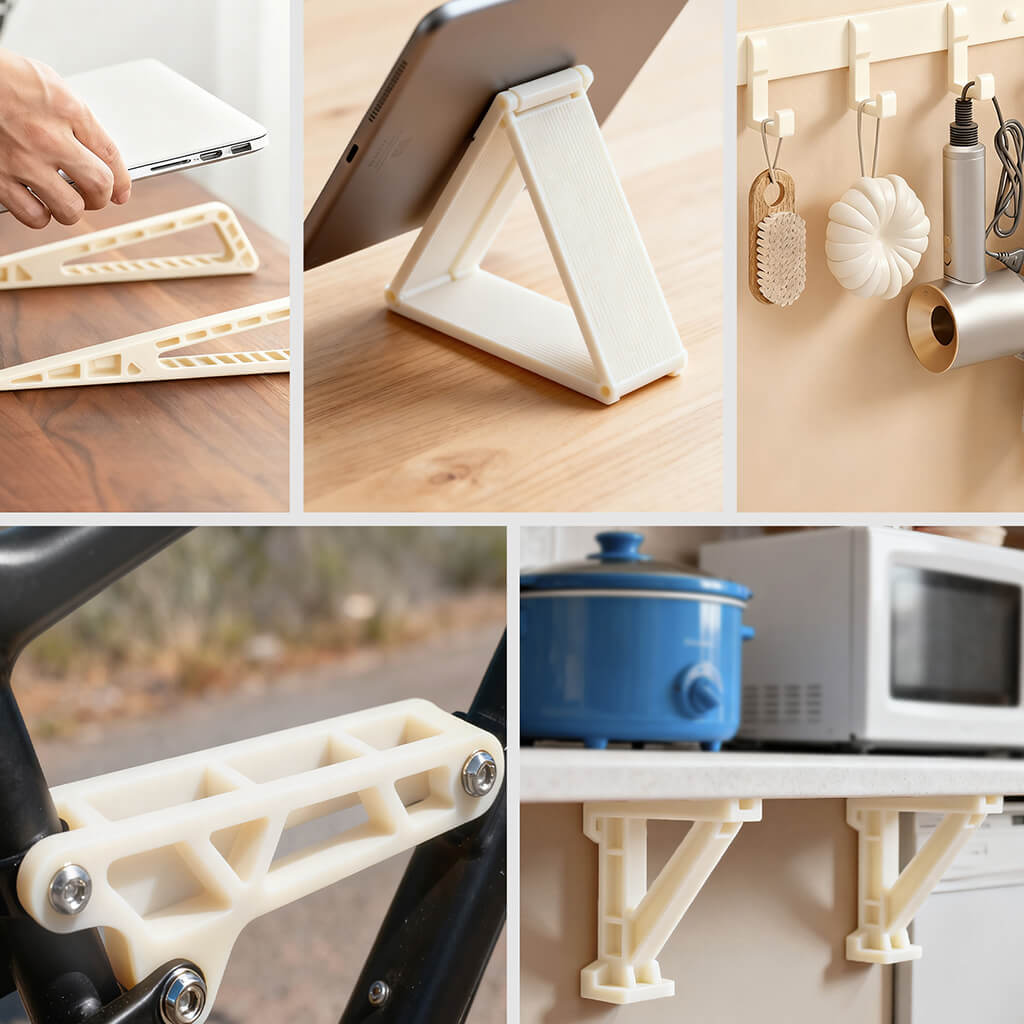

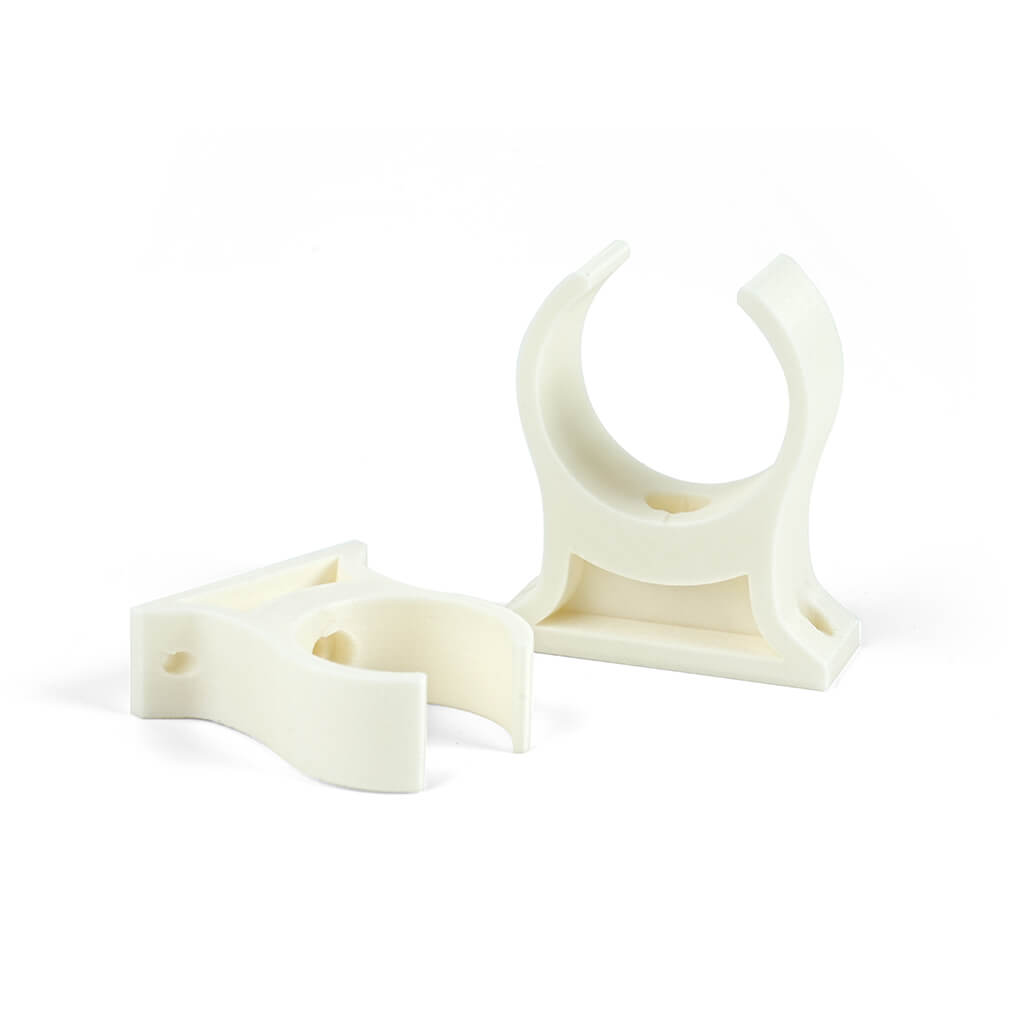

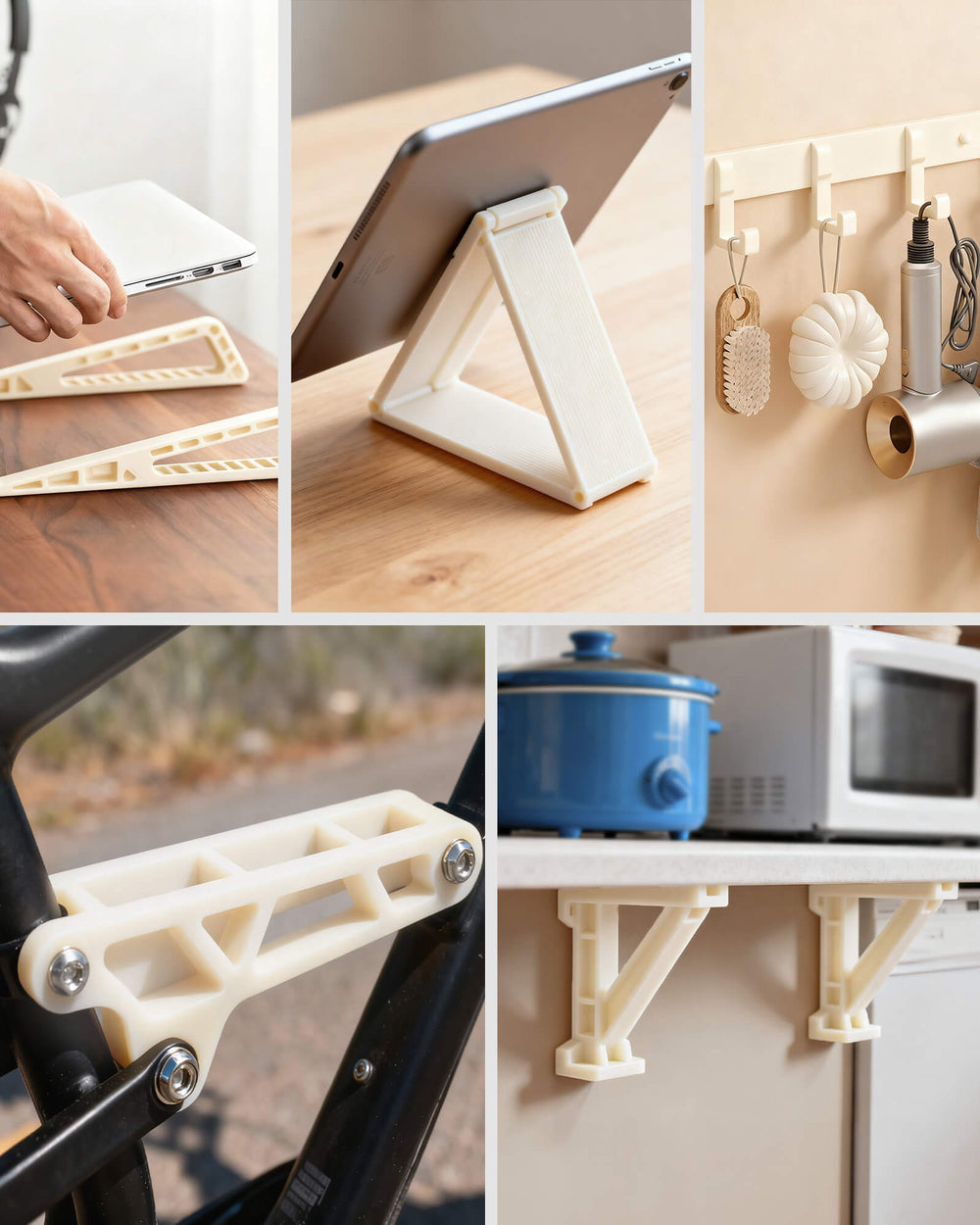

• Applications: High Strength Mechanical Parts, Small Parts, Tooling, High-Quality Surface Model
• Order Delivery Time:
• Germany: 1-3 business days
• United States: 3-7 business days
• United Kingdom: 2-4 business days
• Other Europe Country: 3-10 business days
• All AMS Series NOT Compatible

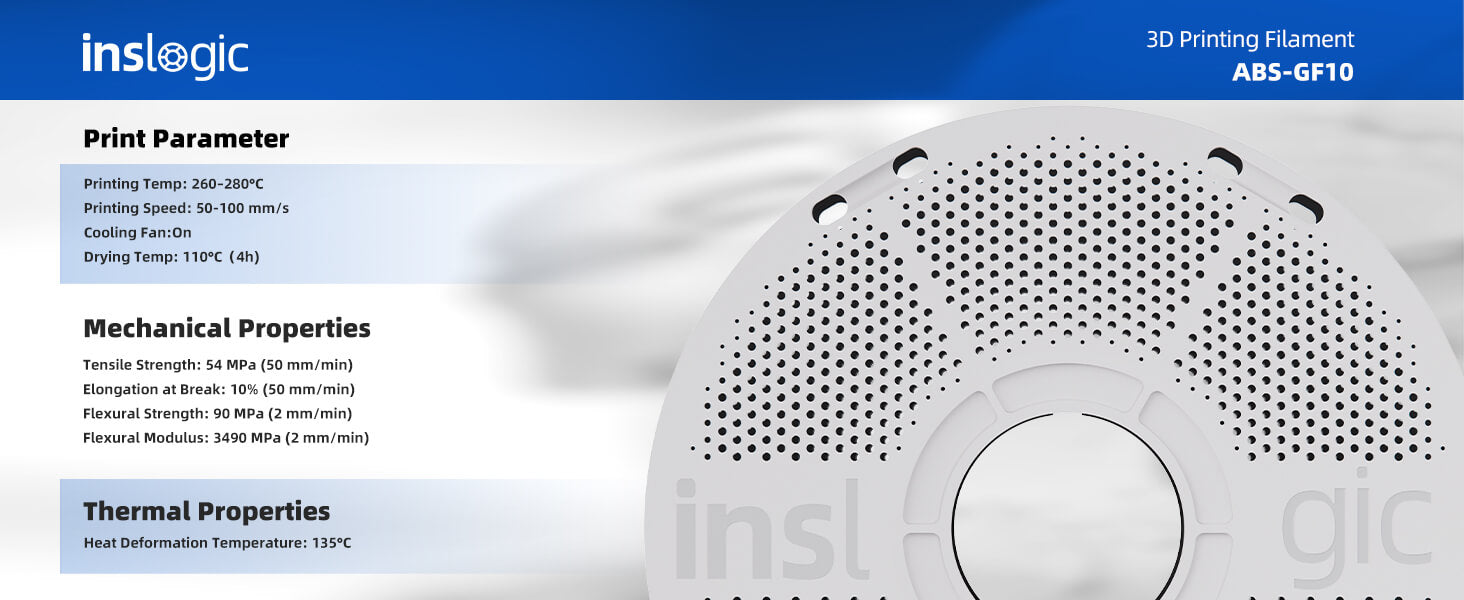

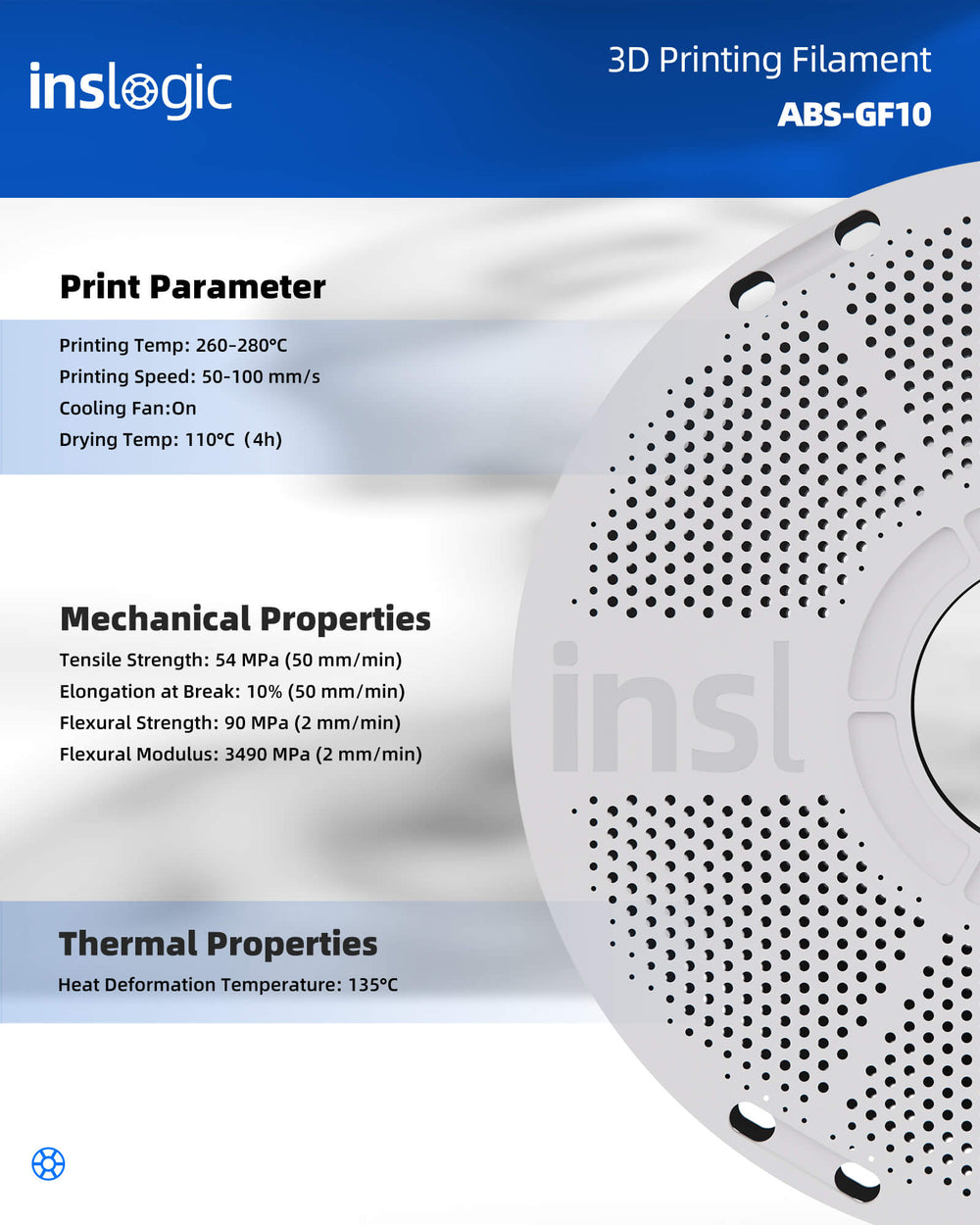

• Drying Settings: 110 °C for 4h
• Nozzle: Hardened steel nozzle with a diameter of 0.4 or 0.6 mm
• Nozzle Temperature & Printing Speed: 260-280 °C at 50-100 mm/s
• Bed Temperature: 90 - 100 °C
• Cooling Fan Speed: 100%
• Bed Type: Textured PEI Sheet

* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.

Inslogic ABS-GF10 Filament is an engineering-grade material, compatible with FDM 3D printers using 1.75 mm diameter filament with a precision of ±0.03 mm.

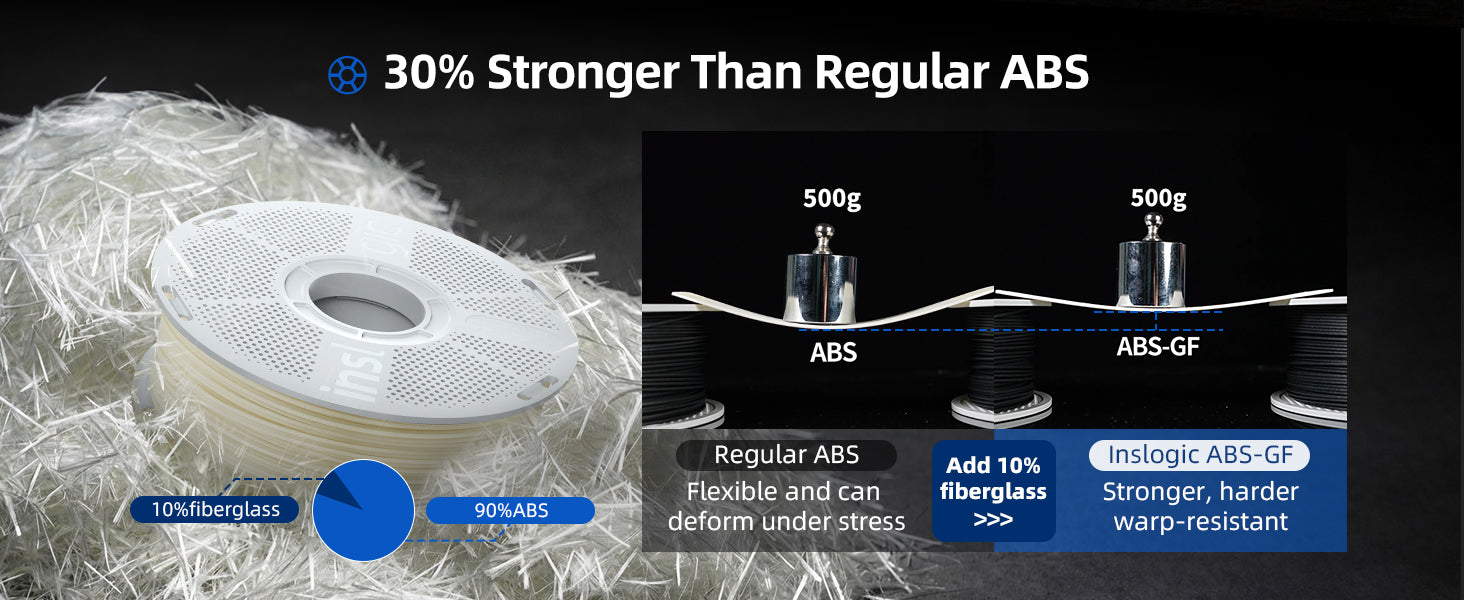

ABS-GF10 is a high-performance material reinforced with 10 wt% glass fiber, significantly improving strength and dimensional stability.

It offers 30% higher strength than standard ABS, prints more reliably, and supports open printing. Ideal for functional prototypes, drone components, molds, and other demanding applications.

Compared with regular ABS, ABS-GF10 outperforms in strength, stiffness, temperature resistance and dimensional stability, while being less prone to deformation and warping.

ABS-GF10 is ideal for mechanical parts due to the inherited water resistance, wear resistance, durability.

• Length: 350 m
• Net Weight: 1 kg
• Diameter: 1.75 mm ± 0.03 mm
• Tensile Strength: 54 MPa
• Elongation at Break: 10%
• Flexural Strength: 90 Mpa
• Flexural Modulus: 3490 Mpa
• Izod Impact, Notched: 6.7 KJ/m²
• Density: 1.106 g/cm³
• Melting Temperature: 148 °C
• Glass Transition Temperature: 135°C
• Heat Deflection Temperature at 0.45 MPa: 104 °C

--------------------

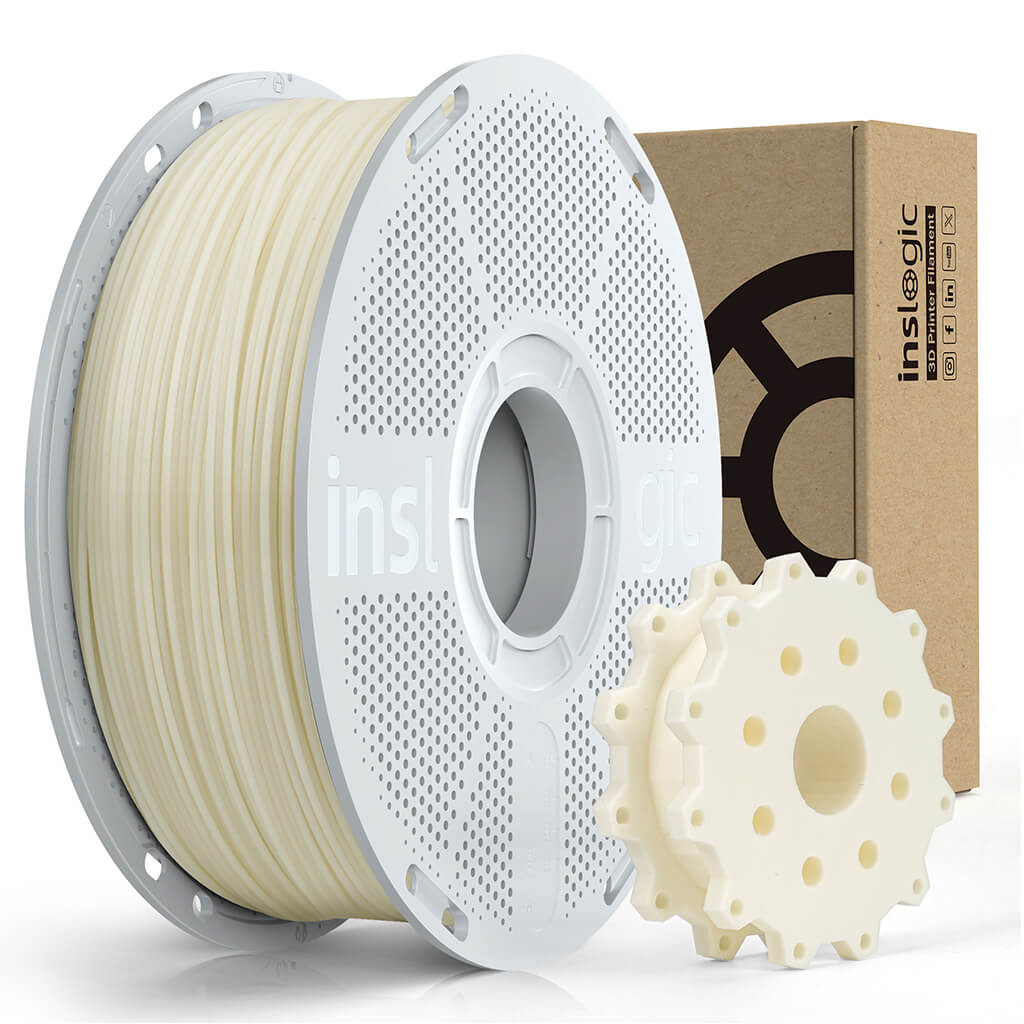

1 kg Reusable Spool Specifications:

• Materials: PC
• Color: White grey
• Temperature Resistance: ≤110℃
• Spool & Cardboard Coil Weight: 232 ± 3 g
• Inner Hole Diameter: 55±0.1 mm
• Outer Diameter: 200±0.1 mm
• Width: 67±0.1 mm

* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.

• Technical Data Sheet (TDS)
• Safety Data Sheet (SDS)
• Instructions for using Inslogic reusable spool and refill filament
