Inslogic Low-Warp Nylon PA6/66 Filament 1.75mm
Choose options

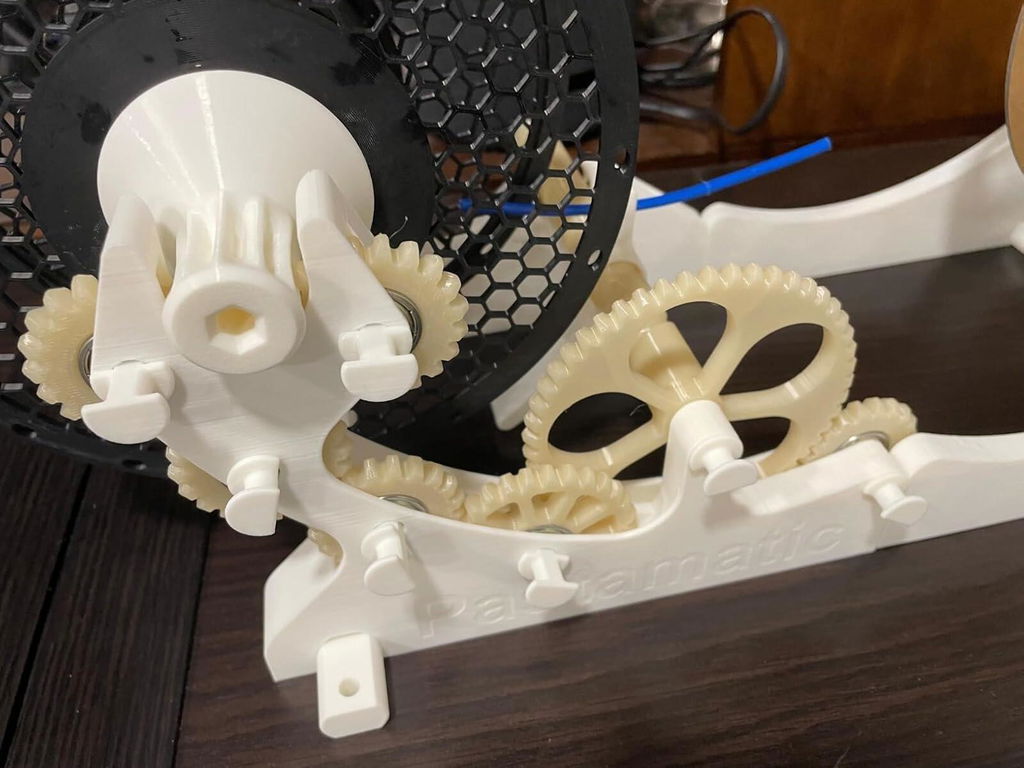

- 🎯 Built For: Gears, Bearings & Sliding Parts · Jigs & Fixtures · Chemical-Resistant Components · High-Wear End-Use Parts & Functional Prototypes
- 🔩 103 MPa Flexural Strength — Large Parts, Zero Warping
High flexural rigidity resists the uneven cooling forces that warp large or intricate prints. Get precise dimensions on complex geometries, first time. - 💪 79 MPa Tensile Strength — Built for High-Load Applications
Superior abrasion resistance combined with high tensile strength makes it ideal for functional end-use parts that take repeated impact, friction, and heavy loads. - 🧪 Resists Oils, Acids, Alkalis & Solvents: Chemical resistance across a broad spectrum makes PA6/66 the go-to for parts exposed to fuels, lubricants, and industrial fluids — where PLA and PETG simply fail.
- ⚙️ Moves Without Wearing Out — Low Friction, Long Service Life
Melts at 198°C with a low friction coefficient — engineered for gears, bearings, and sliding components where metal-on-plastic contact demands durability. Less wear, longer part life. - 🔗 Better Layer Adhesion — Stronger Prints, Less Delamination
Enhanced formulation improves interlayer bonding throughout the print, delivering smoother surfaces and structurally sound parts even under mechanical stress. - ✅ Compatible with Bambu Lab AMS and A1 Mini.

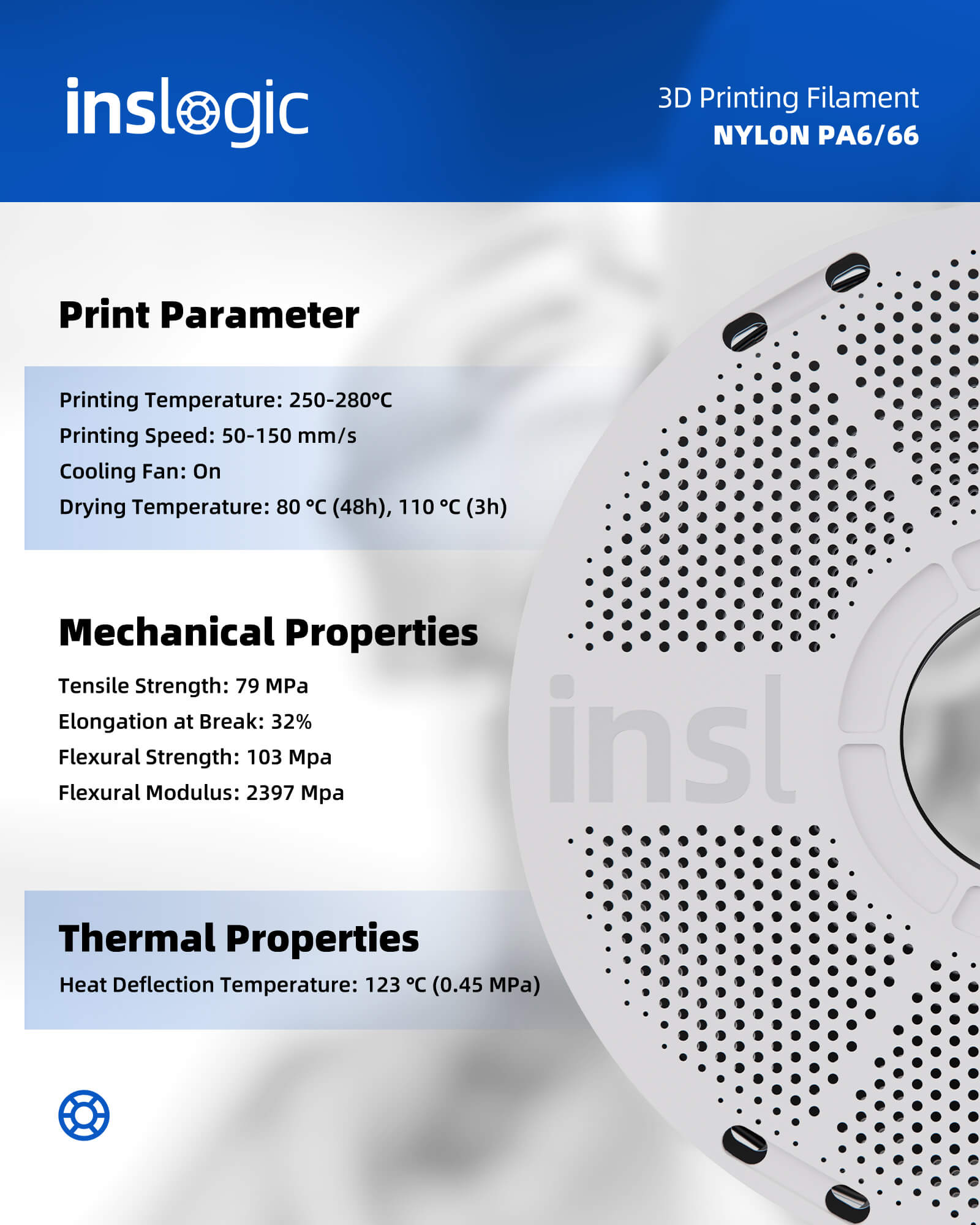

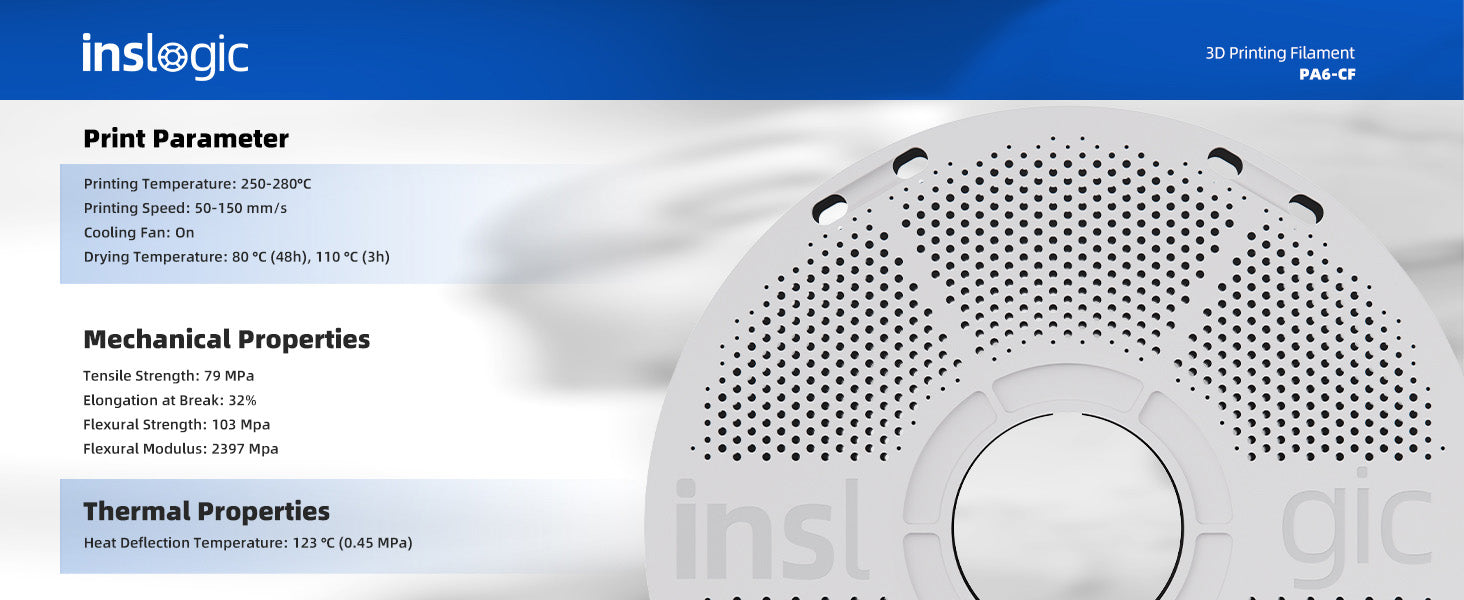

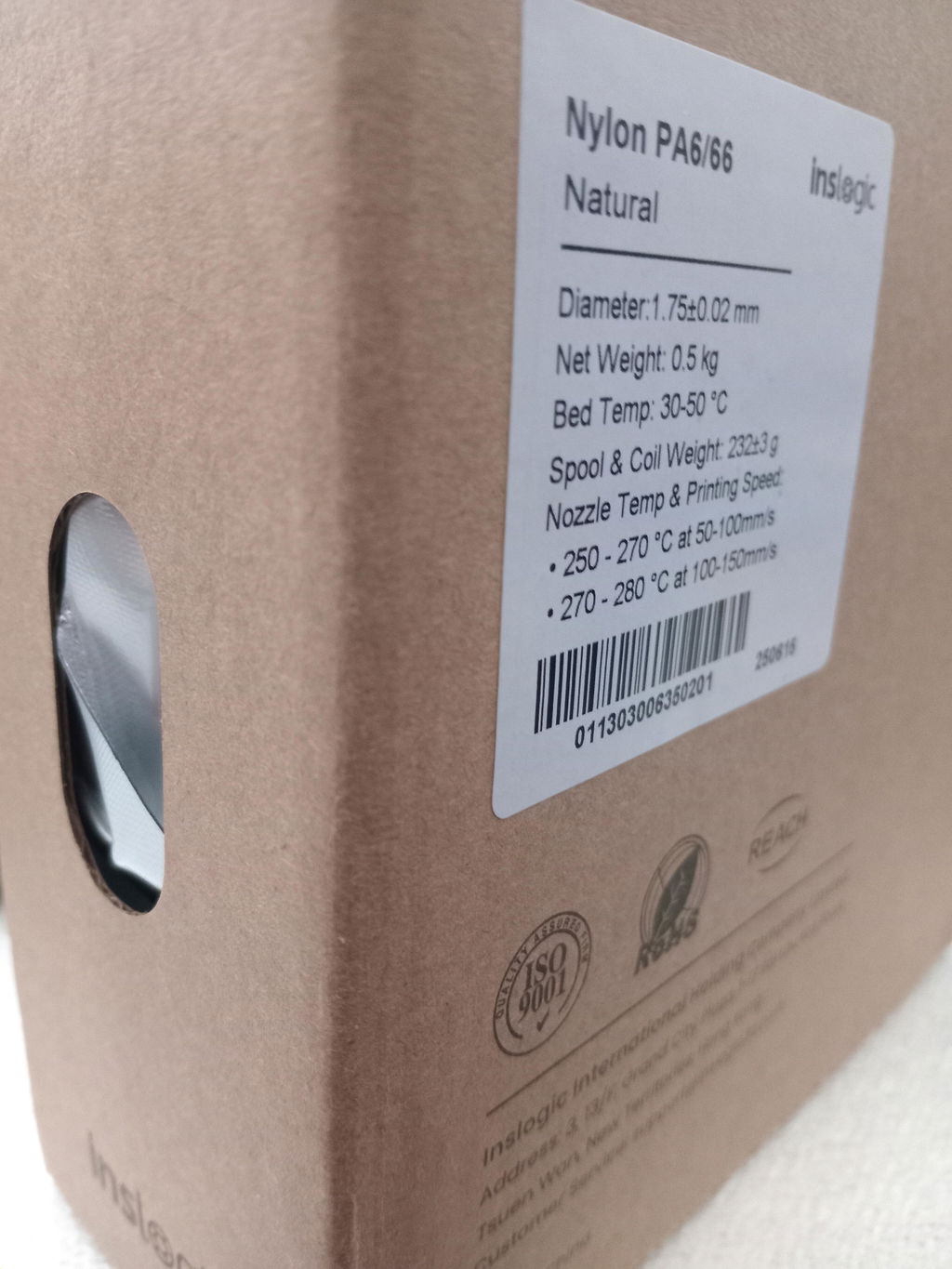

- Drying Settings: 80 °C for 48h, 110 °C for 3h
- Nozzle Size: 0.2, 0.4, 0.6 mm
- Nozzle Temperature & Printing Speed: 250-270 °C at a speed of 50-100 mm/s, and 270-280 °C at a speed of 100-150 mm/s
- Bed Temperature: 30 - 50 °C
- Cooling Fan Speed: 100%
- Bed Type: Textured PEI Sheet
- Glue: Recommended for larger prints
- Heated chamber: Recommended for larger prints
* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.
Inslogic Nylon PA6/66 Filament is universally designed and compatible with FDM 3D printers using 1.75mm diameter filament, with a precision of ±0.02 mm.

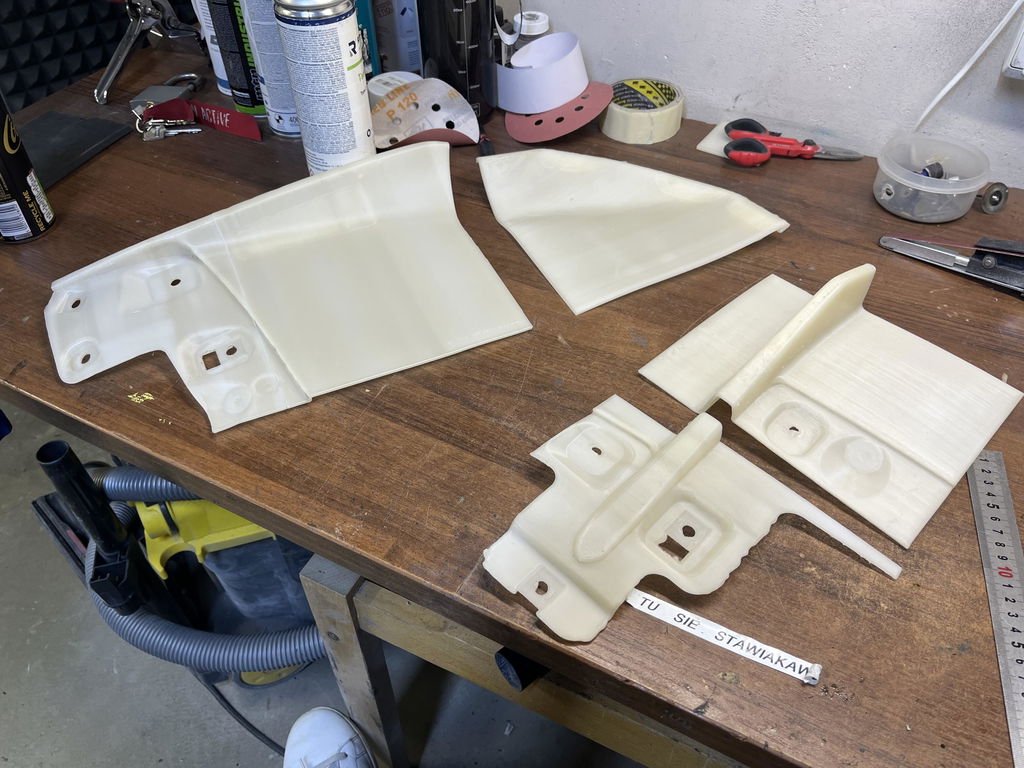

Inslogic Nylon PA6/66 copolymer is a perfect material if you are seeking an incredibly strong, durable, and versatile 3D printing material. It exhibits much lower warping, improved layer adhesion, and good tensile strength. With our unique formulas, compared to other Nylon filaments, you can 3D print Inslogic Nylon PA6/66 at relatively lower temperatures while maintaining its excellent mechanical features, making it a versatile nylon filament for 3D printing end-use parts.
Nylon PA6/66 exhibits excellent resistance to impact, wear, abrasion, and some chemicals such as oils, fuels, and lubricants. It has great impact strength and good mechanical properties. With a low friction coefficient and a high melting temperature of 198°C, it is an excellent choice for applications such as 3D printing functional prototypes, tools, gears, and end-use parts.
Nylon is a hygroscopic material, and will attract and hold molecules from the surrounding environment. It is recommended to keep it dry before and during printing. Please store it in a sealed container with desiccant packets or similar.
* Compatible with Bambu Lab AMS and A1 mini.
- Length: 370 m
- Net Weight: 1 kg
- Reusable Spool & Cardboard Coil Weight: 232 ± 3 g
- Total Weight: 1.233 ± 0.03 kg
- Diameter: 1.75 mm ± 0.02 mm
- Tensile Strength: 79 MPa
- Elongation at Break: 32%
- Flexural Strength: 103 Mpa
- Flexural Modulus: 2397 Mpa
- Izod Impact, Notched: 6.63 KJ/m²
- Density: 1.08 g/cm³
- Heat Deflection Temperature at 0.45 MPa: 123 ℃
* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.
How to Use Inslogic Reusable Spool and Refill
