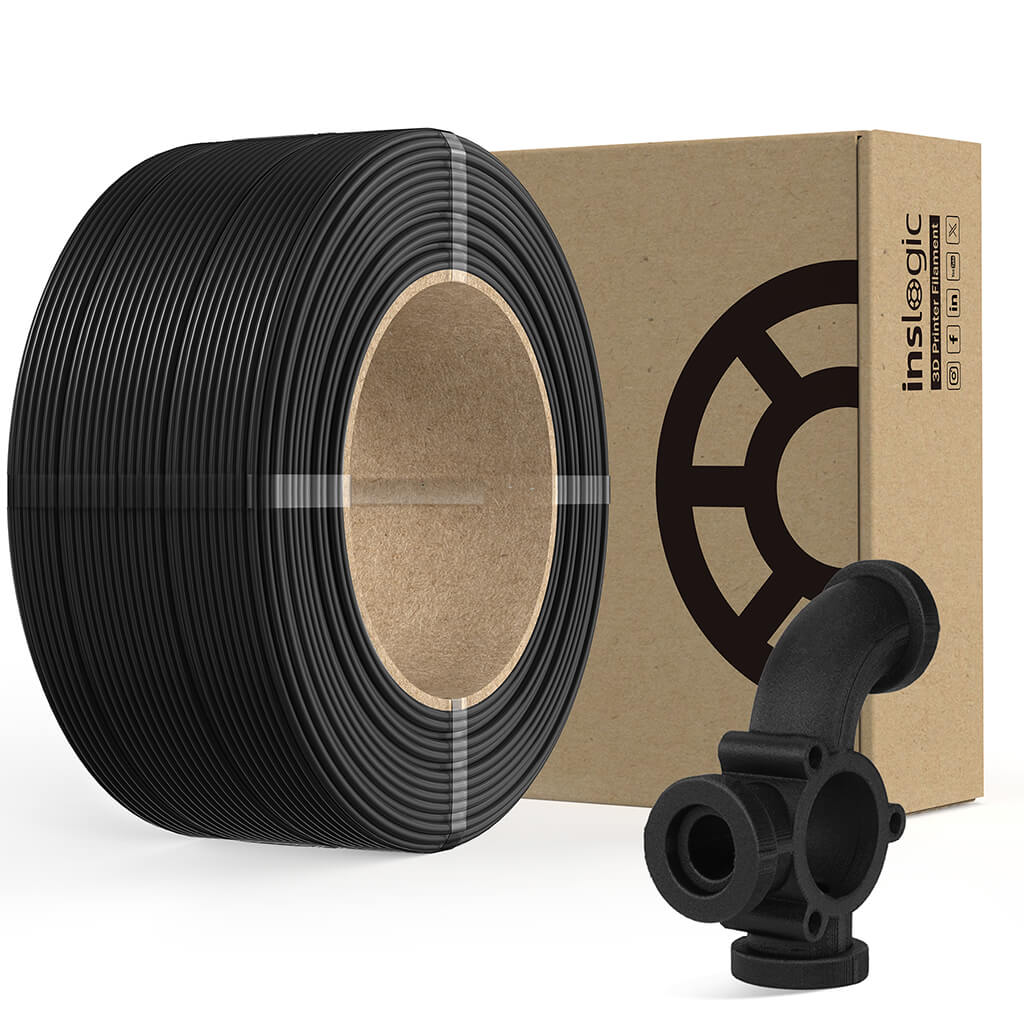

Inslogic PA6-GF25 Filament 1.75mm

• Handles the Heat: With a heat deflection temperature of 210°C, Inslogic PA6-GF25 Filament stays solid under stress, outperforming standard nylon in high-temp and high-load environments.
• Stiff, Strong, and Stable: Reinforced with 25% glass fiber, prints with high rigidity and low warping. Delivers crack-resistant parts with excellent dimensional accuracy.
• Engineered for Tough Jobs: Built for demanding applications with 125 MPa tensile strength, 9.4 KJ/m² notched impact strength, and 17% elongation at break. Strong, durable, and dependable.
• Optimized for High-Temp FDM Printers: Prints smoothly at 270 - 290°C using hardened nozzles and PEI beds. Compatible with Voron, Bambu Lab, Prusa MK4, and similar high-performance setups.
• To reach peak performance (HDT 210°C), bake parts at 110°C for 6 hours.

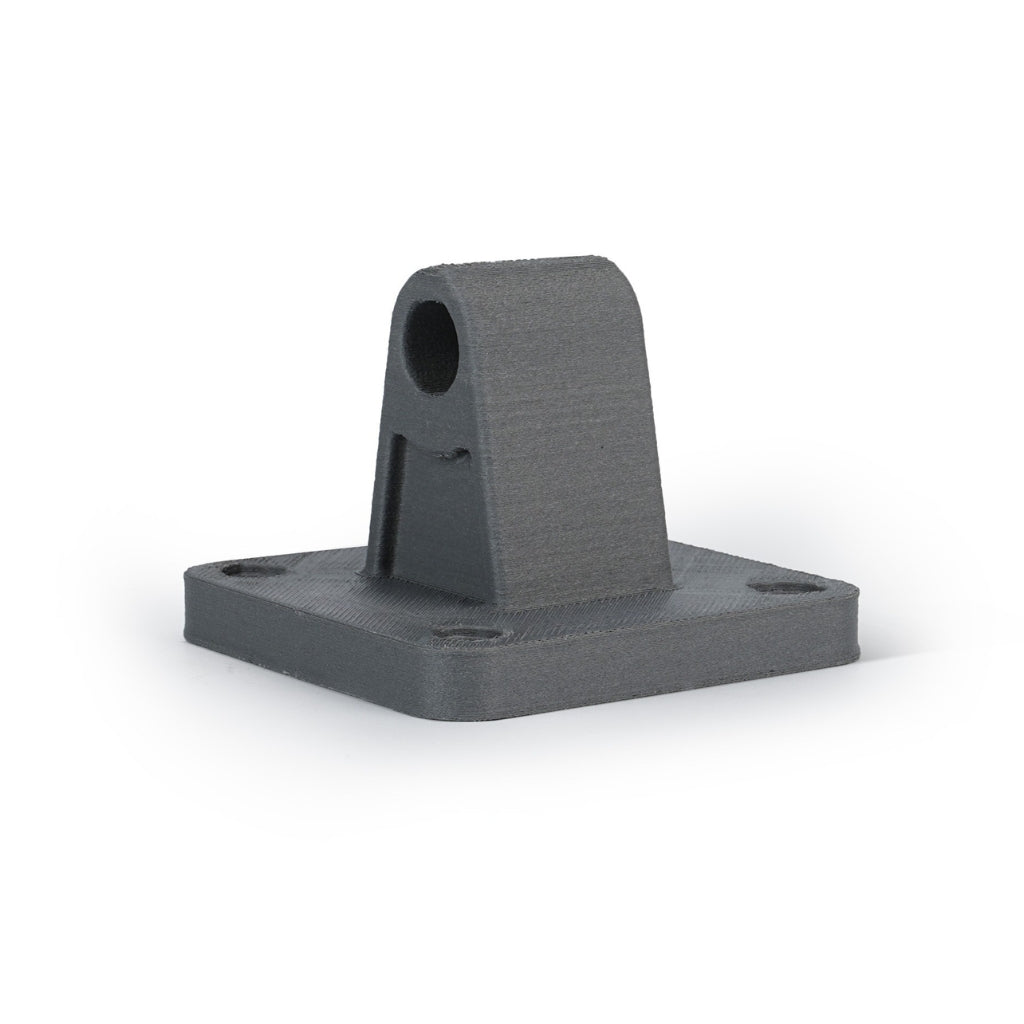

• Applications: Manufacturing, Automotive, Tooling, Functional and structural parts
• All AMS Series NOT Compatible

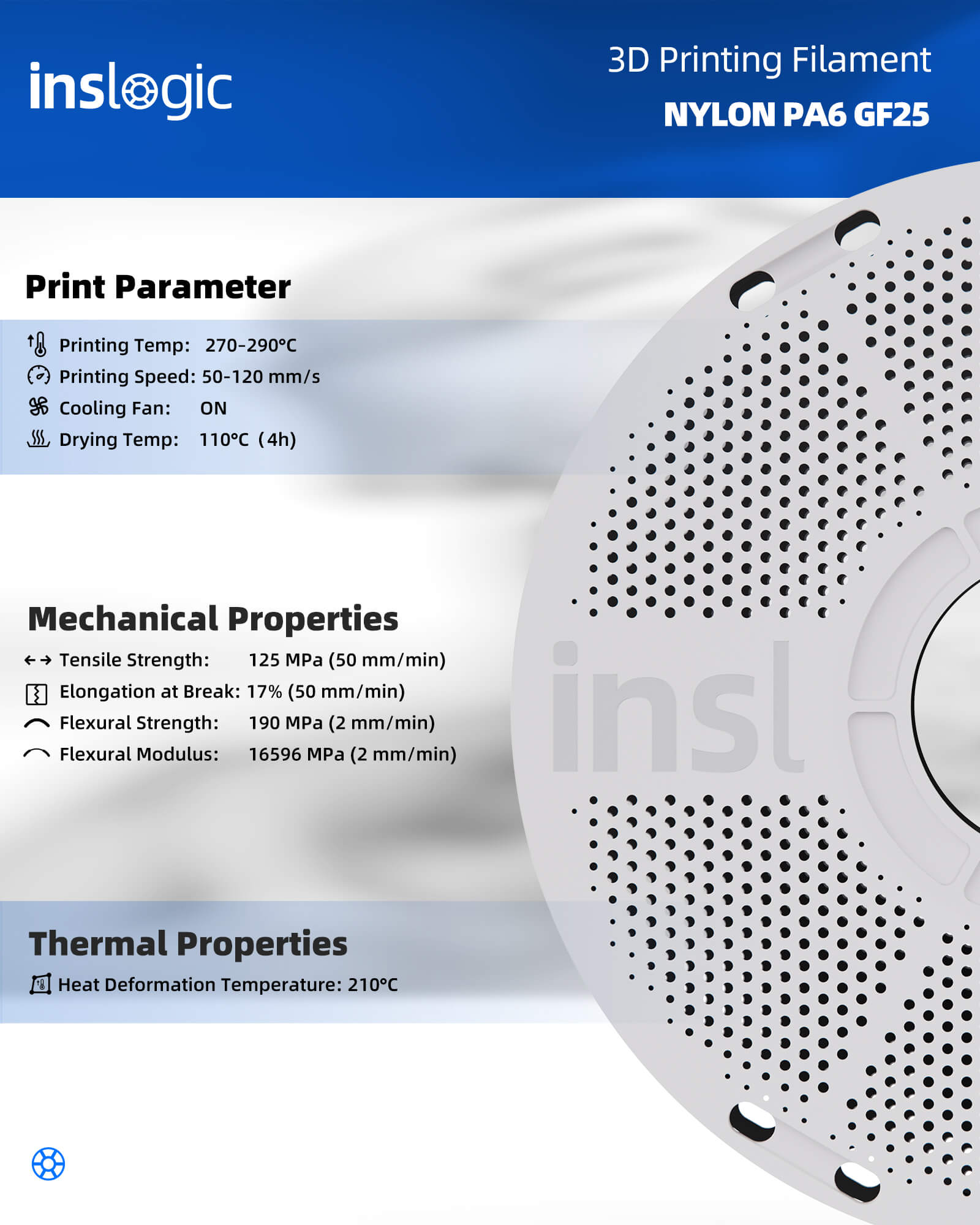

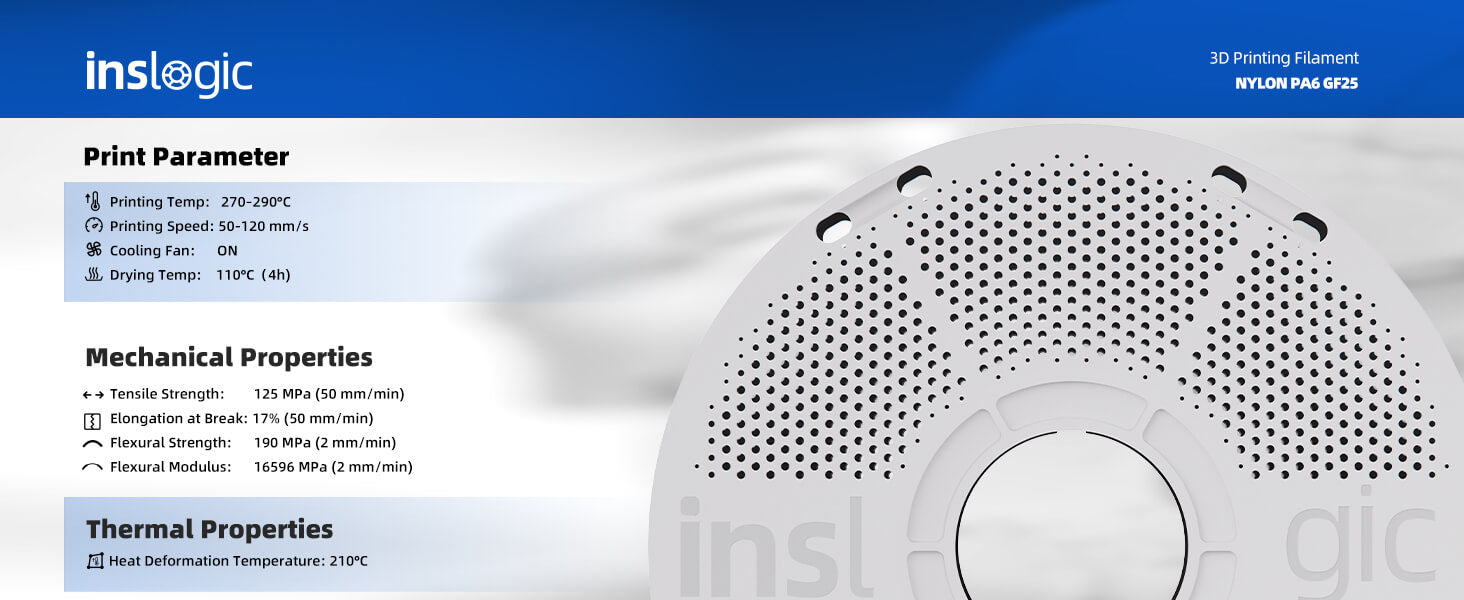

• Drying Settings: 110 °C for 4h
• Nozzle: Hardened steel nozzle with a diameter of 0.4 or 0.6 mm
• Nozzle Temperature & Printing Speed: 270-290 °C at 50-120 mm/s
• Bed Temperature: 50 - 70 °C
• Cooling Fan Speed: 100%
• Bed Type: Textured PEI Sheet
• Annealing Settings: 110 °C for 6h

* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.

Inslogic PA6-GF25 Filament is an engineering-grade material, compatible with FDM 3D printers using 1.75 mm diameter filament with a precision of ±0.03 mm.

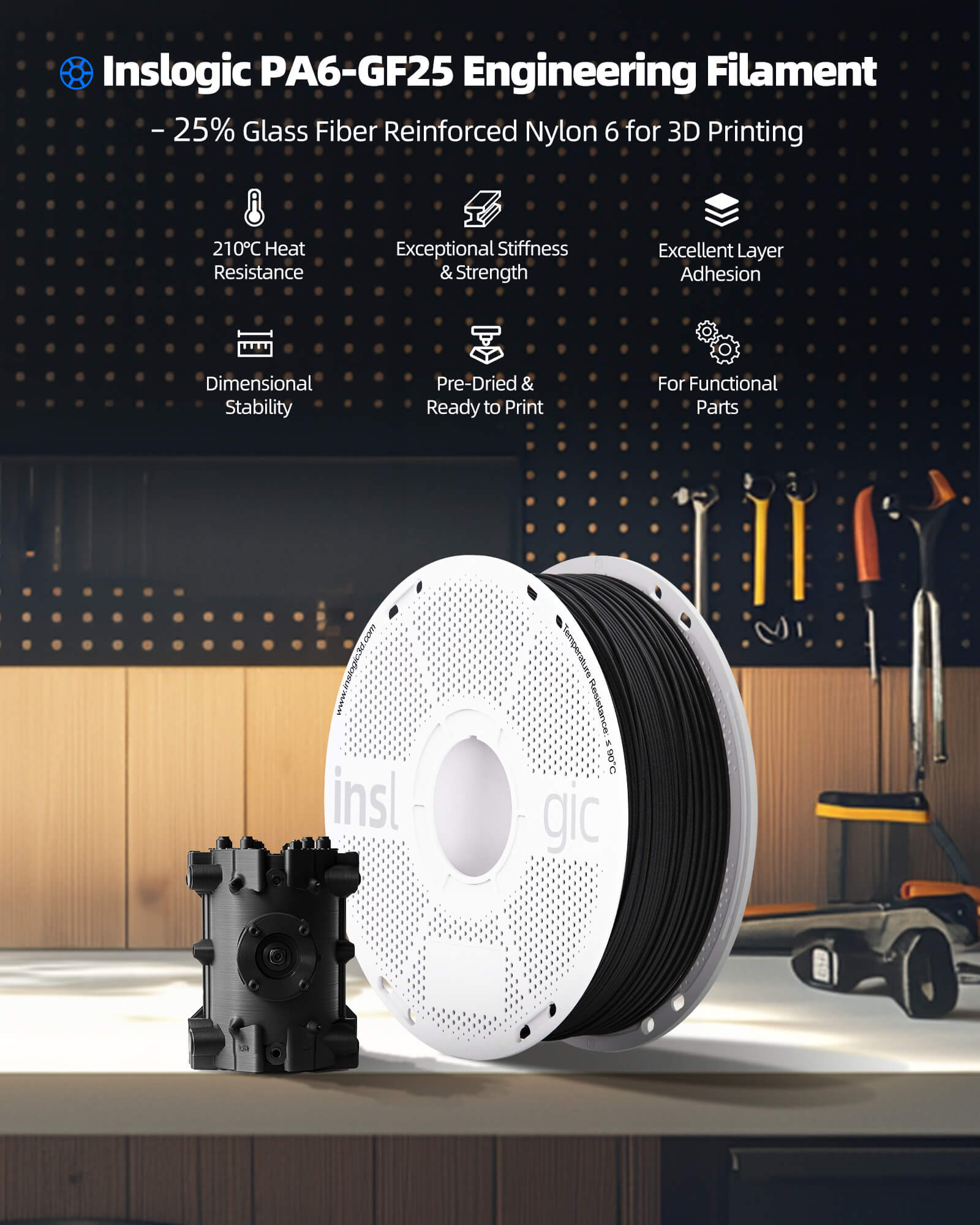

Inslogic PA6-GF25 is a high-performance 3D printing filament composed of Nylon 6 (PA6) reinforced with 25% glass fiber. This advanced material is engineered for strength, rigidity, and durability, making it ideal for demanding industrial and engineering applications.

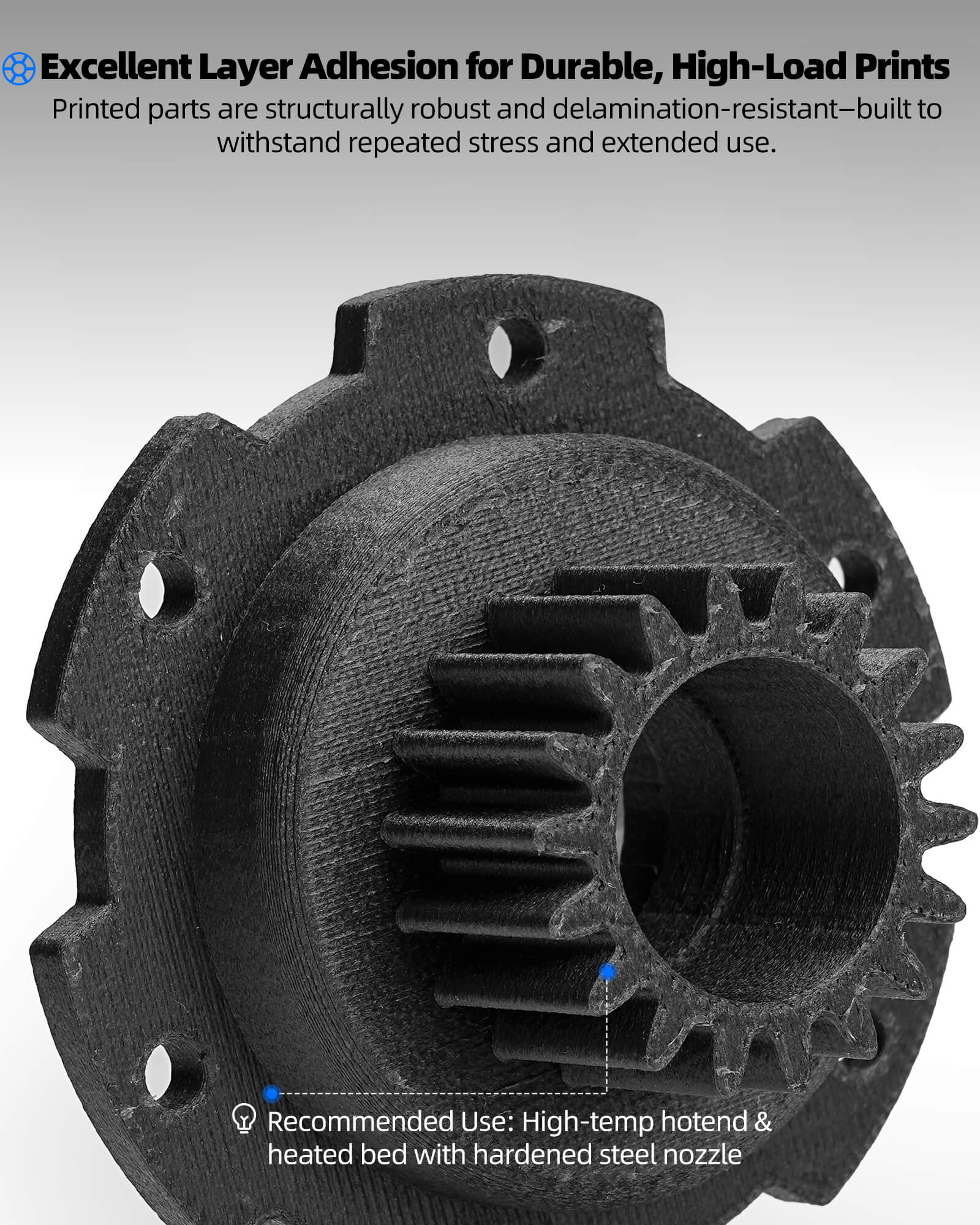

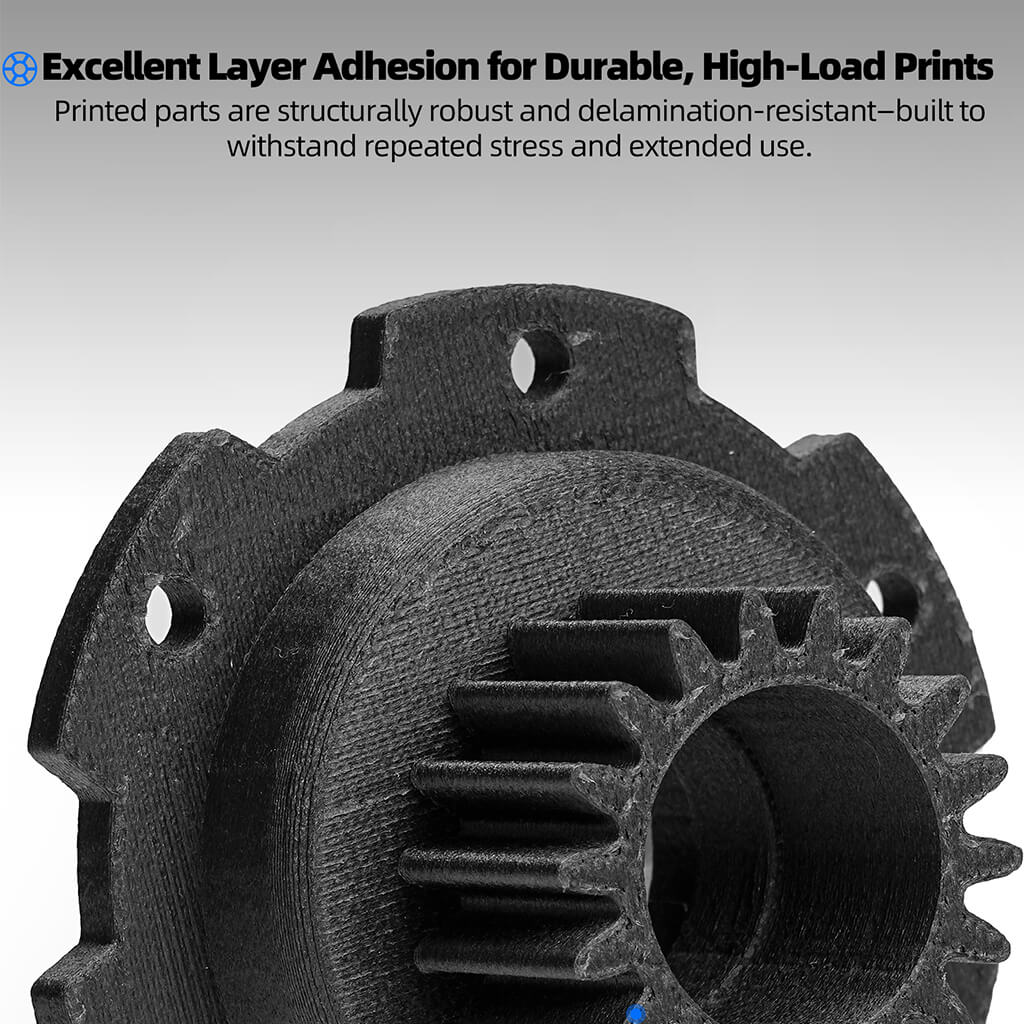

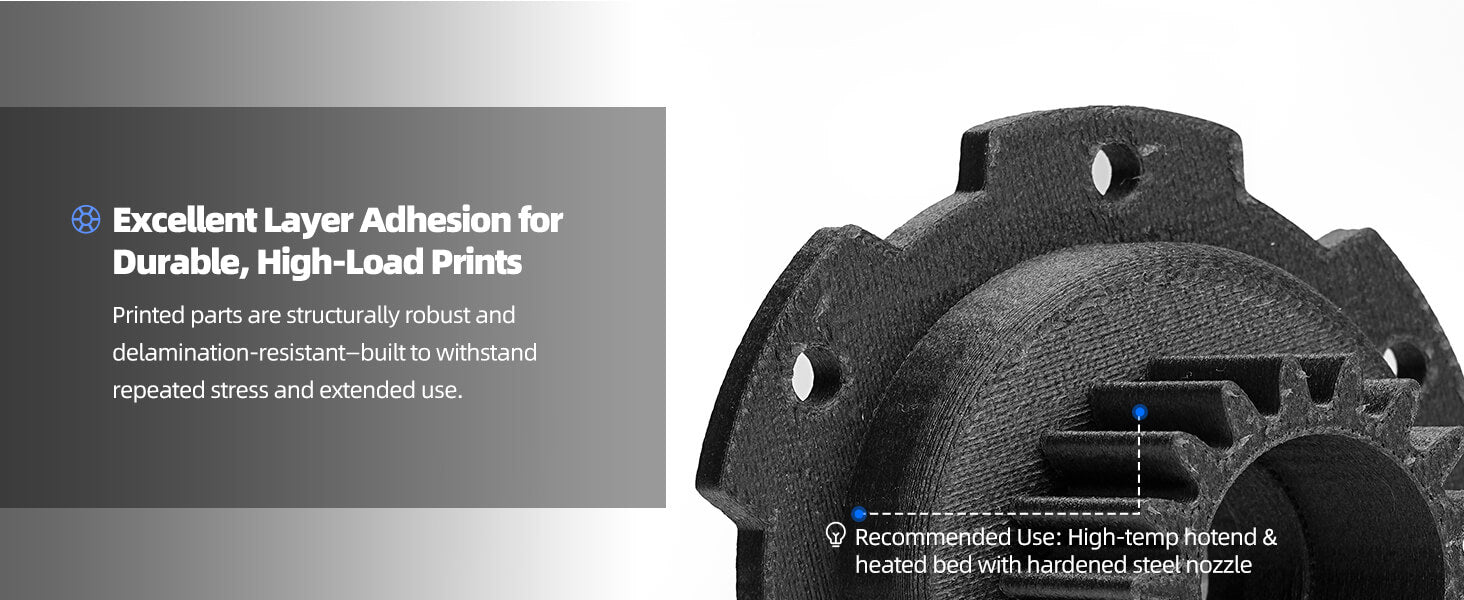

With a heat deflection temperature of 210°C, Inslogic PA6-GF25 delivers outstanding thermal resistance, along with excellent mechanical properties such as high stiffness, dimensional stability, and wear resistance. Despite its reinforced composition, the material maintains strong layer adhesion and printability, providing reliable, high-quality results.

Created for applications where mechanical strength and thermal stability are critical, Inslogic PA6-GF25 offers a practical balance of performance, ease of printing, and cost-effectiveness. Its recyclability and ease of post-processing further enhance its appeal for both prototyping and end-use parts in sectors such as functional prototyping, tooling, and manufacturing.

• Length: 320 m
• Net Weight: 250g, 500g, 1 kg
• Diameter: 1.75 mm ± 0.03 mm
• Tensile Strength: 125 MPa
• Elongation at Break: 17%

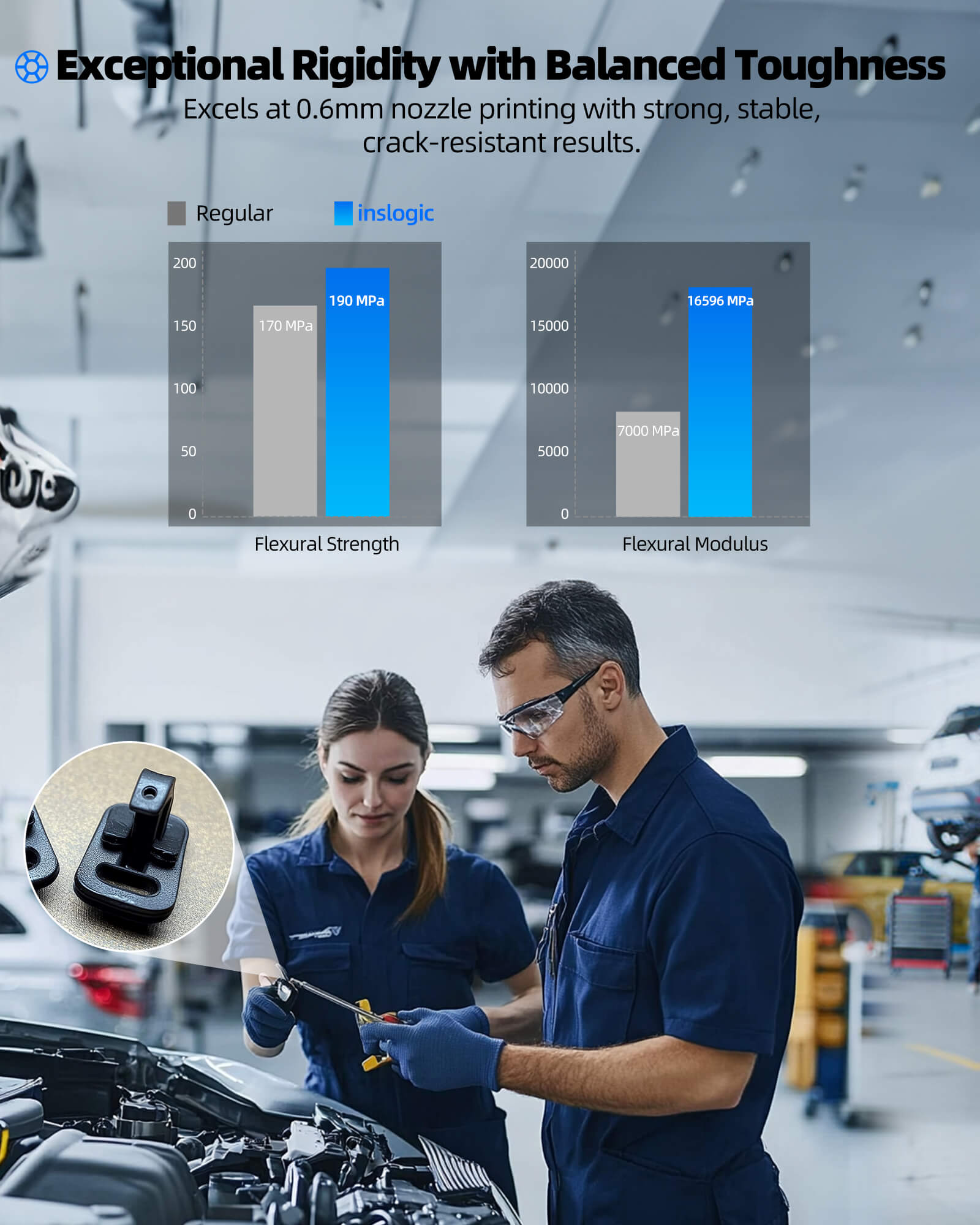

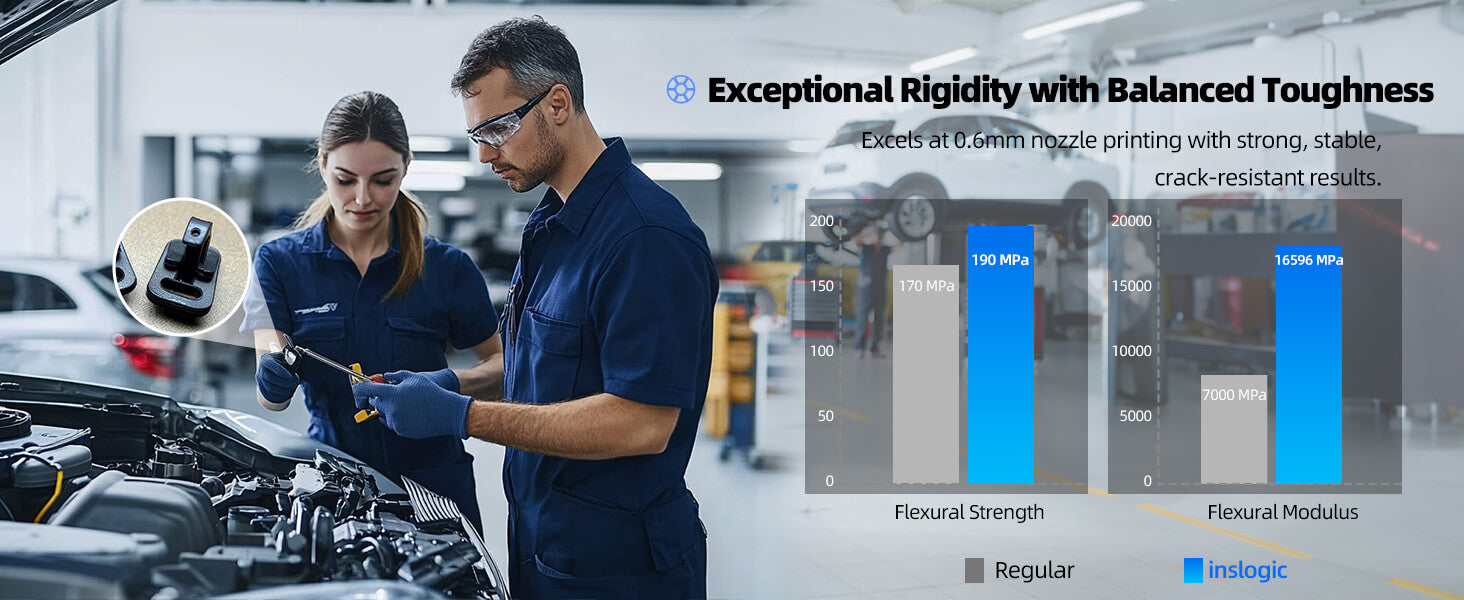

• Flexural Strength: 190 Mpa
• Flexural Modulus: 16596 Mpa
• Izod Impact, Notched: 9.4 KJ/m²
• Density: 1.27 g/cm³
• Glass Transition Temperature, 10 °C/min: 65 ℃
• Heat Deflection Temperature at 0.45 MPa: 210 ℃

--------------------

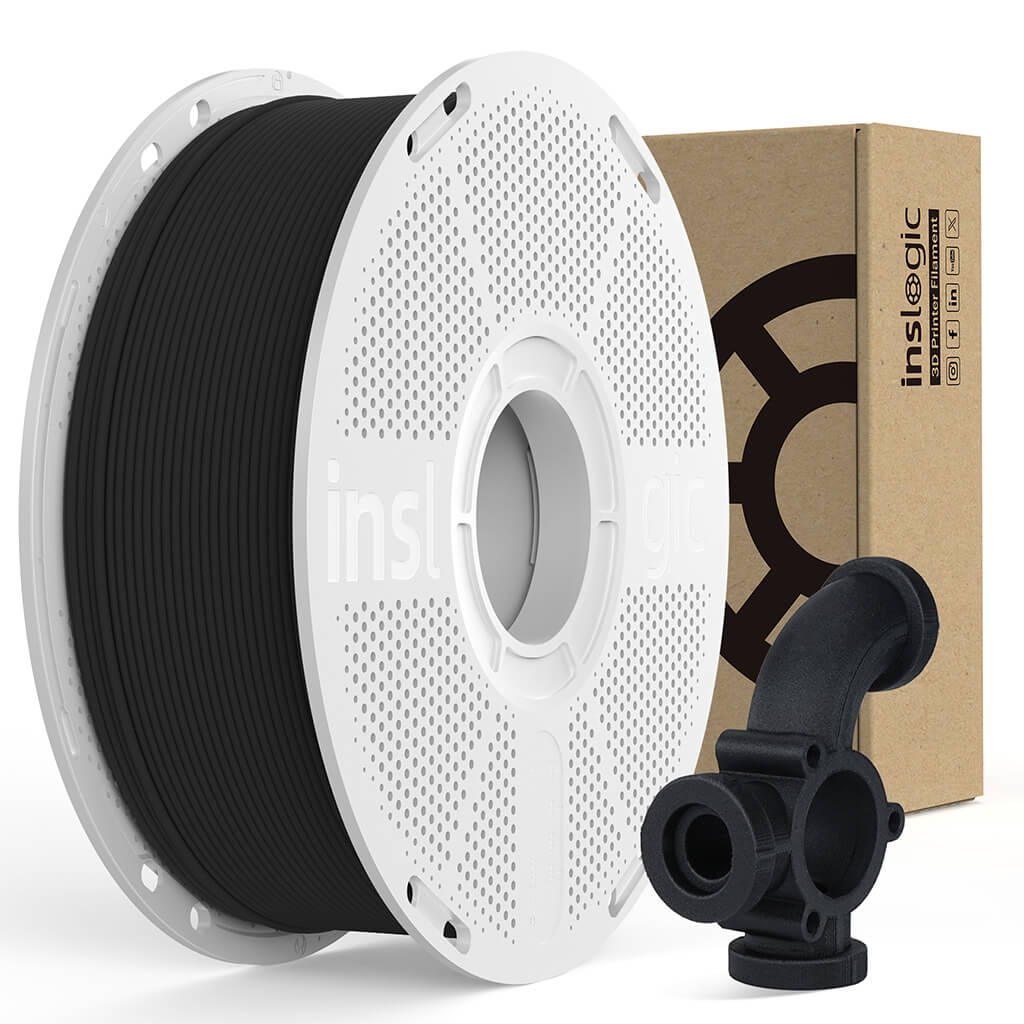

1 kg Reusable Spool Specifications:

• Materials: PC
• Color: White grey
• Temperature Resistance: ≤110℃
• Spool & Cardboard Coil Weight: 232 ± 3 g
• Inner Hole Diameter: 55±0.1 mm
• Outer Diameter: 200±0.1 mm
• Width: 67±0.1 mm

* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.

• Technical Data Sheet (TDS)
• Safety Data Sheet (SDS)

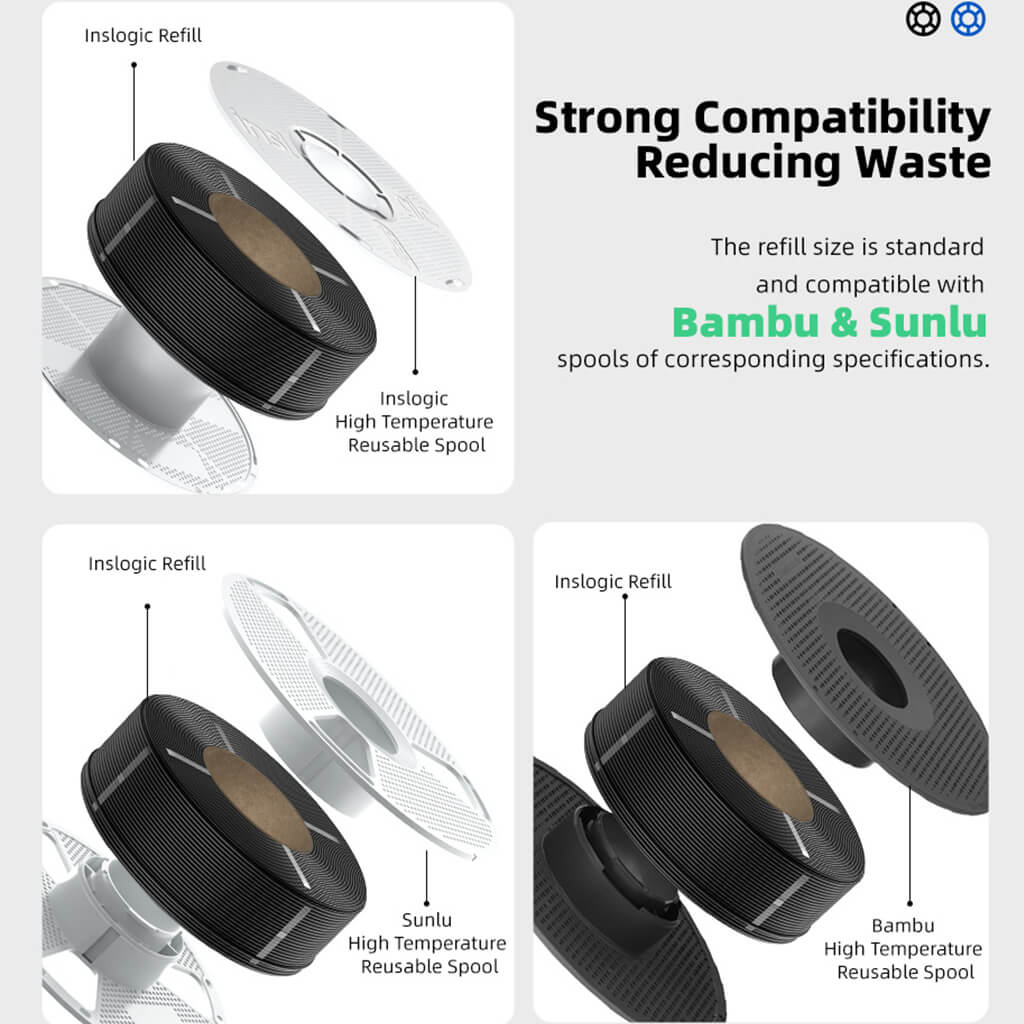

• Instructions for using Inslogic reusable spool and refill filament
