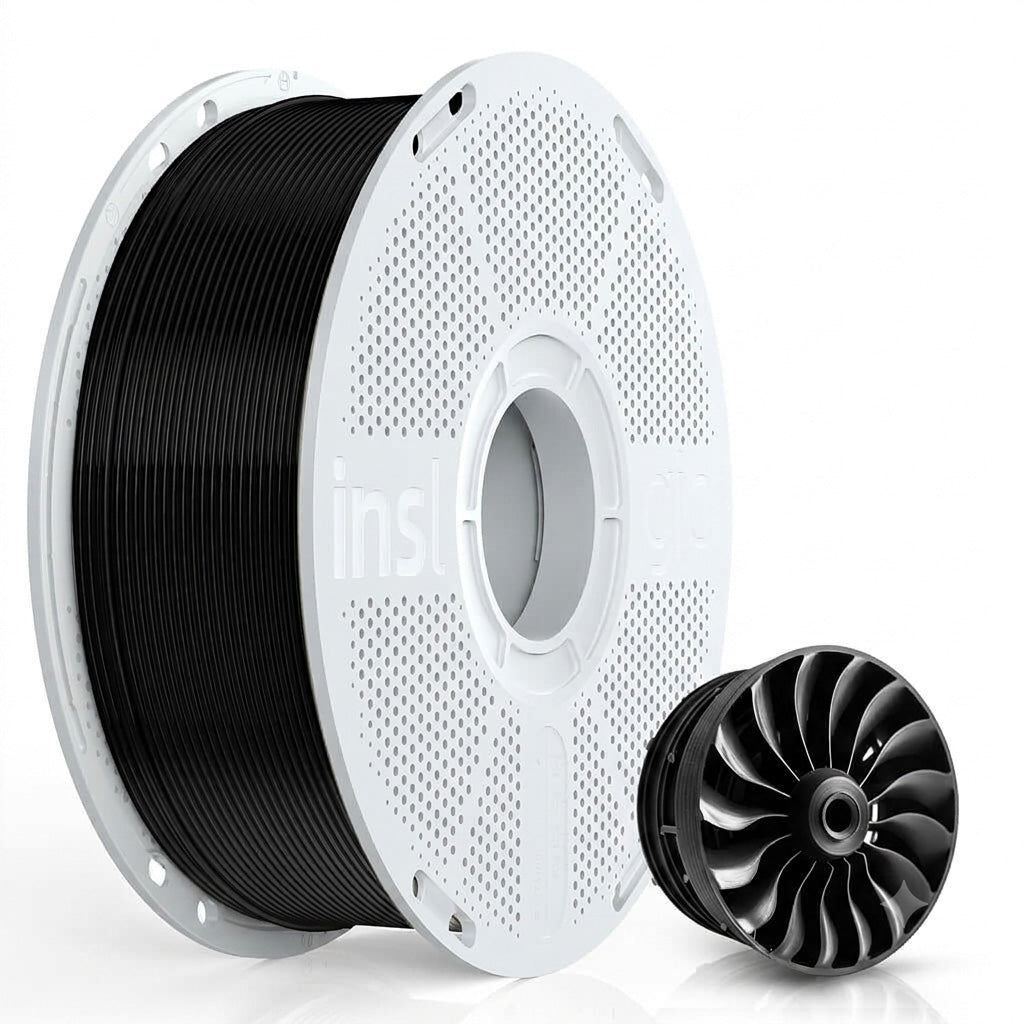

Inslogic PA12-CF Filament 1.75mm

• 🏗️ Carbon Fiber + Nylon 12 — The Humidity-Proof Engineering Combo 20% carbon fiber reinforcement delivers aerospace-grade stiffness and strength, while the PA12 base absorbs 50% less moisture than PA6 — keeping your parts dimensionally stable in humid workshops, outdoor environments, and long-term deployments.

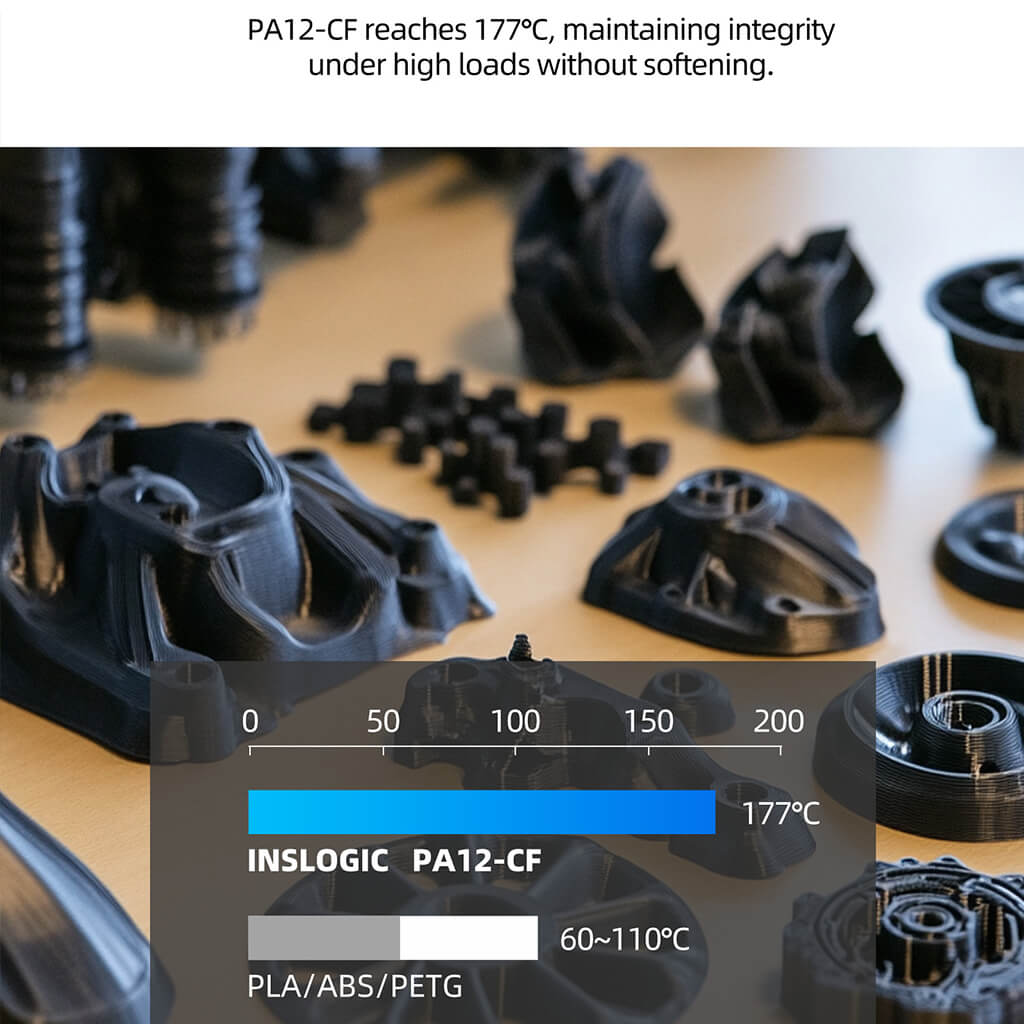

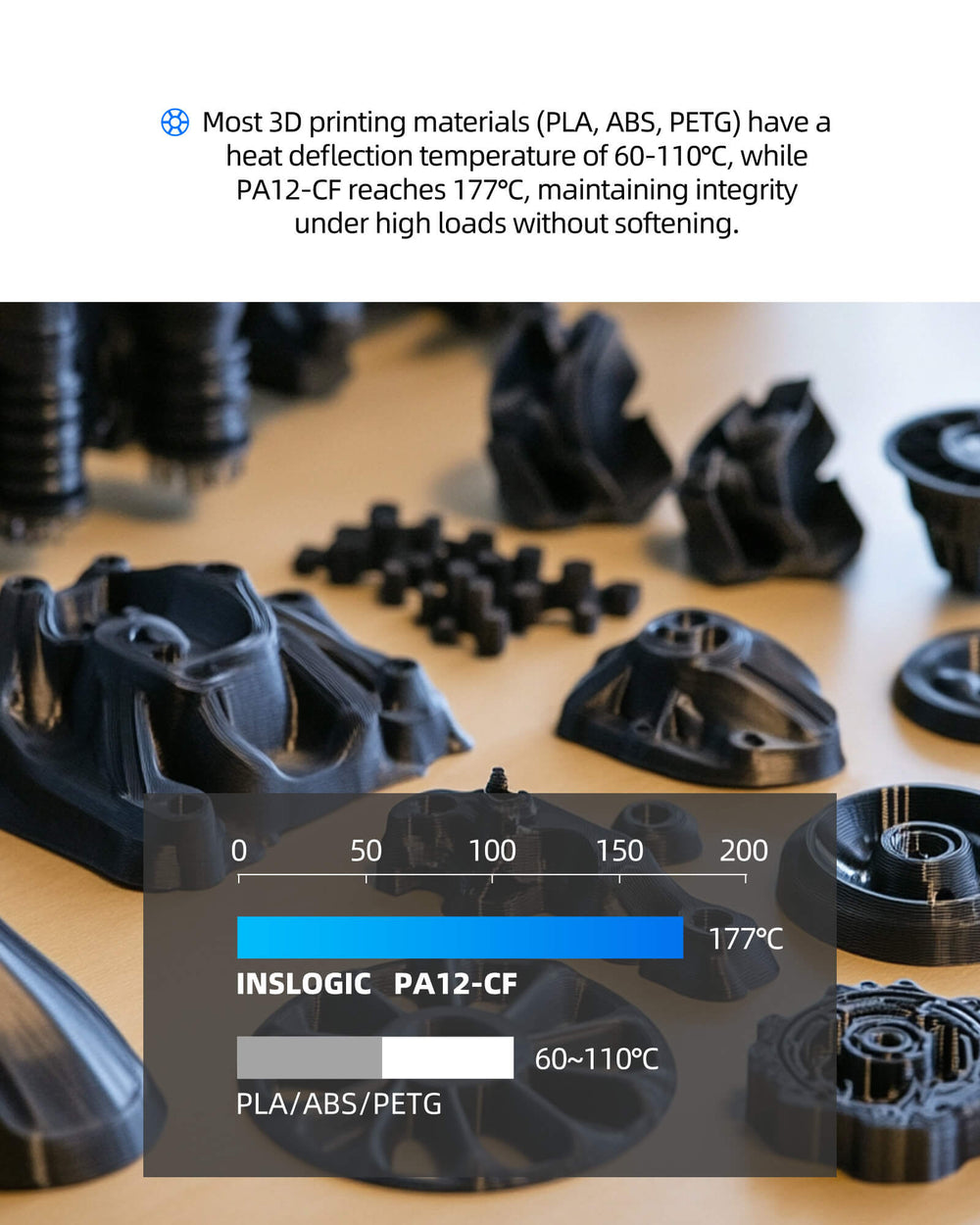

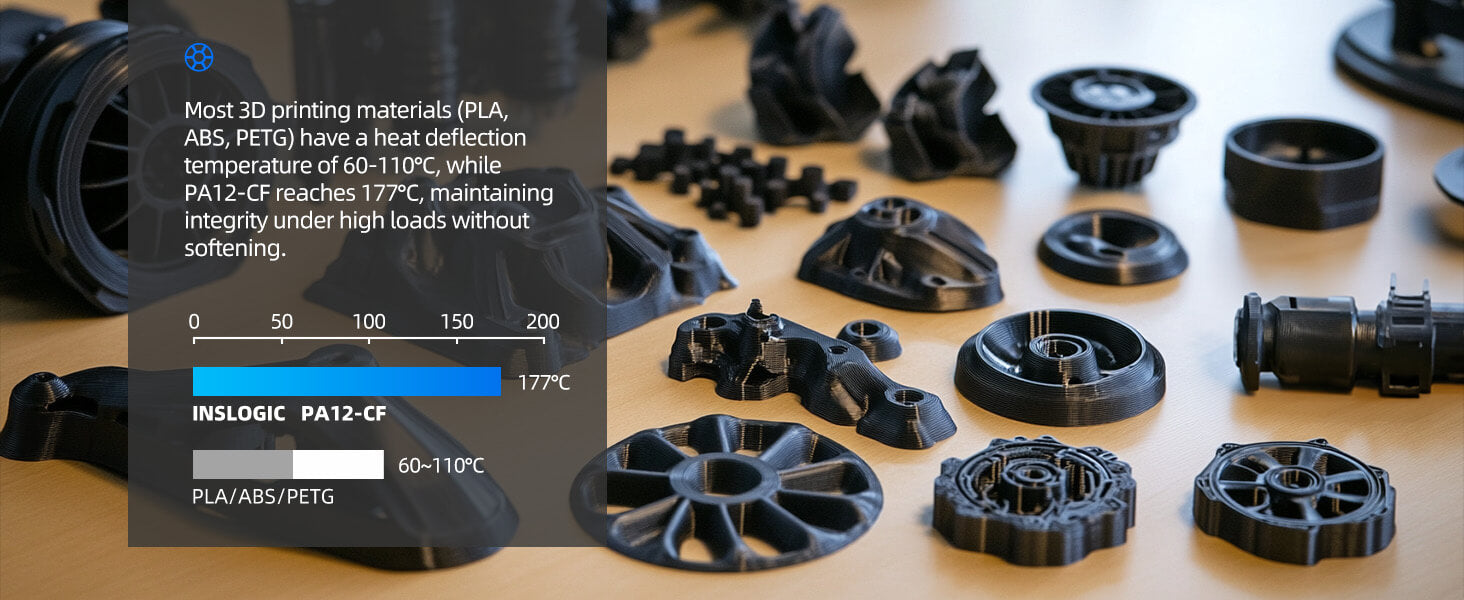

• 🌡️ Holds Shape at 177°C — Where PLA, ABS, and PETG Fail High heat resistance far beyond standard materials. Ideal for under-hood automotive parts, industrial fixtures, and any application where heat and load combine.

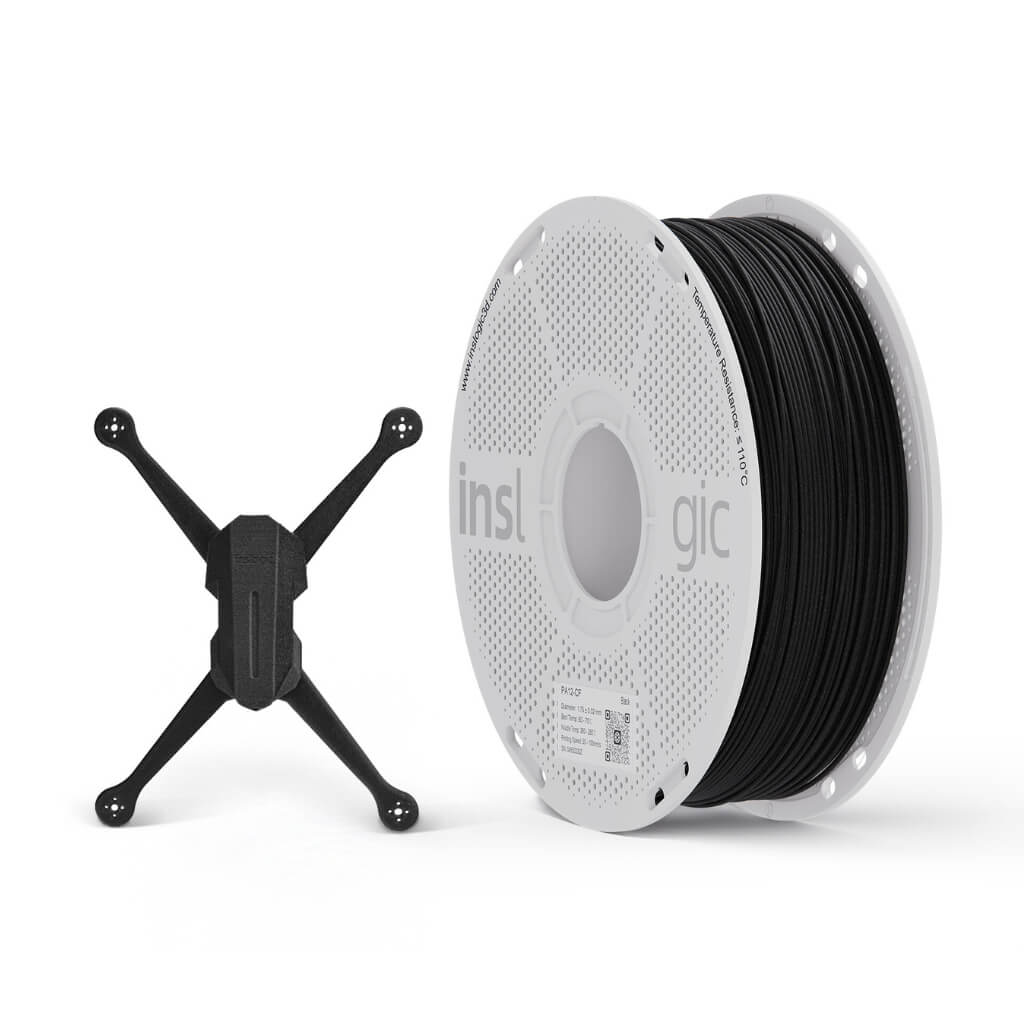

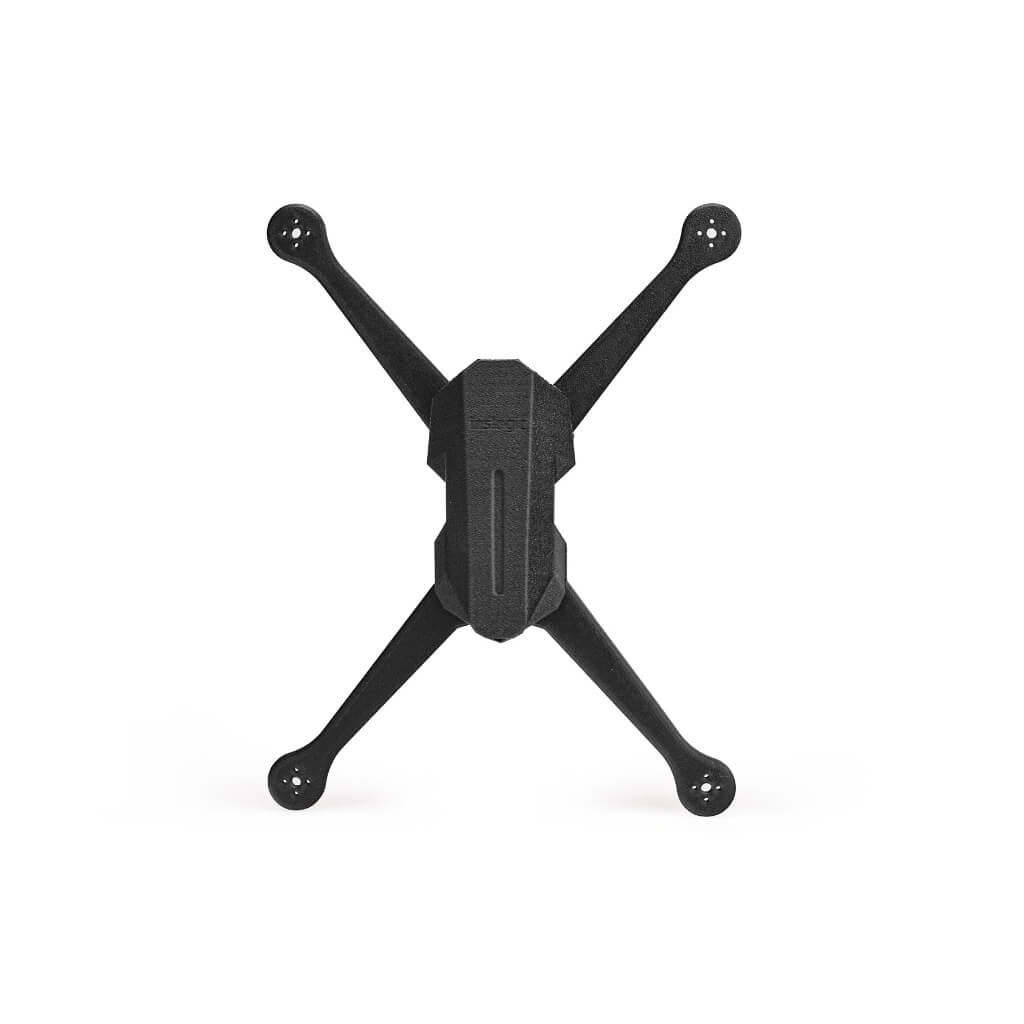

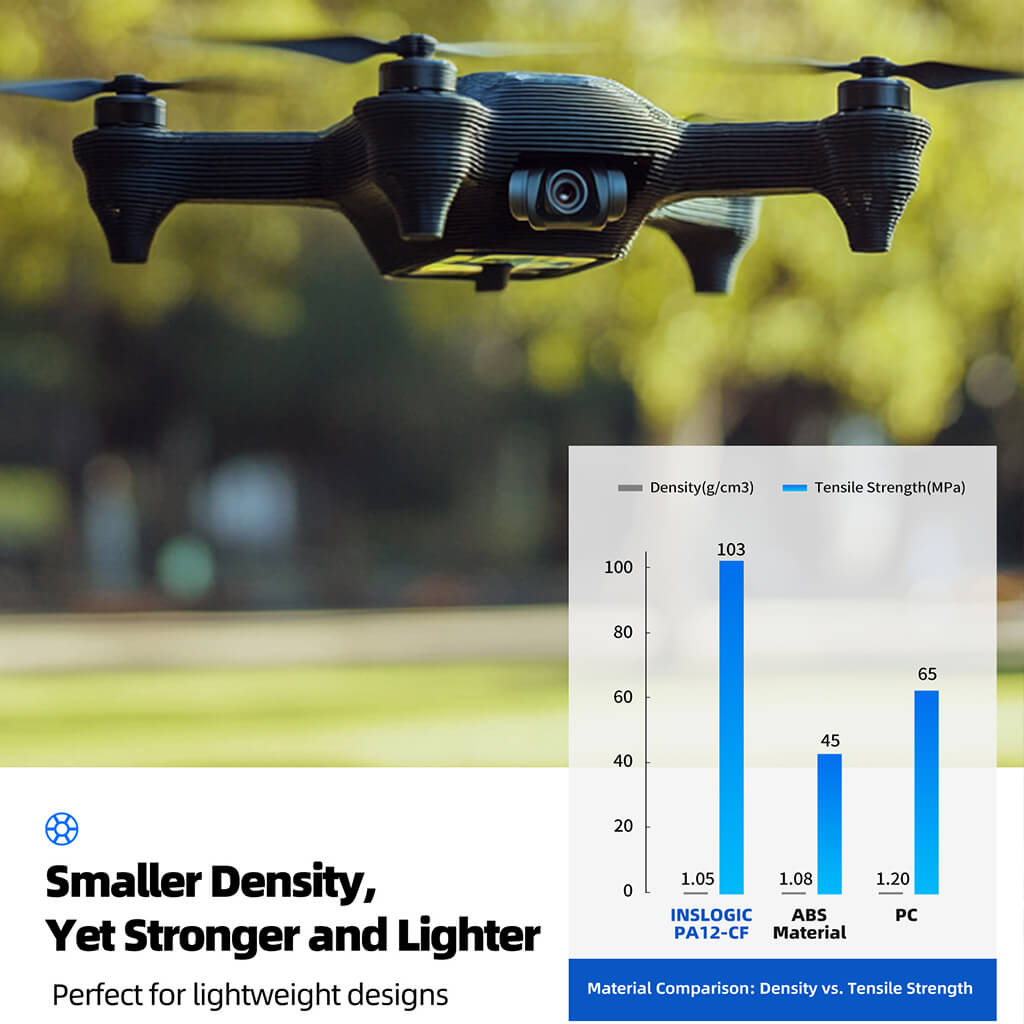

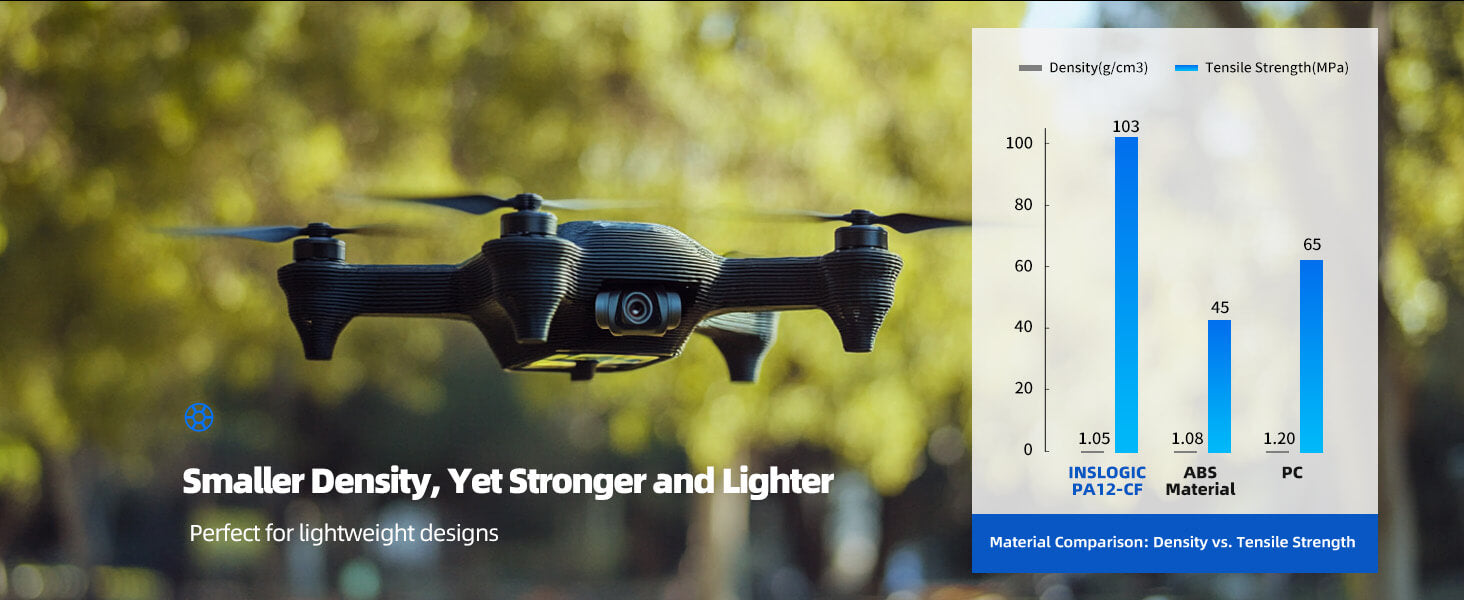

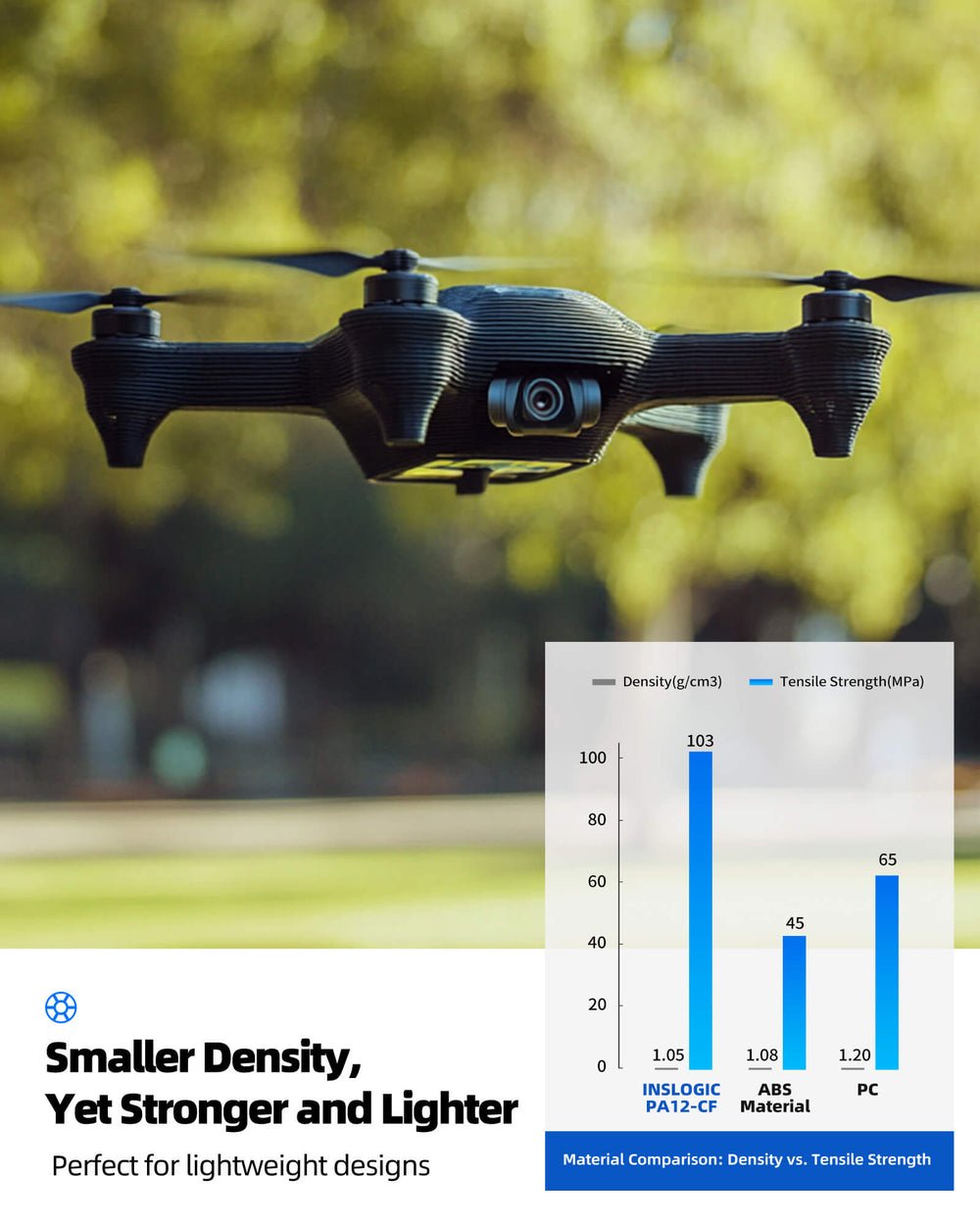

• ⚖️ Lighter Than Metal. Stronger Than Standard Nylon. High strength-to-weight ratio means you get structural performance without the mass — critical for drones, aerospace brackets, and weight-sensitive end-use parts.

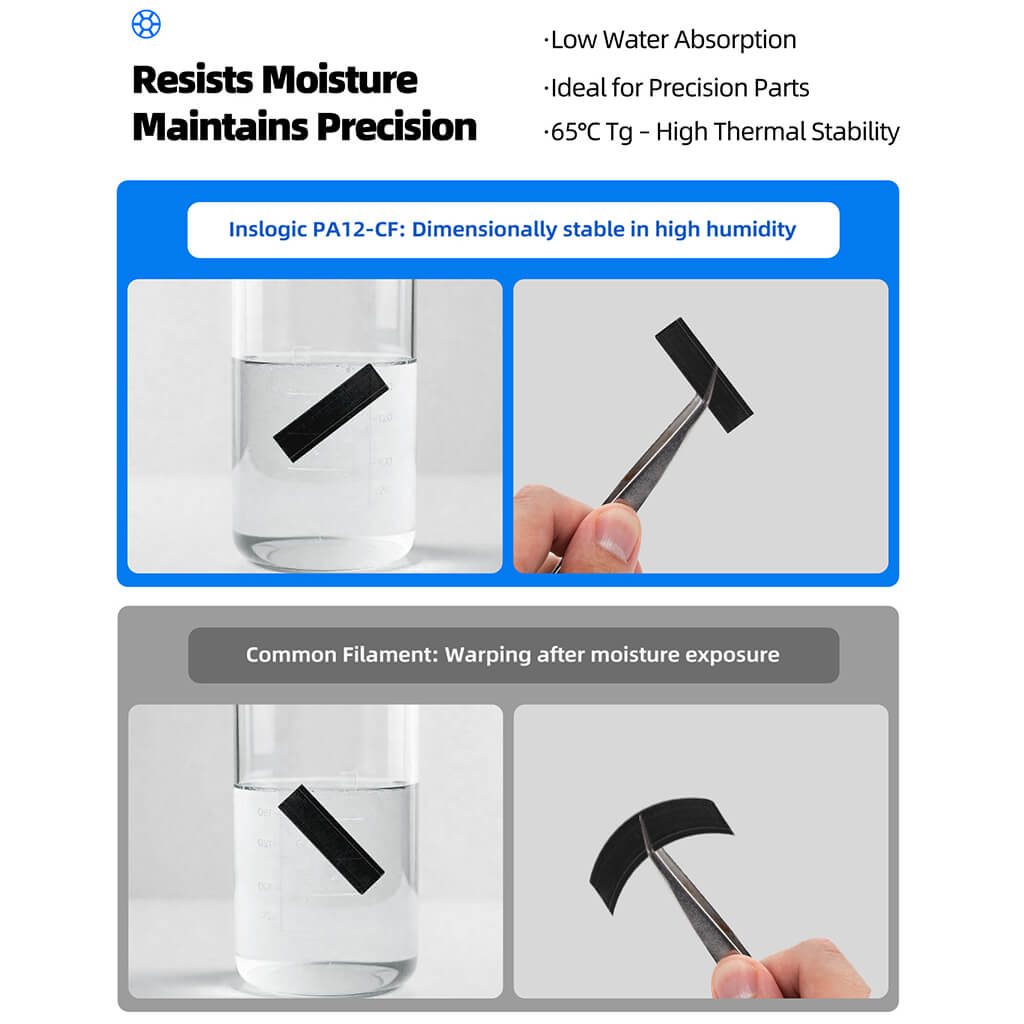

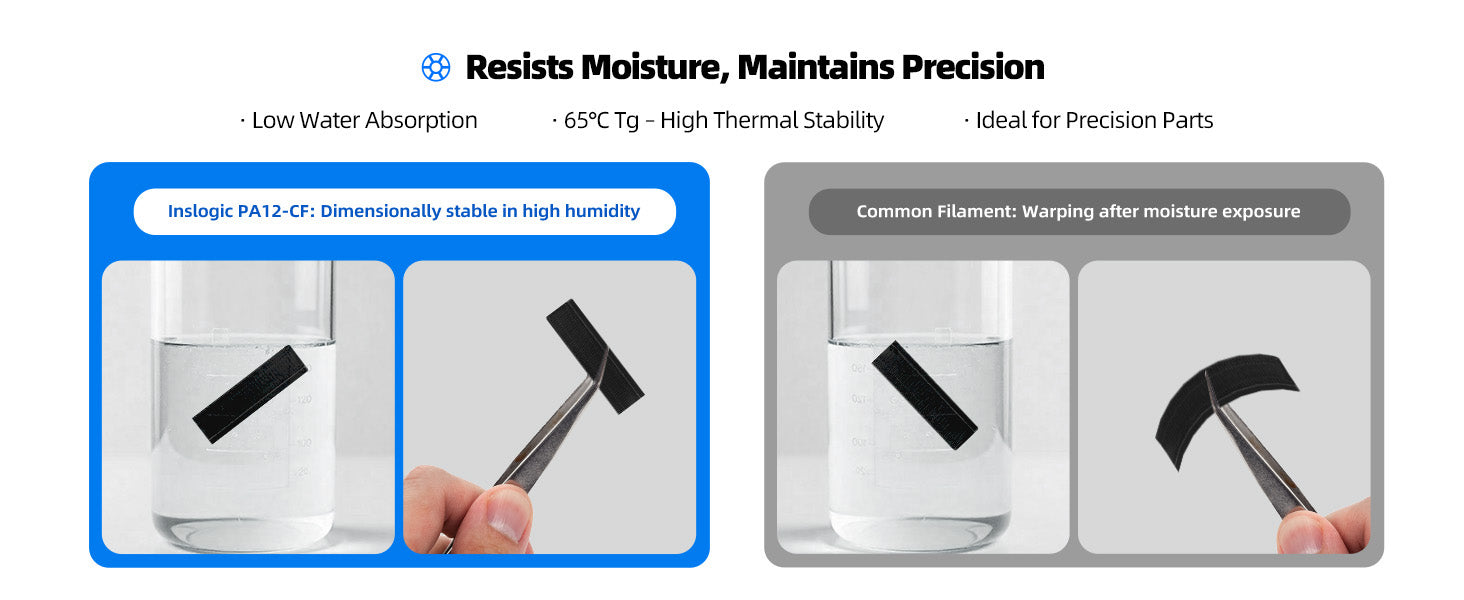

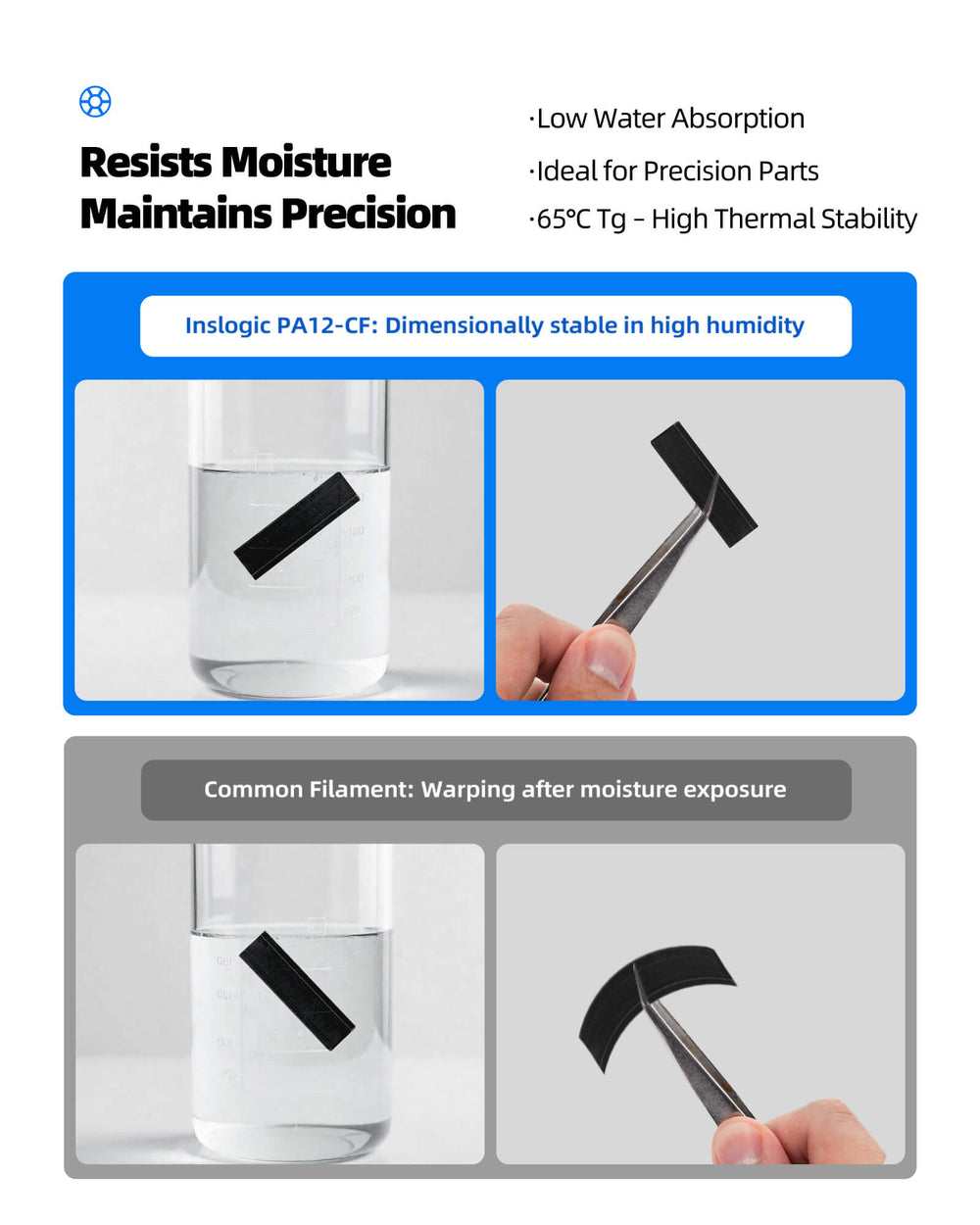

• 💧 Precision in Humid Conditions — Low Water Absorption 65°C glass transition temperature and minimal moisture uptake ensure your parts maintain tight tolerances even in high-humidity environments. No warping, no swelling.
• ♻️ Detachable Eco-Spool — Compatible with Bambu Lab, SUNLU & More Reusable spool design reduces waste and fits wireless filaments from other brands. Swap, refill, and reuse — built for sustainable, high-volume workflows.
• 🎯 Built For: Manufacturing & Jigs · Automotive & Aerospace · Drones & Mechanical Components · End-Use Parts & Prototypes
• ⚠️Not compatible with AMS series.

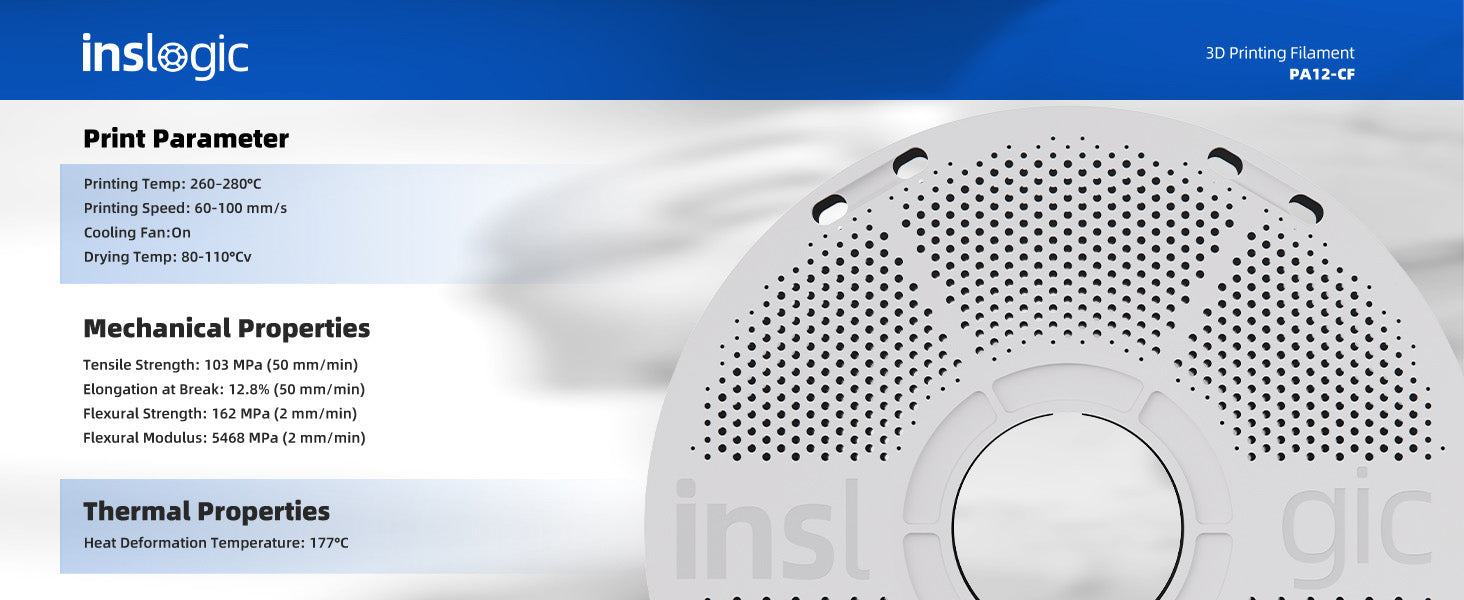

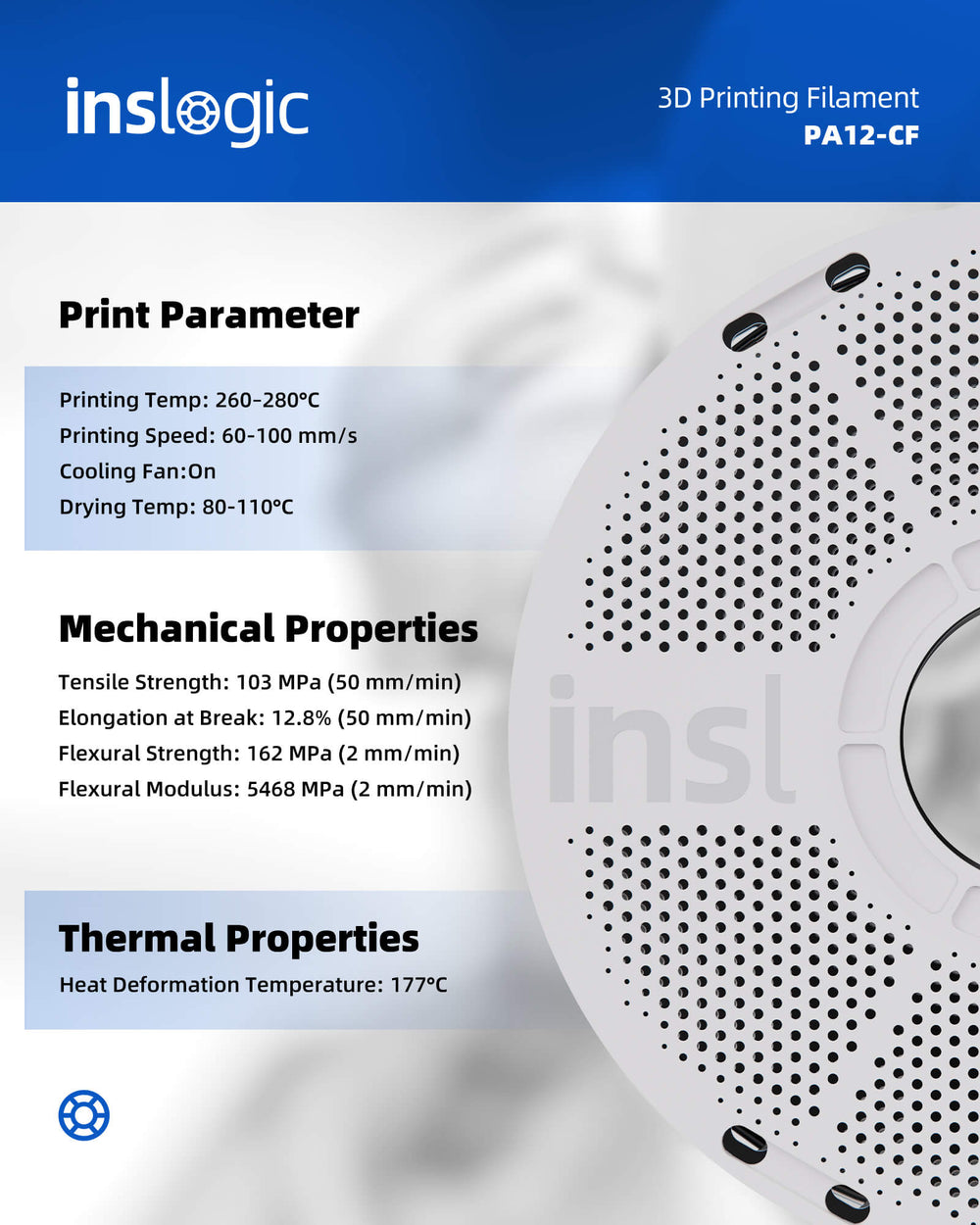

• Drying Settings: 90 °C for 12h; 110 °C for 4h
• Nozzle: Hardened steel nozzle with a diameter of 0.4 or 0.6 mm
• Nozzle Temperature & Printing Speed: 260-280 °C at 60-100 mm/s
• Bed Temperature: 60 - 70 °C
• Cooling Fan Speed: 70%
• Bed Type: Textured PEI Sheet
• Annealing Settings: 90 ℃ for 12h, 110 °C for 6h, 130 °C for 3h

* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.

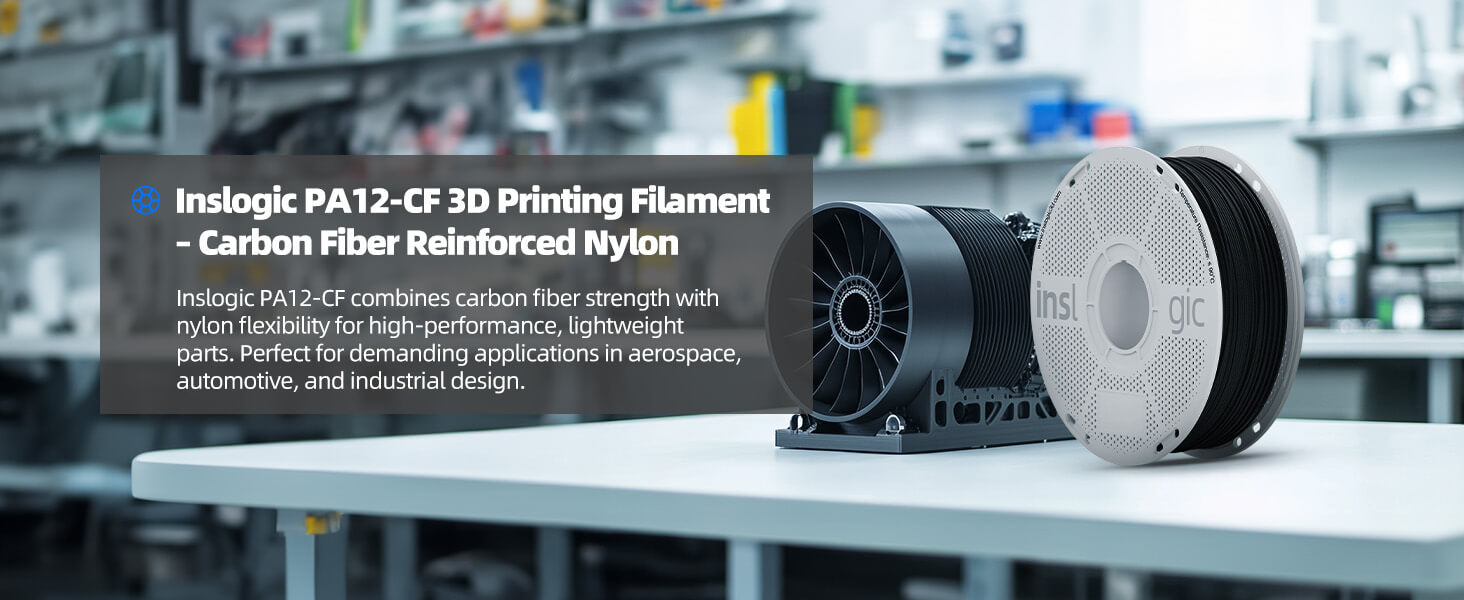

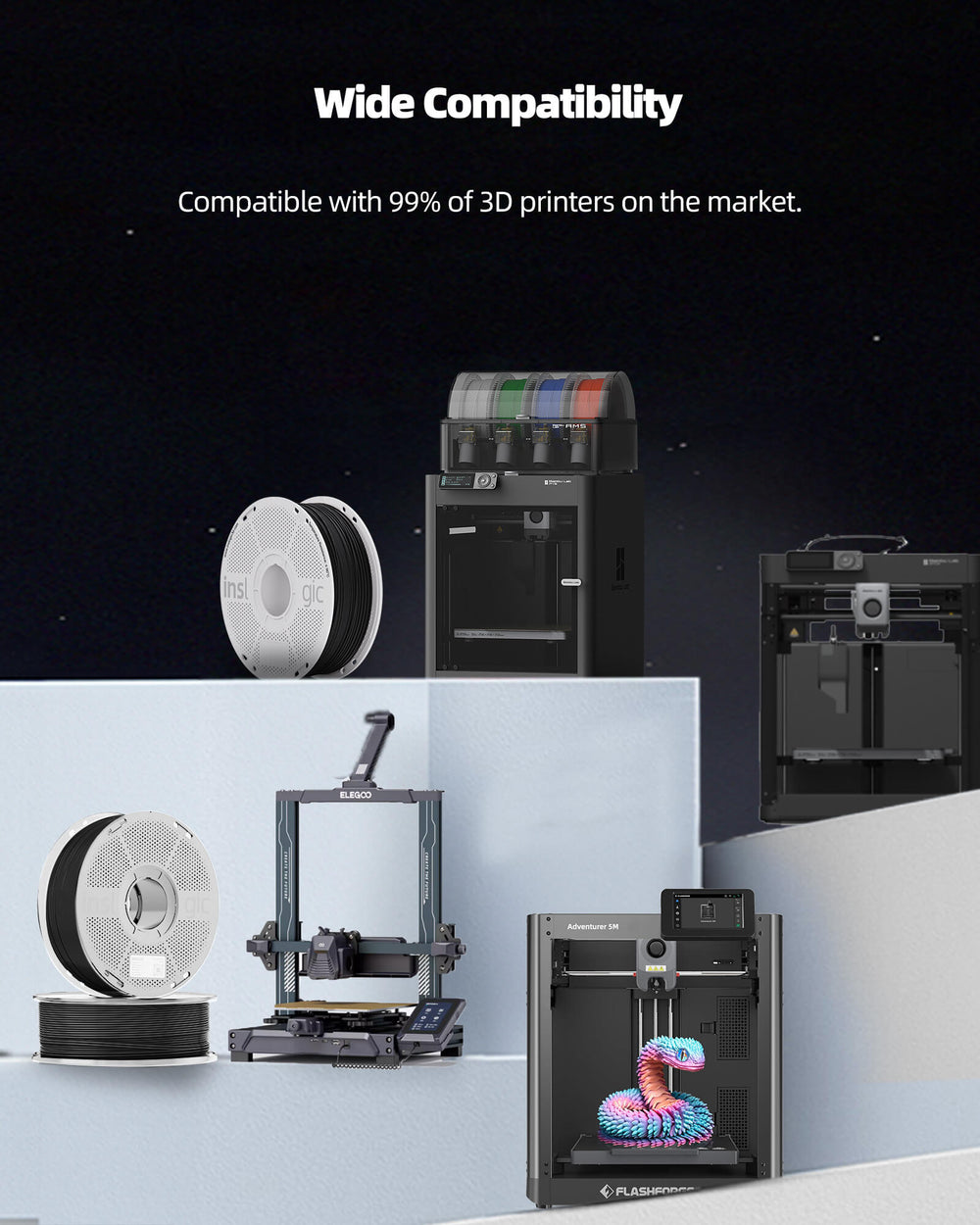

Inslogic PA12-CF Filament is an engineering-grade material, compatible with FDM 3D printers using 1.75 mm diameter filament with a precision of ±0.03 mm.

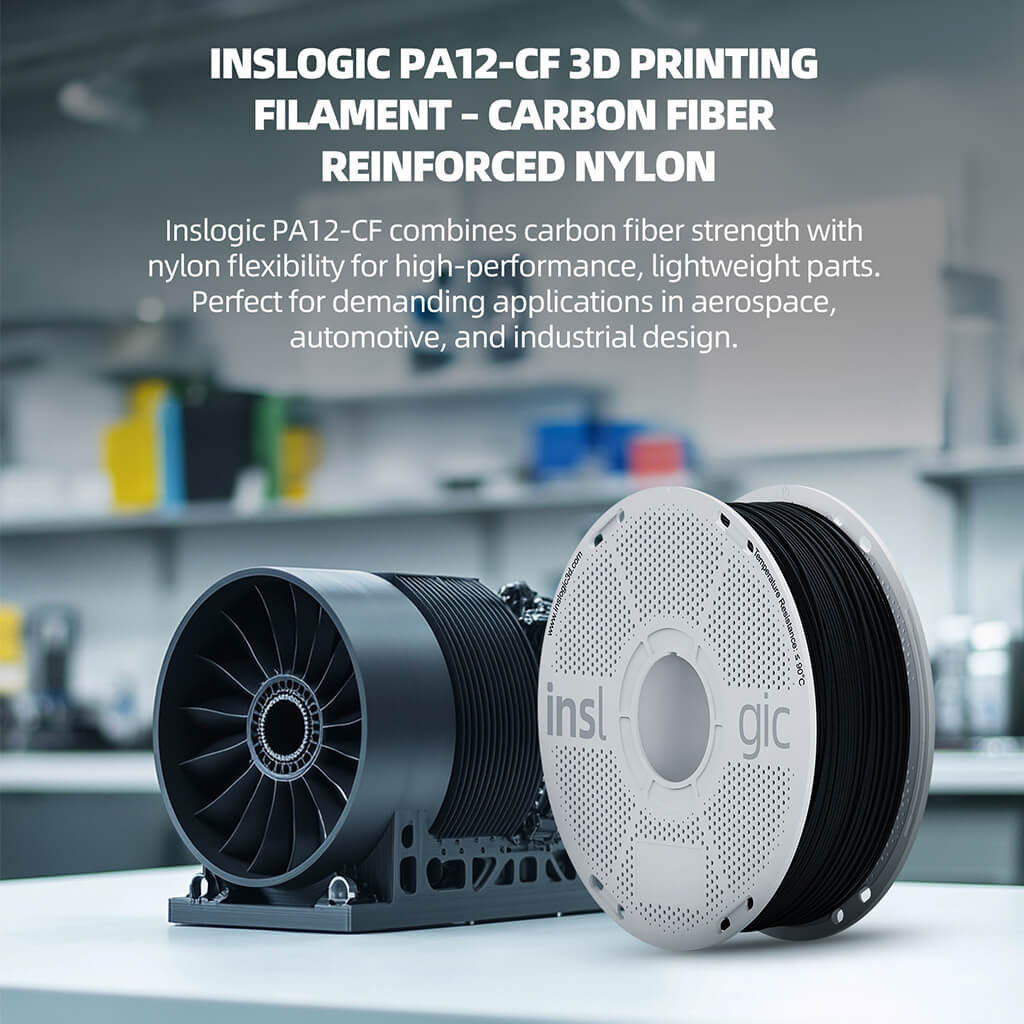

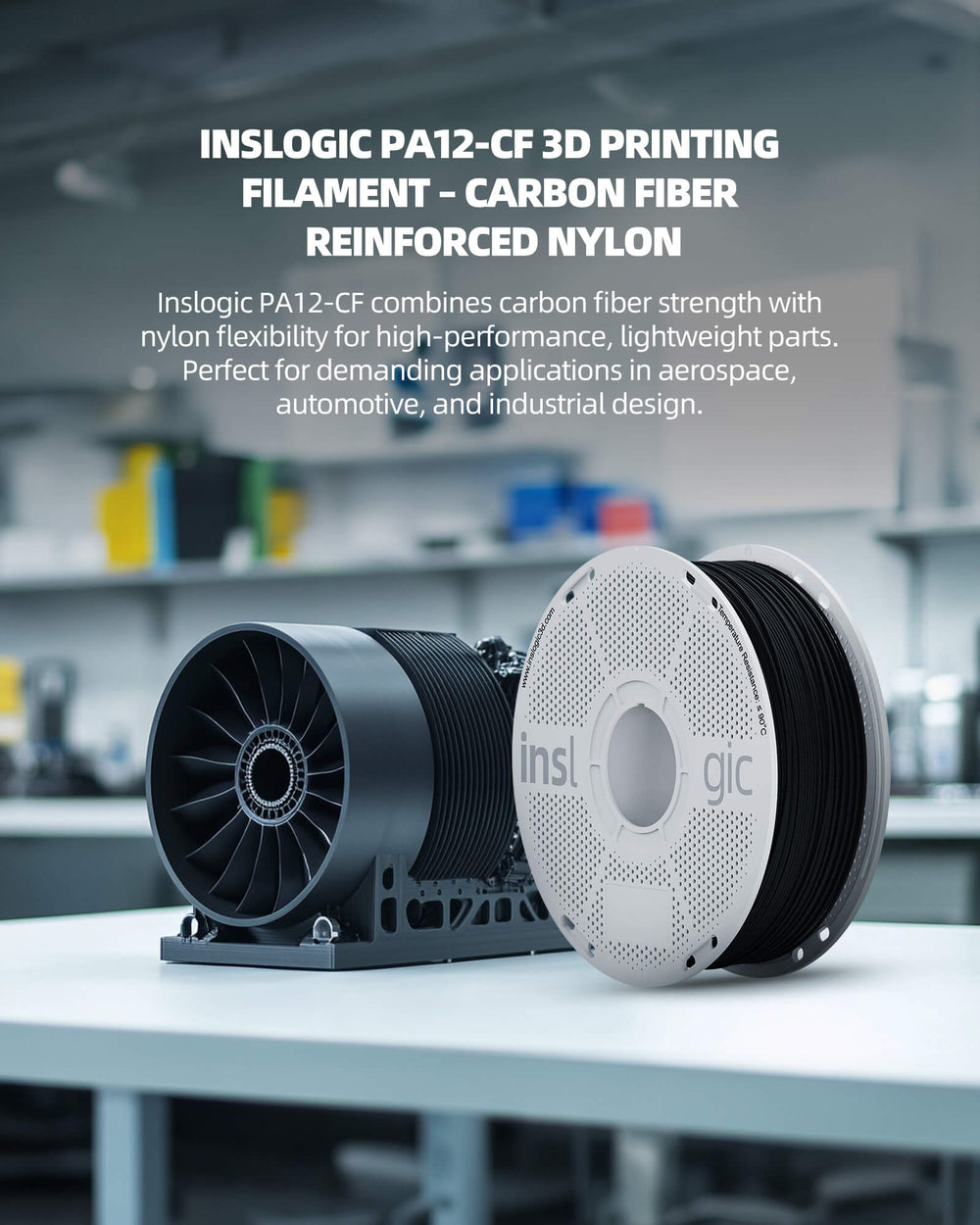

Inslogic Industrial PA12-CF is a high-performance 3D printing filament reinforced with 20% carbon fiber, offering exceptional strength, reduced weight, and low moisture sensitivity. With high thermal resistance up to 176°C and minimal shrinkage, it ensures superior dimensional stability and interlayer bonding.

The carbon fiber reinforcement enhances stiffness and impact resistance while maintaining a high strength-to-weight ratio. Annealing further improves its mechanical properties, making it an excellent choice for durable, lightweight end-use applications.

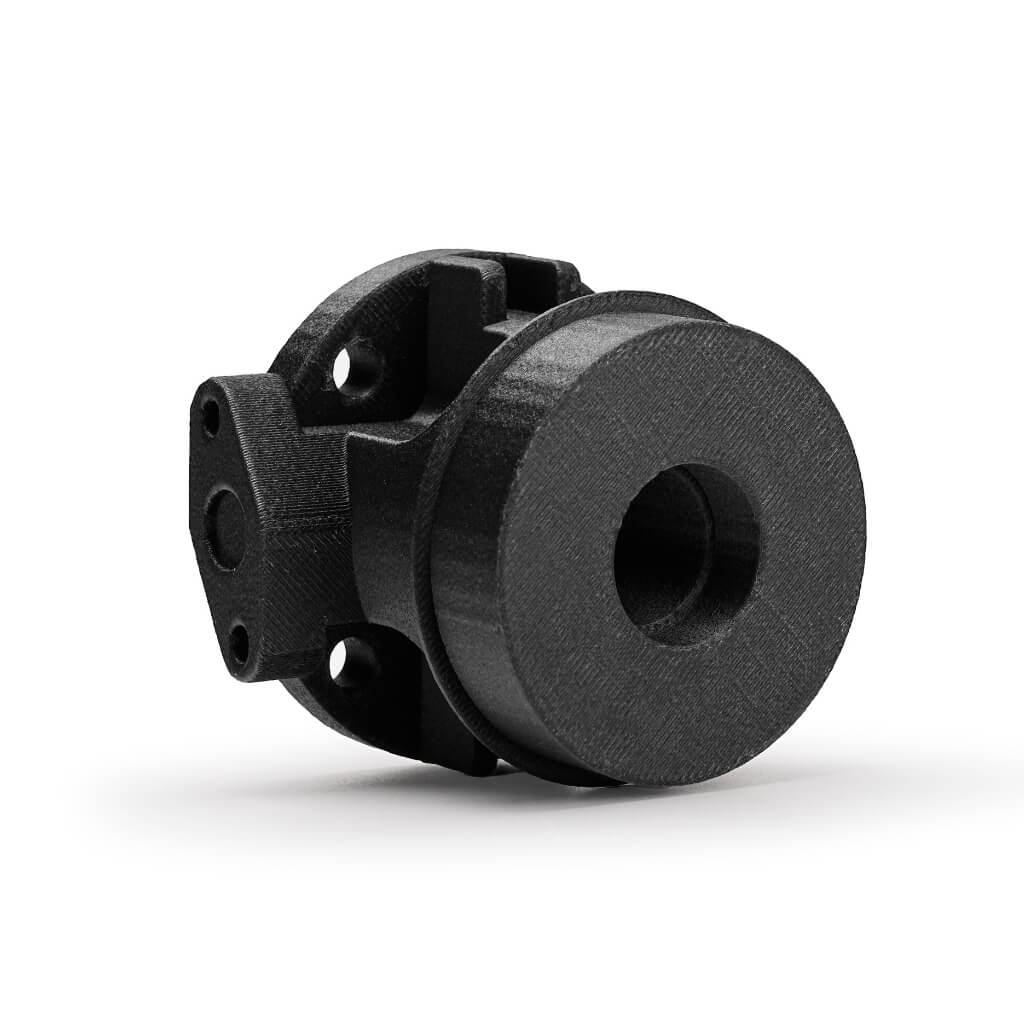

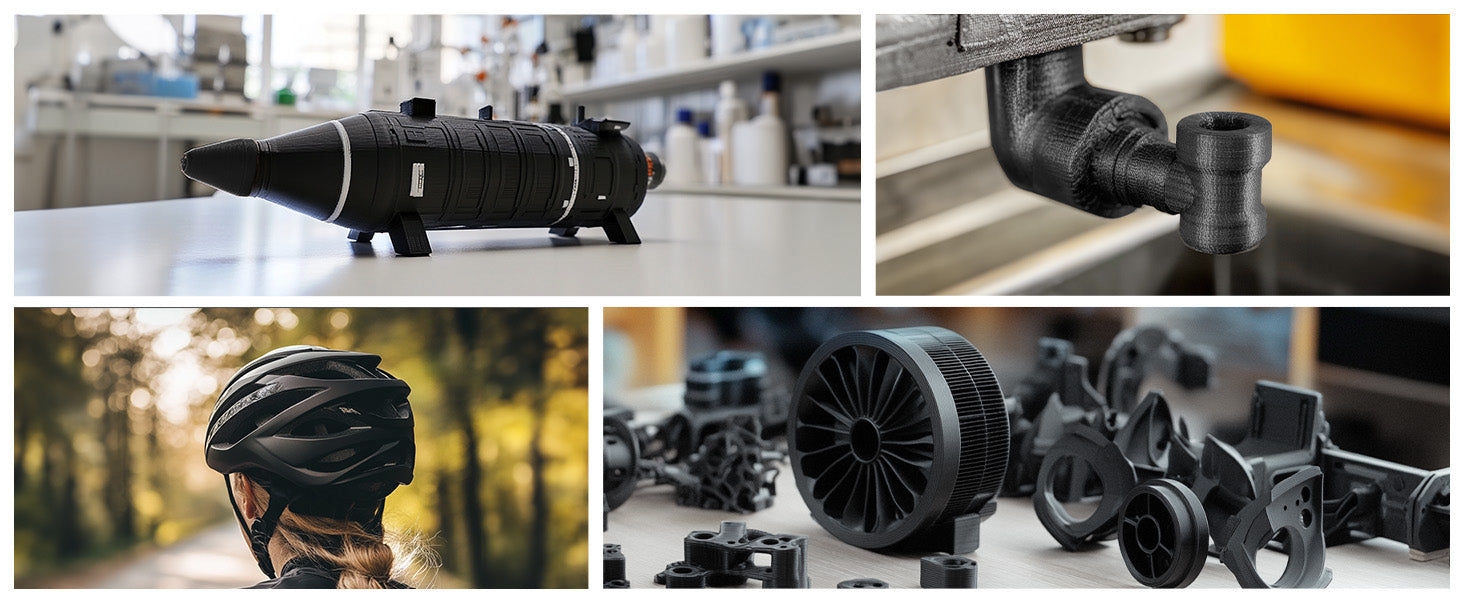

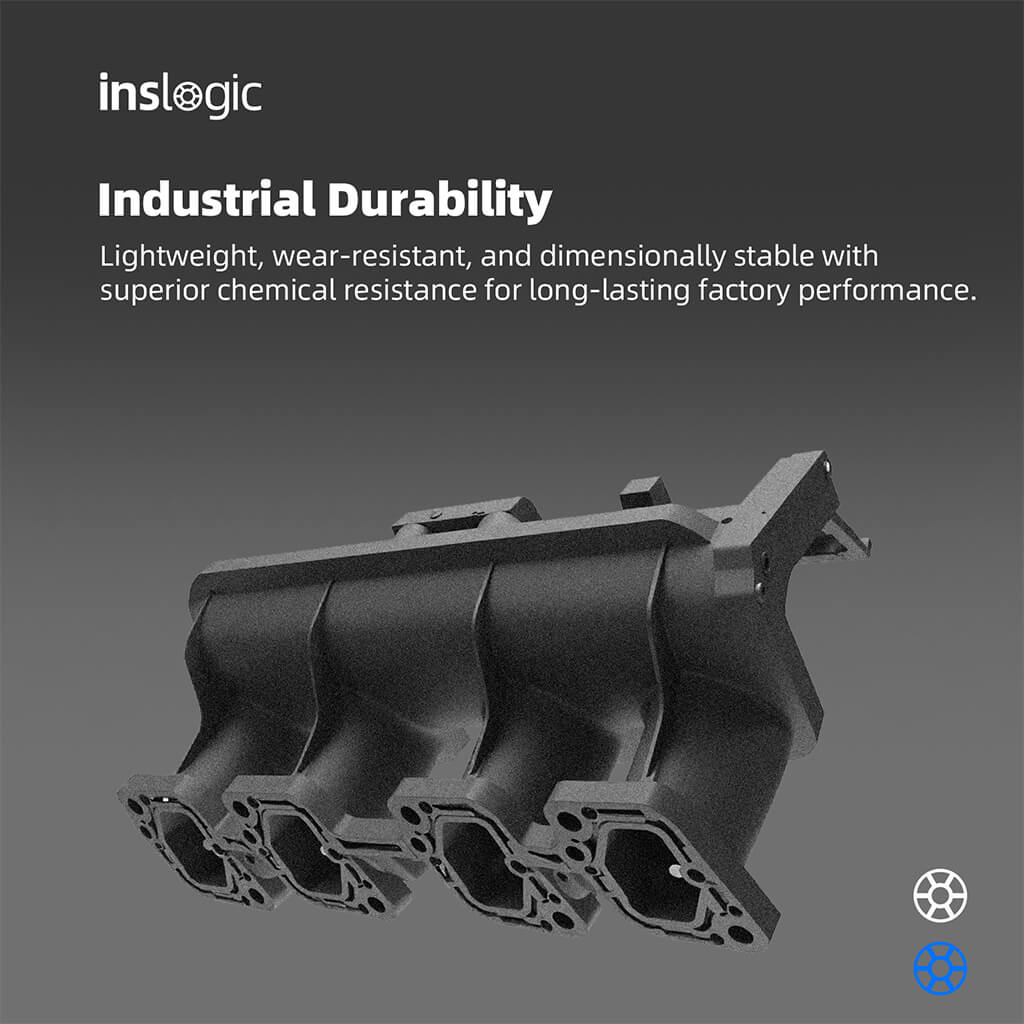

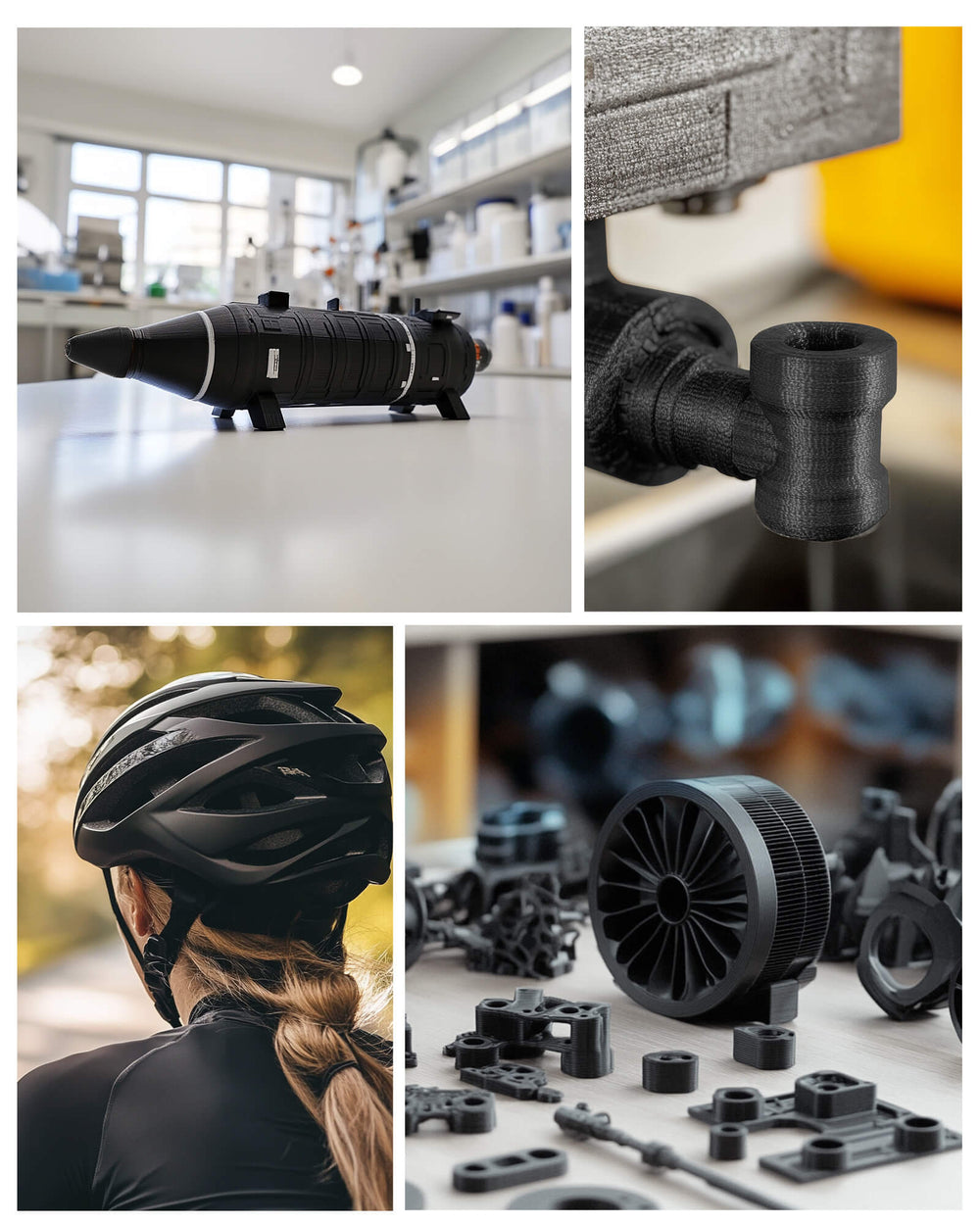

PA12-CF is ideal for jigs, fixtures, and functional components in manufacturing, automotive, and aerospace industries. It also supports the production of advanced prototypes, drones, and final parts that demand durability and weight reduction.

• Length: 393 m

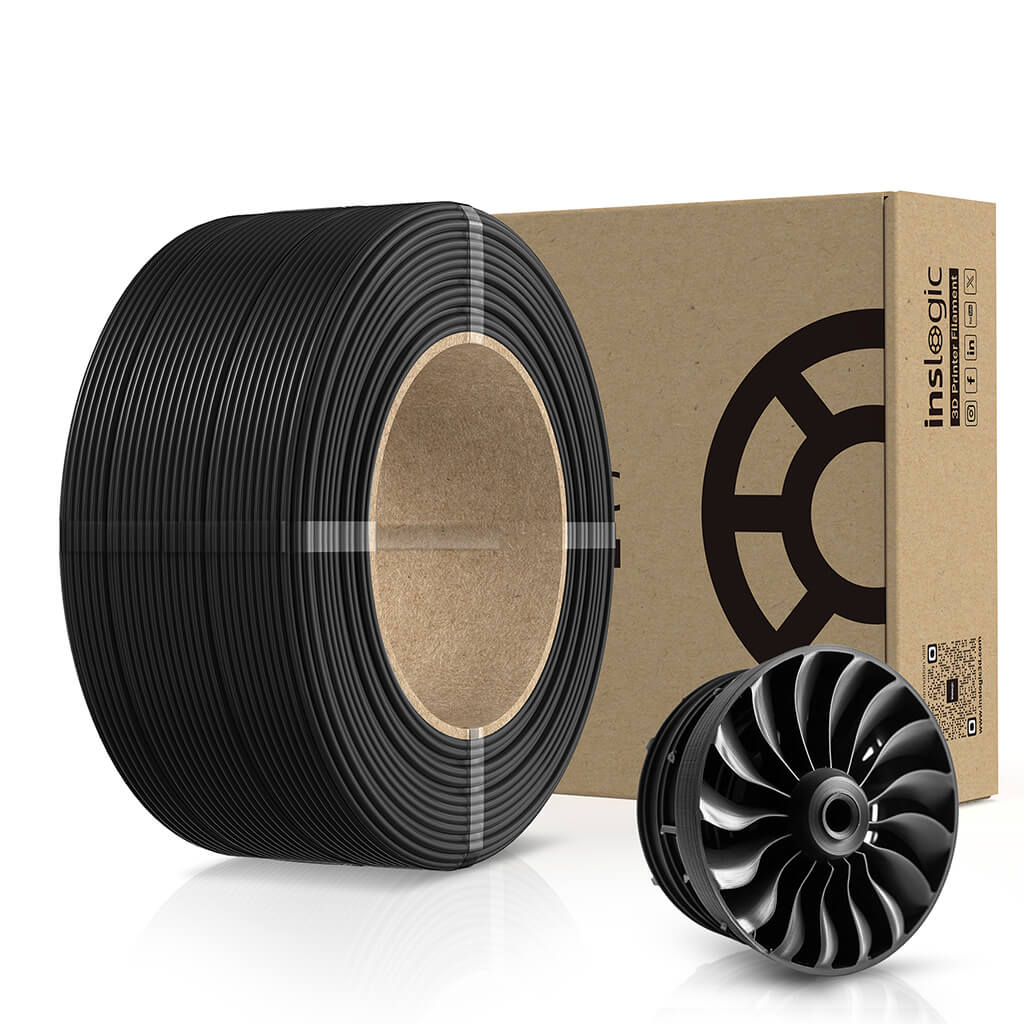

• Net Weight: 250g, 500g, 1 kg
• Diameter: 1.75 mm ± 0.03 mm
• Tensile Strength: 103 MPa
• Elongation at Break: 12.8%
• Flexural Strength: 162 Mpa

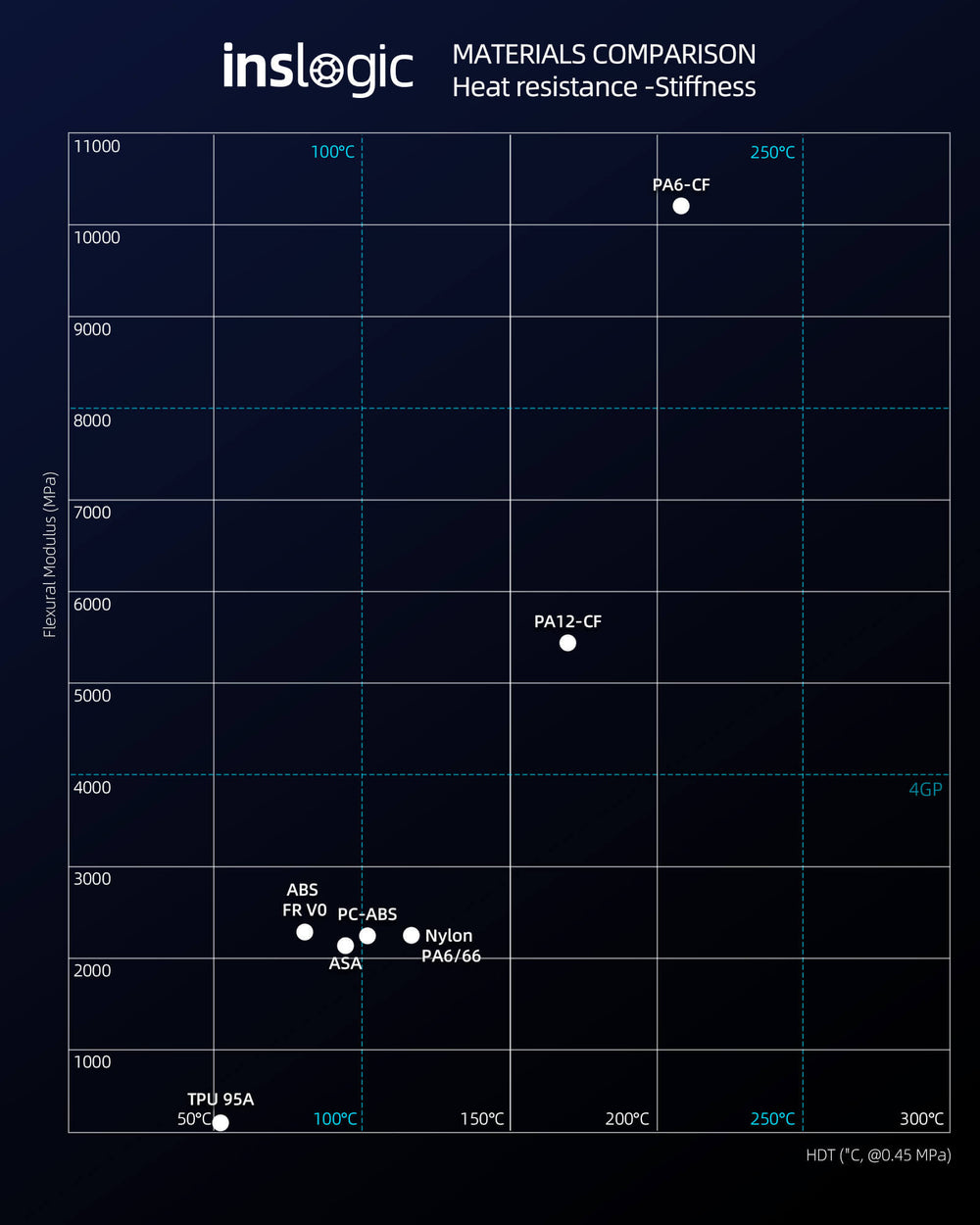

• Flexural Modulus: 5468 Mpa
• Shore D Hardness: 79D
• Density: 1.0466 g/cm³

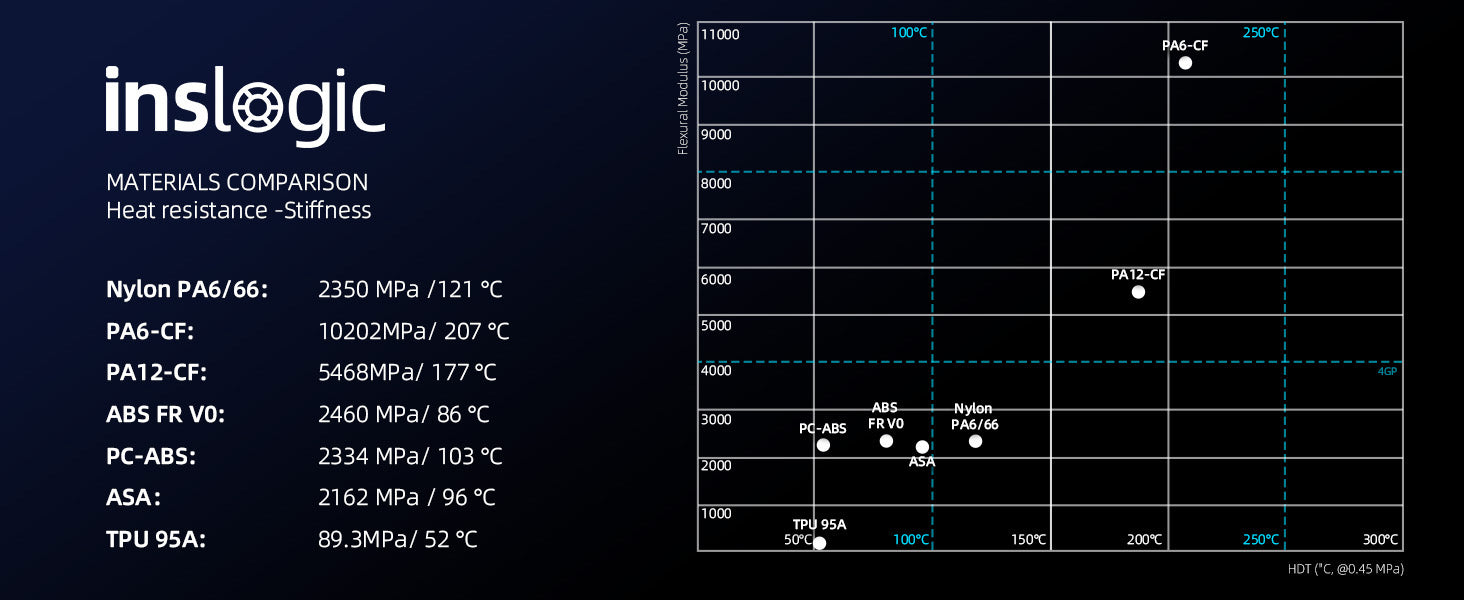

• Heat Deflection Temperature at 0.45 MPa: 177 ℃

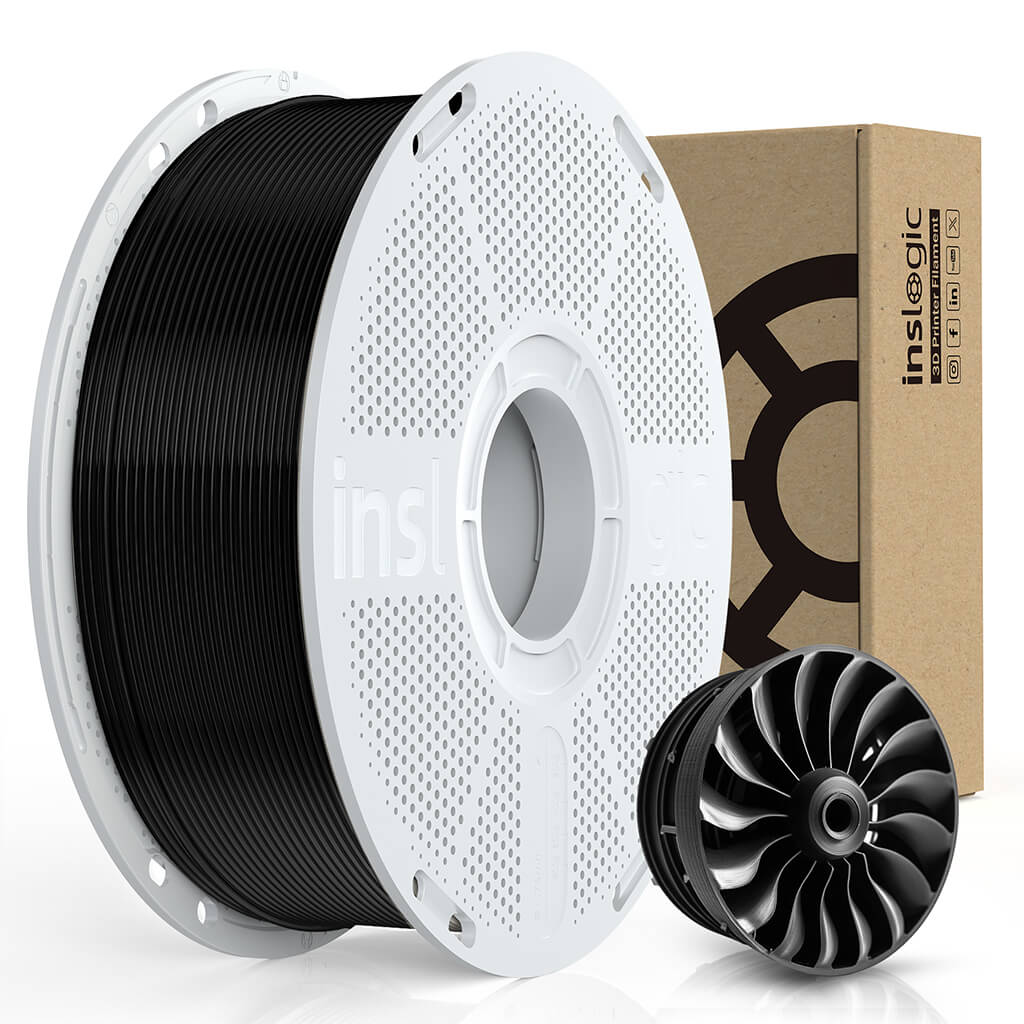

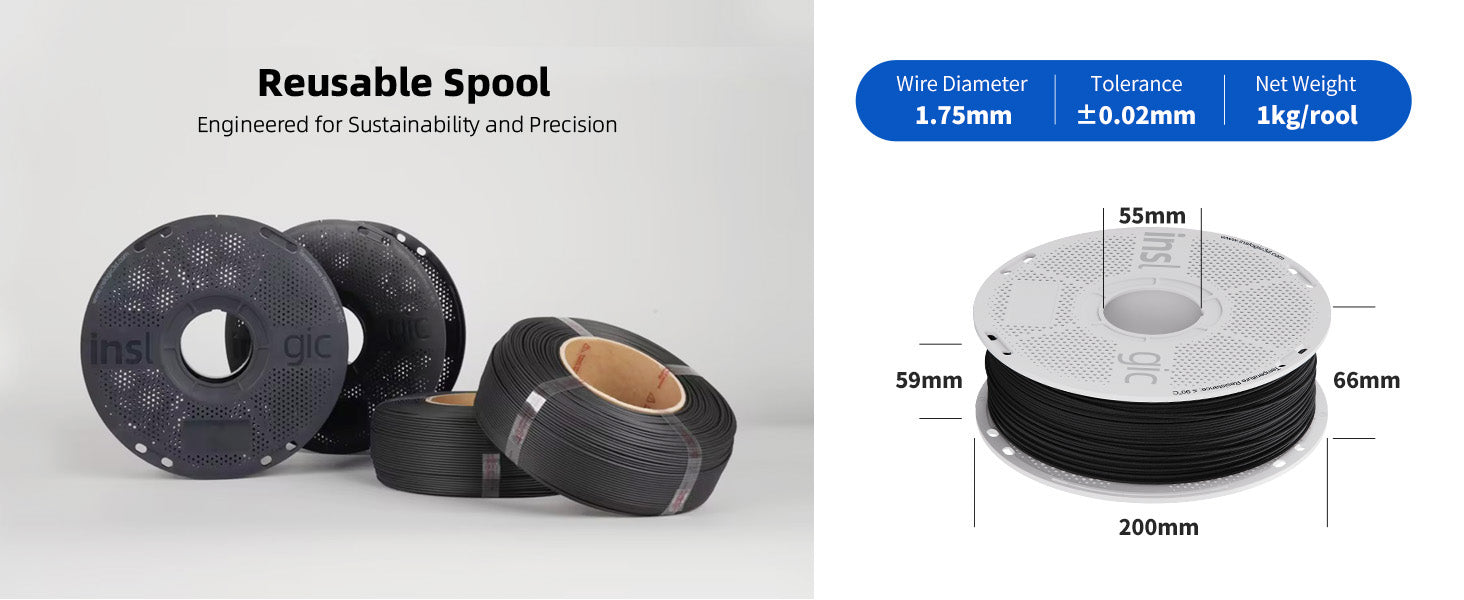

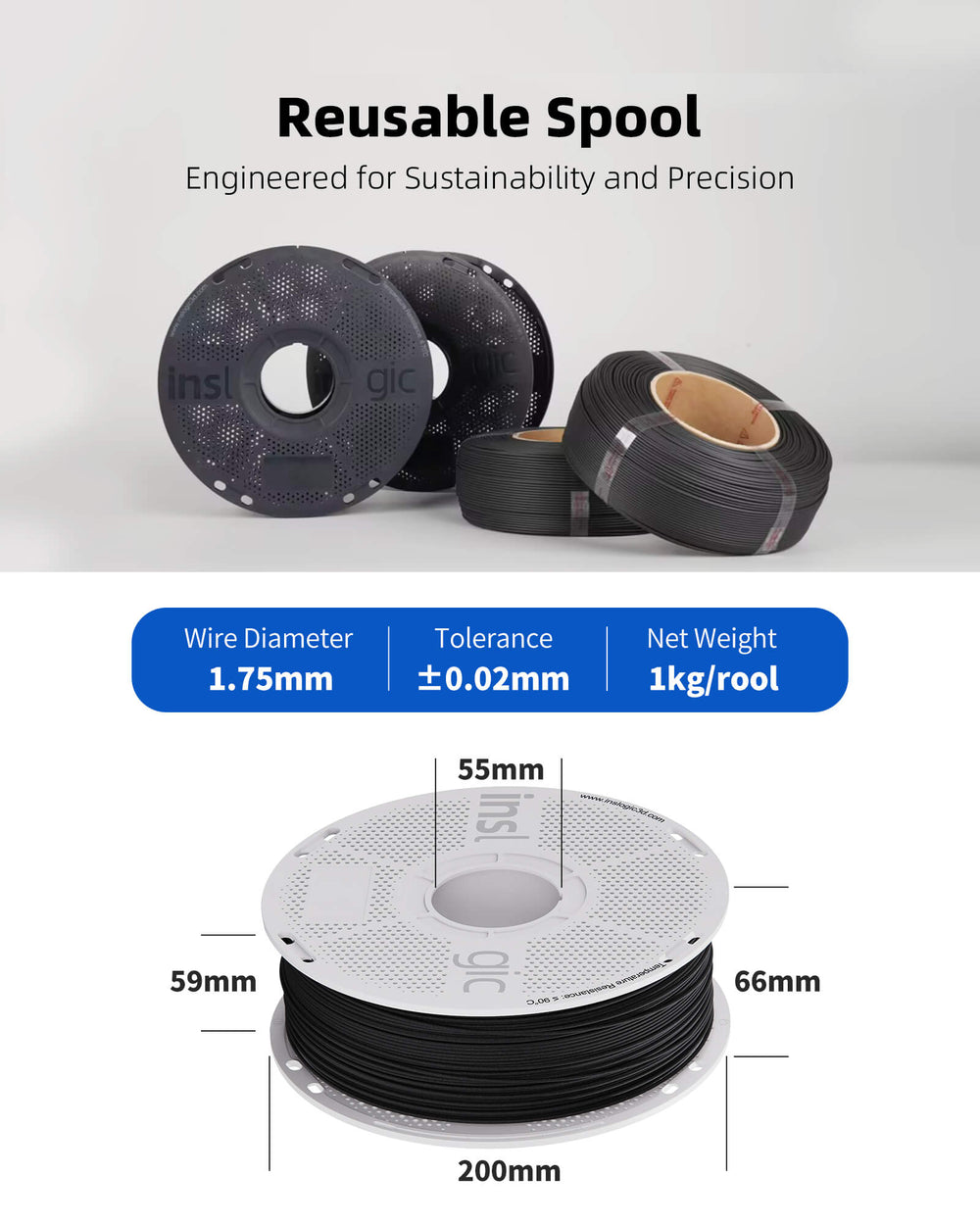

1 kg Reusable Spool Specifications:

• Materials: PC
• Color: White grey
• Temperature Resistance: ≤110℃
• Spool & Cardboard Coil Weight: 232 ± 3 g
• Inner Hole Diameter: 55±0.1 mm
• Outer Diameter: 200±0.1 mm
• Width: 67±0.1 mm

* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.

• Technical Data Sheet (TDS)
• Safety Data Sheet (SDS)
• Instructions for using Inslogic reusable spool and refill filament
