• High thermal stability: Offers outstanding thermal performance with a heat deflection temperature (HDT) of 170°C at 0.45 MPa, making it the most heat-resistant resin in the Inslogic lineup and ideal for applications requiring dimensional stability under heat.

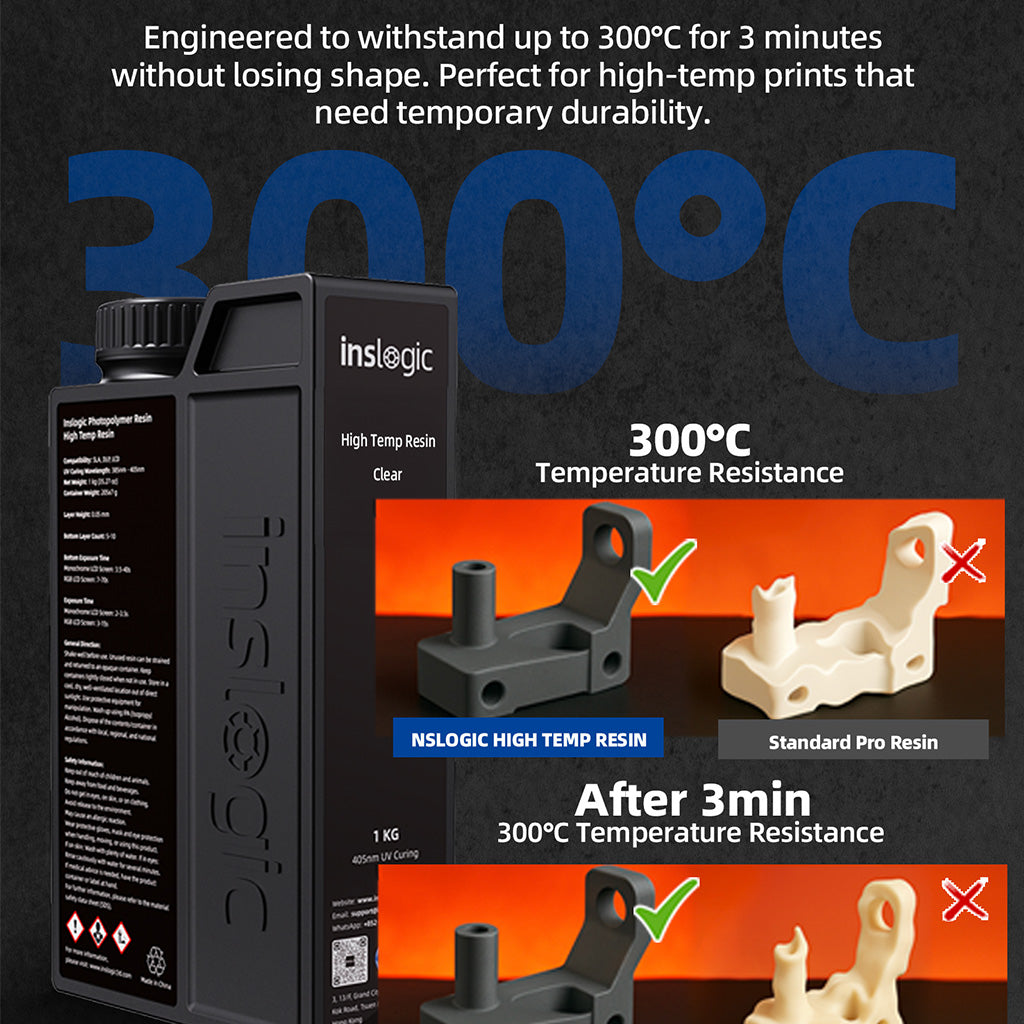

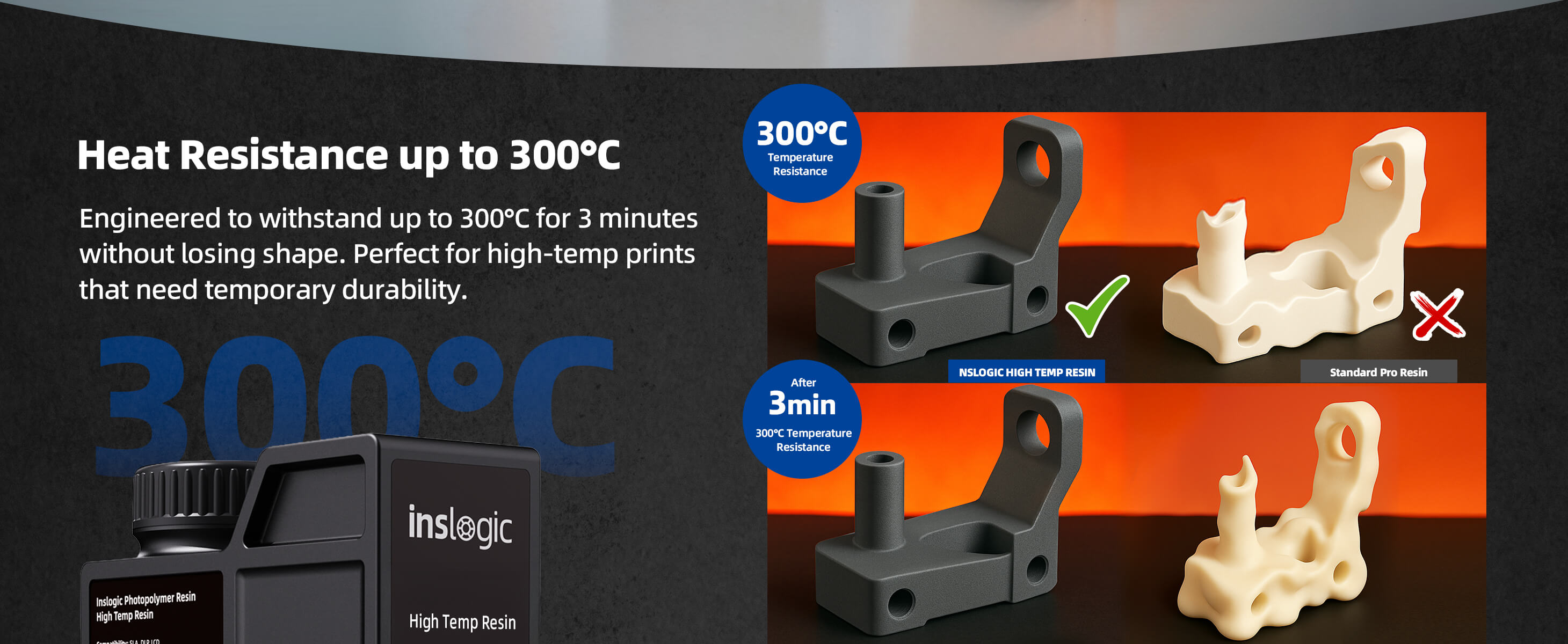

• Ultra-high temp resistance up to 300°C : Capable of withstanding extreme temperatures up to 300°C for short durations (up to 3 minutes), ensuring reliable performance in high-heat environments involving hot air, gases, or fluids.

• High toughness: Engineered with a balanced combination of toughness, rigidity, and mechanical strength, allowing printed parts to maintain structural integrity under both thermal and mechanical stress.

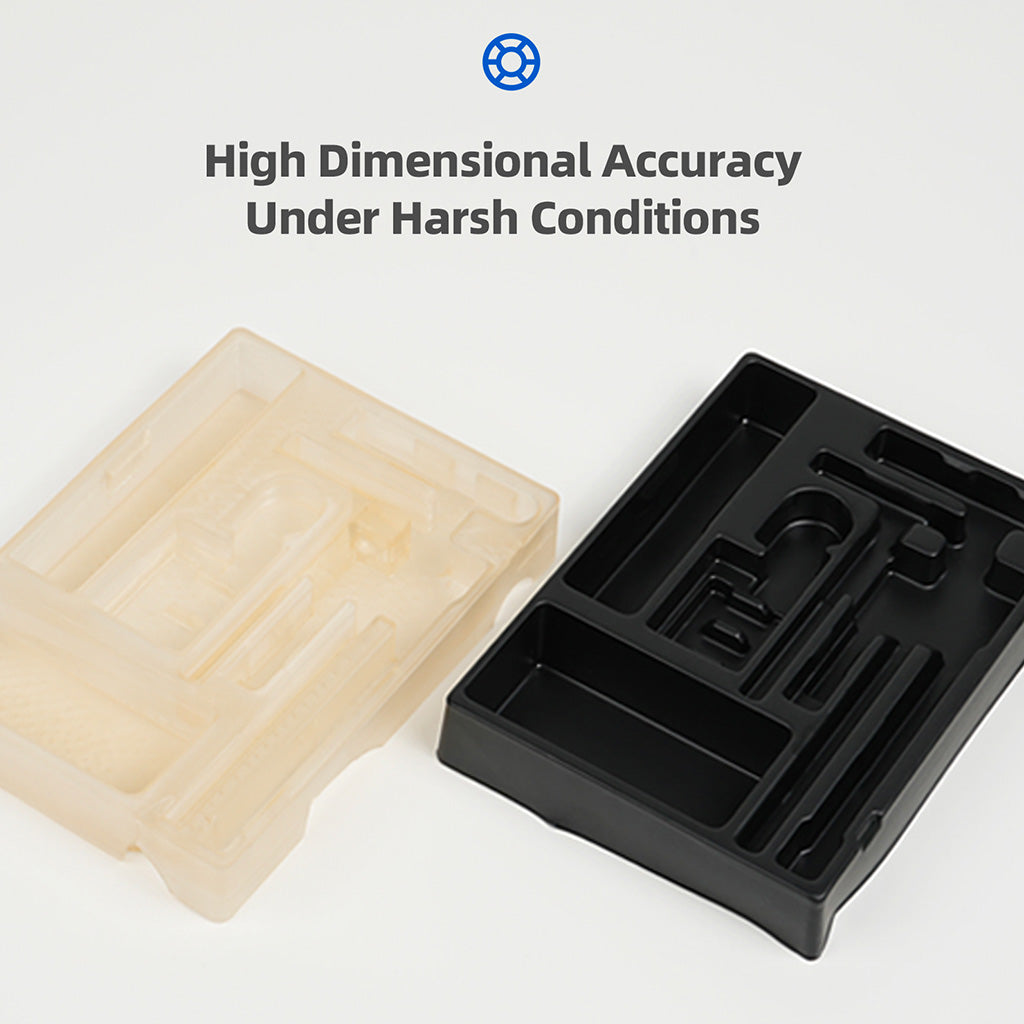

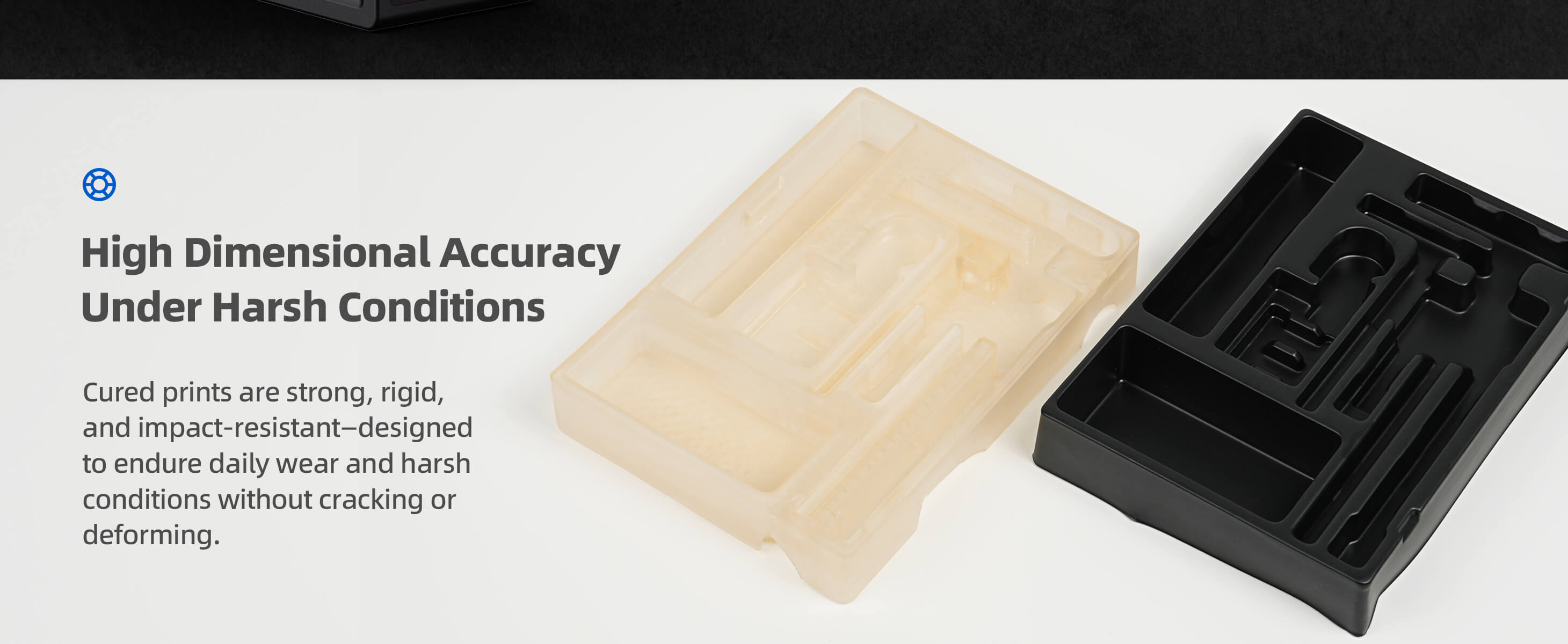

• Low Shrinkage: A low shrinkage rate ensures excellent dimensional accuracy and stability, making it suitable for precision components, molds, inserts, and engineering-grade end-use parts.

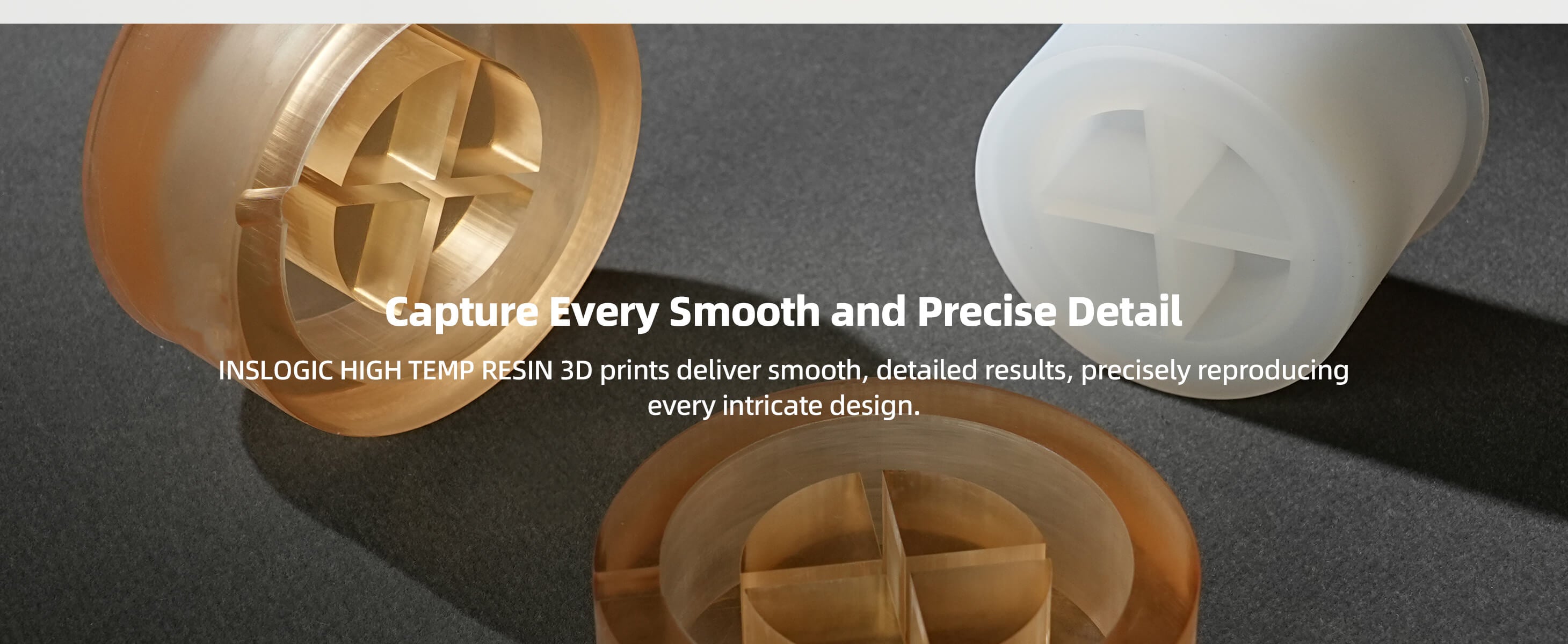

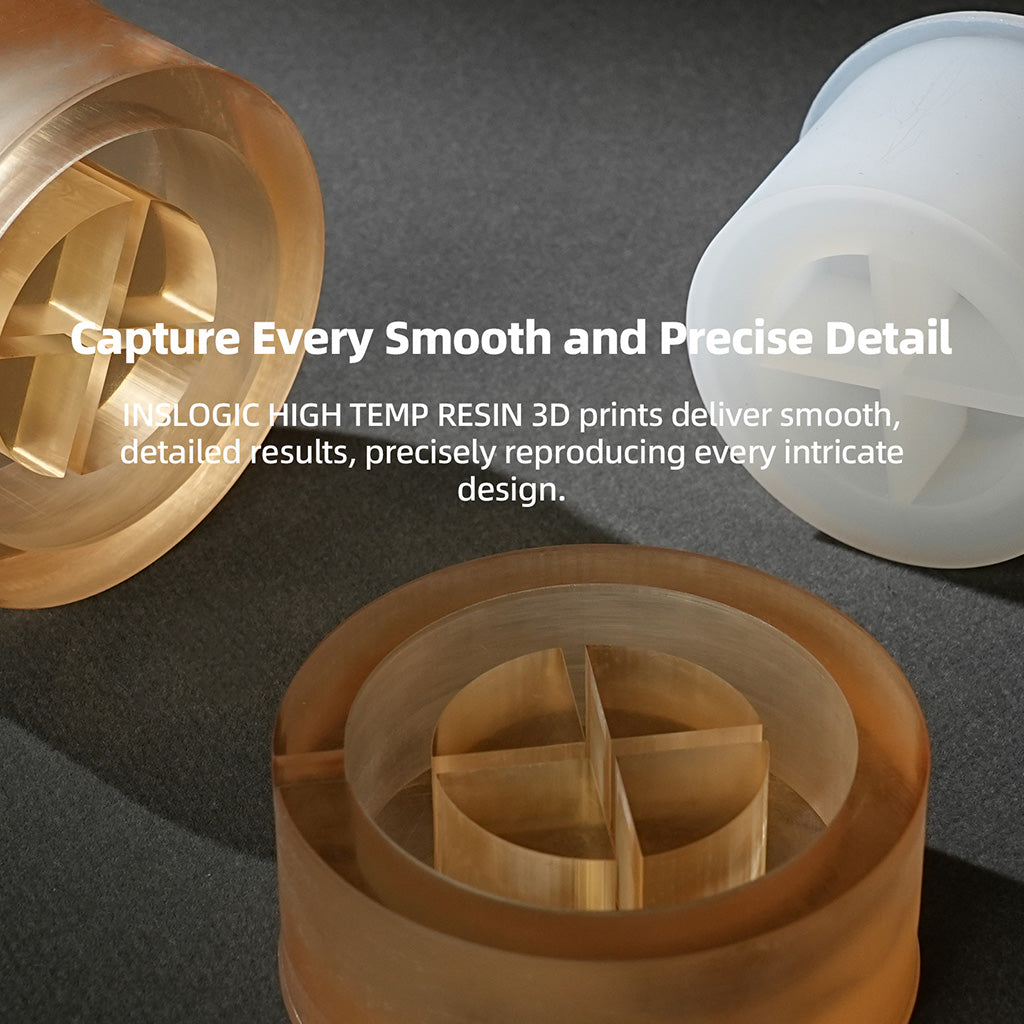

• Ease of print: Optimized for smooth printing and high-detail resolution, delivering accurate, clean results while remaining compatible with LCD, SLA, and DLP 3D printers (385–405 nm).

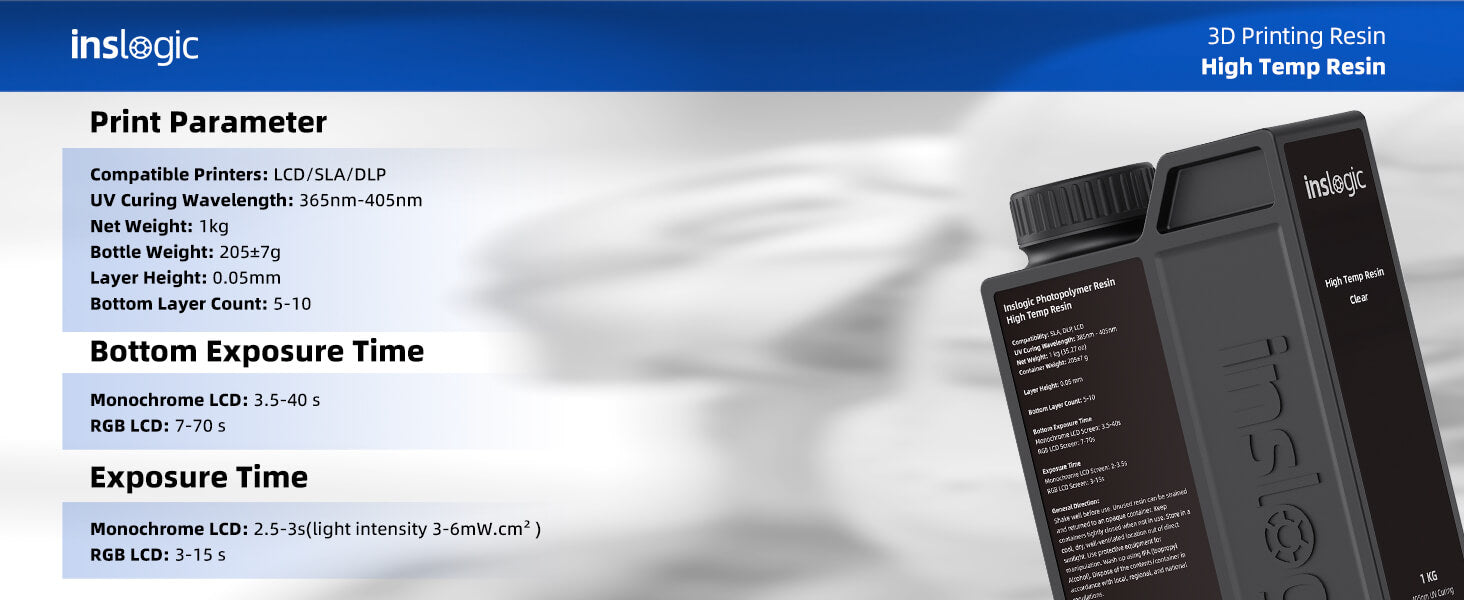

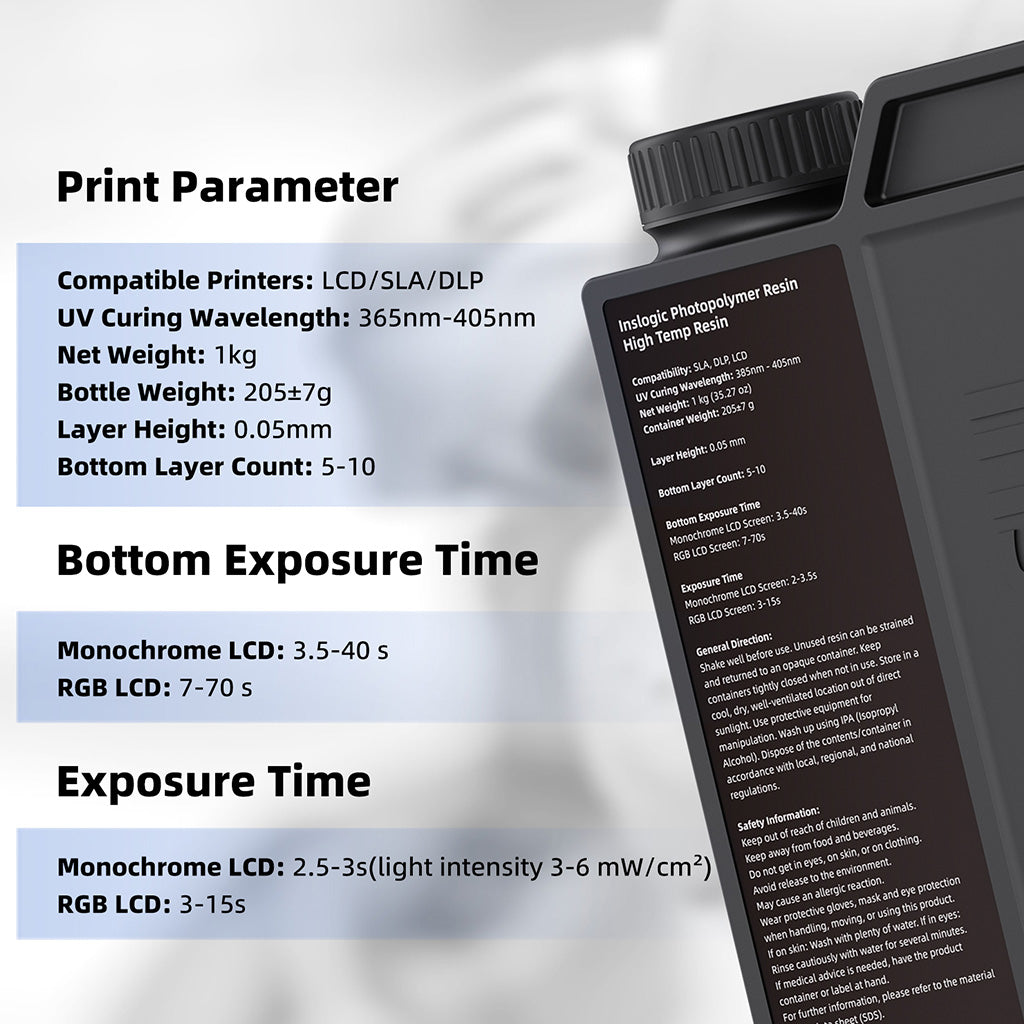

Exposure time

Layer Height: 0.05 mm

Bottom Layer Count: 5 - 10

Bottom Exposure Time
Monochrome LCD screen: 3.5-40s
RGB LCD screen: 7-70s

Exposure Time
Monochrome LCD screen: 2-3.5s
RGB LCD screen: 3-15s

Lifting Distance
7-inch printer: 6-10 mm
Printers larger than 7-inch: ≥ 8 mm
Printers larger than 10-inch: ≥ 10 mm

Lifting Speed: 60-120 mm/min

Retract Speed: 120-180 mm/min

* The settings displayed above are intended as guidance to help you find your optimal print settings. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.

Inslogic High Temp Resin offers high thermal stability with a heat deflection temperature (HDT) of 170°C at 0.45 MPa, making it the most heat-resistant material in the Inslogic resin lineup. It can withstand extreme temperatures of up to 300°C for up to three minutes.

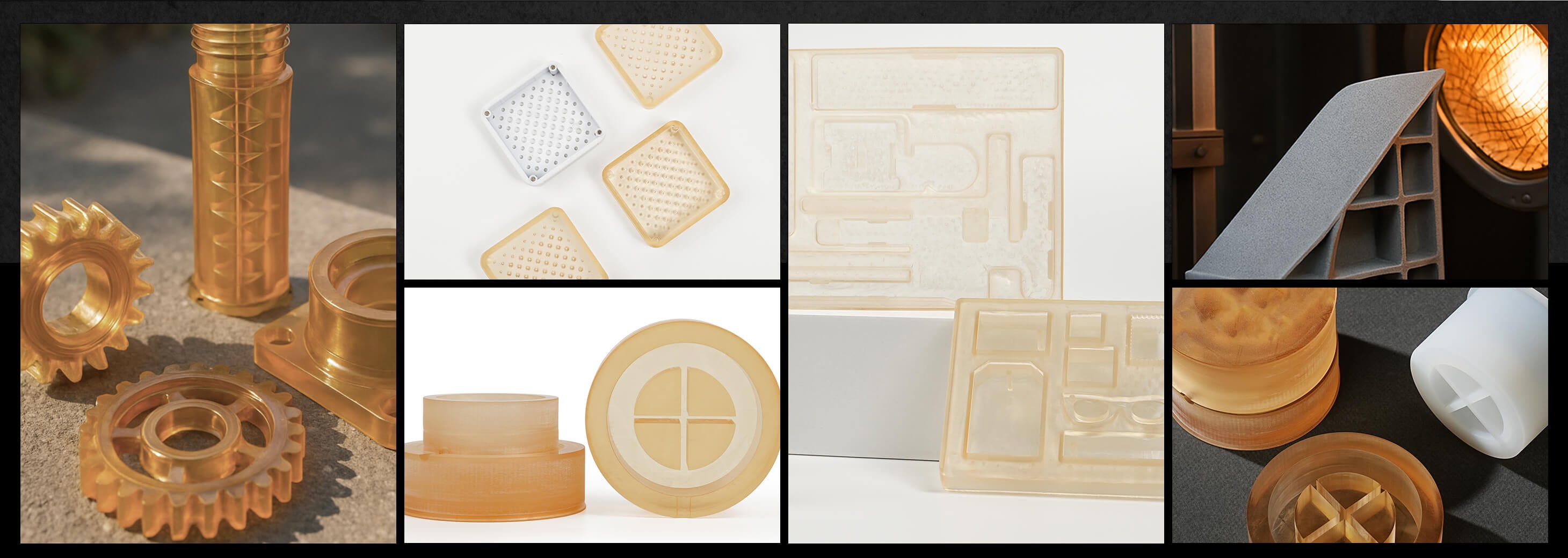

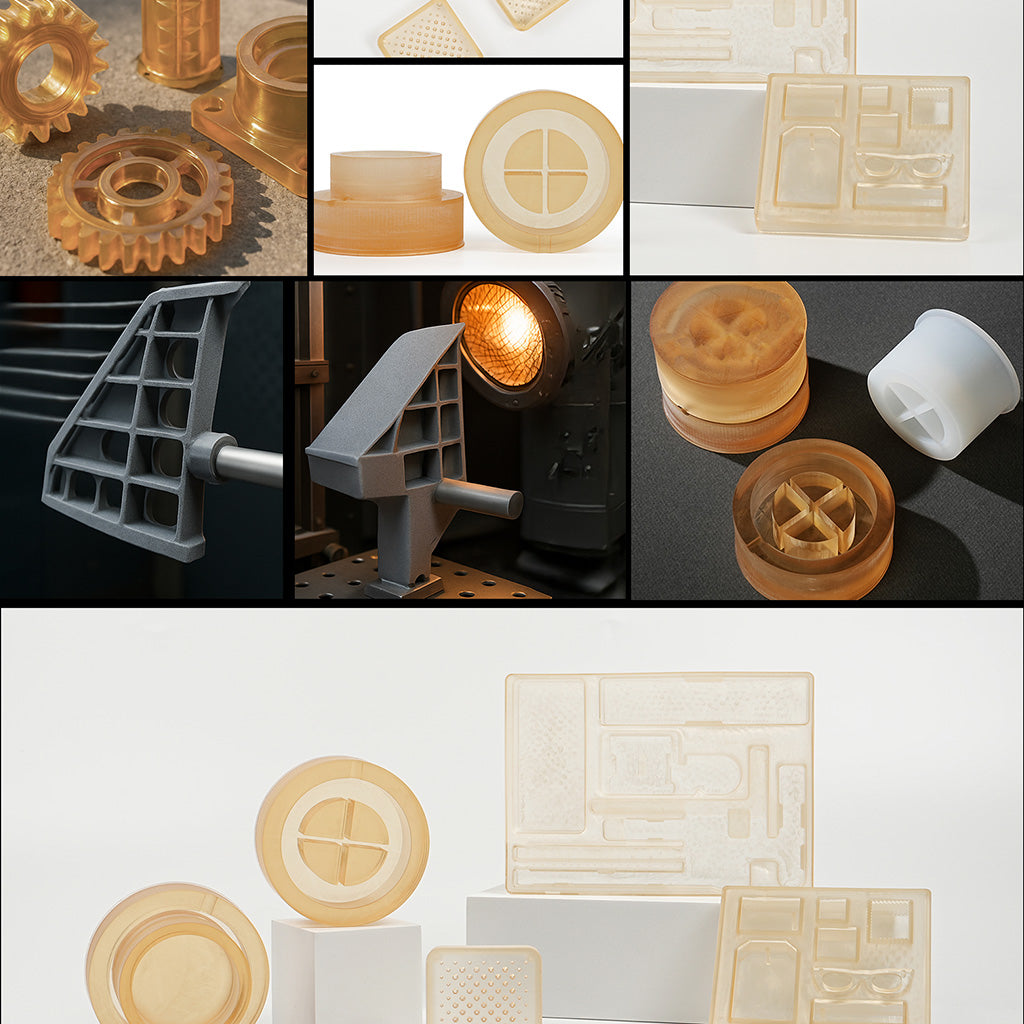

Engineered for demanding applications, High Temp Resin features high toughness, stiffness, and a low shrinkage rate - ensuring both durability and dimensional accuracy. It delivers fine detail in printed parts, making it ideal for precise prototypes, end-use components, and engineering applications requiring high heat resistance. Suitable for molds, inserts, and parts exposed to hot air, gases, and fluids, it is also an excellent choice for heat-resistant mounts, housings, and fixtures.

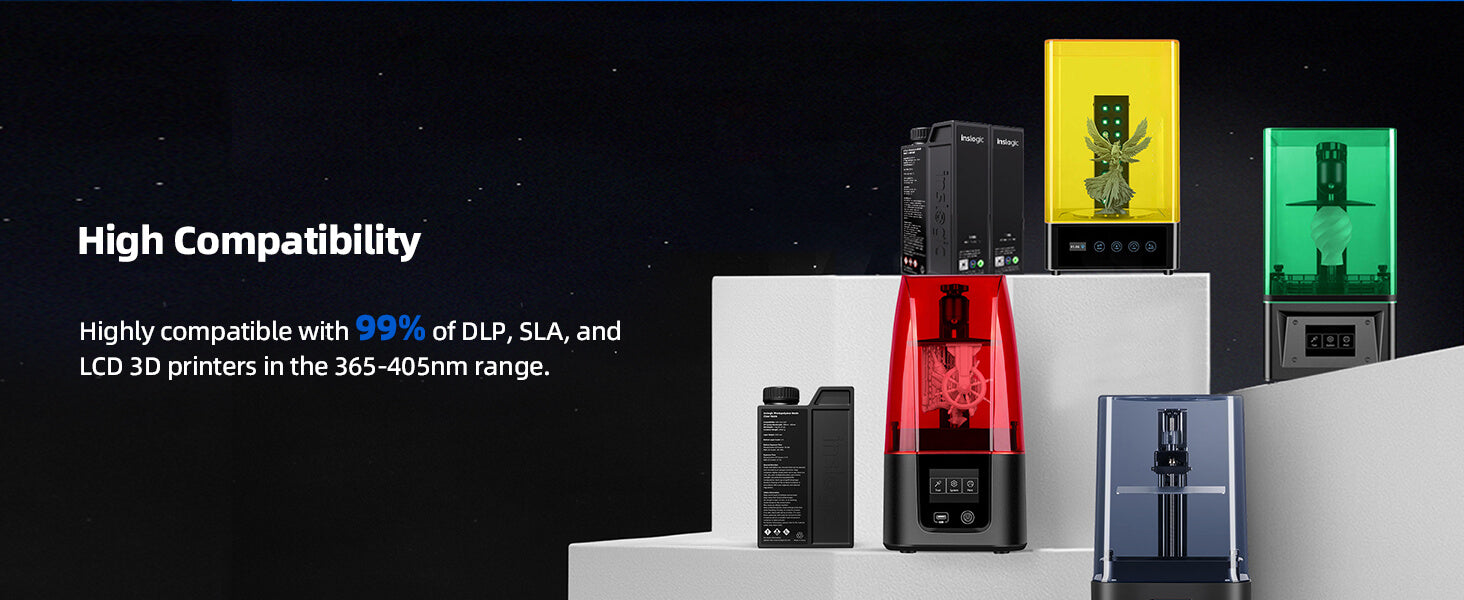

Compatible with LCD, SLA, and DLP 3D printers in the range of 385-405 nm.

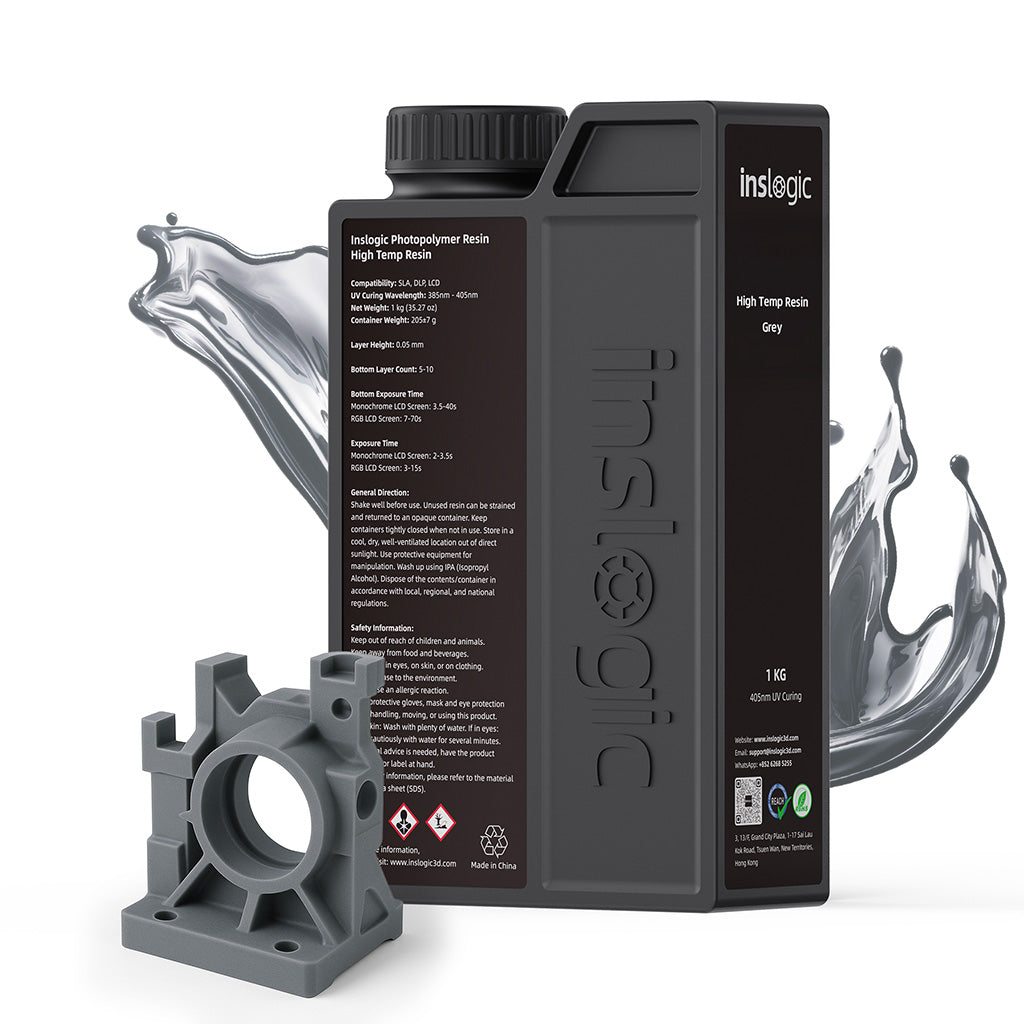

• Net Weight: 1 kg (35.27 oz)
• Container Weight: 205 ±7 g

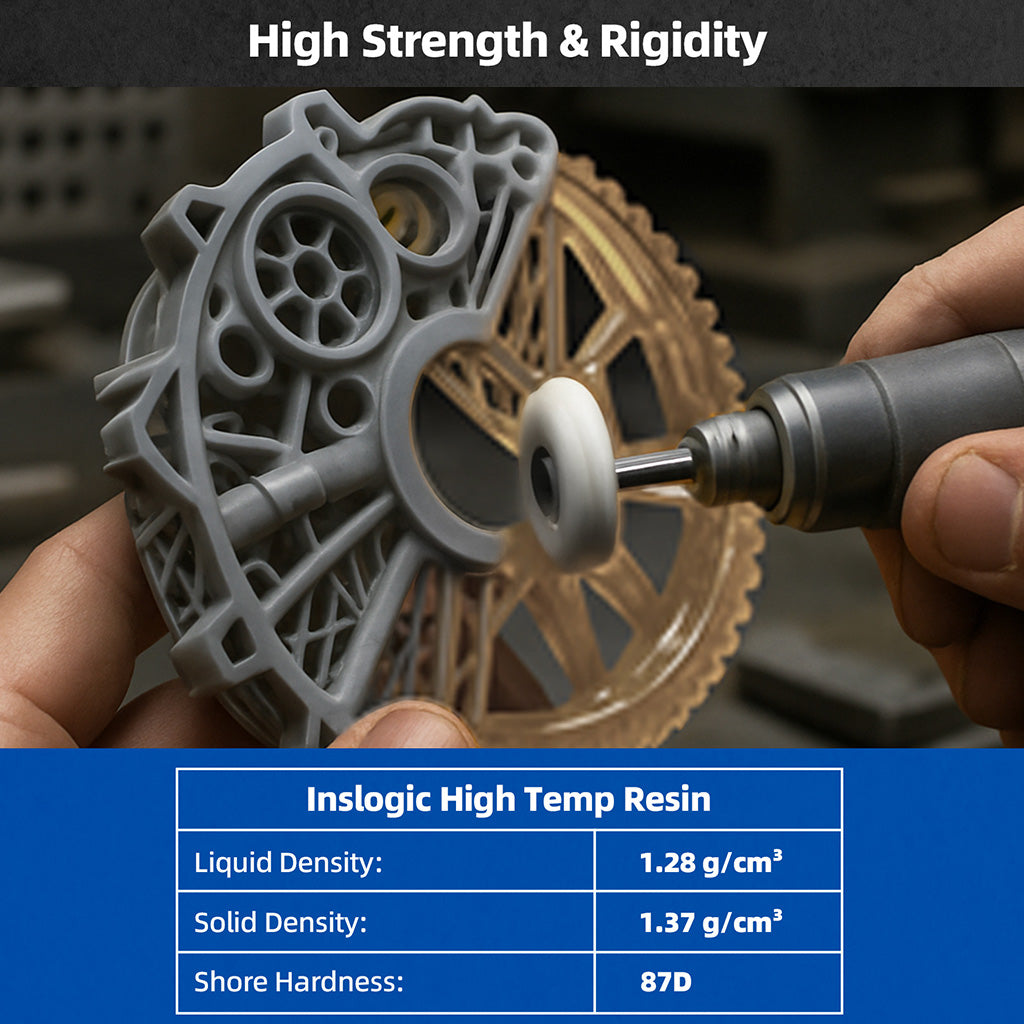

• Tensile Strength: 35 MPa
• Flexural Strength: 85 MPa
• Flexural Modulus: 3850 MPa
• Density: 1.28 g/cm3 at 23 ℃
• Viscosity: 200-500 mPa.s at 25 ℃
• Shore D Hardness: 87D

*All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature. Certain specifications may be subject to change without prior notice.

• Technical Data Sheet (TDS)
• Safety Data Sheet (SDS)
