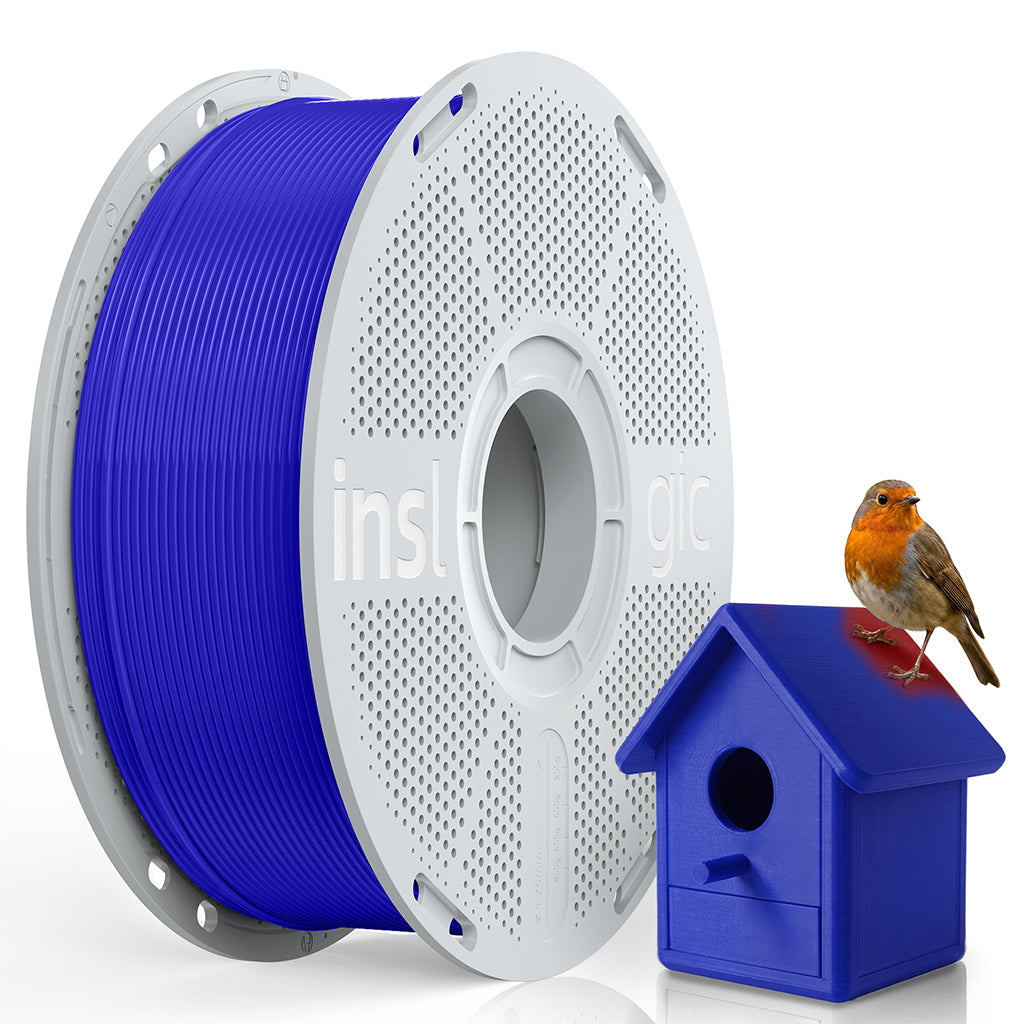

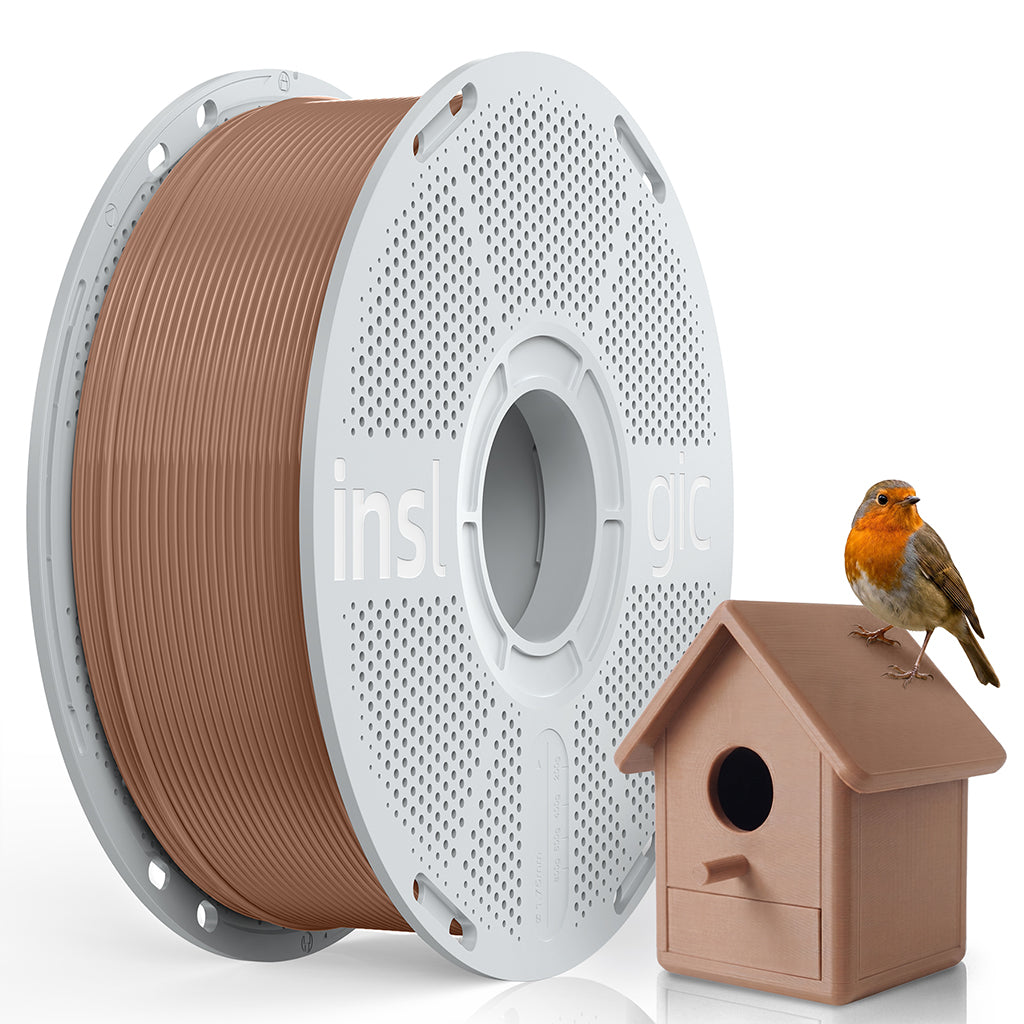

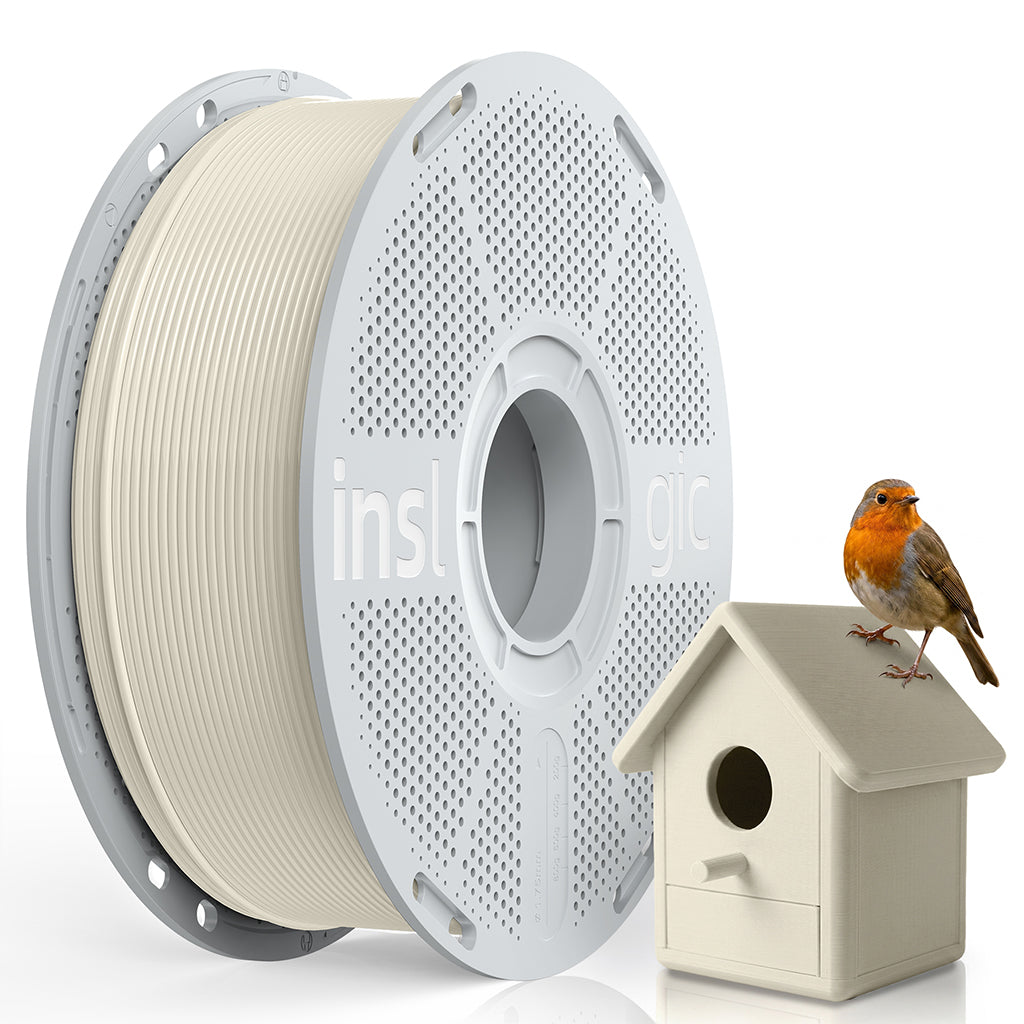

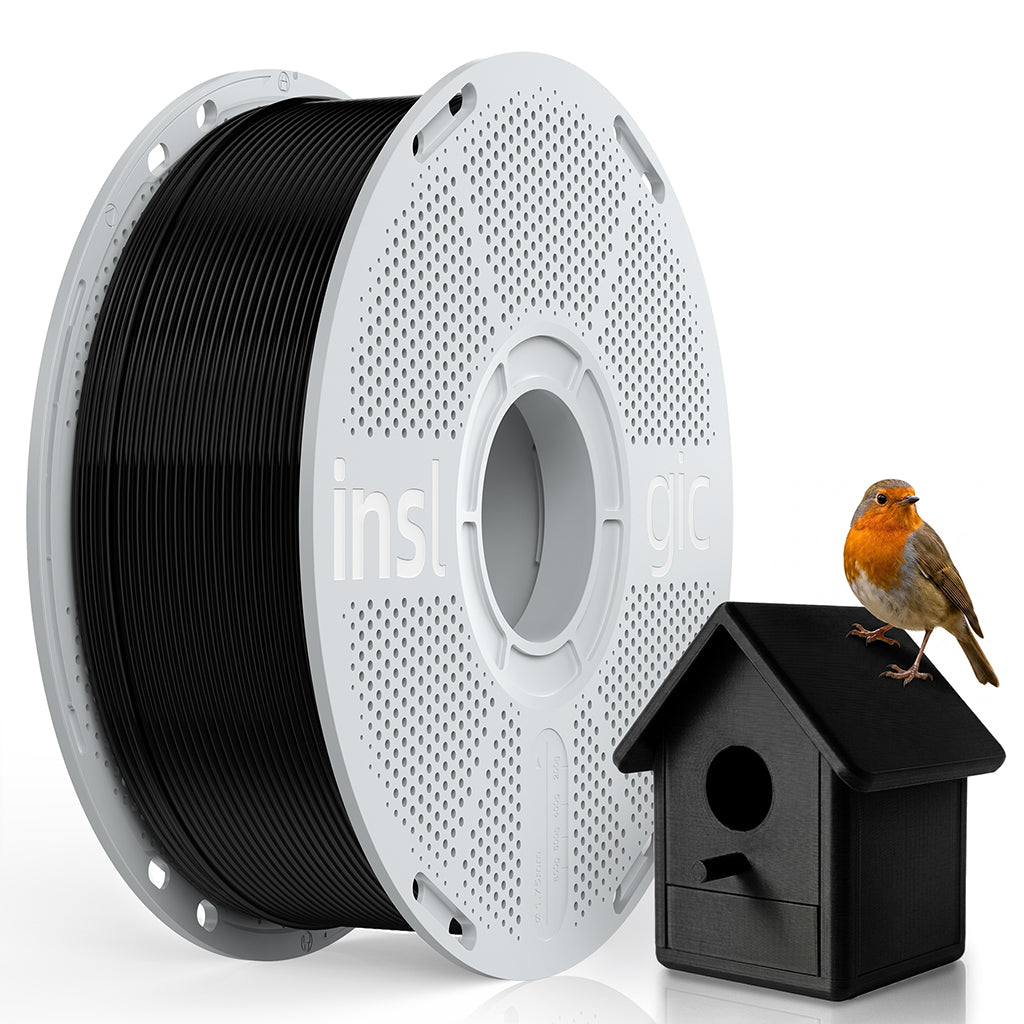

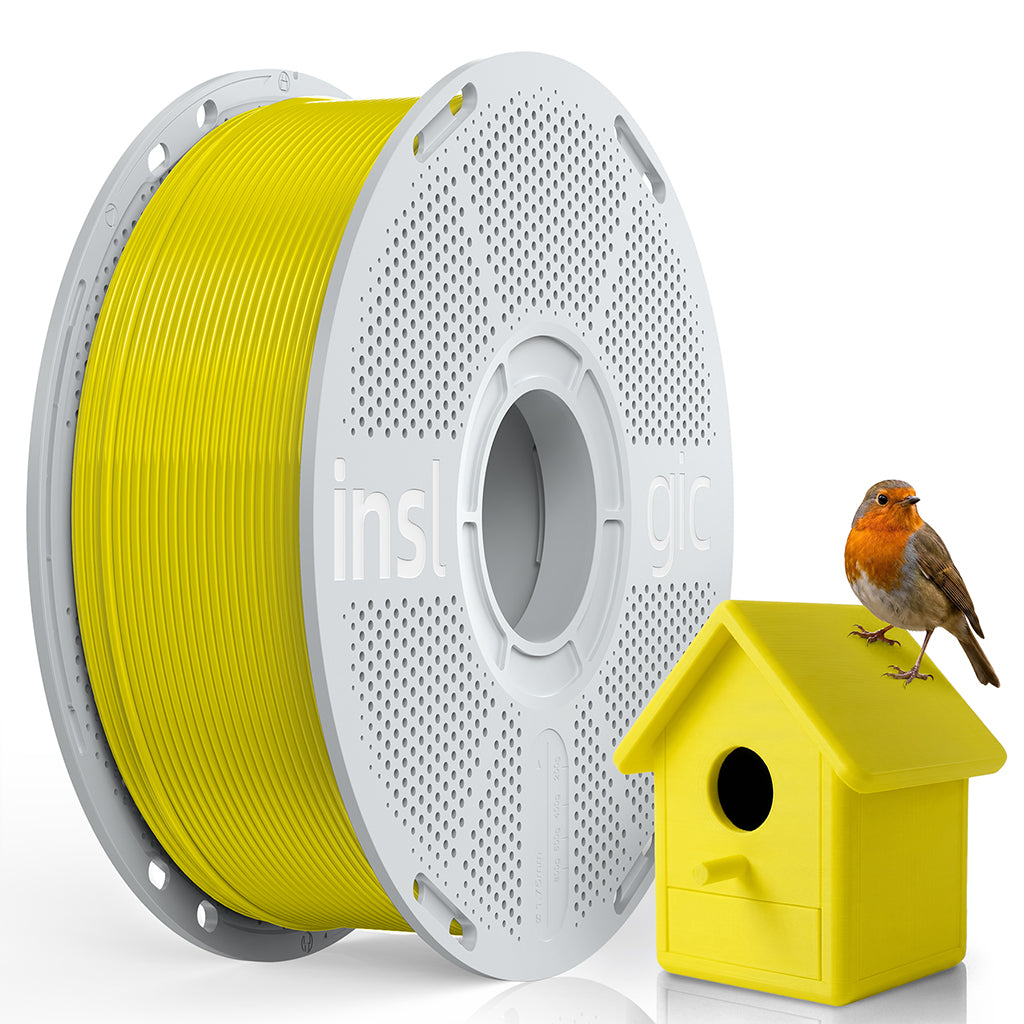

Inslogic ASA Filament 1.75mm

• UV & Weather Resistant: Offers superior outdoor durability - resistant to UV rays, rain, and heat, ideal for long-term external use.
• Low Warping & High Precision: Engineered for dimensional stability, ASA ensures low shrinkage and fine detailing even on large prints.
• Excellent Mechanical Strength: Tensile strength of 52.4 MPa and impact resistance of 18.33 KJ/m² make it ideal for tough functional parts.
• Smooth Printing Experience: Wide temperature range (250–280°C), stable bed adhesion, and low warping deliver reliable, hassle-free prints.
• Versatile Applications: Perfect for prototyping, tooling, housings, and mechanical components exposed to outdoor or high-stress environments.
• Applications: Prototyping, Tooling, Mechanical parts, Housing components, Objects meant for long-time outside use

• Drying Settings: 80 °C, 4h
• Nozzle Size: 0.2, 0.4, 0.6 mm
• Nozzle Temperature & Printing Speed: 250-260 °C at a speed of 50-100 mm/s, and 260-280 °C at a speed of 100-200 mm/s
• Bed Temperature: 80 - 100 °C
• Cooling Fan Speed: 100%
• Bed Type: Smooth PEI Sheet, High Temperature Plate
• Glue: Recommended to use
• Heated chamber: Recommended to use

* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.

Inslogic ASA Filament is a high-quality functional material universally designed and compatible with FDM 3D printers using 1.75mm diameter filament, with a precision of ±0.02mm.

ASA filament is UV- and weather-resistant. Printed parts are durable and tough. The solidification temperature is very impressive, giving printed objects excellent temperature resistance, with almost no signs of deformation up to temperatures near 98 °C. Thanks to all these properties, Inslogic ASA is suitable for a wide range of applications, especially long-term outdoor use.

ASA printing requires specific conditions. It’s important to run the prints in a well-ventilated room, because the material releases fumes and substances that could pose a potential health risk. However, do not create a draft around the print as this will negatively impact the result.

For strong adhesion and a successful print, it is recommended to use an adhesive on your build plate as a protective layer. For larger prints, we recommend 3D printing in a heated chamber. Wait until the print platform of your 3D printer has cooled down to room temperature before removing your 3D printed object. Keep the room well-ventilated throughout the entire process.

* Compatible with Bambu Lab AMS and A1 mini.

• Length: 370 m
• Net Weight: 1 kg
• Reusable Spool & Cardboard Coil Weight: 232±3 g
• Total Weight: 1.233 ± 0.03 kg
• Diameter: 1.75 mm ± 0.02 mm
• Tensile Strength: 52.4 MPa
• Elongation at Break: 21.4%
• Flexural Strength: 75.2 Mpa
• Flexural Modulus: 2162 Mpa
• Density: 1.05 g/cm³
• Glass Transition Temperature 10 °C/min: 108 ℃
• Heat Deflection Temperature at 0.45 MPa: 98 ℃

* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.
