Inslogic PA6-CF Filament 1.75mm
Choose options
What Makers Are Saying
"Très bon filament. J'ai imprimé des pièces mécaniques pour l'automobile avec le premier kilo. J'en ai recommandé 2 de plus.Les pièces imprimées sont très rigides et très solides.Le filament est facile à imprimer."
"Fantastic filament. Bought this to see if it could work for a car intake manifold adapter which I sell as part of a kit. Currently I have the part printed from aluminium at high cost. Not only is the inslogic pa6-cf strong enough it prints great and the finish is fantastic"

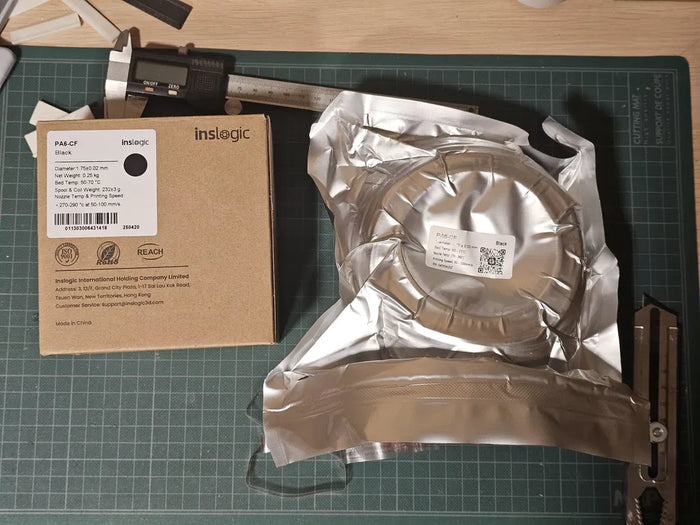

"PA6-CF Amazing filament. Had no spool to put my 250g PA6-CF so I had to print one first. After that I put the spool inside a airtight "drybox" and start printing a wall spoolholder that I designed. My Snapmaker Artisan has a PEI print plate and I thought it would be hard to get a good first layer adhesion. Tried first with a brim. It was hard to remove the part from the build plate. Printed the 2nd piece without brim, waited for the build plate to cool down and it came out easily. I didn't change any of the filament settings."
"Great filament and brand. I’ve got to say I was kind of skeptical about changing filament brands and trying something new. But I am very pleased with their engineering filament. Also got an extra 250g part of their deal. Highly recommend"
"Best Result so Far! I am always skeptical of buying and using new (to me) filament especially from a brand that is also new to me. I bought this spool, and when I received it (fairly quickly too!) I unwrapped it and put it in my AMS. I saw nothing that said anything about making sure I dried it out before using, so I began using it straight out the wrapper. Once installed, my program and printer both gave me warnings of using this type filament in my AMS system. The filament is VERY stiff and brittle so it could break off inside the AMS..... I continued to print a tool that all other filaments failed at under pressure. When my tool began printing with this filament, I watched very carefully, ready to jump at the first stringing, warping, etc.... I was printing this tool at 100% infill, so I knew it would take a while to complete. From start to finish, there were NO issues or problems AT ALL. No breakage, no spaghetti, no warpage - NOTHING! SO absolutely happy with the results of this filament. I sure hope it continues to the end of the spool!"
"Very impressed. Thought I would try this brand out, been working through all the different venders of PA6-CF. Looking for something that wont warp too bad when printed. Using a .6mm nozzle 70c bed temp and a splash of glue stick. It turned out wonderful with NO WARPING! I'm actually back to grab another roll to finish a project I'm working on."
"Really nice prints, uses BL X1C with heated chamber, works great"
"Very fast shipment, great product. Highly recommended"
- High Strength & Rigidity: Offers excellent strength and rigidity, ideal for printing durable parts like gears, screws, helmets, and fan blades.
- 209°C High Heat Resistance: Stays stable at 209°C, perfect for high-temperature parts like exhaust pipes, kettle bottoms, and pot handles.
- High Toughness & Impact Resistance: Withstands high impacts without breaking or warping, ideal for printing durable parts like toy car chassis, skateboard components, and bike parts.
- 20% Short Fiber Lightweight Filament: Offers the same strength as metals but with less weight, ideal for lightweight designs in aerospace and automotive applications.
- Applications: Manufacturing, Automotive, Tooling, Functional and structural parts
- All AMS Series NOT Compatible
- Drying Settings: 90 °C for 12h; 110 °C for 4h
- Nozzle: Hardened steel nozzle with a diameter of 0.4 or 0.6 mm
- Nozzle Temperature & Printing Speed: 270-290 °C at 50-100 mm/s
- Bed Temperature: 50 - 70 °C
- Cooling Fan Speed: 30%
- Bed Type: Textured PEI Sheet
- Annealing Settings: 90 ℃ for 12h, 110 °C for 6h, 130 °C for 3h
* The settings displayed above are intended as guidance to help you find your optimal print settings. These ranges in settings should work for most printers. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.
Inslogic PA6-CF Filament is an engineering-grade material, compatible with FDM 3D printers using 1.75 mm diameter filament with a precision of ±0.03 mm.
Inslogic PA6-CF is a high-performance PA6 copolymer (Nylon 6) reinforced with 20% high-modulus carbon fiber, which significantly enhances its stiffness, strength, and layer adhesion. This material boasts exceptional heat resistance, withstanding temperatures up to 209°C, making it ideal for high-temperature applications. Additionally, PA6-CF offers excellent dimensional stability, maintaining its shape and size even under stress or extreme temperatures. Its outstanding impact resistance also ensures durability, making it perfect for models subjected to impact, collisions, vibrations, and heavy loads.
With its superior mechanical properties, PA6-CF is a reliable choice for printing structural and engineering components, such as fixtures, clamps, and automotive or mechanical parts.
- Length: 358 m
- Net Weight: 250g, 500g, 1 kg
- Diameter: 1.75 mm ± 0.03 mm
- Tensile Strength: 172 MPa
- Elongation at Break: 10.1%
- Flexural Strength: 254 Mpa
- Flexural Modulus: 10202 Mpa
- Shore D Hardness: 84D
- Density: 1.2 g/cm³
- Heat Deflection Temperature at 0.45 MPa: 209 ℃
1 kg Reusable Spool Specifications:
- Materials: PC
- Color: White grey
- Temperature Resistance: ≤110℃
- Spool & Cardboard Coil Weight: 232 ± 3 g
- Inner Hole Diameter: 55±0.1 mm
- Outer Diameter: 200±0.1 mm
- Width: 67±0.1 mm
* All specifications have been tested in a laboratory. Please note that material properties may vary based on part geometry, print orientation, print settings, and temperature.
