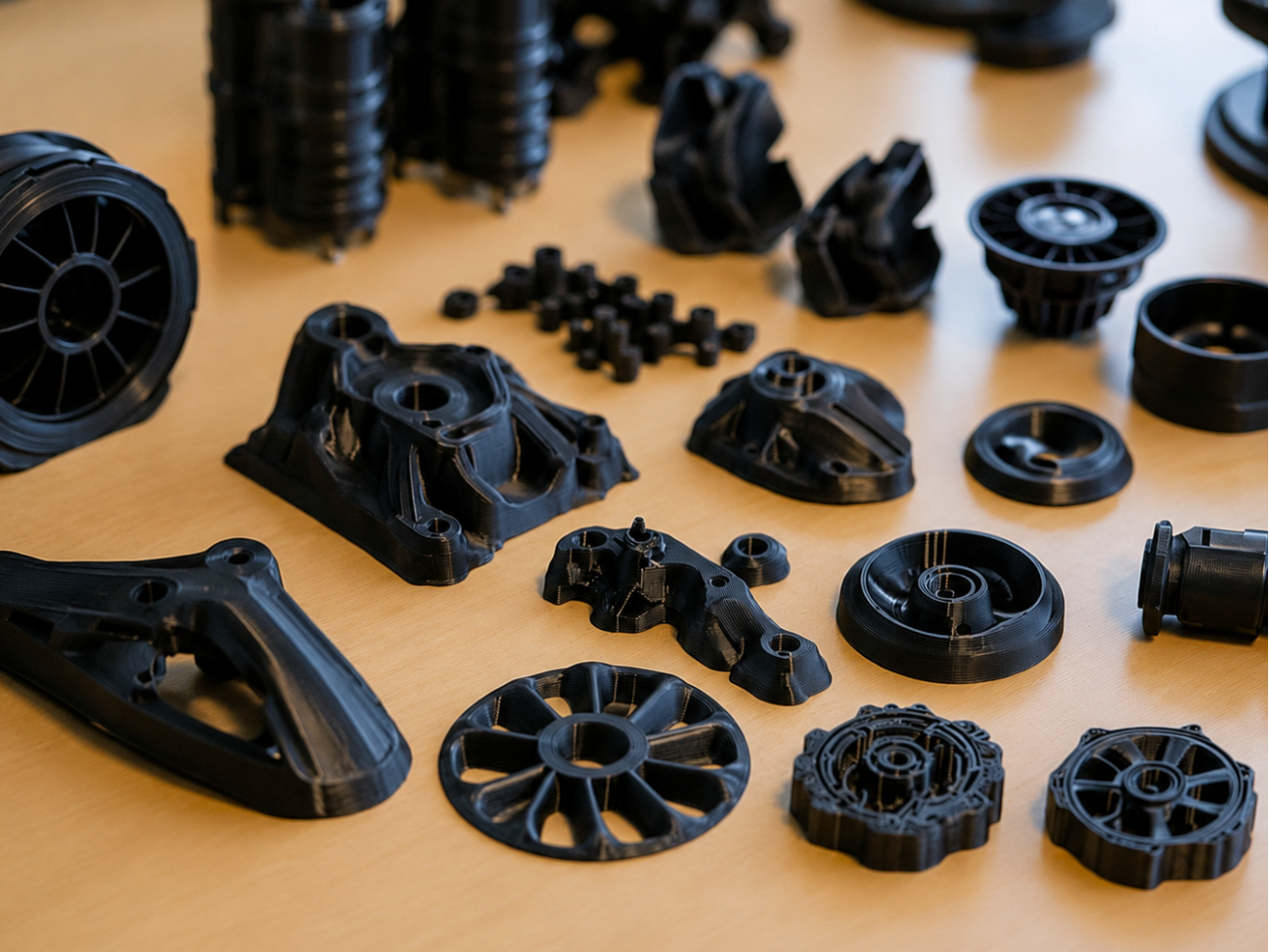

Inslogic PA12-CF: Heavy-Duty Strength Meets Ultra-Lightweight 3D Printing

For functional 3D printing, the ultimate goal has always been simple yet notoriously difficult to achieve: industrial-grade strength without heavy structural bulk. Traditional polymers often force a compromise—yielding prints that are either too heavy or far too brittle under active mechanical stress.

Eliminating structural brittleness is the true threshold for functional parts. Welcome to the next tier of engineering materials: Inslogic Industrial PA12-CF. Reinforced with 20% high-modulus carbon fiber particles, this advanced filament is molecularly tailored to replace heavy metal brackets and fragile plastics alike. It delivers an exceptional strength-to-weight ratio, allowing you to design high-impact parts that remain incredibly nimble.

The Weight-to-Strength Paradox: Only 103 Grams

As demonstrated in our engineering video above, we printed a fully functional, end-use desktop tripod stand. Despite its rigid mechanical joints, complex threads, and high clamping force, the entire structural print weighs an astonishingly light **103 grams**. This ultra-lightweight design is achieved thanks to a material density of just 1.0466 g/cm³ combined with the structural stiffness of carbon fiber reinforcement.

The Technical Breakdown: Laboratory Verified Specs

Inslogic PA12-CF does not rely on subjective claims. Our engineering team subjected this formulation to standardized ISO testing to map its mechanical thresholds under actual stress:

Why PA12-CF Beats Traditional Nylon Base Materials

1. Long-Term Dimensional Stability: Standard nylon is notorious for absorption, meaning it drinks moisture from ambient air and swells, throwing off strict engineering tolerances. PA12-CF exhibits incredibly low moisture sensitivity, ensuring your tight mechanical clearances fit perfectly months after printing.

2. High Impact Toughness for Industrial Environments: With a notched Izod impact rating of 13.2 KJ/m², parts printed in PA12-CF absorb energy during collisions or cyclic vibration instead of shattering. This makes it a top-tier pick for end-use components under active mechanical load.

3. Thermal Thresholds Up to 176°C: Standard PLA and PETG melt or sag in summer heat or near electronics. PA12-CF maintains its shape and load capacity in extreme thermal environments, making it suitable for automotive and drone applications.

R&D Lab Recommended Printing Profile

Because carbon fiber is abrasive, printing requires a hardened steel or ruby nozzle. For flawless structural layer bonding, input these optimized laboratory settings:

• Filament Pre-Drying: 90°C for 12 hours or 110°C for 4 hours (Crucial for bubble-free layers).
• Nozzle Temperature: 260°C – 280°C
• Printing Speed: 50 – 100 mm/s
• Bed Temperature & Surface: 60°C – 70°C on a Textured PEI Sheet
• Cooling Fan Speed: 70%

Industrial Use-Cases

Where should you deploy this advanced material? Our customers rely on PA12-CF for:

• Aerospace & Drones: Lightweight structural drone arms, multirotor frames, and bracket housings.
• Automotive Prototyping: Custom manifold components, high-heat car interior trim adapters, and structural mounts.
• Manufacturing Line: Custom assembly jigs, robust gripping fixtures, and high-wear mechanical replacement parts.
